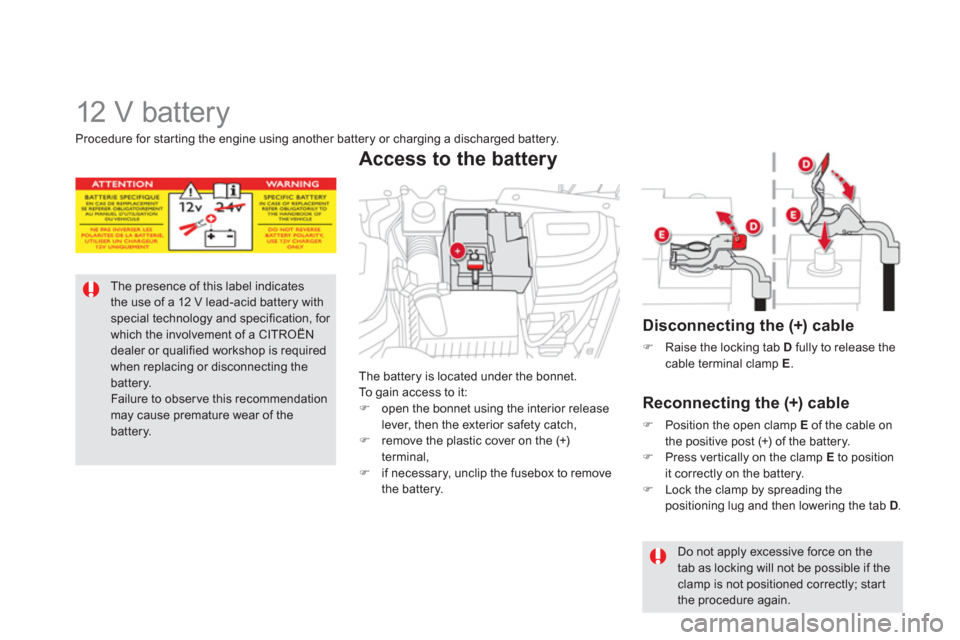

12 V battery
The presence of this label indicatesthe use of a 12 V lead-acid battery withspecial technology and specification, for which the involvement of a CITROËN dealer or qualified workshop is requiredwhen replacing or disconnecting thebattery.
Failure to observe this recommendation may cause premature wear of thebattery. The battery is located under the bonnet.
To
gain access to it:)
open the bonnet using the interior releaselever, then the exterior safety catch, )
remove the plastic cover on the (+)
terminal,) if necessary, unclip the fusebox to remove
the battery.

Access to the battery



Disconnecting the (+) cable
)Raise the locking tab Dfully to release the cable terminal clamp E
.



Reconnecting the (+) cable
)Position the open clamp Eof the cable on
the positive post
(+) of the battery. )Press ver tically on the clamp E to positionit correctly on the battery. )Lock the clamp by spreading the positioning lug and then lowering the tab D.

Do not apply excessive force on thetab as locking will not be possible if the clamp is not positioned correctly; star tthe procedure again. Procedure
for starting the engine using another battery or charging a discharged battery.

231Checks
Specifi cation of the fl uid
To ensure optimum cleaning and to avoid freezing, the fluid should never be topped up or replaced by plain water.

Screenwash / headlamp
wash level
To check the level or top up the fluid on vehicle fitted with headlamp washers, immobilise the
vehicle and switch of the engine. )Before opening the bonnet, ensure that the engine has completely stopped. )Open the screenwash reser voir filler cap.
Avoid prolonged contact of used oil or fluids with the skin.
Most of these fluids are harmful tohealth or indeed very corrosive.

Do not discard used oil or fluids into sewers or onto the ground.

Take used oil to a CITROËN dealer or a qualified workshop (France) or to anauthorised waste disposal site.








Used products

Topping up

This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.

Diesel additive level
(Diesel engine with particle
emission filter)

A low additive level is
indicated by illumination of
the ser vice warning lamp,
accompanied by an audible warning and a
message in the instrument panel screen.
) Take and pinch the level gauge to block its breather.)
Remove the gauge completely from
the reservoir to read the level in thetransparent section.) To p u p if necessary.)
Refit the filler cap to the reser voir andclose the bonnet.
