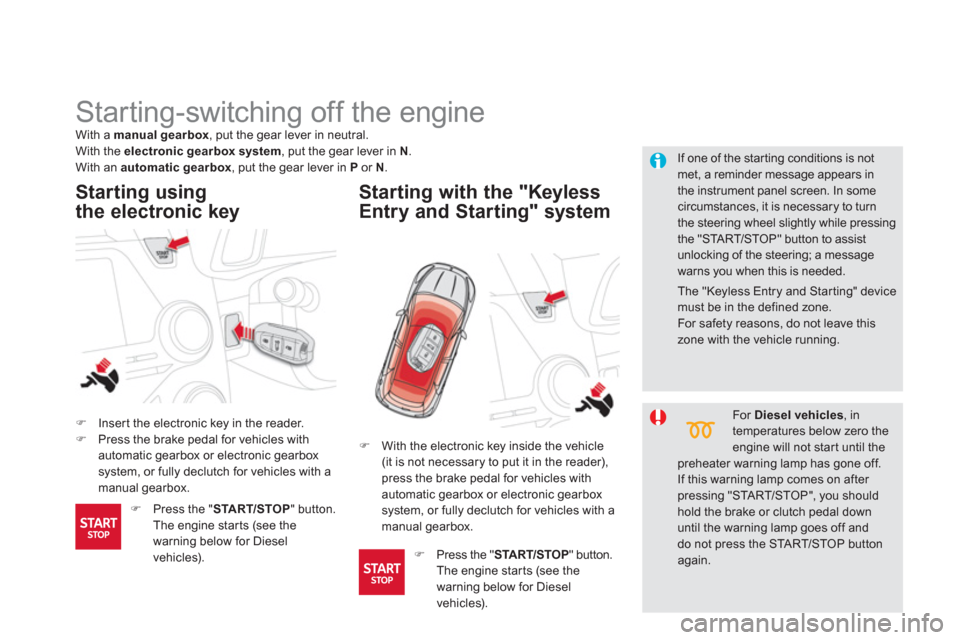

Starting-switching off the engine
)Inser t the electronic key in the reader. )Press the brake pedal for vehicles with automatic gearbox or electronic gearbox
system, or fully declutch for vehicles with amanual gearbox.
Starting using
the electronic key
Startin
g with the "Keyless
Entry and Starting" system


If one of the star ting conditions is not met, a reminder message appears in the instrument panel screen. In some circumstances, it is necessary to turnthe steering wheel slightly while pressingthe "STA R T/STOP" button to assistunlocking of the steering; a messagewarns you when this is needed.
With a manual gearbox, put the gear lever in neutral.With the electronic gearboxsystem
, put the gear lever in N.
With an automatic gearbox
, put the gear lever in Por N
.


For Diesel vehicles
, in
temperatures below zero the engine will not star t until the preheater warning lamp has gone off.
If this warning lamp comes on after pressing "STA R T/STOP", you shouldhold the brake or clutch pedal downuntil the warning lamp goes off anddo not press the STA R T/STOP buttonagain.

)
With the electronic key inside the vehicle(it is not necessary to put it in the reader),
press the brake pedal for vehicles with
automatic
gearbox or electronic gearbox system, or fully declutch for vehicles with a
manual gearbox.
) Press the "START/STOP" button.
The engine star ts (see the
warning below for Diesel
vehicles).
)Press the "START/STOP" button.
The engine star ts (see the
warnin
g below for Diesel
vehicles).

The "Keyless Entry and Starting" devicemust be in the defined zone.
For safety reasons, do not leave thiszone with the vehicle running.

101Driving

Switching off using the
electronic key
)Immobilise the vehicle.


Electronic key left in the reader

If the electronic key is left in the reader, on opening the driver's door a messageappears to warn you.



Stopping with the
"Keyless Entry and
Startin
g" system
)Immobilise the vehicle.
If the vehicle is not immobilised,
the engine will not stop.
Ignition on without starting
the engine
(accessory position)
)
With the electronic key inside
the vehicle, press the "START/
STOP"
button.
The engine stops and thesteering column locks.
)
Press the "START/STOP
" button
The engine stops and thesteering column locks.











Anti-theft protection


Electronic engine immobiliser

The keys contain an electronic chip which has
a secret code. When the ignition is switched on, this code must be recognised in order for starting to be possible.
This electronic engine immobiliser locks theengine management system a few minutes
after the ignition is switched off and preventsstarting of the engine by anyone who does not have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.
With the electronic key in the reader or the
Ke
yless Entry and Starting key inside the
vehicle, pressing the "START/STOP" button,with no action on the pedals, allows the ignition
to be switched on and so activate the ancillaryequipment.
)Remove the electronic key from the reader.
)
Press the "STA R T/STOP" button,
the instrument panel comes on
but the engine does not star t. ) Press the button again to switch
off the ignition and so allow the
vehicle to be locked.

If you use the accessory position for toolong, the system automatically goes intoeconomy mode to avoid the risk of a flatbattery.

Emergency starting with the
Keyless Entry and Starting
system
When the electronic key is in the defined zone and your vehicle does not star t after pressingthe "STA R T/STOP" button: )Inser t the electronic key in the reader. )Press the brake pedal on vehicles withautomatic gearbox or electronic gearbox
system, or fully declutch with a manualgearbox.)Press the "STA R T/STOP" button.The engine starts. In the event o
f an emergency only, the enginecan be switched of without conditions. To dothis, press and hold the "START/STOP" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
I
f the electronic key is no longer in the defined
zone when driving or when you (later) request switching off the engine, a message appears in
the instrument panel.

Emergency switch- off
Electronic key not recognised by
the "Keyless Entry and Starting"
system
)Press and hold the "STA R T/STOP"
button for about 3 seconds if you want to
force switchin
g off the engine (note that restarting will not be possible without
the key).

121Driving

You must press the brake pedal when starting the engine.
Whatever the circumstances, you mustmanually apply the parking brake when parking, unless the parking brake is programmed in automatic mode.

When immobilising the vehicle, with the engine running, you must place the gear lever in neutral N.Before carrying out any work in the engine compar tment, check that the gear lever is in neutral N
and that the parking brake is applied.

Stopping the vehicle

With the ignition on, the flashing of this warning lamp,
accompanied by an audible signal and a message
in the instrument panel screen, indicates a
mal
function of the gearbox.
Have it checked by CITROËN or a qualified
workshop. Be
fore switching off the engine, you canchoose to:
- move to position N
to engage neutral,
- leave the gear engaged; in this case, it will
not be possible to move the vehicle.
In both cases, you should apply the parking brake to immobilise the vehicle.


Operating fault

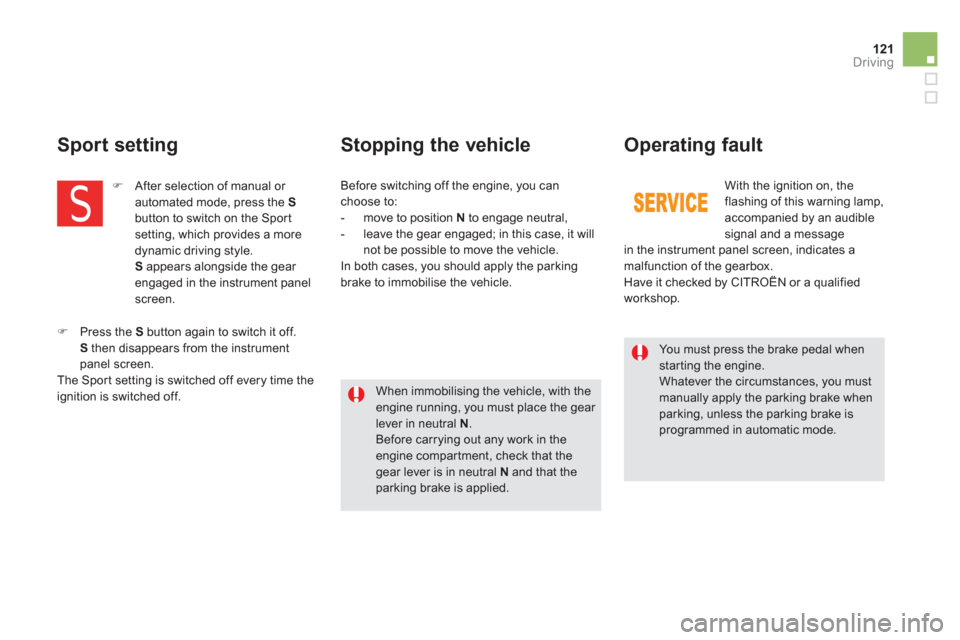

Sport setting
)
After selection of manual or
automated mode, press the Sbutton to switch on the Sport setting, which provides a more
dynamic driving style.S appears alongside the gear engaged in the instrument panelscreen.
)Press the Sbutton again to switch it off. Sthen disappears from the instrument panel screen.
The Spor t setting is switched off every time the
ignition is switched off.

Stop & Start
Operation
Going into engine STOP mode
The "ECO"warning lamp comes on
in the instrument panel and the engine
goes into standby automatically:
- with the electronic
gearbox system,
at
speeds below 5 mph (8 km/h), press the brake pedal or put the gear lever in position N.
If your vehicle is fitted with the system, a timecounter calculates the sum of the periods in STOP mode during a journey. It resets itself to
zero every time the ignition is switched on with
the STA R T/STOP button.
Never refuel with the engine in STOPmode; you must switch off the ignition with the STA R T/STOP button.
For your comfor t, during parkingmaoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...


Special cases: STOP mode not available
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph(10 km/h) since the last engine start usingthe START/STOP button,

- the electric parking brake is applied or
being applied,

- the engine is needed to maintain acomfor table temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.
In this case, the "ECO"
warning lamp
flashes for a few seconds then goesoff. The
Stop & Star t system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restar ts automatically - START mode - as soon as you want to move off. The restar t takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Star t system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
This operation is per fectly normal.

123Driving

Going into engine START mode
The "ECO"warning lamp goes off and the engine star ts automatically with the electronic gearbox system
:


●

gear lever in position Aor M
, release the
brake pedal,

●
or
gear lever in position N
and the brake pedal released, move the gear lever to position A
or M,

●
or engage reverse gear.
START mode is invoked automatically when:
- the driver's door is open,
- the driver's seat belt is not fastened,
- the speed of the vehicle exceeds 7 mph
(11 k m / h) with the electronic gearbox system,
- the electric parking brake is being applied,
- some special conditions (battery charge,engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.
Special cases: START invoked automatically

If the system has been deactivatedin STOP mode, the engine restar ts immediately.

At any time, press the "ECO OFF"
switch todeactivate the system.
This is confirmed by the switch warning lamp coming on accompanied by a message in the screen.


Deactivation
In this case the "ECO"
warning
lamp flashes for a few seconds, then goes off.
This operation is per fectly normal.

The system is reactivated automaticallyat every new star t using the STA R T/STOP button.

Reactivation
Press the "ECO OFF"switch again.
The system is active again; this is confirmed
by the switch warning lamp going off and a
message in the screen.

Operating fault

In the event of a fault with the system, the
"ECO OFF"
switch warning lamp flashes thencomes on continuously.
Have it checked by a CITROËN dealer or aqualified workshop.
In the event of a fault in STOP mode, the
vehicle may stall.
All of the instrument panel warning lamps come on.
Depending on version, an alert message mayalso be displayed, asking you to place the gear lever in position Nand put your foot on the brake pedal.
It is then necessary to switch off the ignition
and star t the engine again using the "STA R T/STOP" button.

Before doing anything under the bonnet,deactivate the Stop & Start system toavoid any risk of injury resulting from automatic operation of START mode.
This s
ystem requires a 12 V battery with a special specification and technology (reference numbers available from CITROËN dealers).
Fitting a battery not listed by CITROËN
introduces the risk of malfunction of the system.
For charging, use a 12 V charger and do not
reverse the polarity.

Maintenance


The Stop & Star t system makes use of advanced technology. For any work onthe system go to a qualified workshop with the skills and equipment required, which a CITROËN dealer is able toprovide.

127Driving
)With the engine running, press button 1.The activated/deactivated status when theengine was switched off is retained when
the engine is switched on again.
The strip retracts automatically 3 seconds after switching off the engine except in STOP mode
of Stop & Start.

Activation / Deactivation
)
With the engine running, adjust the brightness of the information usingbutton 3:


- towards the rear to increase thebrightness,

- towards the front to decrease the
brightness.
Brightness adjustment
We recommend that adjustments areonly made using these buttons whenthe vehicle is stationary.
When stationary or while driving, no objects should be placed around thetransparent strip (or on its cover) toavoid blocking the strip output and preventing its correct operation.


In certain extreme weather conditions (rain and/or snow, bright sunshine, ...)the head-up display may not be legibleor may suffer temporary inter ference.
Some sunglasses may hamper readingof the information. To clean the transparent strip, use aclean, soft cloth (such as a spectacles cloth or microfibre cloth). Do not usea dry or abrasive cloth or detergent or solvent products as these could scratch the strip or damage the anti-reflection coating.



Height adjustment
)With the engine running, adjust the display
to the required height using button 2:
- towards the rear to move the display up,
- towards the front to move the display down.
