2012.5 Citroen DS3 remote start

Remote control key System which permits central unlocking or locking of the vehicle using the lock or from a distance. It is also used to locate and start the vehicle, as well as providing protection against theft.
Unlocking the vehicle
Unfolding the key
)First press this button to unfold the key.


Unlocking using the remote
control


Unlocking using the key
Locking the vehicle


Locking using the remote control

Locking is confirmed by fixed lighting of
the direction indicators for approximately
two seconds.

According to version, the door mirrors fold at
the same time.
)Press the open padlock to unlockthe vehicle.

)
Turn the key to the right in the driver’s door lock to unlock the vehicle.
)
Press the closed padlock to lockthe vehicle.
Unlockin
g is confirmed by rapid flashing of
the direction indicators for approximately
two seconds.
Accordin
g to version, the door mirrors unfold at
the same time.

Locking using the key
)Turn the key to the left in the driver’s door
lock to lock the vehicle completely.

225
Practical information

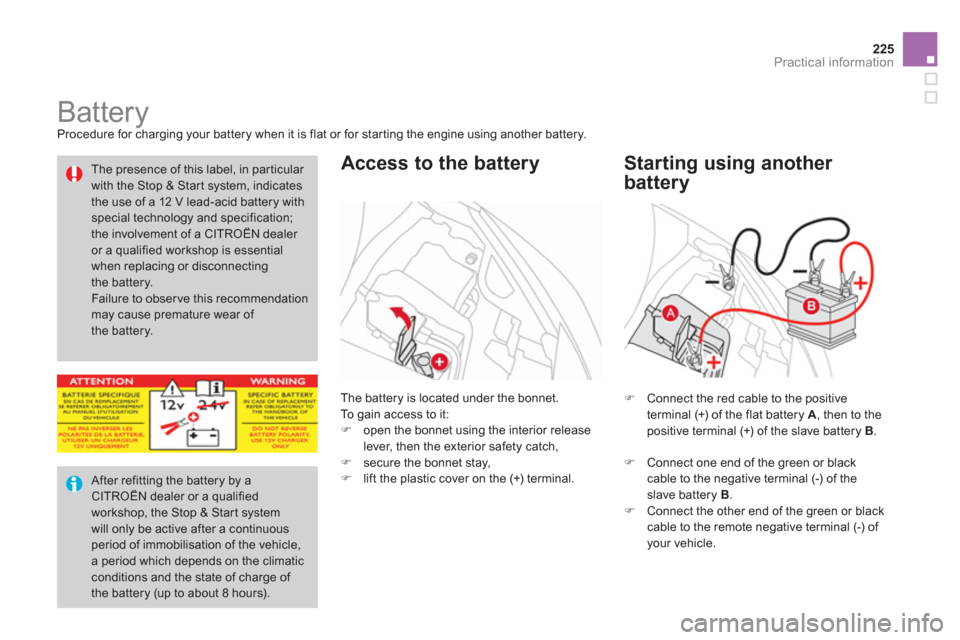

Battery
Procedure for charging your battery when it is flat or for starting the engine using another battery.
The battery is located under the bonnet.To gain access to it:
)
open the bonnet using the interior releaselever, then the exterior safety catch,)
secure the bonnet stay, )
lift the plastic cover on the (+) terminal.


Access to the battery
)
Connect the red cable to the positive
terminal (+) of the flat battery A, then to the
positive terminal (+) of the slave battery B.

Starting using another
batter
y
After refitting the battery by a CITROËN dealer or a qualifiedworkshop, the Stop & Star t system will only be active after a continuousperiod of immobilisation of the vehicle,a period which depends on the climaticconditions and the state of charge of
the battery (up to about 8 hours).
The presence of this label, in particular with the Stop & Start system, indicatesthe use of a 12 V lead-acid battery withspecial technology and specification;
the involvement of a CITROËN dealer or a qualified workshop is essential when replacing or disconnectingthe battery.
Failure to observe this recommendation may cause premature wear of the battery.
)
Connect one end of the green or blackcable to the negative terminal (-) of the slave battery B
. )
Connect the other end of the green or black cable to the remote negative terminal (-) of your vehicle.

)Start the slave vehicle.)Operate the star ter of the broken down
vehicle and let the engine run.)Wait until the engine returns to idle anddisconnect the cables.

Charging the battery using
a battery charger

Batteries contain harmful substancessuch as sulphuric acid and lead. Theymust be disposed of in accordancewith regulations and must not, in anycircumstances, be discarded with household waste. Ta k e used remote control batteries andvehicle batteries to a special collectionpoint.
)
Follow the instructions for use provided bythe manufacturer of the charger.
Do not disconnect the battery to charge it.
Do not push the vehicle to star tthe engine if your vehicle is fitted with an electronic gearbox.

319Alphabetical index
Paint colour code........................................248Paintwork, matt...........................................233Parcel shelf, rear.........................................r131Parking brake......................................162,195Parking sensors, rear..................................r182Particle emission filter........................r193, 194Passenger compartment filter....................r194Player, CD MP3...................................273,293Port, USB...........................128, 280,294, 296Priming the fuel system..............................188Protecting children...............132-142, 15 3, 15 6
Puncture......................................................198
Radio ...................................................271, 291Rear foglamp .......................................114, 215Rear screen (demisting) ................................76Recharging the battery............................... 226Reduction of electrical load........................228Regeneration of the particleemissions filter..........................................r194Reinitialising the electric windows..............101Reinitialising the remote control ...................94Remote control ........................................90-95Removing a wheel......................................207Removing the mat....................................... 129Repair kit, puncture ..................................... 198Replacing bulbs...................................211-217
R
Replacing fuses...................................218-224Replacing the air filter.................................r194Replacing the oil filter.................................r194
Replacing the passenger compartment filter....................................r194
Replacing wiper blades .......................121, 228Resetting the service indicator.....................r44Resetting the trip recorder............................r46Rev counter.............................................r28,30Reversing lamp...........................................215Risk areas (update).....................................268Routine checks...................................194, 195Running out of fuel (Diesel) ........................188
Serial number, vehicle................................248Ser vice indicator...........................................r43Servicing.......................................................24Setting the clock........................278, 300,301Shor t-cut menus .................................259, 260Sidelamps ...................................112,213, 215Side repeater...............................................213Spare wheel................................................204Speed limiter...............................................r178Speedometer..........................................r28, 30Stability control (ESP).................................149Starting the vehicle .......................92, 165,170Steering mounted controls, audio.......257,289Stopping the vehicle .....................92, 165,170Stop & Start.....50,73,106,174, 187, 194,225Storage................................................ 126, 127Storage box.................................................131Stowing rings..............................................130Sun visor.....................................................r127Synchronising the remote control.................94System, navigation ......................................261Systems, ASR and ESP ..............................149
P
Safety for children................132-142, 153, 156Scented air freshener...................................r77Screen, colour 16/9 .......................61, 258, 279Screen, monochrome ................ 290, 302,304Screen, multifunction (with audio equipment)...................54, 57, 61Screen-wash reservoir................................191Screen menu map......................279, 302,304Screenwash ................................................119Screenwash fluid level ................................192Seat, rear bench...........................................84Seat adjustment......................................79, 82Seat belts ............................................151,153Seats, rear.....................................................r84
S
