2012.5 Citroen DS3 check

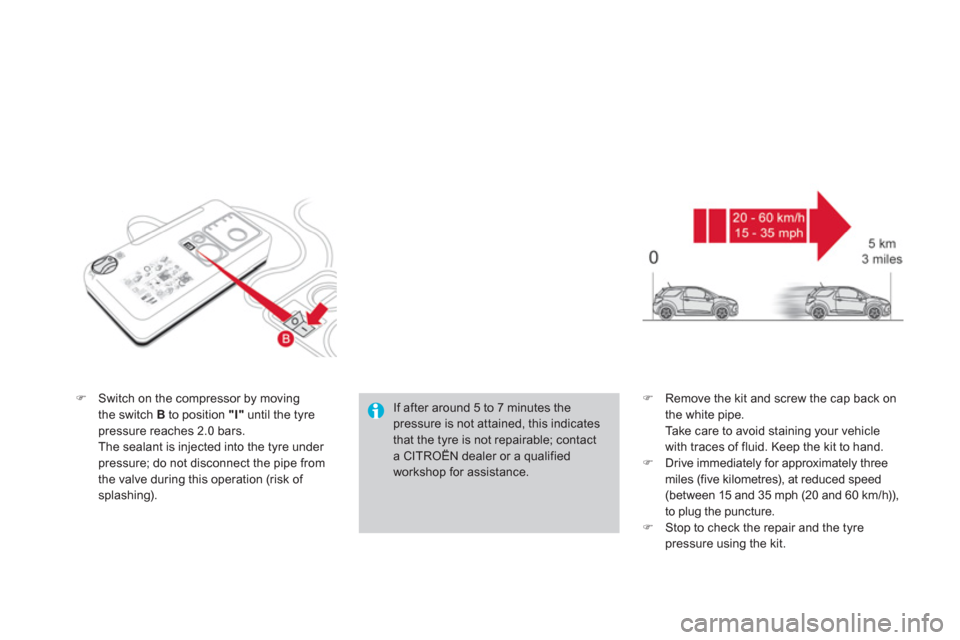

)Switch on the compressor by movingthe switch Bto position "I" until the tyre
pressure reaches 2.0 bars. The sealant is injected into the tyre under pressure; do not disconnect the pipe from
the valve during this operation (risk of
splashing).
)Remove the kit and screw the cap back on
the white pipe.

Take care to avoid staining your vehicle
with traces of fluid. Keep the kit to hand. )Drive immediately for approximately three miles (five kilometres), at reduced speed (between 15 and 35 mph (20 and 60 km/h)),
to plug the puncture.)Stop to check the repair and the tyre pressure using the kit.
If after around 5 to 7 minutes thepressure is not attained, this indicates
that the tyre is not repairable; contact a CITROËN dealer or a qualified workshop for assistance.

203Practical information

Checking tyre pressures/inflating accessories


You can also use the compressor, without
injecting any product, to:


- check or adjust the pressure of your tyres,

- inflate other accessories (balls, bicycle
tyres...).
) Connect the compressor's electricalconnector to the vehicle's 12 V socket. )
Start the vehicle and let the engine run.)
Adjust the pressure using the compressor
(to inflate: switch Bin position "I";
to deflate: switch Bin position "O"
andpress button C ), according to the vehicle's
tyre pressure label or the accessory's
pressure label.) Remove the kit then stow it.


)Turn the selector A
to the "A ir"position.)Uncoil the black pipe Hfully. )Connect the black pipe to the
valve of the wheel or accessory.
If necessary, fit one of the adaptors supplied with the kit first.

209Practical information
Fitting a wheel
After changing a wheel
To store the punctured wheel in the boot correctly, first remove the centralcover. When using the "space-saver" typetemporary-use spare wheel, do not exceed 50 mph (80 km/h).Have the tightening of the bolts and thepressure of the spare wheel checkedby a CITROËN dealer or a qualified workshop without delay. Have the punctured wheel repaired and replace it on the vehicle as soon aspossible.Do not drive with more than one temporary-use spare wheel fitted to the vehicle at one time.


List of operations
)
Put the wheel in place on the hub. )
Screw in the bolts by hand.
)
Pre-tighten the security bolt (if your vehicle
is fitted with them) using the wheelbrace 1fitted with the socket 4.) Pre-tighten the other bolts using the
wheelbrace 1only.

Changing a fuse

Installing electricalaccessories

Yo u r v e h i c l e’s electrical system isdesigned to operate with standard or optional equipment.
Before installing other electricalequipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.

CITROËN will not accept responsibilityfor the cost incurred in repairing your
vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and notrecommended by CITROËN andnot installed in accordance with its instructions, in par ticular when thecombined consumption of all of the additional equipment connectedexceeds 10 milliamperes.
The extraction tweezer and the s
pare fusestorage locations are on the back of thedashboard fuse box cover.
For access to them:)open the glove box lid, )unclip the fusebox cover by pulling on
the side, )remove the cover completely,)remove the tweezer.

Access to the tools

Before changing a fuse, the cause of
the failure must be identified and rectified.) Identify the faulty fuse by checking
the condition of its filament.

Changing a fuse
GoodFailed
)
Use the special tweezer to extract
the fuse from its housing.) Always replace the faulty fuse with
a fuse of the same rating.) Check that the number marked on
the box, the rating marked on the fuse
and the tables below all agree.

Changing a front or rear wiper blade
Procedure for replacing a worn wiper blade with a new one without the use of tools.


Before removing a front
wi
per blade
) Within one minute after switching off the
ignition, operate the wiper stalk to position
the wi
per blades in the ver tical position.
This position must be used in order to avoid
dama
ging the wiper blade and the bonnet.


Removal
)
Raise the corresponding wiper arm. )
Unclip the wiper blade and remove it.



Fitting
)At the front, check the size of the wiper blade as the shorter blade is fitted to thepassenger side of the vehicle. )Put the corresponding new wiper blade inplace and clip it. )Fold down the wiper arm carefully.



After fitting a front wiper
blade
)Switch on the ignition.)Operate the wiper stalk again to park the
wiper blades.








Load reduction mode System which manages the use of certainfunctions according to the level of chargeremaining in the battery.
When the vehicle is being driven, the loadreduction function temporarily deactivates cer tain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated automatically as soon as conditions permit.

The rear parking sensors will be deactivated automatically if a genuineCITROËN towbar is used.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its coolingcapacity is not dependent on the engine speed. )To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
Braking
To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine braking is recommended.

Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.

Lighting
)
Check the electrical lighting and signallingon the trailer.
)
If the warning lamp and the
STOPwarning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.

RACING towbar

Your vehicle cannot be fitted with a towbar. The space occupied by thesport diffuser prevents this.

Identifi cation markings
A. Vehicle identification number (VIN) under
the bonnet.This number is engraved on the bodywork near
the passenger compar tment filter.
B. Vehicle identification number on the dashboard.This number is indicated on a self-adhesive label which is visible through the windscreen.
D. Tyre/paint label.
This label is affixed to the left hand centre pillar.

Wheels which are fitted with 205/45 R17 tyres cannot be fitted with snow chains. For more information, contact a CITROËN dealer or a qualified workshop.

Low tyre pressures increase fuelconsumption.

The tyre pressures must be checked when the tyres are cold, at least oncea month.
C. Manufacturer's label.
The VIN is indicated on a self-destroying label
affixed to the left hand centre pillar.
It bears the
following information:


- the tyre pressures, for unladen and laden conditions,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by the manufacturer,

- the spare tyre inflation pressure,

- the paint colour code.

EMERGENCY OR ASSISTANCE CALL







CITROËN LOCALISED EMERGENCY CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the CITROËN Emergency team * .gg
Pressing this button again immediately cancels the request. The green LED goes off.
A press
(at any time) of more than 8 seconds on this button, cancels the
request.

CITROËN LOCALISED ASSISTANCE CALL


When the ignition is switched on, thegreen LED comes on for 3 seconds
indicating that the system is operating correctly.

If the oran
ge LED fl ashes: there is
a system fault.
If the oran
ge LED is on continuously:
the backup battery must be replaced.
In either case, contact a CITRO
ËN. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with b
y the CITROËN Emergency team which receiveslocating information from the vehicle and can send a detailed alert to
the appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directl
y by the emergency services (11 2) without
the vehicle location.

If an impact is detected b
y the airbag ECU, and independentlyof the deployment of any airbags, an emergency call is made
automatically.


*

These services are subject to conditions and availability.
Consult a CITROËN dealer.If you purchased your vehicle outside the CITROËN dealer network,
we invite
you to have a dealer check the confi guration of these servicesand, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularl
y to improve the quality of Telematic services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
If you benefi t from the CITROËN eTouch offer, you also have availableadditional services in your MyCITROËN personal space, via the CITROËN y,y
Internet website www.citroen.co.uk.
