2012.5 Citroen DS3 display

Monochrome screen A
This displays the following information:
- time,
- date,
- ambient temperature
(this flashes if there isa risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
- trip computer (refer to the "Instruments andControls" section).
Warning messages (e.g.: "Emission control
system faulty") or information messages(e.g.: "Boot open") may appear temporarily.
These can be cleared by pressing
the "ESC"button.
Displays on the screen

From the control panel of your Audio system, you can:)
press the "MENU"
button to gain access to
the main menu,
)
press the " " or " " buttons to scroll
through the items on the screen,) press the "MODE"button to change
the permanent application (date, audio source...), ) press the "
" or "
" buttons to change
a setting value, ) press the "OK"button to confirm,or )
press the "ESC"button to abandon
the operation in progress.

Controls
)Press the "MENU"
button to gain access
to the main menu
, then press the "  " or " " buttons to scroll through the variousmenus:
- radio-CD,
- vehicle configuration,
- options,
- displa
y settings,
- languages,
-
units. )Press the "OK"button to select the menurequired.

Main menu

Languages
Once the "Languages" menu has been selected,you can change the language used by the display (Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been selected, you can change the units of the followingparameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or km/l).
Once the fuel consumption units havebeen set to mpg, the information in the instrument panel screen on speed anddistance will also be in mph and miles.
For safety reasons, configuration by the driver of the multifunction screen mustonly be done when stationary.
Display settings
Once the "Display settings" menu has beenselected, you can gain access to the following settings:
- year,
- month,
- day,
- hour,
- minutes,
-
12 or 24 hour mode.
)
Once you have selected a setting, press
the "  " or " " buttons to change its value.
) Press the "
" or "
" buttons to switch
respectively to the previous or next setting.) Press the "OK"
button to save the change
and return to the normal display or press
the "ESC"button to cancel.

57
Multifunction screens

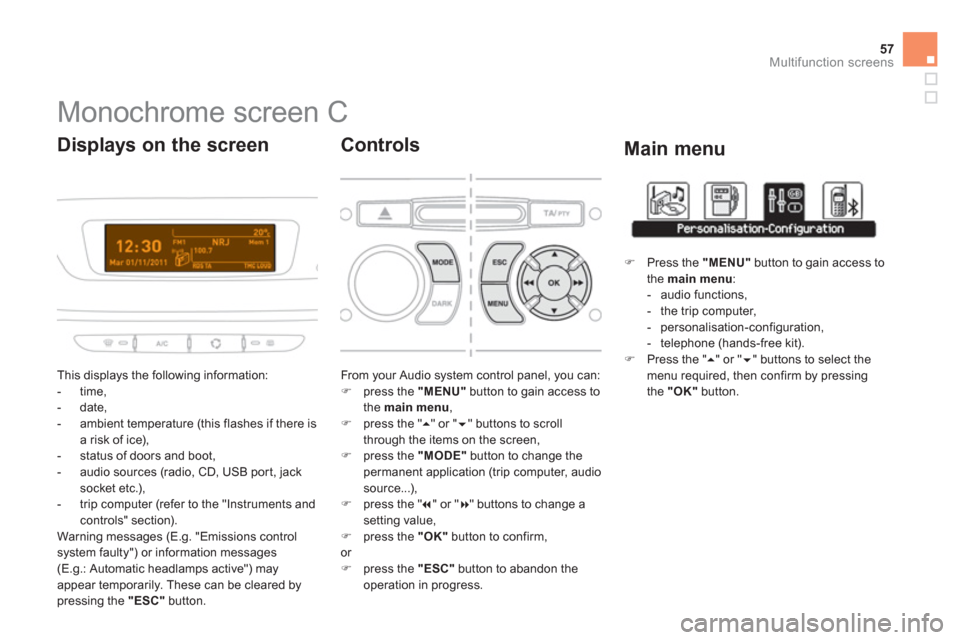

Monochrome screen C

This displays the following information:


- time,

- date,

- ambient temperature
(this flashes if there isa risk of ice),

- status of doors and boot,

- audio sources (radio, CD, USB por t, jacksocket etc.),

- trip computer (refer to the "Instruments andcontrols" section).
Warning messages
(E.g. "Emissions controlsystem faulty") or information messages(E.g.: Automatic headlamps active") may
appear temporarily. These can be cleared by pressing the "ESC"
button.


Displays on the screen
From your Audio system control panel, you can:)
press the "MENU"
button to gain access to
the main menu,)
press the "
" or " " buttons to scroll
through the items on the screen, ) press the "MODE"
button to change the
permanent application (trip computer, audiosource...),) press the "  " or " " buttons to change asetting value,)
press the "OK"button to confirm,or )
press the "ESC"button to abandon theoperation in progress.

Controls
)
Press the "MENU"
button to gain access to
the main menu:- audio functions,
- the trip computer,
- personalisation-configuration,
- telephone (hands-free kit). )
Press the "
" or "
" buttons to select themenu required, then confirm by pressing
the "OK"
button.


Main menu

With the Audio system switched on, once this menu has been selected you can activate
or deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3 player (USB por t/jack socket).
For more information on the "Audio functions"application, refer to the Audio system part of
the "Audio and Telematics" section.


"Au d i o f u n c t i o n s"
menu"Tri
p computer" menu
Once this menu has been selected, you canconsult information concerning the status of the
vehicle
(warnings log, status of functions, etc.)

Alert log
This summarises the active warning messages,
displaying them in succession on the
m
ultifunction screen.

Status of functions

This summarises the status (active or inactive)of the vehicle's functions.


Enter distance to destination

This allows you to enter an approximate
distance until your final destination.
)Press the "MENU"
button to gain access to
the general menu.
)Press the arrows, then the "OK"
button to select the "Trip computer"
menu.
)In the "Trip computer"
menu, select one
of the following applications:

59Multifunction screens
"Personalisation-
Confi
guration" menu
Once this menu has been selected, you can gain access to the following functions:


- define the vehicle parameters,

- display configuration,

- choice of language.


Defi ne the vehicle parameters
Once this menu has been selected, you can
activate or deactivate the following equipment:


- wiper linked to reverse gear (refer to the
"Visibility" section),

- guide-me-home lighting and duration(see "Visibility" section),

- parking sensors (refer to the "Driving" section). Example: settin
g of the duration of the guide-
me-home lighting) Press the " " or "" buttons, then the"OK"
button to select the menu required.
)
Press the "
" or "" buttons, then the"OK"
button to select the "Guide-me-home
headlamps" line.
) Press the " " or " " buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"button to confirm.
) Press the "
" or "
" buttons, then the "OK"button to select the "OK"
box
and confirm or press the "ESC"button
to cancel.

Display confi guration
Once this menu has been selected, you can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units havebeen changed to mpg, the information in the screen relating to speed and distance also changes to mph andmiles respectively.
For safety reasons, configuration by thedriver of the multifunction screen must only be done when stationary.



Choice of language
Once this menu has been selected, you canchange the language used by the display(Deutsch, English, Espanol, Français, Italiano,Nederlands, Portugues, Portugues-Brasil,Türkçe * ).

*
Accordin
g to country of destination. With Audio s
ystem on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the Audio s
ystem par t of the
"Audio and telematics" section.

"Telephone" Menu

61Multifunction screens













16/9 colour screen (MyWay)

It displays the following information
automatically and directly:


- time,

- date,

- altitude,

- ambient temperature
(the value displayedflashes if there is a risk of ice),

- check of the doors,

- warning and vehicle function status messages, displayed temporarily,

- audio functions,

- trip computer information (see the
"Monitoring" section),

- satellite navigation system information.



Displays on the screen
MyWay To select one of the applications,at the control panel:)
press the dedicated "RADIO"
, "MUSIC","NAV"
, "TRAFFIC", "SETUP"or "PHONE"
button for access to thecorresponding menu,)
turn the dial to change the selection, )
press the dial to confirm the selection, or )
press the "ESC"button to abandon the
current operation and return to the previous
display.
Controls

For more information on these applications,
refer to the "Audio and Telematics" section or
to the specific user guide given to you with the other owner's documents.

"SETUP" menu
)Press the "SETUP"button to gain access
to the "SETUP"
menu. This allows you to
select from the following functions:
- "System language",
- "Date and time",
- "Displa
y",
- "Vehicle",- "Units",
- "System".




System language

This menu allows you to select the language used by the display: Deutsch, English,
Espanol, Français, Italiano, Nederlands, Polski,
Por tugues, Türkçe * .

Date and time
This menu allows you to set the date and time,
the format of the date and the format of the time (refer to the "Audio and Telematics" section or
to the specific user guide given to you with the
other owner's documents).

Display

This menu allows you to set the brightness of
the screen, the screen colour scheme and the
colour of the map (day/night or auto mode).

*
Accordin
g to country.

Vehicle

This menu allows you to activate or deactivatecertain driving and comfor t equipment:


- wiper linked with reverse gear(refer to the "Visibility" section),

- guide-me-home lighting and duration(refer to the "Visibility" section),

- parking sensors (refer to the "Driving" section).


Units
This menu allows you to select the units:
temperature (°C or °F) and fuel consumption(km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and
activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.
