2-2

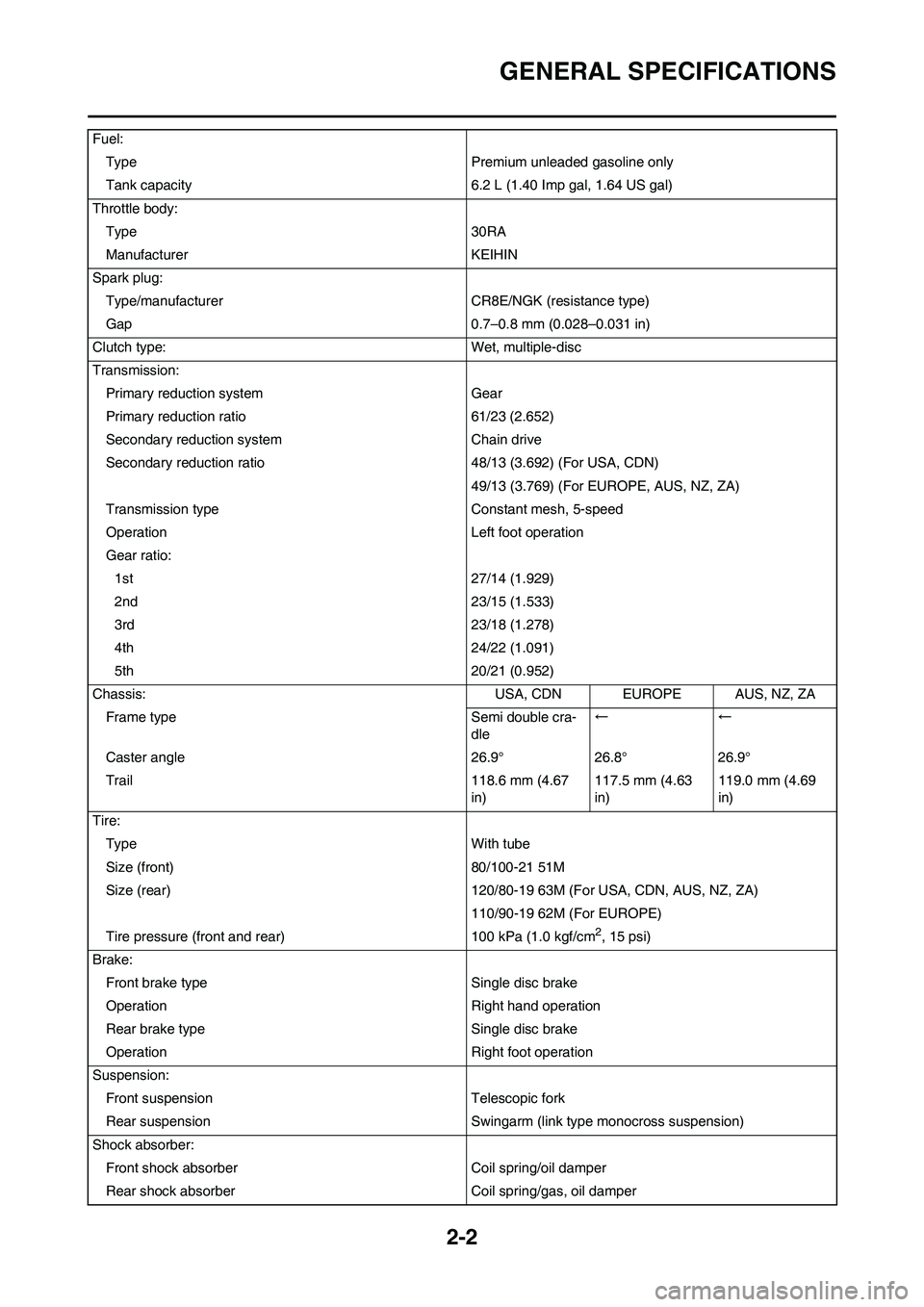

GENERAL SPECIFICATIONS
Fuel:Type Premium unleaded gasoline only
Tank capacity 6.2 L (1.40 Imp gal, 1.64 US gal)
Throttle body: Type 30RA
Manufacturer KEIHIN
Spark plug: Type/manufacturer CR8E/NGK (resistance type)
Gap 0.7–0.8 mm (0.028–0.031 in)
Clutch type: Wet, multiple-disc
Transmission: Primary reduction system Gear
Primary reduction ratio 61/23 (2.652)
Secondary reduction system Chain drive
Secondary reduction ratio 48/13 (3.692) (For USA, CDN)
49/13 (3.769) (For EUROPE, AUS, NZ, ZA)
Transmission type Constant mesh, 5-speed
Operation Left foot operation
Gear ratio: 1st 27/14 (1.929)
2nd 23/15 (1.533)
3rd 23/18 (1.278)
4th 24/22 (1.091)
5th 20/21 (0.952)
Chassis: USA, CDN EUROPE AUS, NZ, ZA Frame type Semi double cra- dle←←
Caster angle 26.9° 26.8° 26.9°
Trail 118.6 mm (4.67 in)117.5 mm (4.63
in)119.0 mm (4.69
in)
Tire: Type With tube
Size (front) 80/100-21 51M
Size (rear) 120/80-19 63M (F or USA, CDN, AUS, NZ, ZA)
110/90-19 62M (For EUROPE)
Tire pressure (front and rear) 100 kPa (1.0 kgf/cm
2, 15 psi)
Brake: Front brake type Single disc brake
Operation Right hand operation
Rear brake type Single disc brake
Operation Right foot operation
Suspension: Front suspension Telescopic fork
Rear suspension Swingarm (link type monocross suspension)
Shock absorber: Front shock absorber Coil spring/oil damper
Rear shock absorber Coil spring/gas, oil damper
