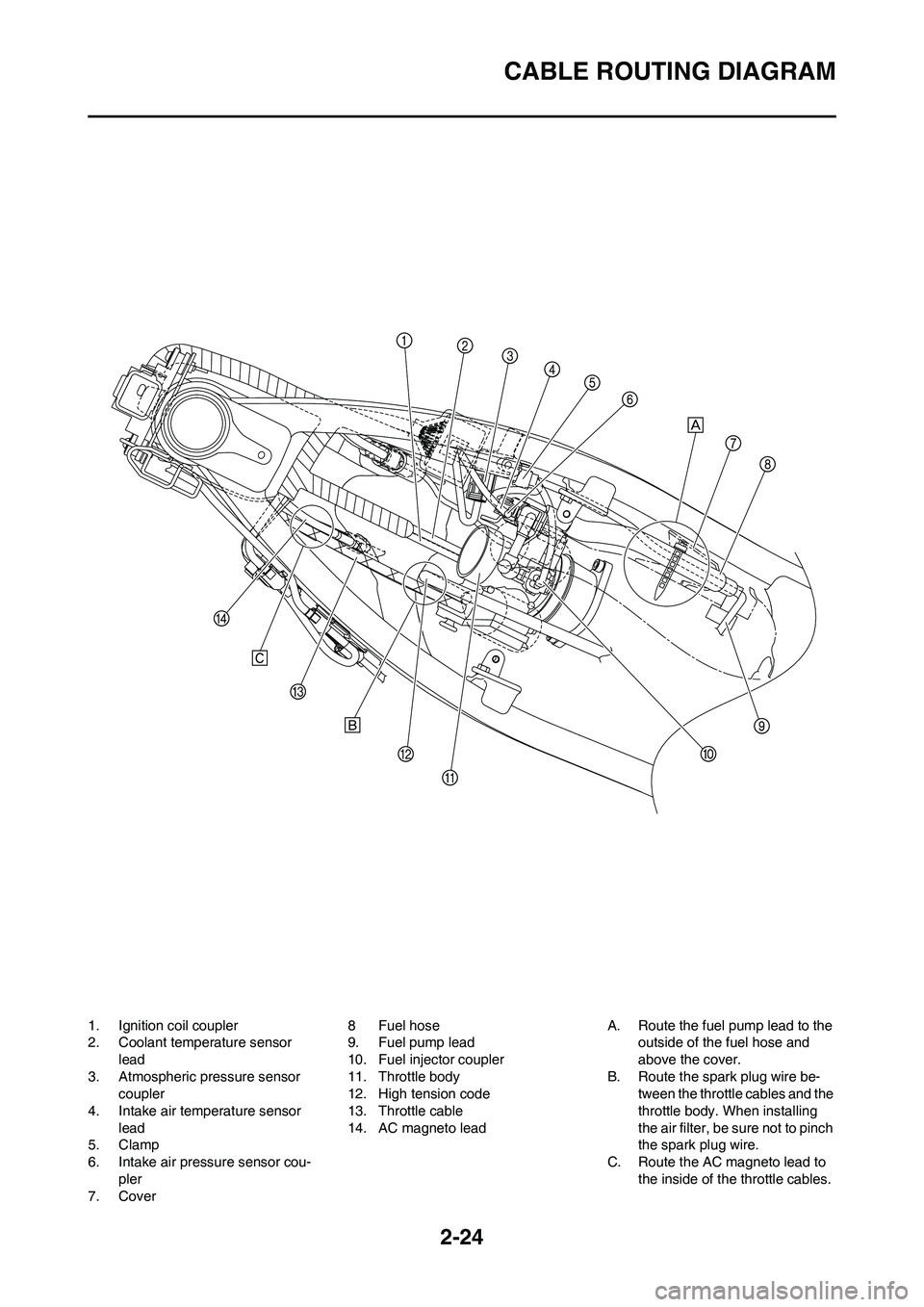

CABLE ROUTING DIAGRAM
1. Ignition coil coupler
2. Coolant temperature sensor
lead
3. Atmospheric pressure sensor
coupler
4. Intake air temperature sensor
lead
5. Clamp
6. Intake air pressure sensor cou-
pler
7. Cover8Fuel hose
9. Fuel pump lead
10. Fuel injector coupler
11. Throttle body
12. High tension code
13. Throttle cable
14. AC magneto leadA. Route the fuel pump lead to the
outside of the fuel hose and
above the cover.
B. Route the spark plug wire be-
tween the throttle cables and the
throttle body. When installing
the air filter, be sure not to pinch
the spark plug wire.
C. Route the AC magneto lead to
the inside of the throttle cables.

3-25
ELECTRICAL
TROUBLESHOOTING
The following guide for troubleshooting does not cover all the possible causes of problems. If the following problems occur,
perform the specified checks or maintenance jobs. If a problem occurs that is not listed in this manual or if the problem
cannot be corrected by the procedures provided in this manual, contact your Yamaha dealer.
Engine starting problems, engine idling speed problems, and medium and high-speed performance problems
• Engine does not start even though the kickstarter is pushed.
• Engine starts, but soon stops.
Engine idling speed problems
• Engine idling speed fluctuates.
• Engine idling speed is high.
• Engine idling speed is low.
Medium and high-speed performance problems
• Engine speed does not increase.
• Engine knocks.
• Engine speed increases suddenly.
• Loss of engine power.
INSPECTION STEPS
If the aforementioned problems have occurred, perform the following inspection steps in the order given.
Check that the fuel tank is filled with fresh gaso-
line.No good→
Fill the fuel tank.
OK↓
Check that the fuel tank breather hose is not
clogged. (Refer to "INCLUDED PARTS" section
in the CHAPTER 1.)No good→
Repair or replace.
OK↓
Adjusting the engine idling speed(Refer to "AD-
JUSTING THE ENGINE IDLLING SPEED" sec-
tion in the CHAPTER 3.)No good→
Adjust.
OK↓
Check that the fuel hose is connected properly
and is not kinked or pinched.No good→
Repair.
OK↓
Check the spark plug for dirt, the spark plug gap,
and the spark plug cap. (Refer to "CHECKING
THE SPARK PLUG" section in the CHAPTER 3.)No good→
Clean or adjust.
OK↓
Check that the air filter element is installed cor-
rectly and is not clogged. (Refer to "CLEANING
THE AIR FILTER" section in the CHAPTER 3.)No good→
Clean or repair.
OK↓
Checking the sensors, injector and ignition coil
connection.No good→
Repair or replace.
OK↓
Installed condition of ECU (Refer to "CHECKING
THE ECU" section in the CHAPTER 7.)No good→
Repair.
OK↓
Check the assembled condition of the throttle
body, and check the throttle valve and its sur-
rounding parts for dirt.No good→
Repair or clean.
OK↓
Consult a Yamaha dealer.

4-16
CYLINDER HEAD
Tighten the cylinder head bolts to 30 Nm (3.0 m•kg, 22 ft•b) in the proper tightening sequence, remove and retighten the
cylinder head bolts to 20 Nm (2.0 m•kg, 14 ft•lb) in the proper tightening sequence, and then tighten the cylinder head bolts
further to reach the specified angle 150° in the proper tightening sequence.
1 Bolt (cylinder head) 2
2 Bolt (cylinder head) 4 Refer to TIP.
3 Cylinder head 1
4 Cylinder head gasket 1
5 Timing chain guide (intake side) 1
6 Coolant temperature sensor 1
7 Oil check bolt 2
8 Oil passage plug 1 Order Part name Q'ty Remarks

4-46
AC MAGNETO
REMOVING THE ROTOR
1. Remove:
• Nut (rotor) "1"
• Washer
2. Remove:
• Rotor "1"
Use the rotor puller 2.
CHECKING THE AC MAGNETO
1. Inspect:
• Rotor inner surface "a"
• Stator outer surface "b"
Damage → Inspect the crank-
shaft runout and crankshaft bear-
ing.
CHECKING THE WOODRUFF KEY
1. Inspect:
• Woodruff key "1"
Damage → Replace.INSTALLING THE AC MAGNETO
1. Install:
• Stator "1"
• Screw (stator) "2"
• Crankshaft position sensor "3"
• Holder "4"
• Bolt (crankshaft position sensor)
"5"
• Apply the sealant on the grommet
of the AC magneto lead.
• Tighten the screws using the T30
bit.
• Pass the crankshaft position sensor
lead "a" this side of the stator lead
"b".
• Install the holder so that the projec-
tion "c" on the holder contacts the
stopper.
2. Install:
• Woodruff key "1"
• Rotor "2"
• Degrease the contact surfaces of
the tapered portions of the crank-
shaft and rotor.
• When installing the woodruff key,
make sure that its flat surface "a" is
in parallel with the crankshaft center
line "b".
• When installing the rotor, align the
keyway "c" of the rotor with the
woodruff key.
3. Install:
• Washer
• Nut (rotor) "1"
4. Connect:
• AC magneto lead
Refer to "CABLE ROUTING DIA-
GRAM" section in the CHAPTER
2.
5. Install:
• Dowel pin
• Gasket (left crankcase cover)
• Left crankcase cover "1"
• Hose guide (cylinder head breath-
er hose) "2"
• Bolt (left crankcase cover)
Tighten the bolts in stage, using a
crisscross pattern.
Rotor puller:
YM-04151/90890-04151
Screw (stator):
8 Nm (0.8 m•kg,
5.8ft•lb)
Bolt (crankshaft position
sensor):
10 Nm (1.0 m•kg, 7.2
ft•lb)
YAMAHA Bond No. 1215
(ThreeBond
® No. 1215):
90890-85505
Nut (rotor):
65 Nm (6.5 m•kg, 47
ft•lb)
Bolt (left crankcase cov-
er):
10 Nm (1.0 m•kg, 7.2
ft•lb)

4-47
ENGINE REMOVAL
ENGINE REMOVAL
REMOVING THE ELECTRONIC PARTS
Order Part name Q'ty Remarks
Hold the machine by placing the suitable stand
under the frame.Refer to "HANDLING NOTE".
SeatRefer to "SEAT AND SIDE COVERS" sec-
tion.
Fuel tankRefer to "FUEL TANK" section in the CHAP-
TER 6.
Air filter caseRefer to "THROTTLE BODY" section in the
CHAPTER 6.
Radiator Refer to "RADIATOR" section.
1 Rectifier/regulator 1
2 Ignition coil bracket 1
3 Ignition coil 1
4 Atmospheric pressure sensor 1
5 Condenser 1
6 AC magneto lead 1 Disconnect.
7 Coolant temperature sensor coupler 1 Disconnect.

6-4
THROTTLE BODY
THROTTLE BODY
REMOVING THE THROTTLE BODY
Order Part name Q'ty Remarks
SeatRefer to "SEAT AND SIDE COVERS" section
in the chapter 4.
Air scoop (left/right)Refer to "SEAT AND SIDE COVERS" section
in the chapter 4.
Fuel tank Refer to "FUEL TANK" section.
1 Cover 1
2 Air filter case 1
3 Fuel hose 1
4 Fuel injector coupler 1 Disconnect.
5 Intake air pressure sensor coupler 1 Disconnect. (I.D. MARK "2")
6 Throttle cable cover 1
7 Throttle cable 2
8 Throttle body 1
9 Throttle body joint 1

6-6
THROTTLE BODY
CHECKING THE INJECTOR
Replace the fuel injector with a
new one if you have dropped or im-
pacted it.
1. Check:
• Injectors
Damage → Replace.
CHECKING THE THROTTLE BODY
•Before removing the throttle
body, clean the area around the
throttle body to prevent dirt and
other foreign material from fall-
ing into the engine.
•If the throttle body is subject to
strong shocks or dropped during
cleaning, replace it.
•Do not use any caustic carbure-
tor cleaning solution.
•Do not directly push the throttle
valves to open them.
•Do not loosen the throttle valve
stopper screw "1", throttle valve
pulley nut "2", or throttle valve
screw "3". Otherwise, a loss of
performance may occur.
•Do not use compressed air to
clean the throttle body. Other-
wise, foreign material may ad-
here to the intake air pressure
sensor passage "a" and fuel in-
jector "b" in the throttle body.
1. Check:
• Throttle body
Cracks/damage → Replace the
throttle body as a set.
2. Check:
• Starter knob/ idle screw delivery
passages "a"
Obstructions →Blow out with
compressed air.
ASSEMBLING THE THROTTLE
BODY
1. Install:
• O-ring "1"
• Injector "2"
•Bolt "3"
Always use a new O-ring.
INSTALLING THE THROTTLE
BODY
1. Install:
• Throttle body joint "1"
• Throttle body "2"
• Face the slot "a" in the throttle body
joint toward the bottom of the vehi-
cle.
•Align the slot "a" on the throttle body
joint with the projection "b" on the
throttle body.
2. Install the water-resistant cover
"1" onto the throttle body.
CHECKING AND REPLACING THE
PROTECTOR
1. Check:
• Protector "1"
Wear/damage → Replace.
Affix the protector as shown.Bolt (injector)
3 Nm (0.3 kg•m, 2.2
ft•lb)
Throttle body joint clamp
screw
3 Nm (0.3 m•kg, 2.2
ft•lb)

7-1
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
ELECTRICAL
This section is intended for those who have basic knowledge and skill concerning the servicing of Yamaha motorcycles
(e.g., Yamaha dealers, service engineers, etc.) Those who have little knowledge and skill concerning servicing are request-
ed not to undertake inspection, adjustment, disassembly, or reassembly only by reference to this manual. It may lead to
servicing trouble and mechanical damage.
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
ELECTRICAL COMPONENTS
1. Crankshaft position sensor
2. AC magneto
3. Rectifier/regulator
4. Condenser
5. Fuel pump
6. Engine stop switch
7. ECU
8. Ignition coil9. Spark plug
10. Fuel injector
11. Intake air temperature sensor
12. Intake air pressure sensor
13. Throttle position sensor
14. Atmospheric pressure sensor
15. Coolant temperature sensor
16. Coupler for connecting optional part
