INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
TIP

The vehicle must be on a level sur-
face and positioned upright, other-
wise the fuel level warning light
may not come on and go off at the
appropriate times.


This model is also equipped with a
self-diagnosis device for the fuel
level detection circuit. If a problem
is detected in the fuel level detec-
tion circuit, the following cycle will
be repeated until the malfunction is
corrected: The fuel level warning
light will flash eight times, and then
go off for 3.0 seconds. If this oc-
curs, have a Yamaha dealer check
the vehicle.
EAU11444
Coolant temperature warning
light“”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.TIP

For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.


If the engine overheats, see page
6-35 for further instructions.
EAU42774
Engine trouble warning light“”
This warning light comes on if a prob-
lem is detected in the electrical circuit
monitoring the engine. If this occurs,
have a Yamaha dealer check the self-
diagnosis system. (See page 3-8 for an
explanation of the self-diagnosis de-
vice.)The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU38624
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
U11CE4E0.book Page 5 Friday, December 3, 2010 9:12 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU12348
Handlebar switches LeftRight
EAU12350
Pass switch“”
Press this switch to flash the headlight.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
1. Pass switch“”
2. Dimmer switch“/”
3. Turn signal switch“/”
4. Horn switch“”
1. Engine stop switch“/”
2. Hazard switch“”
3.“SELECT” switch“/”
4.“RESET” switch
5. Start switch“”
U11CE4E0.book Page 10 Friday, December 3, 2010 9:12 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U11CE4E0.book Page 20 Friday, December 3, 2010 9:12 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU47150
TIPThis model is equipped with:

a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function meter unit
indicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.


an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the multi-function meter unit indi-
cates error code 70, but this is not
a malfunction. Push the start
switch to clear the error code and
to restart the engine.
EAU42887
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the
sidestand up.
See page 3-19 for more informa-
tion.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
The following warning lights and
indicator light should come on for a
few seconds, then go off.

Oil level warning light


Fuel level warning light


Coolant temperature warning
light


Engine trouble warning light


Immobilizer system indicator
light
U11CE4E0.book Page 1 Friday, December 3, 2010 9:12 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36

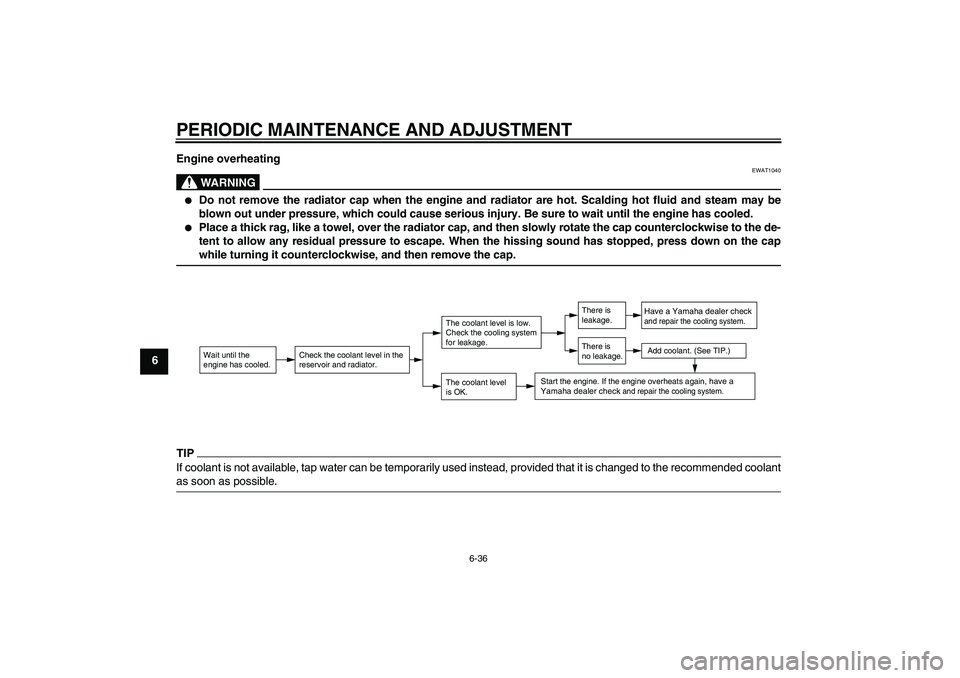

6Engine overheating
WARNING
EWAT1040


Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the cap
while turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U11CE4E0.book Page 36 Friday, December 3, 2010 9:12 AM

INDEX
AAir filter element, replacing ................... 6-14
Anti-theft alarm (optional) ....................... 3-9
Auxiliary light bulb, replacing ................ 6-33BBattery .................................................. 6-27
Brake and clutch levers, checking
and lubricating .................................... 6-24
Brake and shift pedals, checking
and lubricating .................................... 6-23
Brake fluid, changing ............................ 6-21
Brake fluid level, checking .................... 6-20
Brake lever ........................................... 3-12
Brake lever free play, checking ............ 6-18
Brake light switches .............................. 6-19
Brake pedal .......................................... 3-12CCables, checking and lubricating .......... 6-22
Care ........................................................ 7-1
Catalytic converter ................................ 3-15
Clutch lever........................................... 3-11
Clutch lever free play, adjusting ........... 6-17
Coolant ................................................. 6-13
Coolant temperature warning light.......... 3-5DDimmer switch ...................................... 3-10
Drive belt slack ..................................... 6-21EEngine break-in ...................................... 5-3
Engine oil and oil filter cartridge ........... 6-10
Engine stop switch................................ 3-10
Engine trouble warning light ................... 3-5FFront and rear brake pads, checking .... 6-19Front fork, checking...............................6-25
Fuel ....................................................... 3-13
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-4
Fuel tank breather/overflow hose .......... 3-15
Fuel tank cap......................................... 3-13
Fuses, replacing .................................... 6-28
HHandlebar switches ............................... 3-10
Hazard switch........................................ 3-11
Headlight bulb, replacing....................... 6-29
Helmet holder ........................................ 3-16
High beam indicator light......................... 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-19
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-5
Indicator lights and warning lights ........... 3-4LLicense plate light bulb, replacing ......... 6-32MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Matte color, caution .................................7-1
Model label .............................................. 9-1
Multi-function meter unit .......................... 3-6NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4
PPanel, removing and installing ................ 6-8
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-10RRear suspension, lubricating ................ 6-25
RESET switch ....................................... 3-11
Rider seat ............................................. 3-16SSafety information ................................... 1-1
SELECT switch ..................................... 3-11
Shifting .................................................... 5-2
Shift pedal ............................................. 3-12
Shock absorber assembly, adjusting .... 3-17
Sidestand .............................................. 3-18
Sidestand, checking and lubricating ..... 6-24
Spark plugs, checking............................. 6-8
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-10
Steering, checking ................................ 6-26
Storage ................................................... 7-3
Supporting the motorcycle .................... 6-33
Swingarm pivots, lubricating ................. 6-25TTail/brake light bulb, replacing .............. 6-31
Throttle grip and cable, checking
and lubricating .................................... 6-23
Throttle grip free play, checking............ 6-15
Tires ...................................................... 6-15
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-34
Troubleshooting charts ......................... 6-35
U11CE4E0.book Page 1 Friday, December 3, 2010 9:12 AM
