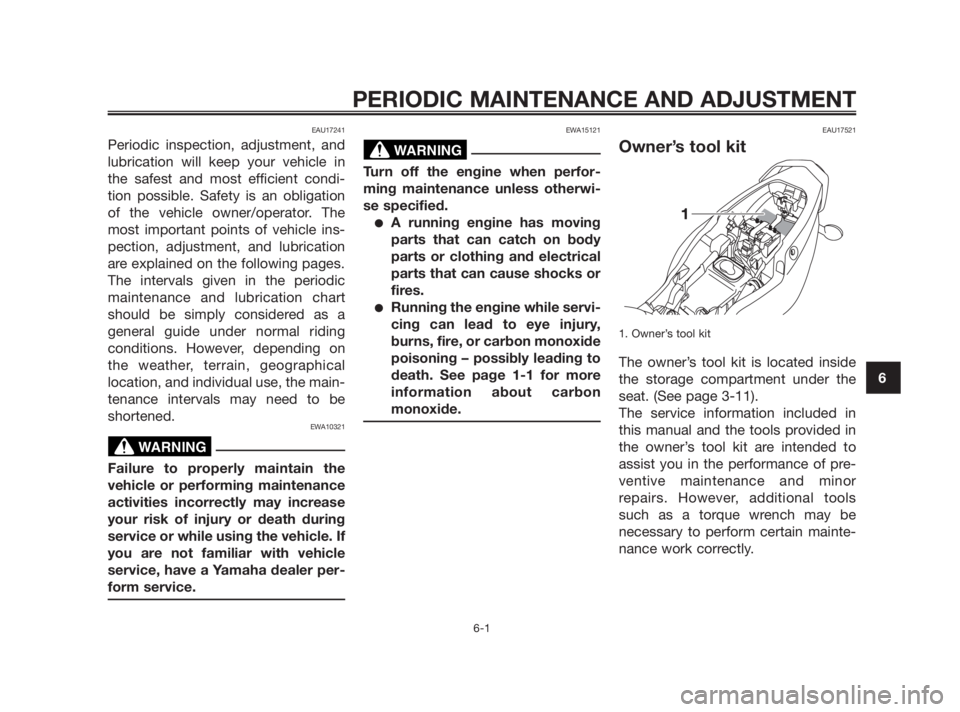

2011 YAMAHA TZR50 service interval

EAU17241
Periodic inspection, adjustment, and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. Safety is an obligation
of the vehicle owner/operator. The
most important points of vehicle ins-
pection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, depending on
the weather, terrain, geographical
location, and individual use, the main-
tenance intervals may need to be
shortened.
EWA10321
Failure to properly maintain the
vehicle or performing maintenance
activities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle
service, have a Yamaha dealer per-
form service.
EWA15121
Turn off the engine when perfor-
ming maintenance unless otherwi-
se specified.
●A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
●Running the engine while servi-
cing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more
information about carbon
monoxide.
EAU17521
Owner’s tool kit
1. Owner’s tool kit
The owner’s tool kit is located inside
the storage compartment under the
seat. (See page 3-11).
The service information included in
this manual and the tools provided in
the owner’s tool kit are intended to
assist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte-
nance work correctly.
WARNING
WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
5WX-F819D-E3 15/11/08 15:27 Página 37

EAU21280
Adjusting the carburetor
The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most
carburetor adjustments should be left
to a Yamaha dealer, who has the
necessary professional knowledge
and experience. The adjustment des-
cribed in the following section, howe-
ver, may be serviced by the owner as
part of routine maintenance.
ECA10550
The carburetor has been set and
extensively tested at the Yamaha
factory. Changing these settings
without sufficient technical know-
ledge may result in poor perfor-
mance of or damage to the engine.
EAU33482
Adjusting the engine idling
speed
The engine idling speed must be
checked and, if necessary, adjusted
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
The engine should be warm before
making this adjustment.
1. Remove panel B. (See page 6-8).
2. Check the engine idling speed
and, if necessary, adjust it to spe-
cification by turning the idle
adjusting screw. To increase the
engine idling speed, turn the
screw in direction (a). To decrea-
se the engine idling speed, turn
the screw in direction (b).
1. Idle adjusting screw
TIP
If the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment.
3. Install the panel.
Engine idling speed:
1250–1350 r/minNOTICE
PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6
5WX-F819D-E3 15/11/08 15:27 Página 52

4. Tighten the locknuts, and then
tighten the axle nut to the speci-
fied torque.
5. Insert a new cotter pin into the
axle nut, and then bend its ends
as shown. WARNING! Always
use a new cotter pin for the
axle nut.
[EWA10701]
1. Cotter pin
2. Axle nut
3. Chain puller locknut
4. Drive chain slack adjusting bolt
5. Alignment marks
TIP
Make sure that two notches in the
axle nut are aligned with the hole
through the wheel axle, otherwise
further tighten the axle nut until they
are.EAU23023
Cleaning and lubricating the
drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly
wear out, especially when riding in
dusty or wet areas. Service the drive
chain as follows.
ECA10581
The drive chain must be lubricated
after washing the motorcycle and
riding in the rain.
1. To prevent damaging the O-rings,
do not clean the drive chain with
steam cleaners, high-pressure
washers or inappropriate sol-
vents. NOTICE: To prevent
damaging the O-rings, do not
clean the drive chain with ste-
am cleaners, high-pressure
washers or inappropriate sol-
vents.
[ECA11121]
2. Wipe the drive chain dry.
NOTICE
Tightening torque:
Axle nut:
90 Nm (9.0 m•kgf, 65.1 ft•lbf)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
5WX-F819D-E3 15/11/08 15:27 Página 61
