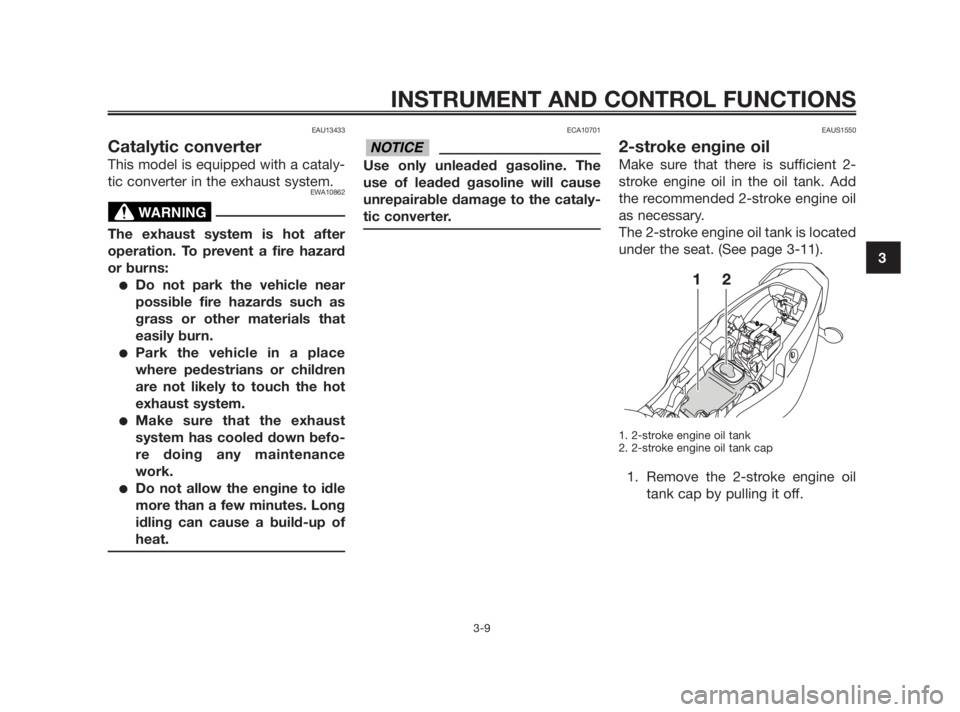

Page 23 of 88

EAU13433
Catalytic converter
This model is equipped with a cataly-
tic converter in the exhaust system.
EWA10862
The exhaust system is hot after
operation. To prevent a fire hazard
or burns:
●Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
●Make sure that the exhaust
system has cooled down befo-
re doing any maintenance
work.
●Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
ECA10701
Use only unleaded gasoline. The
use of leaded gasoline will cause
unrepairable damage to the cataly-
tic converter.
EAUS1550
2-stroke engine oil
Make sure that there is sufficient 2-
stroke engine oil in the oil tank. Add
the recommended 2-stroke engine oil
as necessary.
The 2-stroke engine oil tank is located
under the seat. (See page 3-11).
1. 2-stroke engine oil tank
2. 2-stroke engine oil tank cap
1. Remove the 2-stroke engine oil
tank cap by pulling it off.
NOTICE
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
5WX-F819D-E3 15/11/08 15:27 Página 23
Page 79 of 88

Dimensions:Overall length:
2202 mm (86.7 in)
Overall width:
689 mm (27.1 in)
Overall height:
1175 mm (46.3 in)
Seat height:
820 mm (32.3 in)
Wheelbase:
1341 mm (52.8 in)
Ground clearance:
151 mm (5.94 in)
Minimum turning radius:
2900 mm (114.2 in)
Weight:With oil and fuel:
124.0 kg (273 lb)
Engine:Engine type:
Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
49.7 cm
3
Bore x stroke:
40.3 x 39.0 mm (1.59 x 1.54 in)
Compression ratio:
11.50 :1
Starting system:
Electric starter
Lubrication system:
Separate lubrication (Yamaha autolube)Type:
YAMALUBE 2 or 2-stroke engine oil
(JASO FC grade) or (ISO EG-C or EG-D
grade)
Quantity:
1.40 L (1.48 US qt, 1.23 Imp.qt)
Transmission oil:Oil change quantity:
0.75 L (0.79 US qt, 0.66 Imp.qt)
Type:
SAE 10W-30 type SE motor oil
Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):
0.29 L (0.31 US qt, 0.26 Imp.qt)
Radiator capacity (including all routes):
0.70 L (0.74 US qt, 0.62 Imp.qt)
Air filter:Air filter element:
Wet element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
13.8 L (3.65 US gal, 3.04 Imp.gal)
Fuel reserve amount:
2.2 L (0.58 US gal, 0.48 Imp.gal)
Carburetor:Manufacturer:
DELL’ORTO
Type x quantity:
PHBN 16 x 1
Spark plug (s):Manufacturer/model:
NGK / BR9 ES
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:Clutch type:
Wet, multiple-disc
Transmission:Primary reduction system:
Helical gear
Primary reduction ratio:
71/20 (3.55)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
60/11 (5.45)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
Gear ratio:1st:
36/12 (3.00)
2nd:
33/16 (2.062)
3rd:
29/19 (1.526)
4th:
27/22 (1.227)
5th:
25/24 (1.041)
6th:
24/25 (0.960)
SPECIFICATIONS
8-1
8
5WX-F819D-E3 15/11/08 15:27 Página 79
Page 80 of 88

Chassis:Frame type:
Double cradle
Caster angle:
25.00 º
Trail:
90.0 mm (3.54 in)
Front tire:Type:
Tubeless
Size:
100/80 17 (52H)
Manufacturer/model:
Pirelli / Sport Demon
Manufacturer/model:
Continental/Conti-Twist SM
Rear tire:Type:
Tubeless
Size:
130/70 17 (62H)
Manufacturer/model:
Pirelli / Sport Demon
Manufacturer/model:
Continental/Conti-Twist SM
Loading:Maximum load:
196 kg (432 lb)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
180 kPa (1.80 kgf/cm
2, 26 psi, 1.80 bar)Rear:
200 kPa (2.00 kgf/cm
2, 29 psi, 2.00 bar)
Loading condition:
90–196 kg (198–432 lb)
Front:
190 kPa (1.90 kgf/cm
2, 28 psi, 1.90 bar)
Rear:
230 kPa (2.30 kgf/cm
2, 33 psi, 2.30 bar)
Front wheel:Wheel type:
Cast wheel
Rim size:
17 x MT2.75
Rear wheel:Wheel type:
Cast wheel
Rim size:
17 x MT3.50
Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
108.0 mm (4.25 in)
Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
89.2 mm (3.51 in)
Electrical system:Ignition system:
DC. CDI
Charging system:
AC magneto
Battery:Model:
GT4L-BS
Voltage, capacity:
12 V, 3.0 Ah
Headlight:Bulb type:
Incandescence
Bulb voltage, wattage x quantity:Headlight:
12 V, 25 W/25 W x 2
Tail/brake light:
12 V, 5.0 W/21.0 W x 1
Front turn signal light:
12 V, 16.0 W x 2
SPECIFICATIONS
8-2
8
5WX-F819D-E3 15/11/08 15:27 Página 80

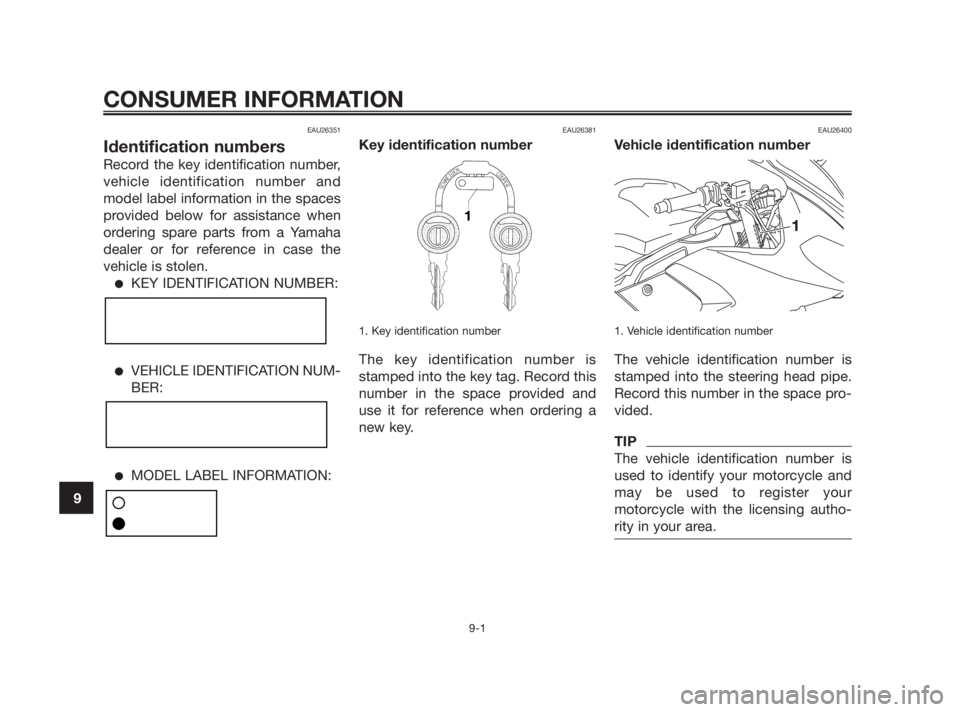

Page 82 of 88
EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
●KEY IDENTIFICATION NUMBER:
●VEHICLE IDENTIFICATION NUM-
BER:
●MODEL LABEL INFORMATION:
EAU26381
Key identification number
1. Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and
use it for reference when ordering a
new key.
EAU26400
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your
motorcycle with the licensing autho-
rity in your area.
CONSUMER INFORMATION
9-1
9
5WX-F819D-E3 15/11/08 15:27 Página 82

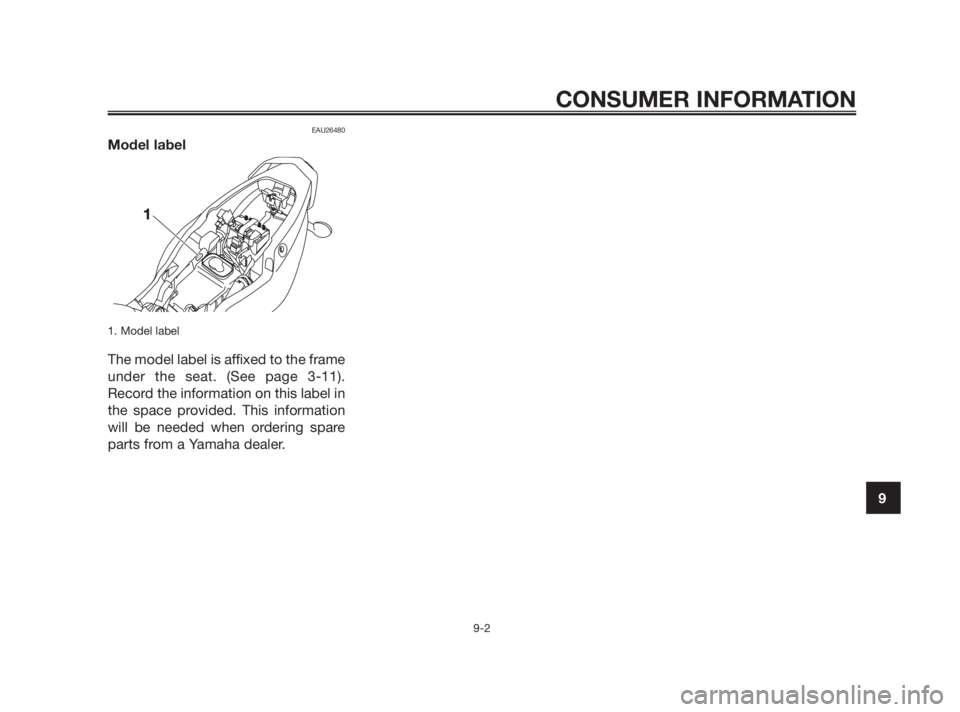

Page 83 of 88
EAU26480
Model label
1. Model label
The model label is affixed to the frame
under the seat. (See page 3-11).
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
CONSUMER INFORMATION
9-2
9
5WX-F819D-E3 15/11/08 15:27 Página 83
