EBU17420
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1
Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ................................................ 4-1
Indicator lights ............................................ 4-2
Handlebar switches .................................... 4-2
Throttle lever .............................................. 4-3
Speed limiter .............................................. 4-4
Front brake lever ........................................ 4-4
Brake pedal and rear brake lever ............... 4-5
Parking brake ............................................. 4-6
Shift pedal .................................................. 4-6
Drive select lever ........................................ 4-7
Recoil starter .............................................. 4-7
Fuel tank cap .............................................. 4-7Fuel .............................................................4-8
Fuel cock ....................................................4-9
Starter (choke) ..........................................4-11
Seat ..........................................................4-11
Storage compartment ...............................4-12
Front carrier ..............................................4-13
Rear carrier ...............................................4-13
Adjusting the rear shock absorber
assembly .................................................4-14
PRE-OPERATION CHECKS ..........................5-1
Fuel .............................................................5-3
Engine oil ....................................................5-3
Final gear oil ...............................................5-3
Front and rear brakes .................................5-3
Throttle lever ...............................................5-4
Tires ............................................................5-4
Chassis fasteners .......................................5-6
Instruments, lights and switches .................5-6
Battery ........................................................5-6
OPERATION...................................................6-1
Starting a cold engine .................................6-1
Starting a warm engine ...............................6-3U1P066E0.book Page 1 Thursday, August 5, 2010 4:15 PM

Operating the drive select lever and
driving in reverse ...................................... 6-3
Shifting ....................................................... 6-4
Engine break-in .......................................... 6-6
Parking ....................................................... 6-7
Parking on a slope ..................................... 6-7
Accessories and loading ............................ 6-8
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD
JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-12
CLIMBING UPHILL ................................... 7-14
RIDING DOWNHILL.................................. 7-16
CROSSING A SLOPE............................... 7-17
CROSSING THROUGH SHALLOW
WATER ................................................... 7-18
RIDING OVER ROUGH TERRAIN ........... 7-20
SLIDING AND SKIDDING ......................... 7-21
WHAT TO DO IF... .................................... 7-22
WHAT TO DO... ........................................ 7-22
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ....................... 8-2Periodic maintenance chart for the
emission control system ...........................8-3
General maintenance and lubrication
chart ..........................................................8-5
Checking the spark plug .............................8-9
Engine oil and oil filter element .................8-11
Final gear oil .............................................8-18
Cleaning the air filter element ...................8-20
Cleaning the spark arrester ......................8-24
Adjusting the carburetor ............................8-25
Adjusting the engine idling speed .............8-26
Adjusting the throttle lever free play .........8-27
Valve clearance ........................................8-27
Adjusting the drive select lever safety
system cable ...........................................8-28
Brakes .......................................................8-28
Checking the front brake pads and rear
brake shoes ............................................8-28
Checking the brake fluid level ...................8-29
Changing the brake fluid ...........................8-30
Checking the front brake lever free play ...8-30
Adjusting the brake pedal height and
free play, and the rear brake lever free
play .........................................................8-31
Brake light switches ..................................8-34
Adjusting the clutch free play ....................8-35
Checking and lubricating the cables .........8-35
U1P066E0.book Page 2 Thursday, August 5, 2010 4:15 PM

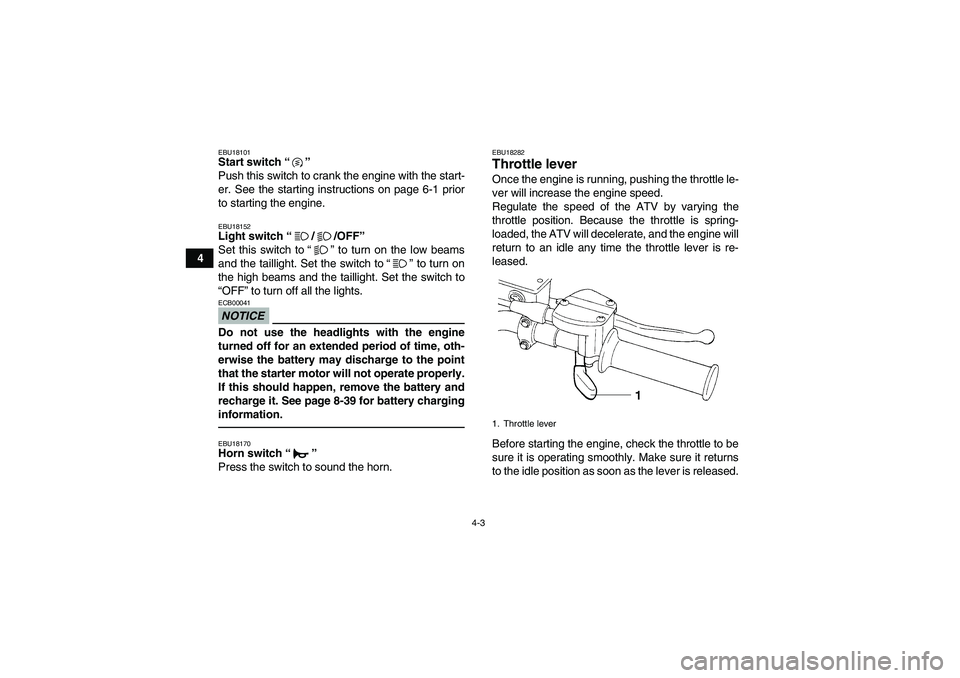

4-3
4
EBU18101Start switch“”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU18152Light switch“//OFF”
Set this switch to“” to turn on the low beams
and the taillight. Set the switch to“” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.NOTICEECB00041Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it. See page 8-39 for battery charging
information.EBU18170Horn switch“”
Press the switch to sound the horn.
EBU18282Throttle lever Once the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.1. Throttle lever
U1P066E0.book Page 3 Thursday, August 5, 2010 4:15 PM

6-1
6
EBU19881
OPERATION
EBU19901Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWB00631Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.EBU19994Starting a cold engine NOTICEECB00150See the “Engine break-in” section on page 6-6
prior to operating the engine for the first time.1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the key to “ON” and the engine stop
switch to“”.4. Shift the transmission into neutral. The neutral
indicator light should come on. If the indicator
light does not come on, have a Yamaha deal-
er check the electrical circuit.
TIPThe engine can be started under the following con-
ditions:
The transmission is in neutral.
The rear brake lever is applied with the transmis-
sion in any gear. However, it is recommended to
shift into neutral before starting the engine.5. Use the starter (choke) in reference to the fig-
ure:
Position (1):
Cold engine start with ambient temperature
below 5 °C (40 °F).
Position (2):
Cold engine start with ambient temperature
between 0 °C (30 °F) and 30 °C (90 °F).
Position (3):
Cold engine start with ambient temperature
above 25 °C (80 °F).
U1P066E0.book Page 1 Thursday, August 5, 2010 4:15 PM

8-7
8
14 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
15Engine oil filter ele-
mentClean or replace if necessary.√√√
16 Engine oil strainerClean.√√√
17 Final gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
18*Moving parts and
cablesLubricate.√√√√
19*Drive select lever
safety system cableCheck operation and adjust or replace if neces-
sary.√√√
20*Throttle leverCheck operation.
Check throttle lever free play, and adjust if neces-
sary.
Lubricate cable and lever housing.√√√√√
21*Front and rear brake
switchesCheck operation and correct if necessary.√√√√√
22*Lights and switchesCheck operation and correct if necessary.
Adjust headlight beams.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U1P066E0.book Page 7 Thursday, August 5, 2010 4:15 PM

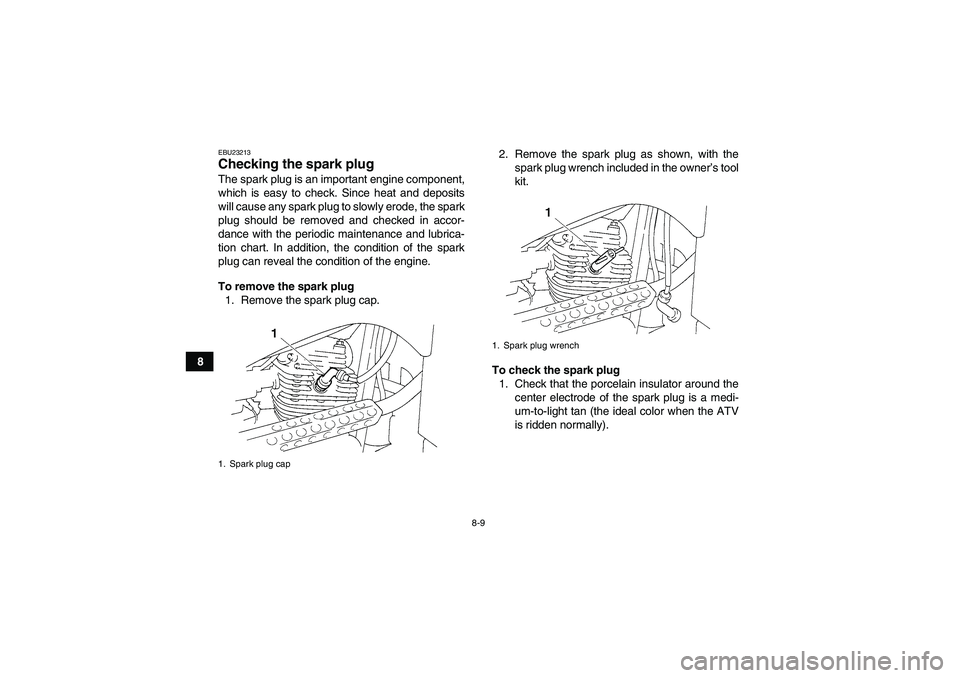

8-9
8
EBU23213Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap
1. Spark plug wrench
U1P066E0.book Page 9 Thursday, August 5, 2010 4:15 PM

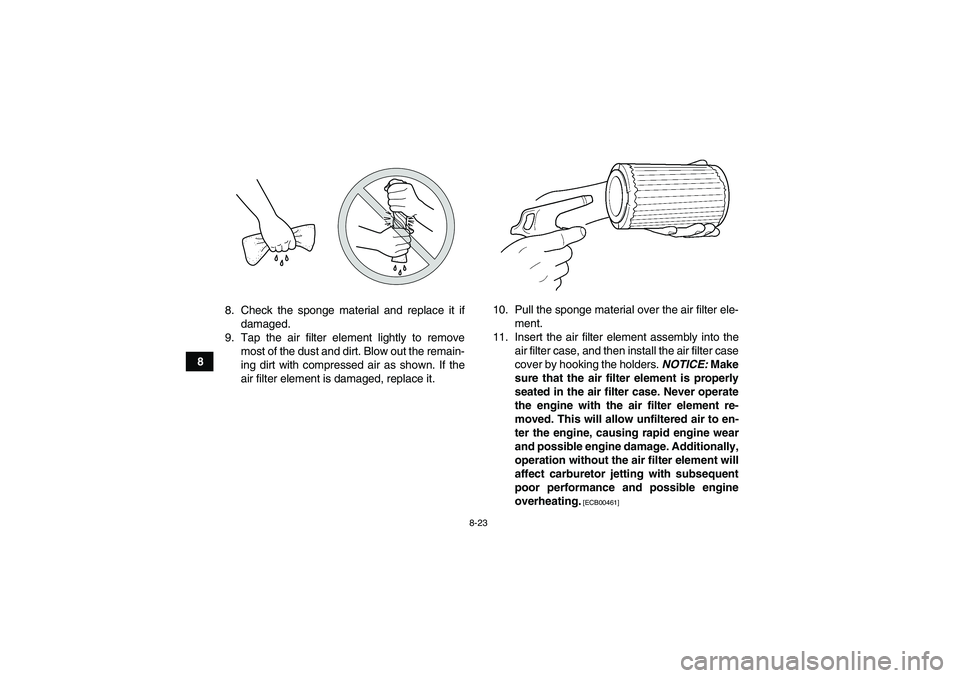

8-23
88. Check the sponge material and replace it if
damaged.
9. Tap the air filter element lightly to remove
most of the dust and dirt. Blow out the remain-
ing dirt with compressed air as shown. If the
air filter element is damaged, replace it.10. Pull the sponge material over the air filter ele-
ment.
11. Insert the air filter element assembly into the
air filter case, and then install the air filter case
cover by hooking the holders. NOTICE: Make
sure that the air filter element is properly
seated in the air filter case. Never operate
the engine with the air filter element re-
moved. This will allow unfiltered air to en-
ter the engine, causing rapid engine wear
and possible engine damage. Additionally,
operation without the air filter element will
affect carburetor jetting with subsequent
poor performance and possible engine
overheating.
[ECB00461]
U1P066E0.book Page 23 Thursday, August 5, 2010 4:15 PM

8-24
8 12. Install the seat.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned more often if the
ATV is operated in extremely dusty areas. Each
time the air filter element maintenance is per-
formed, check the air inlet of the air filter case for
obstructions. Check the air filter case rubber joint
to the carburetor fittings and the rubber joint mani-
fold fittings for an air-tight seal. Tighten all fittings
securely to avoid the possibility of unfiltered air en-
tering the engine.EBU27082Cleaning the spark arrester Be sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
1. Remove the tailpipe bolts.2. Remove the tailpipe by pulling it out of the
muffler.
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing.
1. Tailpipe bolt
2. Tailpipe
U1P066E0.book Page 24 Thursday, August 5, 2010 4:15 PM
