PERIODIC MAINTENANCE AND ADJUSTMENT
8-19
1
2
3
4
5
6
78
9The battery is near the end of its ser-
vice life.
Push one of the control buttons (See
page 4-3.) to cancel the beeper. This
switches the vehicle to the standby
mode.Cancel the standby mode by pushing a
control button again.
Although the vehicle can still be ridden
if the operating status indicator “RUN”
appears, the battery is near the end of
its service life. Consult a Yamaha deal-
er as soon as possible to order a re-
placement battery.
TIPIf a control button is pushed, the beeper
stops and the display changes to the
standby mode. If no control button is
pushed within five minutes, the auto-off
function is activated, and all power iscut to protect the battery.When charging is started, the beep-
er sounds, and the following indi-
cates the battery is at the end of its
service life
The warning light flashes
The warning mark “ ” comes on
The “PUSH” indicator and “OLD”
indicator alternately appear in the
display
The battery has reached the end of its
service life.
Have a Yamaha dealer replace the bat-
tery. Push one of the control buttons
(See page 4-3.) to cancel the beeper.
This display switches to the following
1. Battery level indicator
2. Warning light
3. Battery condition indicator “PUSH”/“OLD”
4. Warning mark “ ”
2
4
3
1
1. Warning light
2. Battery condition indicator “PUSH”/“OLD”
3. Warning mark “ ”
1
3
2
1CB-9-E0.book 19 ページ ２０１０年１０月１５日 金曜日 午前１０時１９分
PERIODIC MAINTENANCE AND ADJUSTMENT
8-20
2
3
4
5
6
789 indicating the battery has reached the
end of its service life.
Unplug the charging plug, and all indi-
cators in the display go off.
TIP
The beeper continues to sound
and “End” is displayed to indicate
the end of the battery service life
until one of the buttons are
pushed.
To protect the battery, the EC-03 is
equipped with an auto-off function.
After five minutes have passed,
the power goes off, the beeperstops and the display goes off.The battery cannot be charged (the
battery level indicator remains low
after charging)
Is the charging plug properly plugged
into an outlet?
After checking, charge the battery
again by the procedures described in
“Charging procedure” on page 6-3.
If the battery still cannot be charged af-
ter checking the above, there could be
a malfunction in the battery charger.
Have a Yamaha dealer check the vehi-
cle.
Unusual odor or smoke emerges
from the battery charger
Unplug the charging plug from the out-
let immediately. Have a Yamaha dealer
check the vehicle.
The riding distance of a single
charge has become significantly
shorter
The battery has reached the end of its
service life.
Have a Yamaha dealer replace the bat-
tery.The battery cannot be charged be-
cause the residual-current device
(RCD) protection has been activat-
ed
Stop charging and have a Yamaha
dealer check the vehicle.
1. Warning light
2. End of battery service life indicator “End”
1
2
1CB-9-E0.book 20 ページ ２０１０年１０月１５日 金曜日 午前１０時１９分

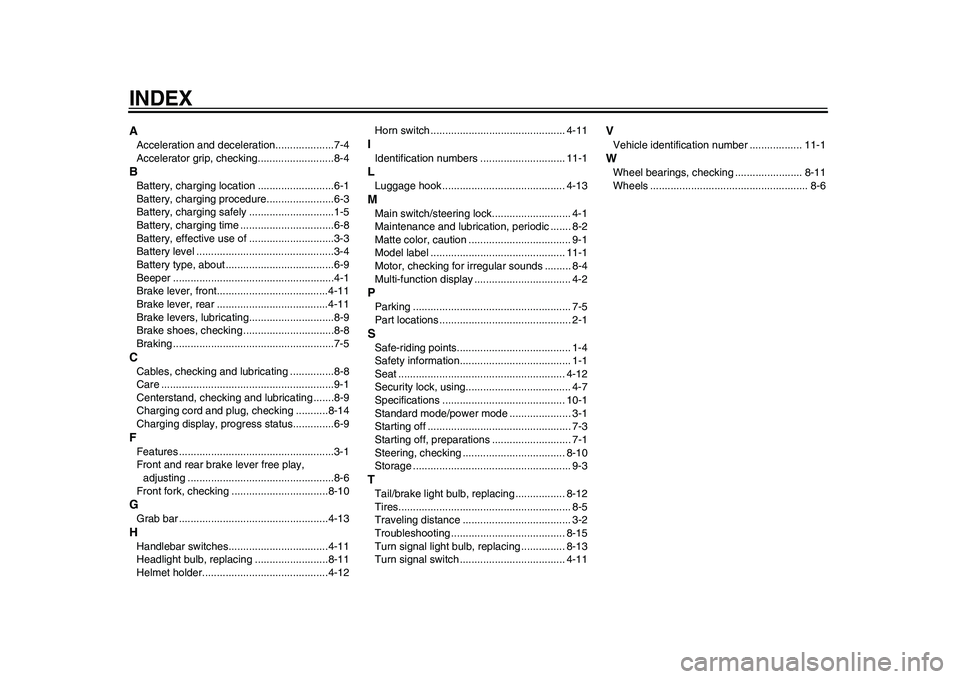

INDEXAAcceleration and deceleration....................7-4
