09 Maintenance and servicing

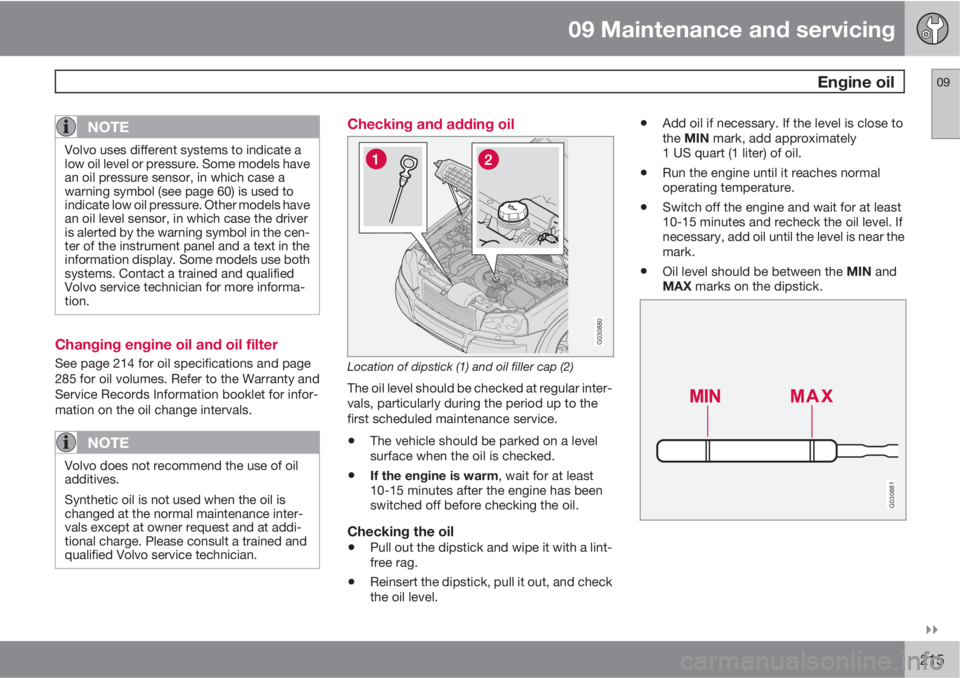

Engine oil09

215
NOTE
Volvo uses different systems to indicate a
low oil level or pressure. Some models have
an oil pressure sensor, in which case a
warning symbol (see page 60) is used to
indicate low oil pressure. Other models have
an oil level sensor, in which case the driver
is alerted by the warning symbol in the cen-
ter of the instrument panel and a text in the
information display. Some models use both
systems. Contact a trained and qualified
Volvo service technician for more informa-
tion.
Changing engine oil and oil filter
See page 214 for oil specifications and page
285 for oil volumes. Refer to the Warranty and
Service Records Information booklet for infor-
mation on the oil change intervals.
NOTE
Volvo does not recommend the use of oil
additives.
Synthetic oil is not used when the oil is
changed at the normal maintenance inter-
vals except at owner request and at addi-
tional charge. Please consult a trained and
qualified Volvo service technician.
Checking and adding oil
G030880
Location of dipstick (1) and oil filler cap (2)
The oil level should be checked at regular inter-
vals, particularly during the period up to the
first scheduled maintenance service.
•The vehicle should be parked on a level
surface when the oil is checked.
•If the engine is warm, wait for at least
10-15 minutes after the engine has been
switched off before checking the oil.
Checking the oil
•Pull out the dipstick and wipe it with a lint-
free rag.
•Reinsert the dipstick, pull it out, and check
the oil level.
•Add oil if necessary. If the level is close to
the MIN mark, add approximately
1 US quart (1 liter) of oil.
•Run the engine until it reaches normal
operating temperature.
•Switch off the engine and wait for at least
10-15 minutes and recheck the oil level. If
necessary, add oil until the level is near the
mark.
•Oil level should be between the MIN and
MAX marks on the dipstick.
G030881

09 Maintenance and servicing
Fuses 09
232* Option/accessory, for more information, see Introduction.

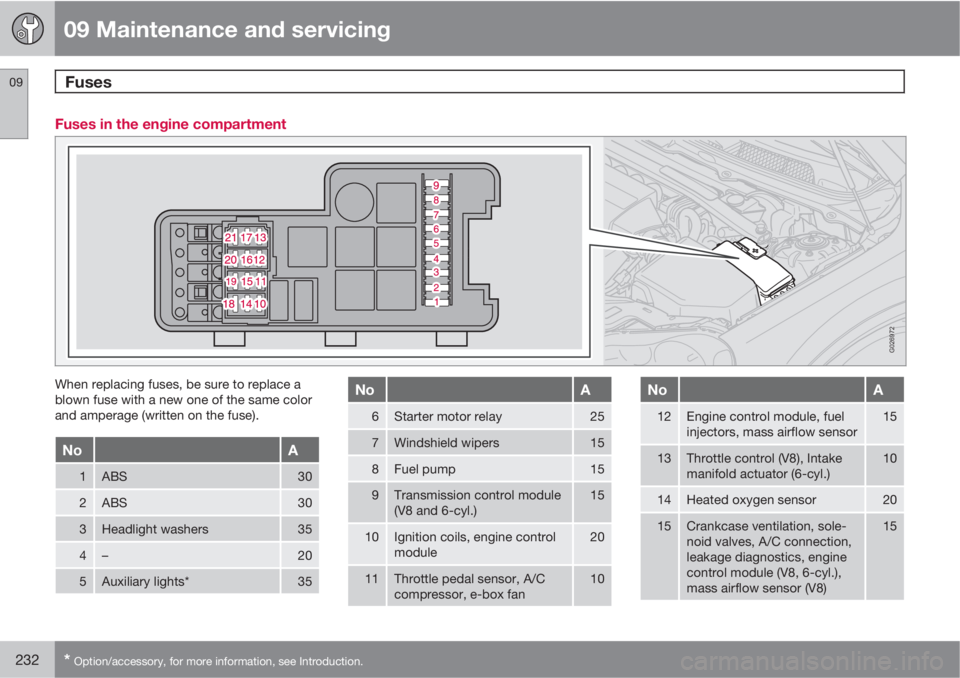

Fuses in the engine compartment
G026972
When replacing fuses, be sure to replace a
blown fuse with a new one of the same color
and amperage (written on the fuse).
NoA
1ABS30
2ABS30
3Headlight washers35
4–20
5Auxiliary lights*35
NoA
6Starter motor relay25
7Windshield wipers15
8Fuel pump15
9Transmission control module
(V8 and 6-cyl.)15
10Ignition coils, engine control
module20
11Throttle pedal sensor, A/C
compressor, e-box fan10
NoA
12Engine control module, fuel
injectors, mass airflow sensor15
13Throttle control (V8), Intake
manifold actuator (6-cyl.)10
14Heated oxygen sensor20
15Crankcase ventilation, sole-
noid valves, A/C connection,
leakage diagnostics, engine
control module (V8, 6-cyl.),
mass airflow sensor (V8)15

09 Maintenance and servicing
Fuses 09
234* Option/accessory, for more information, see Introduction.
Fuses in the passenger compartment on the edge of the dashboard
G032316
The decal shows the positions and amperage of the fuses
Fuses are located inside the access panel on
the edge of the dashboard, on the driver's side.
There are also a number of spare fuses. When
replacing a blown fuse, be sure to replace it
with a new one of the same color and amper-
age (written on the fuse).
NoA
1Blower – climate system30
2Audio amplifier*30
3Power driver's seat*25
NoA
4Power passenger's seat*25
5Driver's door – central lock-
ing, power windows, door
mirror25
6Front passenger's door – cen-
tral locking, power windows,
door mirror25
7–
NoA
8Radio, CD player, Rear Seat
Entertainment (RSE)*15
9Volvo Navigation System*,
Sirius satellite radio*10
10On-board diagnostics, head-
light switch, steering wheel
angle sensor, steering wheel
module5

09 Maintenance and servicing
Fuses 09
236* Option/accessory, for more information, see Introduction.
Fuse box in the passenger compartment, behind the plastic cover, driver's side
G028412
This fuse box is located behind the plastic
cover below the steering wheel. When replac-
ing a blown fuse, be sure to replace it with a
new one of the same color and amperage (writ-
ten on the fuse).
NoA
1Heated passenger's seat15
2Heated driver's seat15
3Horn15
4–
NoA
5Audio system10
6–
7–
8Alarm siren*5
9Break light switch feed5
10Instrument panel, climate sys-
tem, power driver's seat,
Occupant Weight Sensor10
NoA
1112-volt sockets – front and rear
seats, refrigerator* (XC90
Executive)15
12–
13–
14–
15ABS, DSTC5
16Power steering, Active Bend-
ing Lights*10

11 Specifications
Overview of information and warning symbols
11
291
SymbolDescriptionPage
Left turn signal58
Right turn signal58
Other information symbols
SymbolDescriptionPage
Cruise control77
Information symbols in the center
console display
SymbolDescriptionPage
Surround sound248
HD radio251
Audio files262
CD folder262
SymbolDescriptionPage
Bluetooth-con-
nected cell phone266
BluetoothTM
hands-free
266
Information symbols in the ceiling
console
SymbolDescriptionPage
Seat belt reminder56
Occupant weight
sensor28

12 Index
12
294
1, 2, 3 ...
12-volt sockets.......................................... 79
A
A/C (air conditioning)...........................98, 99
ABS.......................................................... 149
Accessory installation warning.................. 15
Airbag system............................................ 23
Air cleaner................................................ 213
Air conditioning.......................................... 94
Air distribution...................................... 96, 99
Air quality sensor....................................... 98
Air vents..................................................... 96
Alarm........................................................ 131
All Wheel Drive......................................... 148
All Wheel Drive – towing.......................... 157
Anti-lock brake system
warning light......................................... 60
Anti-lock Brake System (ABS)................. 149
Ashtray..................................................... 114Audio
system introduction............................ 244
Audio system
HD digital radio................................... 251
Rear seat entertainment..................... 270
Sirius satellite radio............................255
AUTO (climate control)....................... 99, 100
Automatic transmission........................... 144
Autostart..........................................139, 141
AUX (audio system).................................259
Average speed........................................... 75
AWD......................................................... 148
B
Bass......................................................... 247
Battery..................................................... 211
maintenance....................................... 220
specifications...................................... 287
Battery – replacing................................... 221
Belt check................................................ 212
Black box................................................... 13
Blind Spot Information System (BLIS)..... 165
Blower (fan).............................................. 100Bluetooth cell phone connection............. 265
Booster cushion
accessory............................................. 46
integrated.............................................. 51
Brake fluid................................................ 218
Brake system........................................... 149
Bulbs........................................................ 223
Bulbs, replacing....................................... 223
C
Capacities, fluids..................................... 282
Capacity weight....................................... 182
Cargo area cover..................................... 121
Cargo grid................................................ 120
Cargo net................................................. 118
Catalytic converter, three-way................. 289
CD Pause................................................. 261
Cell phone, hands-free connection......... 265
Center console buttons............................. 64
Central locking system - remote key....... 125
Changing a wheel.................................... 193
Changing coolant....................................212

12 Index
12
297
K
Key (ignition switch) positions................. 141
Keys......................................................... 124
L
Label information..................................... 276
Lighting panel............................................ 67
Load carriers............................................ 162
Locking steering wheel............................ 141
Locking the car........................................ 128
Locks, child safety................................... 130
Long distance trips.................................. 163
Low beam headlight.................................. 70
M
Maintenance............................................ 208
Maintenance, periodic............................. 209
Malfunction indicator light......................... 61Mirrors
door, folding......................................... 64
power door........................................... 84
rearview, auto-dim function.................. 83
Moonroof................................................... 86
Motor oil
checking............................................. 215
MP3 player, connecting........................... 259
Multifilter with air quality sensor................ 98
O
OBD II...................................................... 209
Occupant safety........................................ 18
Oil
checking............................................. 215
Oil quality................................................. 214
Onboard Diagnostic System (OBD II)...... 209
On Call Roadside Assistance.................. 292
Owner maintenance................................. 209
P
Paint - color code....................................204
Panel lighting, instrument.......................... 68
Park assist.......................................154, 155
Parking brake........................................... 151
warning symbol.................................... 60
Parking lights............................................. 67
Passenger’s side front airbag, disabling. . . 28
Periodic owner-performed maintenance. 209
Permissible axle weight........................... 182
Polishing.................................................. 201
Power moonroof........................................ 86
Power seat............................................... 105
Power steering fluid................................. 218
R
Radiator................................................... 213
Radio
Sirius satellite radio............................255
Radio functions........................................ 246
HD digital radio................................... 251
Rain sensor - windshield wipers................ 72
