01 Safety
Supplemental Restraint System (SRS)01
25
WARNING
•No objects or accessory equipment,
e.g. dashboard covers, may be placed
on, attached to, or installed near the air
bag hatch (the area above the glove
compartment) or the area affected by
airbag deployment (see the illustration
on page 22).
•There should be no loose articles, such
as coffee cups on the floor, seat, or
dashboard area.
•Never try to open the airbag cover on
the steering wheel or the passenger's
side dashboard. This should only be
done by a trained and qualified Volvo
service technician.
•Failure to follow these instructions can
result in injury to the vehicle occupants.

02 Locks and alarm
Remote key and key blade
02
56* Option/accessory, for more information, see Introduction.
CAUTION
Never use force when inserting the remote
key in the ignition slot. The vehicle cannot
be started if the transponder is damaged.
USA–FCC ID: LTQWFS 125VO
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
dition: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada–IC: 3659A-WFS125VO
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.
See page 107 for information on starting the
vehicle.
Replacing the battery in the remote keyThe batteries should be replaced if:
•The information symbol illuminates andReplace car key battery is shown in the
display and/or
•if the locks do not react after several
attempts to unlock or lock the vehicle.
NOTE
The remote key's range is normally approx-
imately 60 ft (20 m) from the vehicle.
See page 59 for information on replacing the
battery.
Common functions: Remote key/
Personal Car Communicator (PCC)*
G021079
Personal Car Communicator (PCC)*
Lock
Unlock
Approach lighting
Tailgate unlock
Panic alarm
Buttons on the remote
Lock – Press the Lock button on the
remote once to lock all doors and the tailgate.
The turn signals will flash once to confirm lock-
ing.
Unlock – Press the Unlock button on the
remote once to unlock the driver's door.
After a short pause, press the Unlock button a
second time within 10 seconds to unlock the
other doors and the tailgate.
This function can be changed so that all doors
unlock at the same time under Car settings
Lock settingsDoors unlock. See
page 124 for a description of the menu sys-
tem.
Approach lighting – As you approach the
vehicle, press the button on the remote key to
light the interior lighting, parking lights, license
plate lighting and the lights in the door mir-
rors*.
These lights will switch off automatically after
30, 60 or 90 seconds. See page 124 for a
description of the menu system.
Unlock tailgate – Press the button twice
within several seconds to disarm the alarm
system and optional movement sensor (the
alarm indicator light on the dashboard will go
out), and unlock only the tailgate. Pressing this

02 Locks and alarm
Remote key and key blade
02

* Option/accessory, for more information, see Introduction.57
button for several seconds also opens the tail-
gate on models equipped with the optional
power tailgate.
Unlock tailgate – Press the button twice
within several seconds to disarm the alarm
system and optional movement sensor (the
alarm indicator light on the dashboard will go
out), and unlock only the tailgate.
NOTE
As an added safety precaution, the parking
lights will come on automatically for a short
period when the tailgate has been opened.
After closing, the tailgate will not automatically
relock. Press Lock to relock it and rearm the
alarm.
See also the section "Unlocking the tailgate
from the passenger compartment.
Panic alarm – This button can be used to
attract attention during emergency situations.
To activate the panic alarm, press and hold this
button for at least 3 seconds or press it twice
within 3 seconds. The turn signals and horn will
be activated. The panic alarm will stop auto-
matically after 2 minutes and 45 seconds.
To deactivate, wait approximately 5 seconds
and press the button again.The Panic alarm button will not unlock the vehi-
cle.
RangeThe remote key has a range of approximately
60 ft. (20 m) from the vehicle.
NOTE
Buildings or other obstacles may interfere
with the function of the remote key. The
vehicle can also be locked or unlocked with
the key blade, see page 58.
Unique functions—PCC*
G021080
Information button
Indicator lightsPressing the information button provides cer-
tain information about the vehicle with the help
of the indicator lights.
Using the information button1.
Press the information button .
2. All of the indicator lights will flash sequen-
tially for approximately 7 seconds to indi-
cate that the PCC is receiving information
from the vehicle. If any of the buttons are
pressed during this 7-second period,
transmission of information to the PCC will
be interrupted.
NOTE
If none of the indicator lights flash when the
information button has been pressed sev-
eral times from different places in relation to
the vehicle, contact an authorized Volvo
service technician.
The indicator lights (2) provide information
according to the illustration:

02 Locks and alarm
Locks
02
67

Press the button on the lighting panel (1) to
unlock (but not open1) the tailgate.
NOTE
The taillights will illuminate automatically for
a short period when the tailgate has been
opened.
Locking the tailgate with the remote key
Press the lock button () on the remote.
See also page 56.
> The alarm indicator on the dashboard
will begin flashing to show that the alarm
has been armed.
1This button also opens, but does not close, the tailgate on models equipped with the optional power tailgate (see page 211).

02 Locks and alarm
Alarm
02
68
The alarm system
The alarm is automatically armed whenever the
vehicle is locked with the remote key or
optional Personal Car Communicator.
When armed, the alarm continuously monitors
a number of points on the vehicle. The follow-
ing conditions will trigger the alarm:
•The hood is forced open.
•The tailgate is forced open.
•A door is forced open.
•The ignition slot is tampered with.
•An attempt is made to start the vehicle with
a non-approved key (a key not coded to
the car's ignition).
•If there is movement in the passenger com-
partment (if the vehicle is equipped with
the accessory movement sensor).
•The vehicle is lifted or towed (if the vehicle
is equipped with the accessory inclination
sensor).
•The battery is disconnected (while the
alarm is armed).
•The siren is disconnected when the alarm
is disarmed.
A message will appear in the information dis-
play if a fault should occur in the alarm system.
Contact a trained and qualified Volvo service
technician.
NOTE
Do not attempt to repair any of the compo-
nents in the alarm system yourself. This
could affect the insurance policy on the
vehicle.
The alarm indicator light
The status of the alarm system is indicated by
the red indicator light on the dashboard (see
illustration):
•Indicator light off – the alarm is not armed
•The indicator light flashes at one-second
intervals – the alarm is armed
•The indicator light flashes rapidly before
the remote key is inserted in the ignition
slot and the ignition is put in mode I—the
alarm has been triggered.
Arming the alarm

Press the Lock button on the remote key.
One long flash of the turn signals will con-
firm that the alarm is armed.
Alarm confirmation settings can be changed
under Car settings
Lock settings
Keyless entry. See page 124 for a descrip-
tion of the menu system.
USA FCC ID: MAYDA 5823(3)
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada IC: 4405A-DA 5823(3)
Movement sensor DA5823 by Dynex Operation
is subject to the following conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.

04 Comfort and driving pleasure
Climate system
04
128* Option/accessory, for more information, see Introduction.
Introduction
Air conditioningThe vehicle is equipped with Electronic Climate
Control (ECC). The climate control system
cools, heats or dehumidifies the air in the pas-
senger compartment.
NOTE
•The air conditioning can be switched
off, but to ensure the best possible cli-
mate comfort in the passenger com-
partment and to prevent the windows
from misting, it should always be on.
•In warm weather, a small amount of
water may accumulate under the car
when it has been parked. This water is
condensation from the A/C system and
is normal.
Sensor location
•The sunlight sensor is located on the top
side of the dashboard.
NOTE
The sunlight sensor monitors which side of
the car that is most exposed to sunlight.
This can mean that the temperature may
differ between the right and left-side air
vents, even if the temperatures set for both
sides of the passenger compartment are the
same.
•The temperature sensor for the passenger
compartment is located below the climate
control panel.
•The outside (ambient) temperature sensor
is located on the door mirror.
•The humidity sensor* is located in the inte-
rior rearview mirror.
NOTE
Do not cover or block the sensors with
clothing or other objects.
Side windows and moonroofTo ensure that the air conditioning works opti-
mally, the side windows, and the optional
moonroof should be closed.
Fog on the inside of the windowsThe defroster function should be used to
remove fog or mist from the inside of the win-
dows. Keeping the windows clean with a com-mercially available window washing spray will
also help prevent fogging or misting.
Temporary shut-off of the air
conditioning
The air conditioning is momentarily disen-
gaged during full-throttle acceleration or when
driving uphill with a trailer. This may result in a
temporary increase in cabin temperature.
Ice and snowAlways keep the air intake grille at the base of
the windshield free of snow.
Climate system maintenanceSpecial tools and equipment are required to
maintain and carry out repairs on the climate
system. Work of this type should only be done
by a trained and qualified Volvo service tech-
nician.
RefrigerantVolvo cares about the environment. The air
conditioning system in your car contains a
CFC-free refrigerant – R134a. This substance
will not deplete the ozone layer. The air condi-
tioning system contains 1.7 lbs (770 g) of
R134a. The systems uses PAG oil.
Passenger compartment filterReplace the cabin air filter with a new one at
the recommended intervals. Please refer to

04 Comfort and driving pleasure
Climate system
04

129
your Warranty and Service Records Informa-
tion booklet, or consult a trained and qualified
Volvo service technician for these intervals.
The filter should be replaced more often when
driving under dirty and dusty conditions. The
filter cannot be cleaned and therefore should
always be replaced with a new one.
NOTE
There are different types of cabin air filters.
Ensure that the correct type is installed.
Interior Air Quality System (IAQS)A multifilter helps reduce gases and particles
in the incoming air, thereby reducing the levels
of odors and contaminants entering the vehi-
cle. The air quality sensor detects increased
levels of contaminants in the outside air. When
the air quality sensor detects contaminated
outside air, the air intake closes and the air
inside the passenger compartment is recircu-
lated, i.e. no outside air enters the vehicle. The
filter also cleans recirculated passenger com-
partment air.
NOTE
Contact your Volvo retailer for IAQS air filter
replacement intervals.
Menu settingsThe default settings for three of the climate
system's functions can be changed in the
menu system, see page 124:
•Blower speed in automatic mode, see
page 131.
•Recirculation timer for passenger com-
partment air, see page 133.
•Automatic rear window defrosting, see
page 100.
The functions can also be returned to factory
settings in the menu system.
Air distribution
G017699
The incoming air is distributed from 20 different
vents in the passenger compartment.Air distribution is fully automatic in AUTO
mode.
If desired, air distribution can be controlled
manually, see page 134.
Air vents in the dashboard
G021367
Open
Closed
Horizontal airflow
Vertical airflow
Direct the outer air vents toward the side win-
dows to defrost.

04 Comfort and driving pleasure
Climate system
04
134

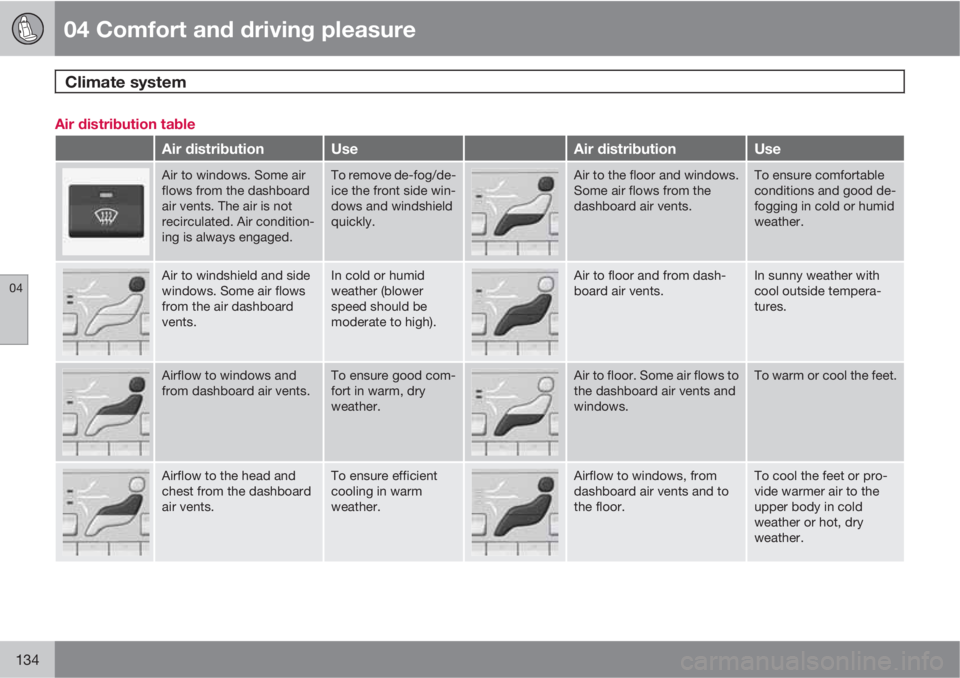

Air distribution table
Air distributionUseAir distributionUse
Air to windows. Some air
flows from the dashboard
air vents. The air is not
recirculated. Air condition-
ing is always engaged.To remove de-fog/de-
ice the front side win-
dows and windshield
quickly.Air to the floor and windows.
Some air flows from the
dashboard air vents.To ensure comfortable
conditions and good de-
fogging in cold or humid
weather.
Air to windshield and side
windows. Some air flows
from the air dashboard
vents.In cold or humid
weather (blower
speed should be
moderate to high).Air to floor and from dash-
board air vents.In sunny weather with
cool outside tempera-
tures.
Airflow to windows and
from dashboard air vents.To ensure good com-
fort in warm, dry
weather.Air to floor. Some air flows to
the dashboard air vents and
windows.To warm or cool the feet.
Airflow to the head and
chest from the dashboard
air vents.To ensure efficient
cooling in warm
weather.Airflow to windows, from
dashboard air vents and to
the floor.To cool the feet or pro-
vide warmer air to the
upper body in cold
weather or hot, dry
weather.
