2011 VOLVO XC60 infotainment

Contents
* Option/accessory, for more information, see Introduction.5
03
03 Your driving environment
Instruments and controls.......................... 74
Ignition modes.......................................... 81
Seats......................................................... 82
Steering wheel.......................................... 88
Lighting..................................................... 89
Wipers and washers................................. 95
Power windows......................................... 98
Mirrors..................................................... 100
Compass*............................................... 102
Laminated panoramic roof*.................... 103
HomeLink® Wireless Control System*. . . 106
Starting the engine.................................. 109
Transmission...........................................112
Brakes..................................................... 115
Parking brake.......................................... 118
Hill Descent Control (HDC)*....................121
04
04 Comfort and driving pleasure
Menus and messages............................. 126
The MY CAR menus...............................128
Climate system....................................... 134
Trip computer......................................... 142
Stability system....................................... 144
Active chassis system–Four C*............... 146
Cruise control.......................................... 147
Adaptive Cruise Control (ACC)*.............. 149
Distance Alert* ....................................... 159
City Safety™ .......................................... 162
Collision warning with Full Auto-brake and
Pedestrian Detection*............................. 168
Driver Alert System* ............................... 175
Park assist*............................................. 181
Rear Park Assist Camera (PAC)* ............ 185
Blind Spot Information System*.............. 189
Passenger compartment convenience. . . 193
05
05 Infotainment
Introduction............................................. 200
Getting started ....................................... 202
General infotainment functions .............. 207
Radio....................................................... 210
Media player........................................... 219
AUX/USB sockets................................... 223
Bluetooth
Ÿ media ................................... 226
Bluetooth® hands-free connection ........ 229
Cell phone voice control......................... 237
Infotainment system menus ................... 241

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.75
FunctionPage
Menus and mes-
sages, turn signals,
high/low beams,
trip computer128, 92,
89, 142
Cruise control147
Horn, airbag88, 22
Main instrument
panel75
Audio system/Blue-
tooth hands-free
controls200, 229
START/STOP
ENGINE button81
Ignition slot81
Infotainment/menu
display-
Door handle–
FunctionPage
In-door control pan-
els (power win-
dows, mirrors,
power child safety
locks, central lock-
ing button)98, 100,
52, 66
Hazard warning
flashers91
Audio system con-
trols200
Climate system
controls137
Gear selector112
Controls for active
chassis (Four-C)*146
Wipers and washers95, 96
Steering wheel
adjustment88
Hood opening con-
trol303
Parking brake118
FunctionPage
Lighting panel, con-
trols for opening
fuel filler door/tail-
gate89, 252,
67
Power seat* adjust-
ment controls82
Information displays
Information displays in the instrument panel
The information displays show information on
some of the vehicle's functions, such as cruise
control, the trip computer and messages. The
information is shown with text and symbols.

03 Your driving environment
Steering wheel
03
88* Option/accessory, for more information, see Introduction.
Adjusting
G021138
Adjusting the steering wheel
Lever for releasing/locking the steering
wheel
Possible positions
The steering wheel can be adjusted for both
height and reach:
1. Pull the lever toward you to release the
steering wheel.
2. Adjust the steering wheel to the position
that suits you.
3. Push back the lever to lock the steering
wheel in place. If the lever is difficult to
push into place, press the steering wheel
lightly at the same time as you push the
lever.
WARNING
Never adjust the steering wheel while driv-
ing.
With the optional speed-dependent power
steering the level of steering force can be
adjusted, see page 146.
Keypads
Keypads in the steering wheel
Cruise control, see page 147. Adaptive
cruise control*, see page 149.
Infotainment controls, see page 203.
Horn
Horn

Press the steering wheel hub to sound the
horn.

04 Comfort and driving pleasure
The MY CAR menus
04
128
Introduction
The menu system provides access to menus
for operating many of the vehicle's functions,
such as setting the clock, door mirrors, locks,
etc.
Navigatiing in the menus is done using the but-
tons on the center console control panel or with
the right-side steering wheel keypad.
Some of the features mentioned in this section
are optional.
Operation
Center console controls
Center console controls for menu navigation
Press MY CAR to access the My Car
menus.
Press OK/MENU to select a highlighted
selection or to store a certain function in
the system's memory.
Turn to navigate up/down among menu
selections.
Press and hold to return to the main menu.
Press briefly .
•Press EXIT briefly to go back one step at a
time in the current menu.
•Press and hold EXIT to go to the main MY
CAR menu.
•From the main MY CAR menu, press and
hold EXIT to go to the infotainment sys-
tem's main view. See page 204 for addi-
tional information.
Steering wheel keypad
The keypad varies according to the vehicle's
equipment
Turn the thumb wheel to go up/down
among menu selections. Press the thumb
wheel to make a selection or store a func-
tion in the system's memory.
EXIT.
PathsThe current menu level is displayed at the
upper right of the center console display. Menu
paths are displayed as follows, for example:

04 Comfort and driving pleasure
The MY CAR menus
04
132
nected to the BluetoothŸ hands-free system.
See page 237 for more detailed information.
The menu alternatives under
Navigation
commands show examples of the voice com-
mands available for the optional Volvo
Navigation System. Refer to the navigation
system's manual for detailed information.
Voice user setting
Default setting
User 1
User 2
Two user profiles can be set, which is useful if
more than one person uses voice commands
regularly.
Default setting resets the factory
settings.
Voice training
User 1
User 2
Voice training enables the system to become
familiar with the driver's voice and pronuncia-
tion. A list of phrases is presented on the
screen for the driver to read aloud. When the
system has registered the driver's pronuncia-
tion, no additional phrases will be displayed.
After completed voice training, select
User 1or User 2 in Voice user setting to set the sys-
tem to the current user.Voice output volume
•A volume control will be displayed. To set
the volume level:
1. Adjust the volume using the thumb wheel
2.
Test the setting by pressing OK
3. Store the setting and leave the menu by
pressing EXIT.
Voice POI list
Edit list
The navigation system has a large number of
points of interest (POIs). A maximum of 30 POIs
can be stored in this list.
The menu alternative
Voice POI list is only
displayed if the vehicle is equipped with the
optional Volvo Navigation System. Refer to the
navigation system's manual for detailed infor-
mation.
MY CARSettingsAudio settings
See page 200 for more information about the
infotainment system.
MY CARSettingsClimate settings
Automatic blower adjustment
NormalHigh
Low
Recirculation timer
Automatic rear defroster
Interior air quality system
Reset climate settings
This feature returns the "Climate settings"
menu to the original factory settings.
For more information about the climate sys-
tem, see page 134.
MY CARSettingsFavorites (FAV)
See page 207 for more information about this
feature.
MY CARSettingsInformation
Number of keys
See page 56 for more information.
VIN number
See page 337 for more information.
DivX® VOD code
See page 222 for more information.

04 Comfort and driving pleasure
Park assist*
04
182* Option/accessory, for more information, see Introduction.
Signals from the park assist system
View in the display (warning for objects front left/
right rear)
Visual indicatorThe audio system’s display gives an overview
of the vehicle’s position in relation to a
detected object.
The marked sectors in the display indicate that
one or more of the sensors has detected an
object. The closer the car symbol comes to a
sector, the closer the vehicle is to the object.
If the infotainment system is switched off, the
park assist system will not be able to provide a
visual indicator. An audible signal will still be
provided.
Audible signalThe Park Assist system uses an intermittent
tone that pulses faster as you come close to an
object, and becomes constant when you are
within approximately 1 ft (30 cm) of an object
in front of or behind the vehicle. If there are
objects within this distance both behind and in
front of the vehicle, the tone alternates
between front and rear speakers.
NOTE
The level of the audible signal can be low-
ered/raised with the infotainment volume
control. The level can also be set in the MY
CAR menu system, see page 129.
If the volume of another source from the audio
system is high, this will be automatically low-
ered.
Rear park assist
The distance monitored behind the vehicle is
approximately 5 ft (1.5 m). The audible signal
comes from the rear speakers.
The system must be deactivated when towing
a trailer, carrying bicycles in a rear-mounted
carrier, etc, which could trigger the rear park
assist system's sensors.
NOTE
Rear park assist is deactivated automati-
cally when towing a trailer if Volvo genuine
trailer wiring is used.

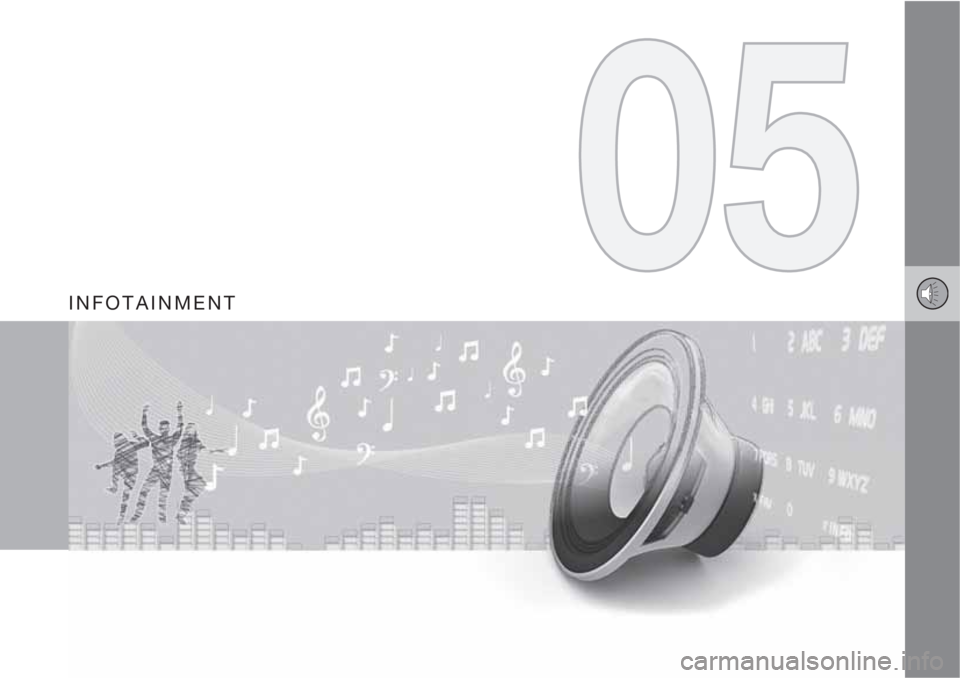

198
Introduction........................................................................................... 200
Getting started ..................................................................................... 202
General infotainment functions ............................................................ 207
Radio..................................................................................................... 210
Media player......................................................................................... 219
AUX/USB sockets................................................................................. 223
Bluetooth
Ÿ media ................................................................................. 226
Bluetooth
® hands-free connection ...................................................... 229
Cell phone voice control....................................................................... 237
Infotainment system menus ................................................................. 241

INFOTAINMENT
