2011 VOLVO V50 engine

09 Maintenance and servicing
Battery 09
222
Battery maintenance
Driving habits and conditions, climate, the
number of starts, etc., all affect the service life
and function of the battery. In order for your
battery to perform satisfactorily, keep the fol-
lowing in mind:
Check the fluid level in each cell in the battery
every 24 months or every 15,000
1 miles
(24,000 km), whichever is sooner.
•Use a screw driver to open the caps or
cover and a flashlight to inspect the level.
•If necessary, add distilled water. The level
should never be above the indicator.
•The fluid level should be checked if the
battery has been recharged.
•After inspection, be sure the cap over each
battery cell or the cover is securely in
place.
•Check that the battery cables are correctly
connected and properly tightened.
•Never disconnect the battery when the
engine is running, or when the key is in the
ignition. This could damage the vehicle's
electrical system.
•The battery should be disconnected from
the vehicle when a battery charger is used
directly on the battery.
•To help keep the battery in good condition,
the vehicle should be driven for at least 15
minutes a week or connected to a charger
with an automatic charging function.
•If the battery is fully discharged a number
of times, this may shorten its service life.
Keeping the battery fully charged helps
prolong its service life.
•The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.
•Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.
•
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
Battery symbols
Wear protection goggles
See owner's manual for
details
Keep away from children
Corrosive
1More frequently in warm climates.

09 Maintenance and servicing
Battery09
223
No smoking, no open flames,
no sparks
Explosion
Battery replacement
Removing the battery1. Switch off the ignition and remove the key.
2. Wait at least 5 minutes after switching off
the ignition before disconnecting the bat-
tery so that all information in the vehicle's
electrical system can be stored in the con-
trol modules.
3. Remove the cover over the battery.
4. Disconnect the battery negative (ground)
cable.
5. Disconnect the positive cable.
6. Remove the front side of the battery box
with a screwdriver.7. Release the clamp holding the battery.
8. Lift out the battery.
Installing a new battery1. Put the battery in place in the engine com-
partment.
2. Install the battery's retaining clamp.
3. Reinstall the front side of the battery box.
4. Connect the positive cable.
5. Connect the ground cable.
6. Reinstall the cover over the battery.
NOTE
Used batteries should be properly disposed
of at a recycling station or similar facility, or
taken to your Volvo retailer.
WARNING
•Never expose the battery to open flame
or electric spark.
•Do not smoke near the battery.
•Battery fluid contains sulfuric acid. Do
not allow battery fluid to contact eyes,
skin, fabrics or painted surfaces. If con-
tact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.

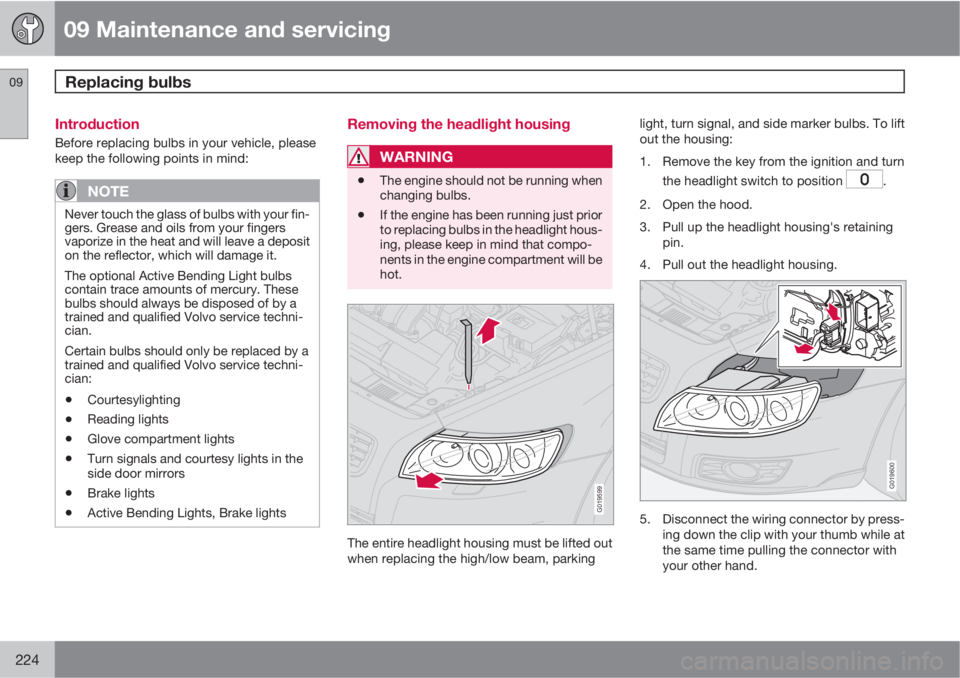

09 Maintenance and servicing
Replacing bulbs 09
224
Introduction
Before replacing bulbs in your vehicle, please
keep the following points in mind:
NOTE
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.
The optional Active Bending Light bulbs
contain trace amounts of mercury. These
bulbs should always be disposed of by a
trained and qualified Volvo service techni-
cian.
Certain bulbs should only be replaced by a
trained and qualified Volvo service techni-
cian:
•Courtesylighting
•Reading lights
•Glove compartment lights
•Turn signals and courtesy lights in the
side door mirrors
•Brake lights
•Active Bending Lights, Brake lights
Removing the headlight housing
WARNING
•The engine should not be running when
changing bulbs.
•If the engine has been running just prior
to replacing bulbs in the headlight hous-
ing, please keep in mind that compo-
nents in the engine compartment will be
hot.
G019599
The entire headlight housing must be lifted out
when replacing the high/low beam, parkinglight, turn signal, and side marker bulbs. To lift
out the housing:
1. Remove the key from the ignition and turn
the headlight switch to position
.
2. Open the hood.
3. Pull up the headlight housing's retaining
pin.
4. Pull out the headlight housing.
G019600
5. Disconnect the wiring connector by press-
ing down the clip with your thumb while at
the same time pulling the connector with
your other hand.

09 Maintenance and servicing
Fuses09

231 Replacing fuses
There are relay/fuse boxes located in the
engine compartment and the passenger com-
partment.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
3. If the wire is broken, insert a new fuse of
the same color and amperage (written on
the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

09 Maintenance and servicing
Fuses 09
232
Fuse box in the engine compartment
G007446
The fuse box in the engine compartment has
positions for 36 fuses.
•Fuses 1–18 are relays/circuit breakers and
should only be removed or replaced by an
authorized Volvo service technician.
•Fuses 19–36 may be changed at any time
when necessary.
Several extra fuses and a fuse removal tool to
assist in removing/replacing fuses can be
found on the underside of the fuse box cover
in the engine compartment.

09 Maintenance and servicing
Fuses09

233
Fuses in the engine compartment
G020250
1.Coolant fan (radiator)50A
2.Power steering80A
3.Feed to passenger com-
partment fuse box60A
4.Feed to passenger com-
partment fuse box60A
5.Element, climate unit80A
6.Not in use
7.ABS pump30A
8.ABS valves20A
9.Engine functions30A
10.Climate system blower40A
11.Headlight washers20A
12.Feed to heated rear window30A
13.Starter motor relay30A
14.Trailer connector (acces-
sory)40A
15.Not in use
16.Feed to audio system30A
17.Windshield wipers30A
18.Feed to passenger com-
partment fuse box40A
19.Not in use
20.Horn15A
21.Not in use
22.Not in use
23.Engine control module
(ECM)/transmission control
module (TCM)10A

09 Maintenance and servicing
Fuses 09
234* Option/accessory, for more information, see Introduction.
24.Not in use
25.Not in use
26.Ignition switch15A
27.A/C compressor10A
28.Not in use
29.Front fog lights*15A
30.Not in use
31.Not in use
32.Fuel injectors10A
33.Heated oxygen sensor, vac-
uum pump20A
34.Ignition coils, climate unit
pressure sensor10A
35.Engine sensor valves, A/C
relay, relay coil, PTC ele-
ment oil trap, canister, mass
air meter15A
36.Engine control module
(ECM), throttle sensor10A

09 Maintenance and servicing
Fuses 09
236* Option/accessory, for more information, see Introduction.
Fuses in the passenger compartment
-Fuse 37-42, not in use-
43.Audio system, Blue-
tooth,Volvo Navigation sys-
tem*15A
44.Supplemental Restrain Sys-
tem (SRS), engine control
module10A
45.12-volt socket in rear seat15A
46.Lighting – glove compart-
ment, instrument panel, and
footwells5A
47.Interior lighting5A
48.Tailgate window wiper/
washer15A
49.Supplemental Restrain Sys-
tem (SRS), Occupant
Weight Sensor (OWS)10A
50.Not in use
51.AWD, fuel filter relay10A
52.Transmission control mod-
ule (TCM), ABS5A
53.Power steering10A
54.Park assist*, Active Bending
Lights*10A
55.Not in use
56.Volvo Navigation System
remote key module, alarm
siren control module10A
57.On-board diagnostic
socket, brake light switch15A
58.Right high beam, auxiliary
lights relay7.5A
