07 Maintenance and specifications
Hood and engine compartment
07
255 Opening and closing the hood
G010951
Pull the lever located under the left side of
the dash to release the hood lock.
Lift the hood slightly. Press the release
control (located under the right front edge
of the hood) to the left, and lift the hood
WARNING
Check that the hood locks properly when
closed.
Engine compartment, overview
G018945
The appearance of the engine compartment
may vary depending on engine model.
Coolant expansion tank
Power steering fluid reservoir
Engine oil dipstick
Radiator
Filler cap for engine oil
Cover over brake fluid reservoir
Battery
Relay and fuse box
Washer fluid reservoir
Air cleaner
WARNING
The cooling fan may start or continue to
operate (for up to 6 minutes) after the engine
has been switched off.
WARNING
The ignition should always be completely
switched off before performing any opera-
tions in the engine compartment.
The distributor ignition system operates at
very high voltages. Special safety precau-
tions must be followed to prevent injury.
Always turn the ignition off when:
•Replacing distributor ignition compo-
nents e.g. plugs, coil, etc.
•Do not touch any part of the distributor
ignition system while the engine is run-
ning. This may result in unintended
movements and body injury.

07 Maintenance and specifications
Replacing bulbs
07

261
NOTE
•Always switch off the ignition before
starting to replace a bulb.
•The optional Active Bending Light bulbs
contain trace amounts of mercury.
These bulbs should always be disposed
of by a trained and qualified Volvo serv-
ice technician.
Removing the headlight housing1. Switch off the ignition by briefly pressing
the START/STOP ENGINE button and
remove the remote key from the ignition
slot
1.
2. (Upper illustration under "Headlight hous-
ing")
Withdraw the headlight housing's lock-
ing pins.
Pull the headlight housing straight out.
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
3. (Lower illustration under "Headlight hous-
ing")
Unplug the wiring connector by holding
down the clip with your thumb.
Pull out the connector with the other
hand.
4. Lift out the housing and place it on a soft
surface to avoid scratching the lens.
5. Replace the defective bulb(s).
Reinserting the headlight housing1. Plug in the connector until it clicks into
place.
2. Reinstall the headlight housing and locking
pins. Check that they are correctly
inserted. The headlight housing must be
properly inserted and secured in place
before the lighting is switched on or the
remote key is inserted into the ignition slot.
3. Check that the lights function properly.
Removing the cover to access the
bulbs
G021745
NOTE
Before starting to replace a bulb, see
page 260.
1. Open the retaining clamp by pressing it to
the side.
2. Press down the clips on the upper edge of
the cover and remove it.
Reinstall the cover in the reverse order.
1Does not apply to vehicles with the optional keyless drive.

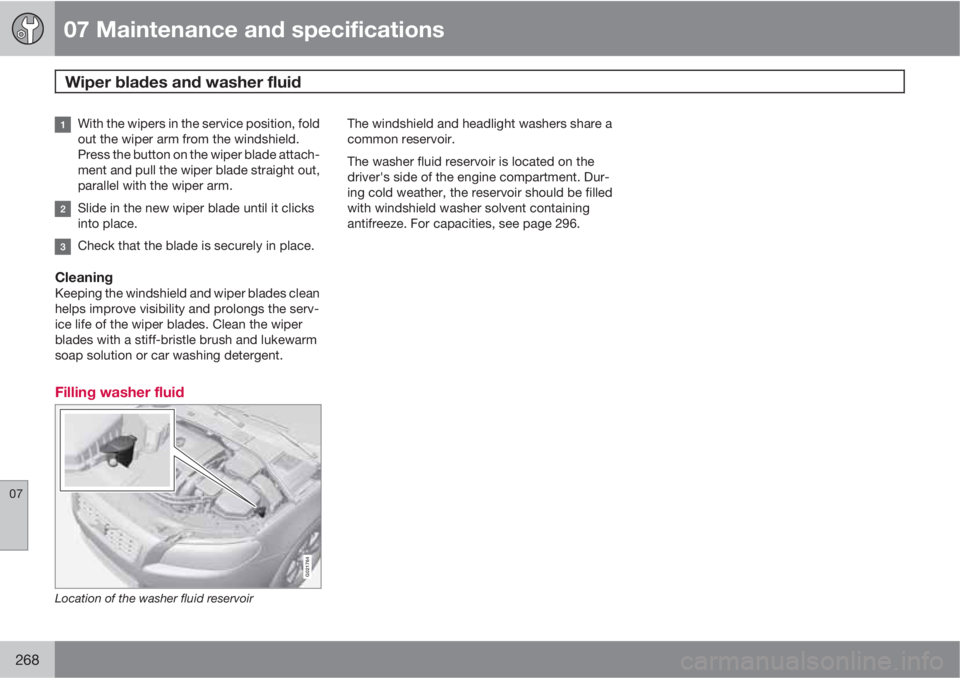

07 Maintenance and specifications
Wiper blades and washer fluid
07
268
With the wipers in the service position, fold
out the wiper arm from the windshield.
Press the button on the wiper blade attach-
ment and pull the wiper blade straight out,
parallel with the wiper arm.
Slide in the new wiper blade until it clicks
into place.
Check that the blade is securely in place.
CleaningKeeping the windshield and wiper blades clean
helps improve visibility and prolongs the serv-
ice life of the wiper blades. Clean the wiper
blades with a stiff-bristle brush and lukewarm
soap solution or car washing detergent.
Filling washer fluid
G021764
Location of the washer fluid reservoir
The windshield and headlight washers share a
common reservoir.
The washer fluid reservoir is located on the
driver's side of the engine compartment. Dur-
ing cold weather, the reservoir should be filled
with windshield washer solvent containing
antifreeze. For capacities, see page 296.

07 Maintenance and specifications
Battery
07

269 Warning symbols on the battery
Wear protective goggles.
Keep away from children.
Avoid smoking, open flames,
and/or sparks.
See the owner's manual.
Contains corrosive acid.
Risk of explosion
NOTE
A used battery should be disposed of in an
environmentally responsible manner. Con-
sult your Volvo retailer or take the battery to
a recycling station.
Handling
•Check that the battery cables are correctly
connected and tightened.
•Never disconnect the battery when the
engine is running (for example, when
replacing the battery).
•If the battery is fully discharged a number
of times, this may shorten its service life.
•The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.
•Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.
Never use a quick charger to charge the bat-
tery.
WARNING
•Never expose the battery to open flame
or electric spark.
•Do not smoke near the battery.
•Battery fluid contains sulfuric acid. Do
not allow battery fluid to contact eyes,
skin, fabrics or painted surfaces. If con-
tact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.
NOTE
The life of the battery is shortened if it
becomes discharged repeatedly.
Maintenance
•Use a screw driver to open the caps or
cover and a flashlight to inspect the level.
•If necessary, add distilled water. The level
should never be above the indicator.
•The fluid level should be checked if the
battery has been recharged.
•After inspection, be sure the cap over each
battery cell or the cover is securely in
place.
•Check that the battery cables are correctly
connected and properly tightened.

09 Index
09
303
specifications...................................... 265
trunk lighting....................................... 265
C
Camera, Park Assist................................ 188
Capacity weight....................................... 232
Catalytic converter................................... 211
CD player/changer................................... 145
Cell phone, hands-free connection......... 148
Central locking system, introduction......... 52
Chains...................................................... 235
Check engine light..................................... 72
Child restraints
recalls and registration......................... 47
Child restraint systems.............................. 38
booster cushions.................................. 44
convertible seats.................................. 42
infant seats........................................... 40
ISOFIX/LATCH anchors........................ 45
top tether anchors................................ 46
Child safety.......................................... 36, 37
booster cushions.................................. 44
child restraint systems.......................... 38convertible seats.................................. 42
infant seats........................................... 40
Child safety locks...................................... 48
Climate system........................................ 131
air distribution............................. 127, 132
air vents.............................................. 128
Interior Air Quality System.................. 127
introduction......................................... 126
passenger compartment filter............ 127
refrigerant........................................... 126
Clock
analogue............................................... 76
Clock, setting............................................. 76
Cold weather driving................................ 206
Collision warning system......................... 173
Compass in rearview mirror..................... 102
Conserving electrical current................... 205
Convertible seats....................................... 42
Coolant............................................258, 296
Cooling system, general information....... 205
Courtesy lighting.................................. 92, 93
Crash mode............................................... 35
Cruise control..................................159, 160
adaptive.............................................. 161Curb weight............................................. 232
Current, conserving................................. 205
D
Defroster.................................................. 131
Detachable key blade..........................56, 59
Disconnecting the front passenger’s air-
bag....................................................... 26, 27
Dome lighting....................................... 92, 93
Door mirrors............................................. 100
Driver alert............................................... 179
Driver distraction warning.......................... 13
Driving economically................................ 204
Driving in cold weather............................ 206
Driving through water..............................205
E
ECC.........................................129, 130, 131
Economical driving.................................. 204
Electric parking brake.............................. 117

09 Index
09
304
Electronic Climate Control.......128, 130, 131
air distribution table............................ 132
Interior Air Quality System.................. 131
ventilated seats................................... 129
Emergency locking retractor...................... 37
Emergency starting.................................. 110
Emergency towing...........................218, 219
Emission inspection readiness................ 253
Engine
overheating........................................... 75
specifications...................................... 293
starting................................................ 108
switching off....................................... 110
Engine compartment overview................255
Engine oil
checking............................................. 256
low pressure warning light.............. 73, 74
specifications...................................... 295
volumes.............................................. 296
Environment............................................... 12
Eyelets for anchoring loads..................... 213F
Federal Clean Air Act............................... 252
Fluid specifications.................................. 296
Fog lights
front/rear............................................... 91
Four C (active chassis system)................158
Front airbags.............................................. 22
disconnecting passenger’s side air-
bag.................................................. 26, 27
Front fog lights........................................... 91
Front park assist.............................. 184, 186
Front seats..................................... 80, 82, 86
heated................................................. 129
lumbar support (S80 Executive only).... 86
massage function (S80 Executive only) 86
moving passenger's seat (S80 Execu-
tive only)................................................ 87
Fuel filler cap........................................... 211
Fuel filler door, opening........................... 210
Fuel level warning light.............................. 73
Fuel requirements............................ 208, 209
Fuel tank volume.....................................296
Fuses............................... 272, 273, 276, 280
G
Gasoline requirements............................. 209
Gas tank volume...................................... 296
Gauges...................................................... 71
Geartronic................................................ 113
Geartronic automatic transmission.. 112, 113
Generator warning light............................. 74
Glossary of tire terminology..................... 231
Grocery bag holder.................................. 214
Gross vehicle weight...............................232
H
Hazard warning flashers............................ 91
HD digital radio........................................ 139
Headlights
Active Bending Lights........................... 90
changing bulbs...........................261, 262
high/low beams.................................... 89
high beam flash.................................... 89
Headlight washers..................................... 96
Head restraints, rear seat.......................... 83
Heated front seats................................... 129

09 Index
09
306
Malfunction indicator light......................... 72
Menu system........................................... 122
overview.............................................. 122
Messages in the instrument panel........... 124
Mirrors
defroster............................................. 101
power door......................................... 100
rearview, auto-dim function................ 101
retractable........................................... 100
vanity.................................................. 198
Moonroof................................................. 103
Motor oil
checking............................................. 256
specifications...................................... 295
volumes.............................................. 296
O
Occupant safety........................................ 16
Occupant weight sensor...................... 26, 27
Octane recommendations.......................209
Odometer, trip........................................... 76Oil
checking............................................. 256
specifications...................................... 295
volumes.............................................. 296
On Call Roadside Assistance.................. 301
Overhead courtesy lighting.................. 92, 93
Overheating, engine................................... 75
Oxygen sensors, heated.......................... 212
P
Paint, touching up.................................... 284
Park assist.......................................184, 186
Park Assist Camera................................. 188
Parking brake
electric, applying/releasing................. 117
warning light......................................... 74
Parking lights............................................. 90
changing bulbs................................... 263
Personal Car Communicator, unique func-
tions........................................................... 55
Polishing.................................................. 282Power front seat
memory function................................... 81
with keyless drive................................. 82
Power mirrors.......................................... 100
defroster............................................. 101
Power moonroof...................................... 103
Power steering
fluid..................................................... 259
speed-dependent............................... 158
Power steering fluid................................. 296
Power windows......................................... 98
laminated glass..................................... 99
Pregnancy, using seat belts during........... 20
Private locking........................................... 59
PROPOSITION 65 WARNING. . 110, 271, 297
R
Radio
Sirius satellite radio............................142
Radio functions........................................ 136
HD digital radio................................... 139
Rain sensor................................................ 95
READ button............................................ 124
