2011 VOLVO S60 trip computer

Contents
* Option/accessory, for more information, see Introduction.5
03
03 Your driving environment
Instruments and controls.......................... 74
Ignition modes.......................................... 81
Seats......................................................... 83
Steering wheel.......................................... 89
Lighting..................................................... 90
Wipers and washers................................. 96
Power windows......................................... 98
Mirrors..................................................... 100
Compass*............................................... 102
Power moonroof*.................................... 103
HomeLink® Wireless Control System*. . . 105
Starting the engine.................................. 108
Transmission...........................................111
Brakes..................................................... 114
Parking brake.......................................... 116
04
04 Comfort and driving pleasure
Menus and messages............................. 122
My Car ................................................... 124
Climate system....................................... 129
Trip computer......................................... 137
Stability system....................................... 138
Active chassis system–Four C*............... 140
Cruise control.......................................... 141
Adaptive Cruise Control (ACC)*.............. 143
Distance Alert* ....................................... 153
City Safety™ .......................................... 156
Collision warning with Full Auto-brake and
Pedestrian Detection*............................. 162
Driver Alert System* ............................... 169
Park assist*............................................. 175
Rear Park Assist Camera (PAC)* ............ 178
Blind Spot Information System*.............. 182
Passenger compartment convenience. . . 186
05
05 Infotainment
Introduction............................................. 192
Getting started ....................................... 194
General infotainment functions .............. 199
Radio....................................................... 202
Media player........................................... 211
AUX/USB sockets................................... 215
Bluetooth
Ÿ media ................................... 218
Bluetooth® hands-free connection ........ 221
Cell phone voice control......................... 229
Infotainment system menus ................... 233

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.75
FunctionPage
Menus and mes-
sages, turn signals,
high/low beams,
trip computersee
page 124,
93, 90,
137
Cruise control141
Horn, airbag89, 25
Main instrument
panel75
Infotainment sys-
tem/Bluetooth
hands-free controls192, 221
START/STOP
ENGINE button81
Ignition slot81
Information display75
Door handle–
In-door control pan-
els (power win-
dows, mirrors, cen-
tral locking button)98, 100,
65
Hazard warning
flashers92
FunctionPage
Infotainment sys-
tem controls192
Climate system
controls132
Gear selector111
Controls for active
chassis (Four-C)*140
Wipers and washers96, 97
Steering wheel
adjustment89
Hood opening con-
trol289
Parking brake116
Power seat* adjust-
ment controls83
Lighting panel, con-
trols for opening
fuel filler door/trunk90, 244,
67
Information displays
Information displays in the instrument panel
The information displays (1) show information
on some of the vehicle's functions, such as
cruise control, the trip computer and mes-
sages. The information is shown with text and
symbols.
More detailed information can be found in the
descriptions of the functions that use the infor-
mation displays.

120* Option/accessory, for more information, see Introduction.
Menus and messages........................................................................... 122
My Car .................................................................................................. 124
Climate system..................................................................................... 129
Trip computer........................................................................................ 137
Stability system..................................................................................... 138
Active chassis system–Four C*............................................................. 140
Cruise control........................................................................................ 141
Adaptive Cruise Control (ACC)*............................................................ 143
Distance Alert* ..................................................................................... 153
City Safety™ ........................................................................................ 156
Collision warning with Full Auto-brake and Pedestrian Detection*...... 162
Driver Alert System* ............................................................................. 169
Park assist*........................................................................................... 175
Rear Park Assist Camera (PAC)* .......................................................... 178
Blind Spot Information System*............................................................ 182
Passenger compartment convenience................................................. 186

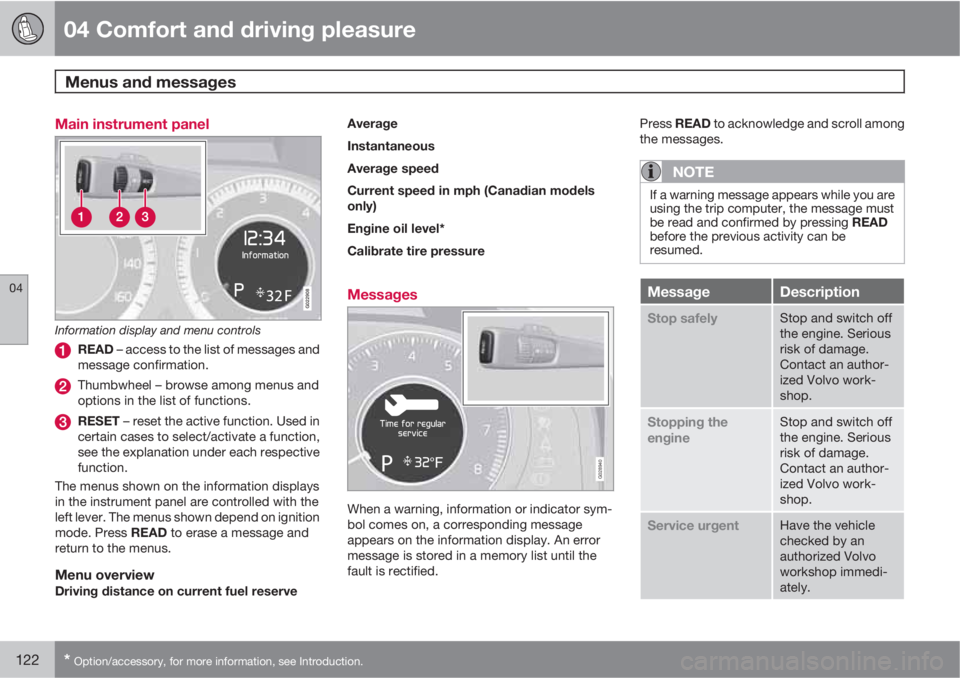

04 Comfort and driving pleasure
Menus and messages
04
122* Option/accessory, for more information, see Introduction.
Main instrument panel
G022908
Information display and menu controls
READ – access to the list of messages and
message confirmation.
Thumbwheel – browse among menus and
options in the list of functions.
RESET – reset the active function. Used in
certain cases to select/activate a function,
see the explanation under each respective
function.
The menus shown on the information displays
in the instrument panel are controlled with the
left lever. The menus shown depend on ignition
mode. Press READ to erase a message and
return to the menus.
Menu overviewDriving distance on current fuel reserveAverage
Instantaneous
Average speed
Current speed in mph (Canadian models
only)
Engine oil level*
Calibrate tire pressure
Messages
G028940
When a warning, information or indicator sym-
bol comes on, a corresponding message
appears on the information display. An error
message is stored in a memory list until the
fault is rectified.Press READ to acknowledge and scroll among
the messages.
NOTE
If a warning message appears while you are
using the trip computer, the message must
be read and confirmed by pressing READ
before the previous activity can be
resumed.
MessageDescription
Stop safelyStop and switch off
the engine. Serious
risk of damage.
Contact an author-
ized Volvo work-
shop.
Stopping the
engineStop and switch off
the engine. Serious
risk of damage.
Contact an author-
ized Volvo work-
shop.
Service urgentHave the vehicle
checked by an
authorized Volvo
workshop immedi-
ately.

04 Comfort and driving pleasure
My Car
04

127
Driver support systems
Collision warning
Collision Warning
Warning distance
Long
Normal
Short
Warning sound
See page 163 for more information.
Lane departure warning
Lane departure warning
On at start-up
Increased sensitivity
See page 172 for more information.
DSTC
See page 138 for more information.
City safety
See page 156 for more information.
BLIS
See page 182 for more information.
Distance AlertSee page 153 for more information.
Driver alert
See page 169 for more information.
System settings
Set/change time
See page 80 for more information.
Time format
12 h
24 h
Screensaver
The contents of the screen are replaced by
another image if this selection is marked. The
contents of the screen will be displayed again
if one of the buttons (1-4) is pressed, see
page 124.
Uncheck the selection to turn the screen saver
off.
Language
Select the language for menu texts.
Show help text
This displays help texts for the current menu.Distance and fuel units
MPG (UK)
MPG (US)
km/l
l/100km
See page 137 for more information about the
trip computer.
Temperature unit
Celsius
Fahrenheit
Select the temperature scale to be displayed
by the climate control unit.
Volume levels
Voice output volume
Park assist front volume
Park assist rear volume
Phone ringing volume
Reset system options
This feature returns the "System settings"
menu to the original factory settings.
Infotainment systems

04 Comfort and driving pleasure
Trip computer
04
137 Introduction
G022909
Information display and controls
READ–press to acknowledge/confirm/
erase a message)
Thumb wheel (used to scroll among the trip
computer menus)
RESET–resets certain functions
To scroll through trip computer information,
move the thumb wheel up or down. Continue
turning to return to the starting point.
Functions
NOTE
If a warning message appears while you are
using the trip computer, this message must
be acknowledged in order to return to the
trip computer function. Acknowledge a
message by pressing READ.
To change the unit of measure specified for
distance and speed, contact an authorized
Volvo workshop.
Average speedThe system calculates the average speed from
the last resetting. Reset using RESET.
Current speed in mph (Canadian models
only)
This function provides the driver with an instan-
taneous conversion of the car's current speed
from km/h to mph.
Current speed in km/h (U.S. models only)This function provides the driver with an instan-
taneous conversion of the car's current speed
from mph to km/h.
Current fuel consumption
(Instantaneous)
Current fuel consumption is calculated every
second. The information on the display isupdated every few seconds. When the vehicle
is stationary, "
----" appears on the display.
Average fuel consumptionThe average fuel consumption since the last
reset. Reset using RESET.
Driving distance on current fuel reserveThis function shows the approximate distance
that can be driven on the fuel remaining in the
tank. The calculation is based on average fuel
consumption during the last 20 miles (30 km)
of driving and the amount of fuel remaining in
the tank when the reading was taken. When the
message
---- miles to empty tank appears in
the display, refuel as soon as possible.
NOTE
The actual distance that can be driven on
the usable fuel remaining in the tank may be
influenced by a change in driving style.
Resetting1.
Select --- mph average speed or --.-
mpg average.
2.
Press and hold RESET for approx. 1 sec-
ond to reset the selected function. If
RESET is kept depressed for at 3 three
seconds, Average speed and Average fuel
consumption are reset simultaneously.

04 Comfort and driving pleasure
Driver Alert System*
04
170* Option/accessory, for more information, see Introduction.
Operating DAC
Certain settings can be made from the menu
system controlled from the center instrument
panel.
The current system status can be checked on
the trip computer’s display by using the but-
tons on the left steering wheel lever.Thumb wheel. Turn this wheel until Driver
Alert is displayed. The second line shows
the alternatives Off,
Standby <40 mph (<65 km/h), Unavaila
ble or [-----], i.e., the number of bars.
READ button. Confirms and erases a mes-
sage in the display.
Activating DACPress MY CAR in the center instrument panel
and go to Car settings
Driver Alert on.
The function is activated when the
vehicle exceeds a speed of 40 mph
(65 km/h). The display will show level
markings of 1–5 bars, where a low
number of bars indicates erratic driving. A high
number of bars indicates stable driving.
If the vehicle is being driven erratically, the
driver will be alerted by an audible signal and
the message Driver Alert, Time for a break is
displayed. The warning will be repeated after a
short time if the driving pattern remains the
same.
WARNING
•An alert should be taken seriously since
it is sometimes difficult for a driver to
realize that he/she is fatigued.
•In the event of a warning or if the driver
feels fatigued, stop as soon as possible
in a safe place and rest.
Symbols and messages in the display
SymbolMessageDescription
-Driver alert offThe function is not switched on.
-Driver alert
UnavailableThe vehicle’s speed is below 37 mph (60 km/h) or the road lacks clear marking lines.

04 Comfort and driving pleasure
Driver Alert System*
04
172* Option/accessory, for more information, see Introduction.
Lane Departure Warning (LDW)–
introduction
This function is designed to help reduce the
risk of accidents in situations where the vehicle
leaves its lane and there is a risk of driving off
the road or into the opposite lane. LDW con-
sists of a camera that monitors the lane’s side
marker lines. The driver is alerted by an audible
signal if the vehicle crosses a side marker line
or the road’s center dividing line.
Operation and function
LDW can be switched on or off by pressing the
button on the center console. A light in the but-
ton illuminates when the function is on.
The trip computer display shows
Driver alert
<40 mph (65 km/h) when the function is in
standby mode.
When LDW is in standby mode, the function is
activated automatically after the camera has
monitored the road’s side marker lines and the
vehicle’s speed exceeds 40 mph (65 km/h).
Lane Depart Warn Available will be dis-
played.
If the vehicle’s speed falls below 37 mph
(60 km/h), LDW will return to standby modeand
Driver alert <40 mph (65 km/h) will be
displayed.
If the camera can no longer monitor the road’s
side marker lines,
Lane Depart Warn
Unavailable will be displayed.
If the vehicle unexpectedly crosses the lane’s
left or right side marker lines, the driver will be
alerted by an audible signal.
No warning signal will be given in the follow-
ing situations:
•The turn signal is being used
•The driver’s foot is on the brake pedal1
•The throttle pedal is pressed quickly
•If the steering wheel is moved quickly
•In sharp turns that cause the vehicle’s
body to sway.
See page 165 for information on the camera’s
limitations.
WARNING
The driver will only be warned once for each
time the wheels cross a marker line. No
alarm will be given if a marker line is
between the wheels.
1A warning will be given even when Increased sensitivity has been selected.
