07 Wheels and tires
Temporary spare
07
190
Temporary spare
The spare tire in your vehicle1 is called a "Tem-
porary Spare".
Recommended tire pressure (see the placard
on the B-pillar or on the fuel filler door) should
be maintained irrespective of which position on
the car the temporary spare tire is used.
In the event of damage to this tire, a new one
can be purchased from your Volvo retailer.
WARNING
Current legislation prohibits the use of the
"Temporary Spare" tire other than as a tem-
porary replacement for a punctured tire. It
must be replaced as soon as possible by a
standard tire. Road holding and handling
may be affected with the "Temporary
Spare" in use. Do not exceed a speed of
50 mph (80 km/h) with the "Temporary
Spare" in use.
CAUTION
The car must not be driven with wheels of
different dimensions or with a spare tire
other than the one that came with the car.
The use of different size wheels can seri-
ously damage your car's transmission.
1Not on models equipped with the Tire sealing system.

266
Label information.................................................................................. 268
Dimensions and weights....................................................................... 270
Fuel, oils, and fluids..............................................................................273
Engine oil............................................................................................... 274
Engine specifications............................................................................ 275
Electrical system................................................................................... 277
Three-way catalytic converter............................................................... 279
Overview of information and warning symbols..................................... 280
Volvo programs..................................................................................... 282

11 Specifications
Dimensions and weights
11
270
Dimensions
PositionDimension
AWheelbase103.9 in. (264 cm)
BLength175.9 in. (447 cm)
CLoad length, floor, seatback down68.7 in. (175 cm)
DLoad length, floor38.4 in. (98 cm)
ELoad height17.3 in. (44 cm)
FHeight57.2 in. (145 cm)
GTrack, front60.4 in. (154 cm)

11 Specifications
Dimensions and weights
11

271

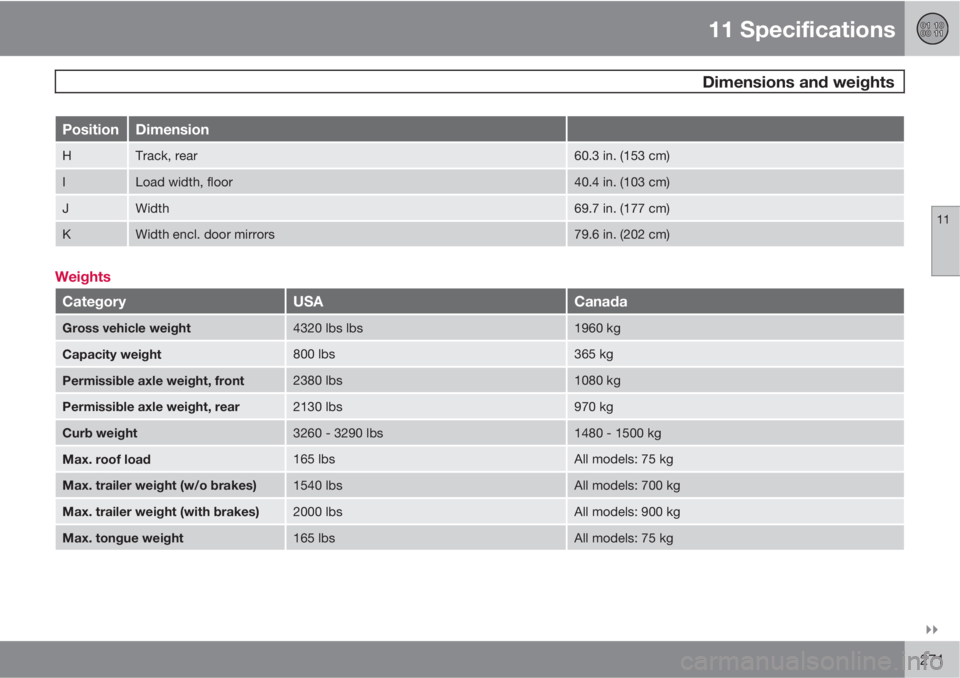

PositionDimension
HTrack, rear60.3 in. (153 cm)
ILoad width, floor40.4 in. (103 cm)
JWidth69.7 in. (177 cm)
KWidth encl. door mirrors79.6 in. (202 cm)
Weights
CategoryUSACanada
Gross vehicle weight4320 lbs lbs1960 kg
Capacity weight800 lbs365 kg
Permissible axle weight, front2380 lbs1080 kg
Permissible axle weight, rear2130 lbs970 kg
Curb weight3260 - 3290 lbs1480 - 1500 kg
Max. roof load165 lbsAll models: 75 kg
Max. trailer weight (w/o brakes)1540 lbsAll models: 700 kg
Max. trailer weight (with brakes)2000 lbsAll models: 900 kg
Max. tongue weight165 lbsAll models: 75 kg

11 Specifications
Dimensions and weights
11
272
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.
