2011 VOLVO C70 display

10 Audio
Bluetooth® hands-free connection
10
262
•Mute microphone: mute the audio sys-
tem’s microphone.
•Transfer call to cell: transfer the call from
hands-free to the cell phone.
•Phone book: this feature enables you to
search for a stored telephone number.
NOTE
•On certain cell phones, the connection
is broken when the mute function is
used, which is normal. If this happens,
the hands-free system will prompt you
to reconnect.
•A new call cannot be initiated while
another call is in progress.
Sound settings
Call volumeCall volume can be adjusted while a call is in
progress using the buttons in the steering
wheel keypad.
Audio system volumeWhen PHONE is displayed, volume for the
audio system can be adjusted in the normal
way with the audio system's volume control. In
order to adjust volume during a phone call, theaudio system must be switched to one of the
other modes (FM, CD, etc).
Audio system sound can be automatically
muted when a phone call is received in
Phone Menu…
Phone settings…
Sounds and volume…Mute radio and
adjust the volume with the
/ keys on the
center console.
Ringing volume
Go to Phone Menu…Phone settings…
Sounds and volume…Ring volume
and adjust the volume with the
/ keys on
the center console.
Ringing tonesThe hands-free system’s integrated ringing
tones can be selected in Phone Menu…
Phone settings…Sounds and volume…
Ring signals…Ring signal 1, etc.
NOTE
The connected cell phone’s ring tone is not
switched off when one of the hands-free
system's ringing tones is used.
If you prefer to use the connected cell phone’s
ring tone1, go to Phone Menu…Phone
settings…
Sounds and volume…Ring
signals…
Use cell phone signal
More information about registering
and connecting cell phones
A maximum of 5 cell phones can be registered
in the hands-free system. Registration only
needs to be done once for each phone. After
registration, the cell phones can then be found
in the list of registered phones. Only one cell
phone can be connected to hands-free at a
time. Phones can be unregistered in Phone
Menu…
Bluetooth…Remove phone
Automatic connectionWhen the hands-free system is active and the
most recently connected cell phone is within
range, it is detected automatically. When the
audio system searches for the most recently
connected phone, this phone’s name appears
in the display. To manually connect a different
cell phone, press EXIT.
Manual connectionTo connect a phone other than the one that
was most recently connected or to switch
1Not supported by all cell phones.

10 Audio
Bluetooth® hands-free connection
10

263
between cell phones that are already regis-
tered in the hands-free system:
Put the audio system in telephone mode and
follow the instructions in the display or change
the connected cell by going into the menu sys-
tem under Phone Menu…
Bluetooth…
Connect phone or Change phone.
Phone book
In order to use the hands-free system’s phone
book (list of contacts), PHONE must be dis-
played at the top of the center console display
and the
symbol must be visible.
The audio system stores a copy of the phone
book of each registered cell phone. The phone
book is automatically copied each time a
phone is connected. This function can be acti-
vated in Phone settings…
Synchronize
phone book. Searches for contacts are only
made in the phone book of the currently con-
nected cell phone.
NOTE
If a particular cell phone does not support
copying of the phone book, List is emptywill be displayed when copying has been
completed.
If the phone book contains information about
someone who is trying to call you, this infor-
mation will be shown in the display.
Searching for contactsThe easiest way to search for a contact in the
phone book is to press and hold any of the
buttons 2–9 in the center console (no. 3 in the
illustration on page 260. This starts a search
based on the first letter on the button that has
been pressed.
The phone book can also be accessed by
pressing the navigation buttons
/ on the
center console or by pressing
/ on the
steering wheel keypad. A search can also be
made in the phone book’s search menu in
Phone book…
Search:
1. Enter the first letter of the contact’s name
and press ENTER or simply press ENTER.
2. Select the desired contact and press
ENTER to make a call to that person.
Voice controlIf the cell phone that is currently connected
allows calls to be made via voice commands,
this function can be used by pressing and hold-
ing
ENTER.
Voice mail numberThe phone number to your voice mail can be
changed in the menu Phone settings…
Call options…Voice mail number. If no
number has been stored, this menu can be
accessed by a prolonged press on button 1.
Once a phone number has been stored, press
and hold 1 to dial this number.
Call listsLists of calls in a particular cell phone are cop-
ied to the hands-free system each time that
phone is connected. These lists are then upda-
ted while the phone is connected. Press
ENTER to show the most recently dialed num-
bers. Other call lists can be found under
Call
register….
NOTE
Certain cell phones display the list of the
most recently dialed numbers in reverse
order.
Entering textText is entered by using the number buttons in
the center console. Press a button once to
enter the first letter on the button, twice to enter
the second letter, etc. Continue to press the
button to display other characters.
Press EXIT briefly to erase a character. Press
and hold EXIT to erase all of the characters that
have been entered. Use the
/ buttons on

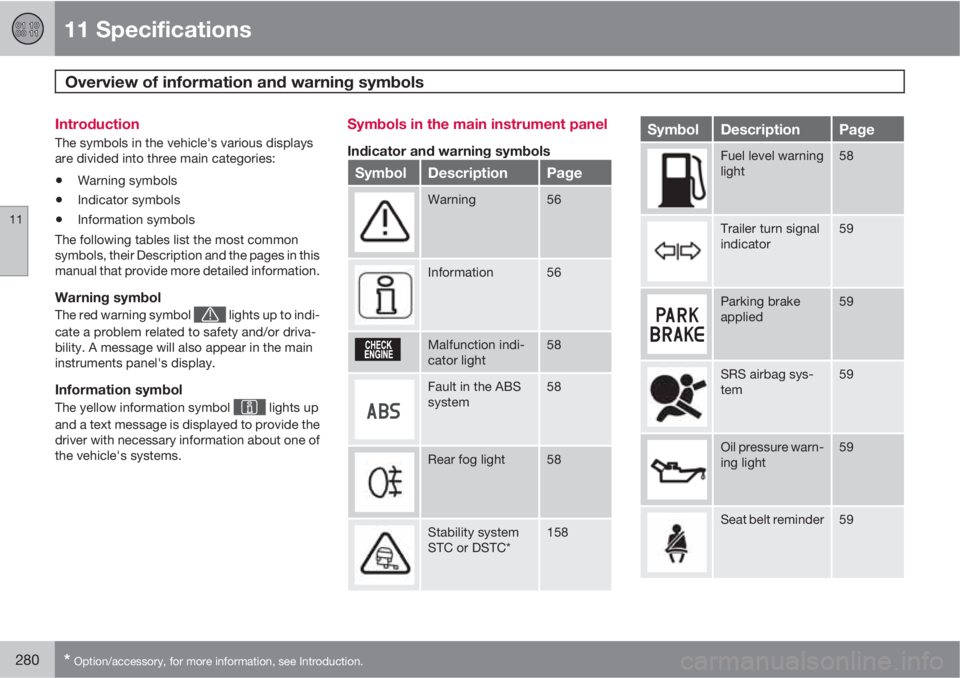

11 Specifications
Overview of information and warning symbols
11
280* Option/accessory, for more information, see Introduction.
Introduction
The symbols in the vehicle's various displays
are divided into three main categories:
•Warning symbols
•Indicator symbols
•Information symbols
The following tables list the most common
symbols, their Description and the pages in this
manual that provide more detailed information.
Warning symbol
The red warning symbol lights up to indi-
cate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.
Information symbol
The yellow information symbol lights up
and a text message is displayed to provide the
driver with necessary information about one of
the vehicle's systems.
Symbols in the main instrument panel
Indicator and warning symbols
SymbolDescriptionPage
Warning56
Information56
Malfunction indi-
cator light58
Fault in the ABS
system58
Rear fog light58
Stability system
STC or DSTC*158
SymbolDescriptionPage
Fuel level warning
light58
Trailer turn signal
indicator59
Parking brake
applied59
SRS airbag sys-
tem59
Oil pressure warn-
ing light59
Seat belt reminder59

11 Specifications
Overview of information and warning symbols
11
* Option/accessory, for more information, see Introduction.281
SymbolDescriptionPage
Generator warn-
ing light59
Brake failure
warning light60
High beam indica-
tor54
Left turn signal54
Right turn signal54
Other information symbols
SymbolDescriptionPage
Rain sensor*74
Cruise control*71
Information symbols in the center
console display
SymbolDescriptionPage
G021216
Surround sound
(Premium Sound
only)246
HD radio250
Audio files256
CD folder256
Bluetooth-con-
nected cell phone260
BluetoothTM
hands-free
260
Information symbols in the ceiling
console
SymbolDescriptionPage
Seat belt reminder59
Occupant weight
sensor28

12 Index
12
285
Bulbs
headlights........................................... 226
list of................................................... 277
Bulbs, replacing....................................... 226
C
Capacities, fluids..................................... 273
Capacity weight............................... 186, 271
Catalytic converter, three-way................. 279
CD player................................................. 256
Cell phone, hands-free connection......... 260
Central locking system - remote key....... 122
Chains...................................................... 189
Changing a wheel.................................... 199
Child restraints
recalls and registration......................... 48
Child restraint systems.............................. 40
booster cushions.................................. 46
ISOFIX/LATCH anchors........................ 47
Child safety................................................ 38
booster cushions.................................. 46
child restraint systems.......................... 40Climate system
air distribution....................................... 94
air vents................................................ 90
Electronic Climate Control.................... 91
passenger compartment filter.............. 88
refrigerant.....................................88, 273
Climate system, general information......... 88
Clock
setting................................................... 80
Cold weather precautions........................ 141
Compact disc care..................................257
Compass in rearview mirror....................... 77
Conserving electrical current................... 142
Convertible top (Power retractable hard
top)........................................................... 106
Coolant.................................................... 273
changing............................................. 221
checking level of................................. 221
Courtesy lighting...................................... 111
Crash mode............................................... 37
Cruise control............................................ 71
Cup holders.....................................113, 116
Curb weight.....................................186, 271
D
Detachable key blade.............................. 124
Detachable trailer hitch............................ 165
Dimensions.............................................. 270
Disconnecting the front passenger’s air-
bag............................................................. 28
Display.......................................................61
Dolby Pro Logic II (DPL II)........................ 246
Door mirrors............................................... 78
Door Mounted Inflatable Curtain system
(DMIC)........................................................ 33
Driver distraction warning.......................... 15
Driving economically................................ 140
Driving through water..............................140
DSTC, stability system............................ 157
E
Economical driving.................................. 140
Electrical current – conserving................ 142
Electrical system...................................... 277
Electronic Brake Force Distribution
(EBD)........................................................ 154

12 Index
12
287
High beams................................................ 67
Hoisting the vehicle.................................215
Home safe lighting............................... 67, 81
Hood, opening......................................... 217
I
Ignition switch.......................................... 146
Immobilizer.............................................. 147
Immobilizer (start inhibitor)...................... 122
Important information................................ 10
Indicator and warning symbols............ 54, 56
Inflatable Curtain........................................ 33
Inflation pressure..................................... 179
Inflation pressure, checking..................... 179
Inflation pressure table
Canadian models................................ 182
US models.......................................... 181
Information and warning symbols, table
of.............................................................. 280
Information display..............................54, 61
messages in.......................................... 61
Information symbol.................................... 56Inspection, preparing for......................... 215
Inspection readiness................................ 215
Instrument overview.................................. 52
Instrument panel.................................. 52, 54
Instrument panel lighting........................... 65
Interior lighting......................................... 111
iPodŸ connector (audio system)............. 244
ISOFIX/LATCH anchors............................. 47
J
Jack
location of........................................... 192
Jump starting........................................... 162
K
Key (ignition switch) positions................. 146
Key blade.........................................124, 129
Keyless drive
location of antennas (pacemaker warn-
ing)...................................................... 130
locking and unlocking the vehicle...... 128power seat memory............................ 129
starting the engine.............................. 149
Keylock.................................................... 147
Kickdown.................................................151
L
Label information..................................... 268
LATCH (ISOFIX) anchors........................... 47
Lighting panel............................................ 64
Load anchoring eyelets...........................118
Locking
from the inside.................................... 132
glove compartment............................. 133
Locking the vehicle.................................. 128
Long distance trips.................................. 142
Long loads, ski hatch............................... 119
Lug nuts (wheel nuts)............................... 191
