2011 VOLVO C30 snow chains

Contents
6* Option/accessory, for more information, see Introduction.
06
06 Starting and driving
General information................................140
Fuel requirements................................... 144
Ignition switch......................................... 147
Starting the vehicle................................. 148
Starting the vehicle with keyless drive*... 150
Manual transmission, 6-speed*.............. 151
Automatic transmission..........................152
Shiftlock override.................................... 154
Brake system.......................................... 155
Parking brake.......................................... 158
Stability system....................................... 159
Towing.................................................... 161
Jump starting.......................................... 164
Transporting loads.................................. 165
Blind Spot Information System (BLIS)*. . . 166
Rear park assist*..................................... 170
07
07 Wheels and tires
General information................................174
Tire inflation............................................. 177
Inflation pressure—U.S. models ............ 179
Inflation pressure—Canadian models .... 180
Tire designations..................................... 181
Glossary of tire terminology.................... 183
Vehicle loading........................................ 184
Uniform tire quality gradings................... 185
Snow chains, snow tires, studded tires. . 186
Temporary spare..................................... 187
Wheel nuts.............................................. 188
Spare tire and jack .................................189
Tire Sealing System* .............................. 191
Changing a wheel................................... 197
Tire Pressure Monitoring System (TPMS) 199
08
08 Car care
Washing and cleaning the car................. 204
Paint touch up......................................... 208

06 Starting and driving
Stability system
06

159 Dynamic Stability Traction Control
(DSTC)
The stability system consists of a number of
functions designed help reduce wheel spin,
counteract skidding, and to generally help
improve directional stability.
A pulsating sound will be audible when the
system is actively operating and is normal.
Traction control (TC)This function is designed to help reduce wheel
spin by transferring power from a drive wheel
that begins to lose traction to the wheel on the
opposite side of the vehicle (on the same axle).
TC is most active at low speeds.
This is one of the stability system's permanent
functions and cannot be switched off.
G020349
Thumb wheel
RESET button
Spin control (SC)The spin control function is designed to help
prevent the drive wheels from spinning while
the vehicle is accelerating.
Under certain circumstances, such as when
driving with snow chains, or driving in deep
snow or loose sand, it may be advisable to
temporarily switch off this function for maxi-
mum tractive force.
Temporarily switching off Spin control1. Turn the thumbwheel (A) on the left-side
steering wheel lever until the DSTC menu
is displayed.
2.
Hold down the RESET button (B) to toggle
between
DSTC ON or DSTC SPIN
CONTROL OFF.
NOTE
•The message DSTC SPIN CONTROL
OFF indicates that the stability sys-
tem's spin control function has tempo-
rarily been switched off.
•The spin control function is automati-
cally enabled each time the engine is
started.
•DSTC ON indicates that all system
functions are active.
Active yaw control – AYC (DSTC only)This function helps maintain directional stabil-
ity, for example when cornering, by braking
one or more of the wheels if the vehicle shows
a tendency to skid or slide laterally.
This is one of the stability system's permanent
functions and cannot be switched off.

172* Option/accessory, for more information, see Introduction.
General information............................................................................... 174
Tire inflation........................................................................................... 177
Inflation pressure—U.S. models .......................................................... 179
Inflation pressure—Canadian models .................................................. 180
Tire designations................................................................................... 181
Glossary of tire terminology..................................................................183
Vehicle loading...................................................................................... 184
Uniform tire quality gradings................................................................. 185
Snow chains, snow tires, studded tires................................................ 186
Temporary spare................................................................................... 187
Wheel nuts............................................................................................ 188
Spare tire and jack ............................................................................... 189
Tire Sealing System* ............................................................................ 191
Changing a wheel................................................................................. 197
Tire Pressure Monitoring System (TPMS).............................................199

07 Wheels and tires

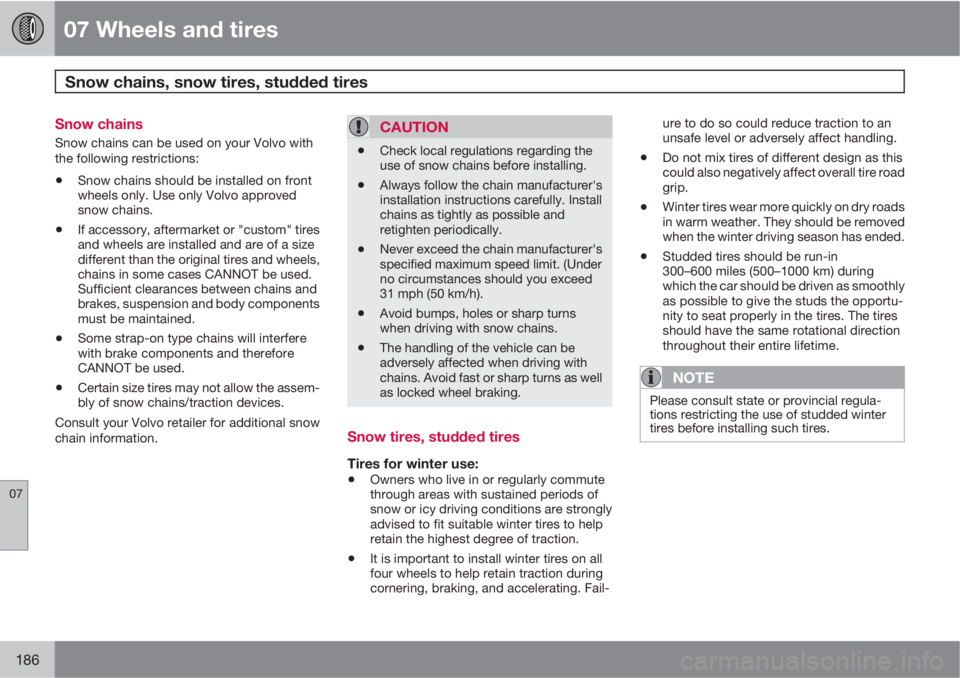

Snow chains, snow tires, studded tires
07
186
Snow chains
Snow chains can be used on your Volvo with
the following restrictions:
•Snow chains should be installed on front
wheels only. Use only Volvo approved
snow chains.
•If accessory, aftermarket or "custom" tires
and wheels are installed and are of a size
different than the original tires and wheels,
chains in some cases CANNOT be used.
Sufficient clearances between chains and
brakes, suspension and body components
must be maintained.
•Some strap-on type chains will interfere
with brake components and therefore
CANNOT be used.
•Certain size tires may not allow the assem-
bly of snow chains/traction devices.
Consult your Volvo retailer for additional snow
chain information.
CAUTION
•Check local regulations regarding the
use of snow chains before installing.
•Always follow the chain manufacturer's
installation instructions carefully. Install
chains as tightly as possible and
retighten periodically.
•Never exceed the chain manufacturer's
specified maximum speed limit. (Under
no circumstances should you exceed
31 mph (50 km/h).
•Avoid bumps, holes or sharp turns
when driving with snow chains.
•The handling of the vehicle can be
adversely affected when driving with
chains. Avoid fast or sharp turns as well
as locked wheel braking.
Snow tires, studded tires
Tires for winter use:
•Owners who live in or regularly commute
through areas with sustained periods of
snow or icy driving conditions are strongly
advised to fit suitable winter tires to help
retain the highest degree of traction.
•It is important to install winter tires on all
four wheels to help retain traction during
cornering, braking, and accelerating. Fail-ure to do so could reduce traction to an
unsafe level or adversely affect handling.
•Do not mix tires of different design as this
could also negatively affect overall tire road
grip.
•Winter tires wear more quickly on dry roads
in warm weather. They should be removed
when the winter driving season has ended.
•Studded tires should be run-in
300–600 miles (500–1000 km) during
which the car should be driven as smoothly
as possible to give the studs the opportu-
nity to seat properly in the tires. The tires
should have the same rotational direction
throughout their entire lifetime.
NOTE
Please consult state or provincial regula-
tions restricting the use of studded winter
tires before installing such tires.

12 Index
12
287
Replacing fuses....................................... 231
Reporting safety defects
Canada................................................. 19
USA....................................................... 18
Roof loads............................................... 165
S
Safety, occupant........................................ 18
Safety defects, reporting
Canada................................................. 19
USA....................................................... 18
Seat belt
reminder................................................ 22
Seat belts................................................... 20
Automatic locking retractor/Emergency
locking retractor.................................... 39
buckling................................................ 20
guides...................................................21
maintenance......................................... 22
pretensioners........................................ 20
unbuckling............................................ 20
use during pregnancy........................... 21
Seats, front.............................................. 104Shiftlock
override............................................... 154
Side door mirrors....................................... 79
Side impact airbags................................... 31
Side impact protection (SIPS) airbags....... 31
Sirius satellite radio.................................. 250
Snow chains............................................ 186
Snow tires................................................ 186
Sound control, automatic........................245
Sound settings, audio system................. 244
Spare tire.........................................187, 189
Stability system....................................... 159
Dynamic Stability Traction Control
(DSTC)................................................ 159
Starting the engine..................................148
with keyless drive...............................150
Start inhibitor (immobilizer)..............124, 148
STC, stability system............................... 159
Steering wheel
adjusting............................................... 76
keypad................................................ 242
Storage compartments............................ 113
Studded tires........................................... 186
Sunroof (moonroof).................................... 81Supplemental restraint system.................. 23
Symbols, overview................................... 278
T
Tachometer................................................ 54
Tailgate wipers......................................... 221
Temporary spare tire.......................187, 189
Three-way catalytic converter................. 277
Tire inflation............................................. 177
Tire inflation pressure
Canadian models................................ 180
US models.......................................... 179
Tire Pressure Monitoring System (TPMS) 199
Tires.........................................................174
age...................................................... 174
changing..................................... 189, 197
changing from summer to winter........ 175
designations....................................... 181
glossary of terms................................ 183
improving economy............................ 174
inflation............................................... 177
inflation pressure, checking................ 177
inflation pressure table, Canadian mod-
els....................................................... 180
