2011 TOYOTA PRIUS steering

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap8Hood release 8Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel9
Smart Key system1,27
Air Conditioning/Heating 16Audio 18-19Auto lock/unlock functions110Clock 23Cruise control20Dynamic Radar Cruise Control20-21EV-Drive Mode 12Garage door opener (HomeLink®)323Hill-start Assist Control (HAC) 23Hybrid Synergy Drive System10Lights1& turn signals 15LKA (Lane Keep Assist)21Moonroof 17Multi-information display 222Parking brake12Power outlets 19Seat adjustments-Front13Seat heaters 16Seat-Folding down rear seat13Seats-Head restraints 13Solar ventilation system 17Steering wheel switches19Telephone controls (Bluetooth®)22Tilt and telescopic steering wheel12Transmission 11Windows-Power14
Windshield wipers & washers 14
Doors-Child safety locks 25Door locks 25Seat belts24Seat belts-Shoulder belt anchor24Spare tire & tools25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Text_123161M2.qxd 11/2/10 5:46 PM Page 1

2
OVERVIEW
Instrument panel
Steering wheel controls
Steering wheel audio controls
Voice command button1,2
“TRIP” button
Multi-information display button
Steering wheel climate controls
Cruise control
1
“LKA” switch1
Distance switch1
Telephone controls1,2
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls1
Wiper and washer controls
Mph or km/h button
Advanced Parking Guide System/Intelligent Parking Assist pre-support
switch
1,2
Power button
Multi-information display
Audio system or navigation system-integrated audio system
1,2
Text_123161M2.qxd 11/2/10 5:46 PM Page 2

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Air Conditioning system
Air Conditioning controls
Outside rearview mirror1/Rear window defogger button
“EV” switch1
“ECO MODE” switch
“PWR MODE” switch
Emergency flasher button
Shift lever
“P” position switch
Tilt and telescopic steering lock release lever
Fuel filler door opener
Power rearview mirror control
Headlight cleaner switch
1
Solar ventilation switch1
Instrument panel light control
1If equipped2For vehicles with a navigation system, refer to the “ Navigation System
Owner’s Manual .”
Text_123161M2.qxd 11/2/10 5:46 PM Page 3

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
2If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator
1
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Master warning1
Electric power steering system warning1
READY indicator
Front fog light indicator
Eco Mode indicator
EV Drive Mode indicator
Automatic headlight leveling system warning
1
Lane Keep Assist indicator
Pre-Collision System warning light1
High coolant temperature warning light1
Power Mode indicator
Text_123161M2.qxd 11/2/10 5:46 PM Page 5

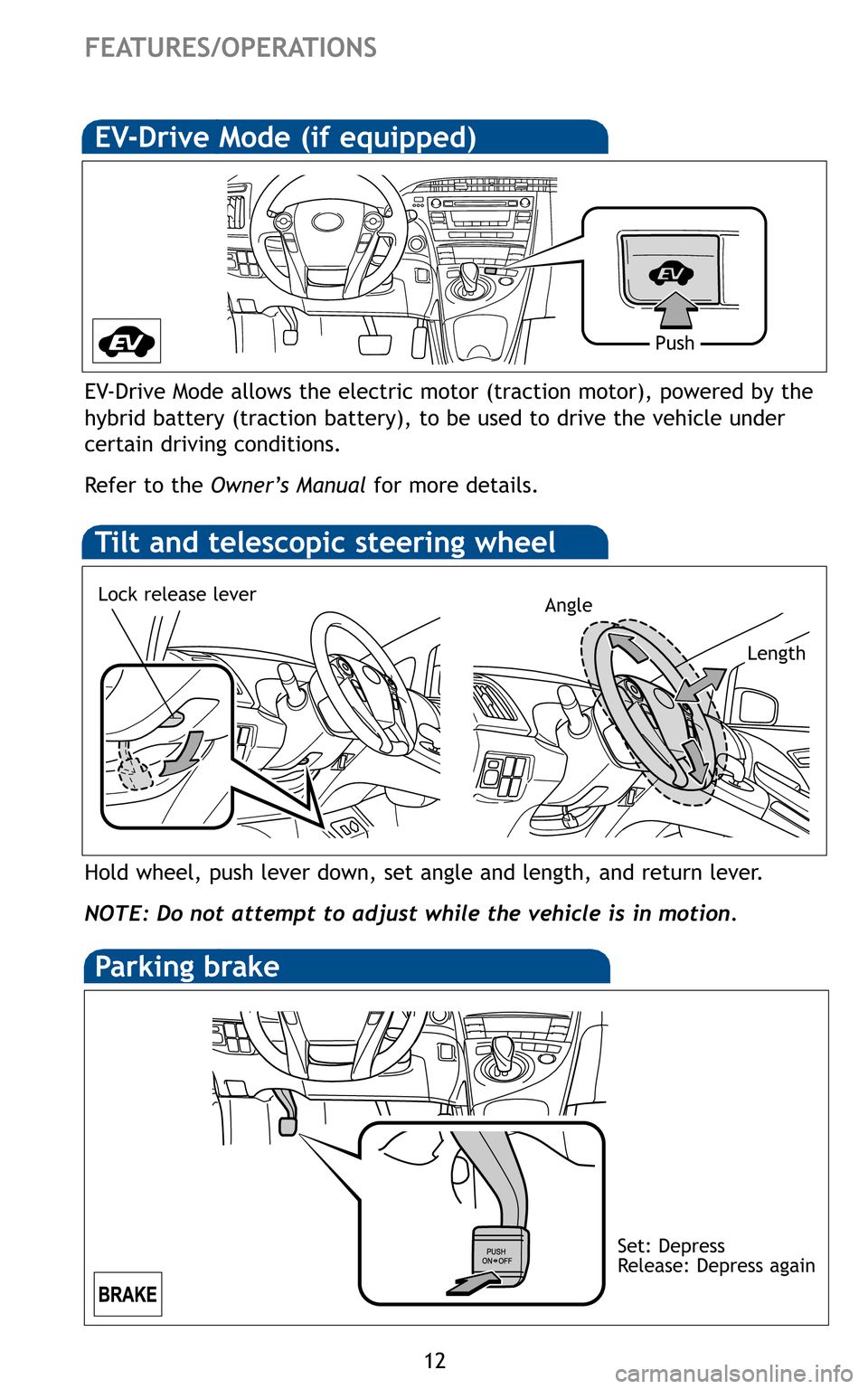

12
FEATURES/OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
EV-Drive Mode (if equipped)
EV-Drive Mode allows the electric motor (traction motor), powered by the
hybrid battery (traction battery), to be used to drive the vehicle under
certain driving conditions.
Refer to the Owner’s Manual for more details.
Push
Angle
Length
Lock release lever
Parking brake
Set: Depress
Release: Depress again
Text_123161M2.qxd 11/2/10 5:46 PM Page 12

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
By inserting a mini plug into the AUX or USB/AUX port, you can listen to
music from a portable audio device through the vehicle’s speaker system
while in AUX or USB/AUX mode.
AUX or USB/AUX port (if equipped)
Power outlets
Lower center console Center console box (if equipped)
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
Steering wheel switches
Audio controlClimate control
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®, etc.).
vv
Volume control
Temperature
selector Fresh or
recirculated
cabin air
Press DISC-AUX button until correct source
(AUX, USB or BT AUDIO) is selected
Text_123161M2.qxd 11/2/10 5:46 PM Page 19

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Distance control mode will cruise at a set speed, decelerate to maintain
selected distance from a slower vehicle traveling in front of you, and
accelerate back up to the selected speed if the vehicle in front of you
changes lanes or speeds up.
(1)
To select distance control modePush the ON-OFF button. The
“RADAR READY” and “ ” will come on.
(2) To set, cancel and resume a speed Refer to instructions for Cruise
Control section.
(3) To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will
change progressively from LONG to MIDDLE to SHORT.
Distance control mode
LONG MIDDLE SHORT
LKA (Lane Keep Assist) (if equipped)
When activated, the LKA system camera detects lane markings and alerts
the driver when the vehicle strays from its lane. Driver may also
experience a slight steering torque.
Refer to the Owner’s Manual for more details.
Text_123161M2.qxd 11/2/10 5:46 PM Page 21

22
FEATURES/OPERATIONS
Multi-information display
Push “DISP” to change between the following information screens:
(1) Energy monitor
(2) Hybrid System Indicator
(3) 5-minute/1-minute interval fuel consumption display
(4) Fuel consumption history display
Push and hold “DISP” to set up the displays.
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-3 in
the Owner’s Manual , or go to Toyota.LetsTalk.com for more information
about phone connections and compatibility.
Telephone controls (Bluetooth®)
(if equipped)
Microphone (type A)
Audio unitSteering wheel telephone switches
Volume
Start call
End call
Voice command
button
Microphone (type B)
Text_123161M2.qxd 11/2/10 5:46 PM Page 22
