TABLE OF CONTENTSIndex
4
3-5. Using the interior lights
Interior lights list ................. 282
• Interior light ...................... 283
• Personal/interior lights...... 284
• Personal lights ................. 285
3-6. Using the storage features
List of storage features....... 286
• Glove box ......................... 287
• Console box ..................... 287
• Cup holders ...................... 288
• Bottle holders ................... 290
• Auxiliary boxes ................. 291
3-7. Other interior features
Sun visors .......................... 293
Vanity mirrors ..................... 294
Clock .................................. 295
Ashtrays ............................. 296
Cigarette lighter .................. 297
Power outlet ....................... 298
Grocery bag hook............... 300
Seatback table ................... 302
Floor mat ............................ 303
Luggage compartment
feature .............................. 304
Compass ............................ 3114-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ........... 316
Cleaning and protecting
the vehicle interior ............ 319
4-2. Maintenance
Maintenance
requirements .................... 322
General maintenance ......... 324
Emission inspection and
maintenance (I/M)
programs .......................... 327
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ....................... 328
Hood ................................... 332
Positioning a floor jack........ 334
Engine compartment .......... 337
Tires.................................... 351
Tire inflation pressure ......... 360
Wheels................................ 364
Air conditioning filter ........... 366
Key battery ......................... 368
Checking and replacing
fuses ................................. 371
Light bulbs .......................... 380
4Maintenance and care

337
4-3. Do-it-yourself maintenance
4
Maintenance and care

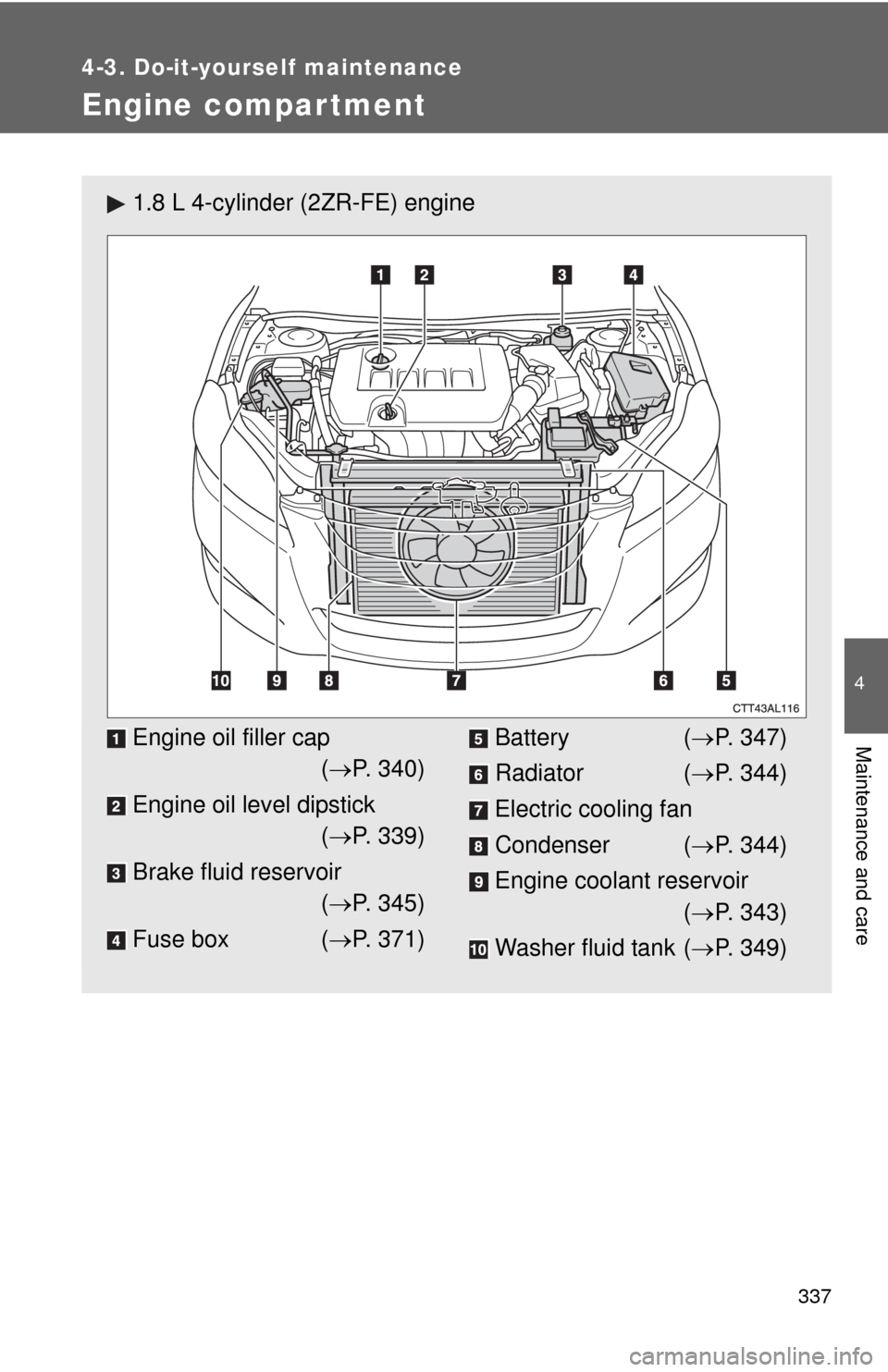

Engine compar tment
1.8 L 4-cylinder (2ZR-FE) engine
Engine oil filler cap
(P. 340)
Engine oil level dipstick
(P. 339)
Brake fluid reservoir
(P. 345)
Fuse box (P. 371)Battery (P. 347)
Radiator (P. 344)
Electric cooling fan
Condenser (P. 344)
Engine coolant reservoir
(P. 343)
Washer fluid tank (P. 349)

338 4-3. Do-it-yourself maintenance
2.4 L 4-cylinder (2AZ-FE) engine
Engine coolant reservoir
(P. 343)
Engine oil filler cap
(P. 340)
Engine oil level dipstick
(P. 339)
Brake fluid reservoir
(P. 345)Fuse box (P. 371)
Battery (P. 347)
Radiator (P. 344)
Electric cooling fans
Condenser (P. 344)
Washer fluid tank (P. 349)

371
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 374) for details about which fuse to check.STEP1
STEP2
STEP3

372 4-3. Do-it-yourself maintenance
Take out the pullout tool.
Only type A fuse can be
removed using the pullout tool.
For type A and B fuses: Remove the fuse.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP4
STEP5
STEP6

379 4-3. Do-it-yourself maintenance
4
Maintenance and care
24 FR FOG 15 A Front fog lights
25 AM1 7.5 AStarting system, shift lock control
system
26 DEF 30 A Rear window defogger, MIR HTR
27 POWER 30 A Power windows
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacing. (P. 380)
●If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer, as soon as possible.
FuseAmpereCircuit

493 Alphabetical index
Fuel door .................................... 62
Fuel filler door ........................... 62
Fuel pump shut off system .... 398
Fuses ........................................ 371
Gas station information .......... 500
Gauges ..................................... 129
Glove box ................................. 287
Grocery bag hooks ................. 300
Hands-free phone system
(for cellular phone) ............... 247
Hazard lights
Switch ................................... 390
Head restraints
Adjusting ................................ 44
Headlights
Replacing light bulbs ............ 380
Switch ................................... 135
Wattage ................................ 456
Heaters
Side mirror ............................ 179
Hood ......................................... 332
Hooks
Cargo hooks ......................... 304
Grocery bag hooks ............... 300
Horn .......................................... 128I/M test.......................................327
Identification number
Engine ...................................443
Vehicle ..................................443
Ignition switch ..........................115
Illuminated entry system .........283
Indicator lights .........................132
Initialization
Items to initialize....................474
Inside rear view mirror ..............53
Interior lights
Interior lights..........................282
Switch....................................283
Wattage .................................456
Jack
Positioning a floor jack ..........334
Vehicle-equipped jack ...........411
Jack handle ..............................411
Keyless entry..............................26
Keys
Engine switch ........................115
If you lose your keys .............427
Ignition switch........................115
Key number .............................24
Keyless entry...........................26
Keys ........................................24
Wireless remote control key ....26
G
H
I
J
K
