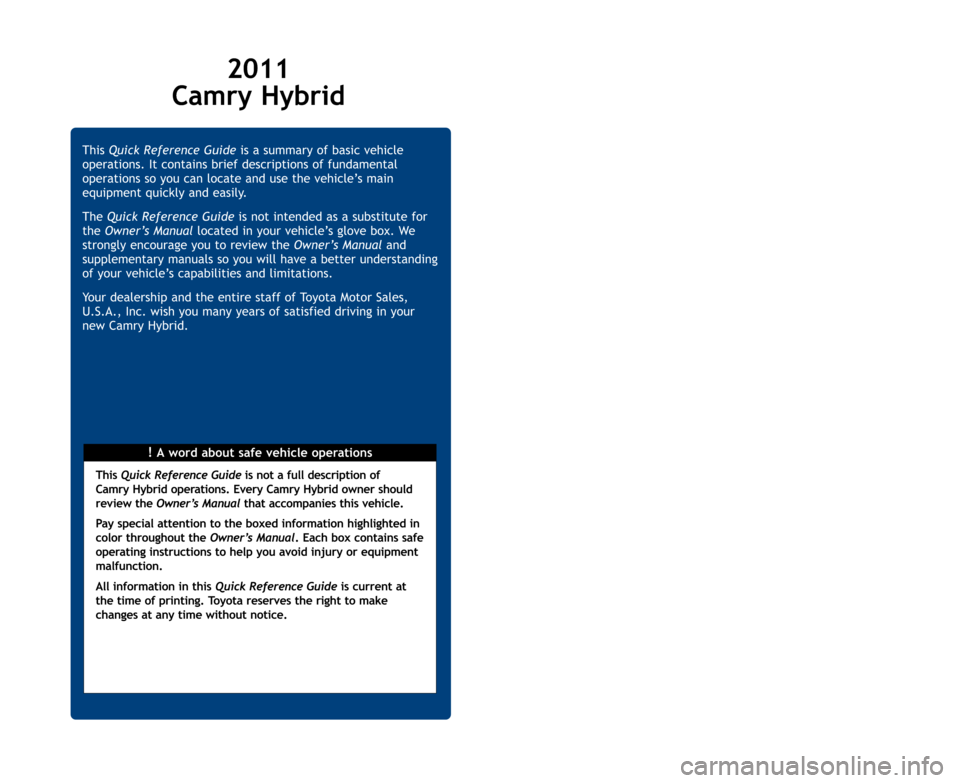

2011
Camry Hybrid
!Aword about safe vehicle operations
This Quick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The
Quick Reference Guideis not intended as a substitute for
the
Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the
Owner’s Manual and
supplementary manuals so you will have a better understandingof your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Camry Hybrid.
This Quick Reference Guideis not a full description of
Camry Hybrid operations. Every Camry Hybrid owner should
review the
Owner’sManualthat accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the
Owner’s Manual.Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this
Quick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
