4-2. Maintenance
AVALON_U (OM41428U)

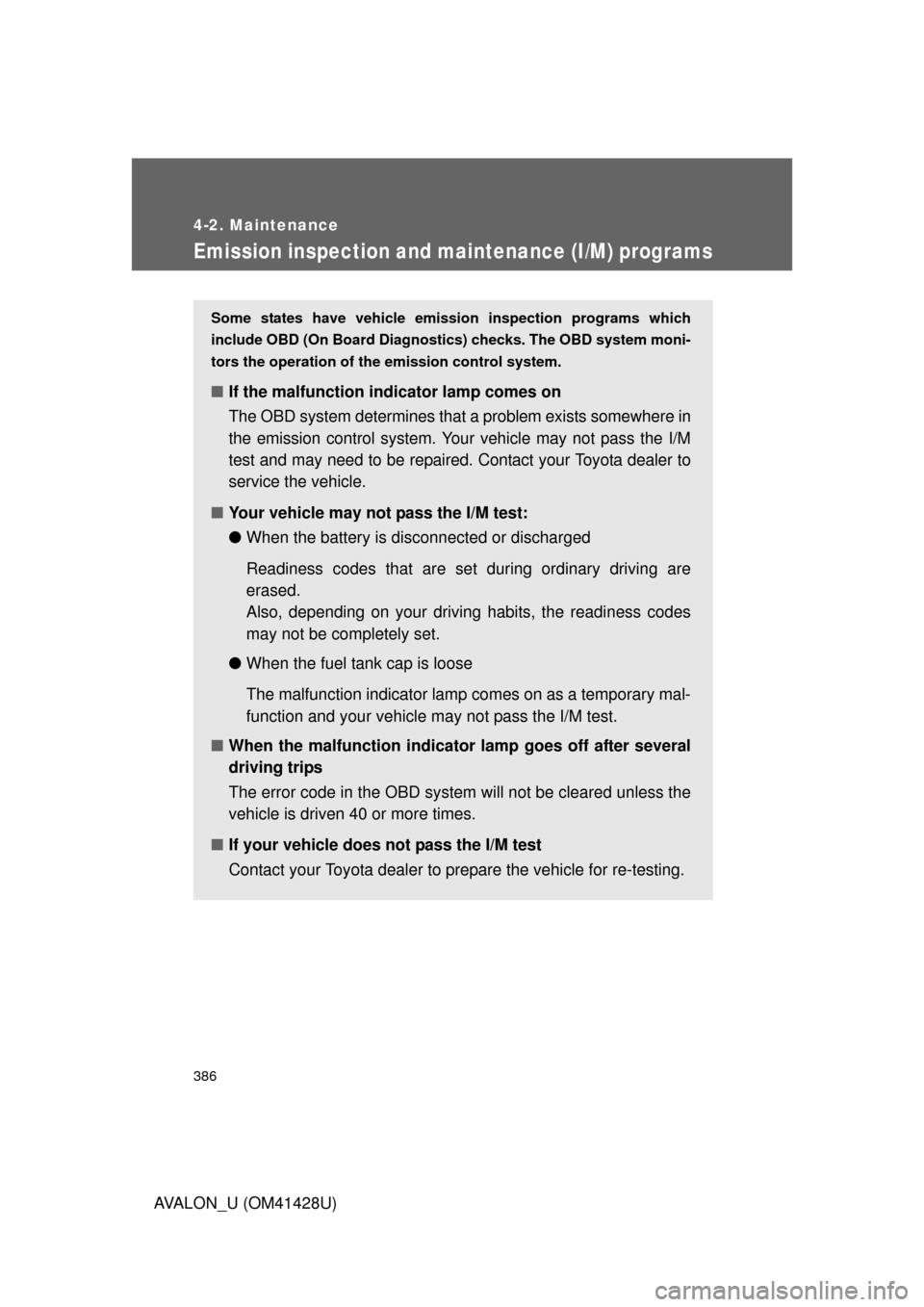

Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni-
tors the operation of the emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pass the I/M
test and may need to be repaired. Contact your Toyota dealer to
service the vehicle.
■Your vehicle may not pass the I/M test:
●When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
●When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■When the malfunction indicator lamp goes off after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■If your vehicle does not pass the I/M test
Contact your Toyota dealer to prepare the vehicle for re-testing.

518 6-1. Specifications
AVALON_U (OM41428U)
■Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy
clopentadienyl Manganese Tricarbonyl).
Toyota DOES NOT recommend the use of gasoline that contains MMT. If
fuel containing MMT is used, your emission control system may be
adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be
damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
●Using unleaded gasoline with an octane number or rating lower than that
stated here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle’s paint.

560 Alphabetical index
AVALON_U (OM41428U)
Seat heaters..............................351
Seating capacity....................... 205
Seats
Adjustment ........................ 54, 56
Adjustment precaution ...... 55, 57
Child seats/child restraint
system installation ..............125
Cleaning ................................377
Climate control ......................351
Climate control seat ..............351
Driver’s seat position
memory ................................. 58
Head restraint..........................62
Properly sitting in the seat ....... 99
Seat heaters .......................... 351
Service reminder
indicators ..............................168
Shift lever
Automatic transmission .........156
If the shift lever cannot be
shifted from P......................491
Shift lock system ..................... 491
Shopping bag hooks ............... 358
Side airbags..............................101
Side marker lights
Switch.................................... 173
Side mirror
Adjustment .............................. 77
Mirror position memory ...........58
Smart key system
Antenna location .....................28
Entry function ..........................26
Starting the engine ................149
Spare tire
Inflation pressure...................514
Storage location .................... 479
Spark plug ................................512
Specifications...........................508
Speedometer ............................ 164Steering wheel
Adjustment .............................. 73
Audio switches ...................... 274
Climate switches ................... 224
Steering wheel memory .......... 58
Storage compartment.............. 342
Storage feature ........................ 337
Stuck
If your vehicle becomes
stuck ................................... 503
Sun visors ................................ 345
Switch
Emergency flasher switch ..... 458
Engine switch ................ 149, 153
Fog light switch ..................... 176
Hazard light switch ................ 458
Ignition switch ............... 149, 153
Light switches ....................... 173
Power door lock switch ........... 44
Power window switch .............. 80
Window lock switch ................. 80
Wipers and washer switch .... 177
Tail lights
Replacing light bulbs ............. 450
Switch ................................... 173
Wattage................................. 515
Theft deterrent system
Alarm....................................... 94
Engine immobilizer system ..... 91
Theft prevention labels ............. 98
Tire inflation pressure ............. 514
Tire information
Glossary ................................ 525
Size ....................................... 521
Tire identification number...... 520
Uniform Tire Quality
Grading ............................... 522
T
