2011 TOYOTA AVALON stop start

4
Maintenance and care
435 4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)
FuseAmpereCircuit
9 STOP No.3 7.5 AElectronic controlled transmission
system, multiport fuel injection
system/sequential multiport fuel
injection system
10 INJ 15 AMultiport fuel injection system/
sequential multiport fuel injection
system
11 AM2 7.5 A Starter system
12 DOOR No.1 25 A Multiplex communication system
13 ALT-S 7.5 A Charging system
14 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
15 IG2 25 AMultiport fuel injection system/
sequential multiport fuel injection
system, electronic controlled
transmission system
16 TURN/HAZ 15 A Turn signal lights
17 AMP 30 A Audio system
18 EFI No.3 7.5 ASmart key system, electronic con-
trolled transmission system
19 STR LOCK 15 A Steering lock system
20 STOP No.1 15 A Multiplex communication system

When trouble arises5
457
AVALON_U (OM41428U)

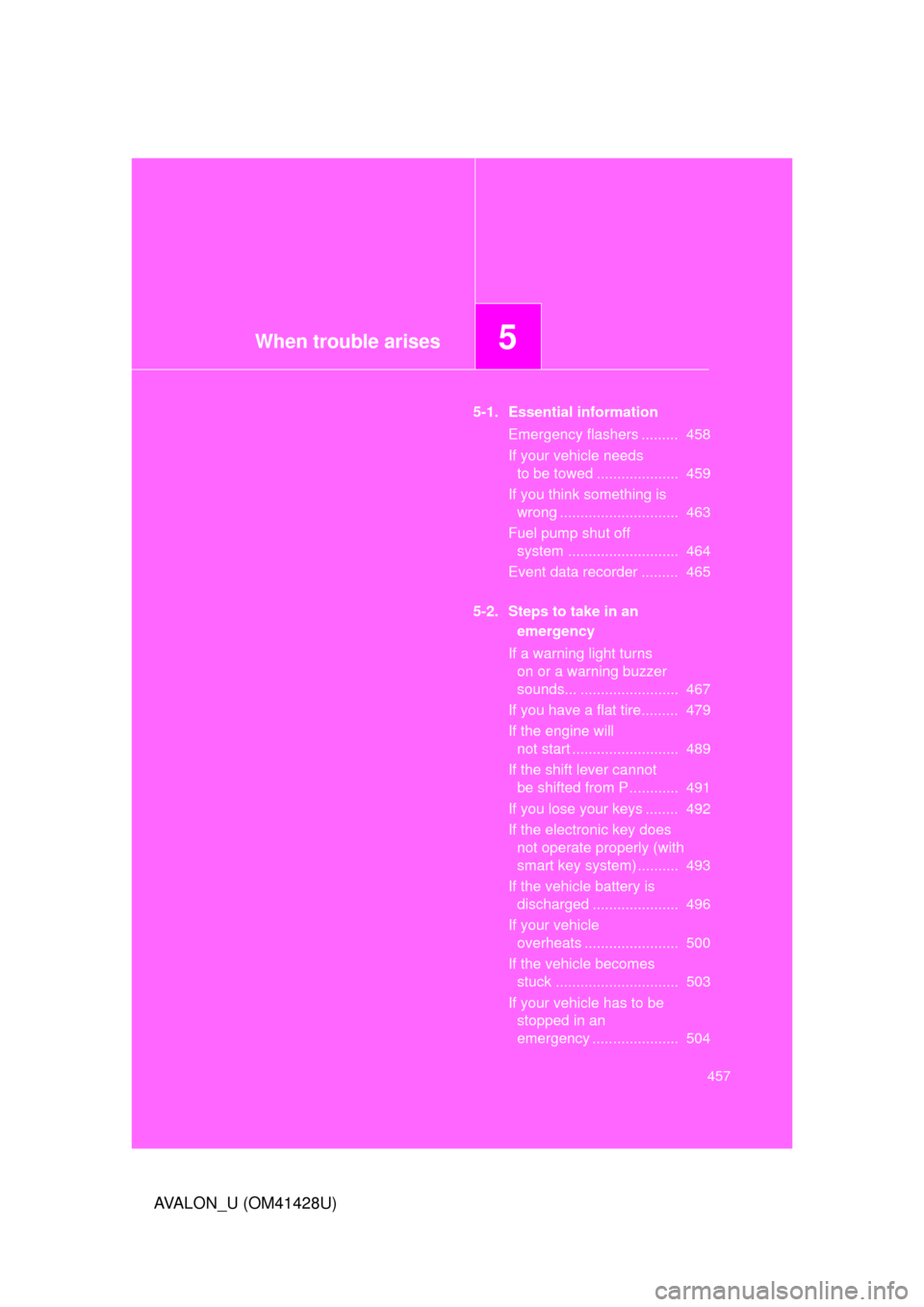

5-1. Essential information
Emergency flashers ......... 458
If your vehicle needs
to be towed .................... 459
If you think something is
wrong ............................. 463
Fuel pump shut off
system ........................... 464
Event data recorder ......... 465
5-2. Steps to take in an
emergency
If a warning light turns
on or a warning buzzer
sounds... ........................ 467
If you have a flat tire......... 479
If the engine will
not start .......................... 489
If the shift lever cannot
be shifted from P ............ 491
If you lose your keys ........ 492
If the electronic key does
not operate properly (with
smart key system) .......... 493
If the vehicle battery is
discharged ..................... 496
If your vehicle
overheats ....................... 500
If the vehicle becomes
stuck .............................. 503
If your vehicle has to be
stopped in an
emergency ..................... 504

464
5-1. Essential information
AVALON_U (OM41428U)
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch OFF.
Vehicles without smart key system: Turn the engine switch to
the “ACC” or “LOCK” position.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump shut off system stops sup-
plying fuel to the engine.

472 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
Have the malfunction repaired immediately. (vehicles with smart
key system)
After taking the specified steps to correct the suspected problem,
check that the warning light turn off.
Interior
buzzerExterior
buzzerWarning lightDetailsCorrection
procedure
Once
(Flashing)
The electronic key
is not detected
when attempting to
start the engine.
• Confirm the
location of the
electronic key.
• The electronic
key battery
maybe dis-
charged.
(P. 428)
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode.
Confirm the
location of the
electronic key.

5
When trouble arises

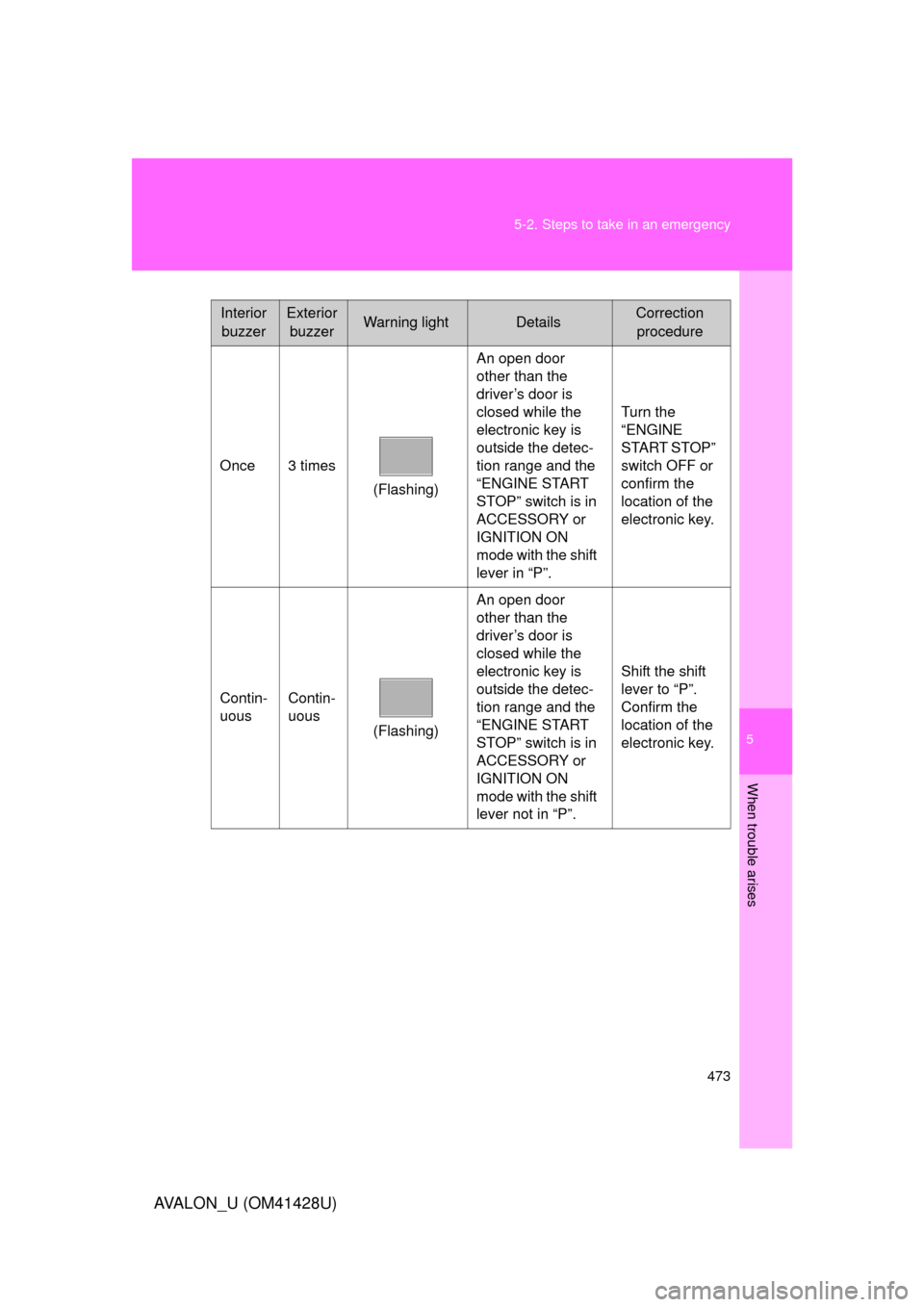

473 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
Interior
buzzerExterior
buzzerWarning lightDetailsCorrection
procedure
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode with the shift
lever in “P”.
Turn the
“ENGINE
START STOP”
switch OFF or
confirm the
location of the
electronic key.
Contin-
uousContin-
uous
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode with the shift
lever not in “P”.
Shift the shift
lever to “P”.
Confirm the
location of the
electronic key.

476 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
■If the tire pressure warning light continues to comes on after blink-
ing for 1 minute frequently
Vehicles with smart key system
If the tire pressure warning light comes on after blinking for 1 minute when
the “ENGINE START STOP” switch is turned to IGNITION ON mode, have it
checked by your Toyota dealer.
Vehicles without smart key system
If the tire pressure warning light comes on after blinking for 1 minute when
the engine switch is turned to the “ON” position, have it checked by your
Toyota dealer.
■
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
Pushing the tire pressure warning reset switch does not turn off the tire
pressure warning light.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such
as natural air leaks or tire inflation pressure changes caused by temper-
ature. In this case, adjusting the tire inflation pressure will turn off the
light (after a few minutes).
■When a tire is replaced with a spare tire
The spare tire is also equipped with the tire pressure warning valve and
transmitter. The tire pressure warning light will turn on if the tire inflation
pressure of the spare tire is low. If a tire goes flat, even though the flat
tire is replaced with the spare tire, the tire pressure warning light does
not turn off. Replace the spare tire with the repaired tire and adjust the
proper tire inflation pressure. The tire pressure warning light will turn off
after a few minutes.

490 5-2. Steps to take in an emergency
AVALON_U (OM41428U)
Emergency start function (vehicles with smart key system)
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally.
Set the parking brake.
Shift the shift lever to “P”.
Set the “ENGINE START STOP” switch to the ACC mode.
Push and hold the “ENGINE START STOP” switch about 15
seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by your Toyota
dealer.
■The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound
One of the following may be the cause of the problem.
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (P. 496)
●There may be a malfunction in the steering lock system (vehi-
cles with smart key system).
Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5
When trouble arises
491
5-2. Steps to take in an emergency
AVALON_U (OM41428U)

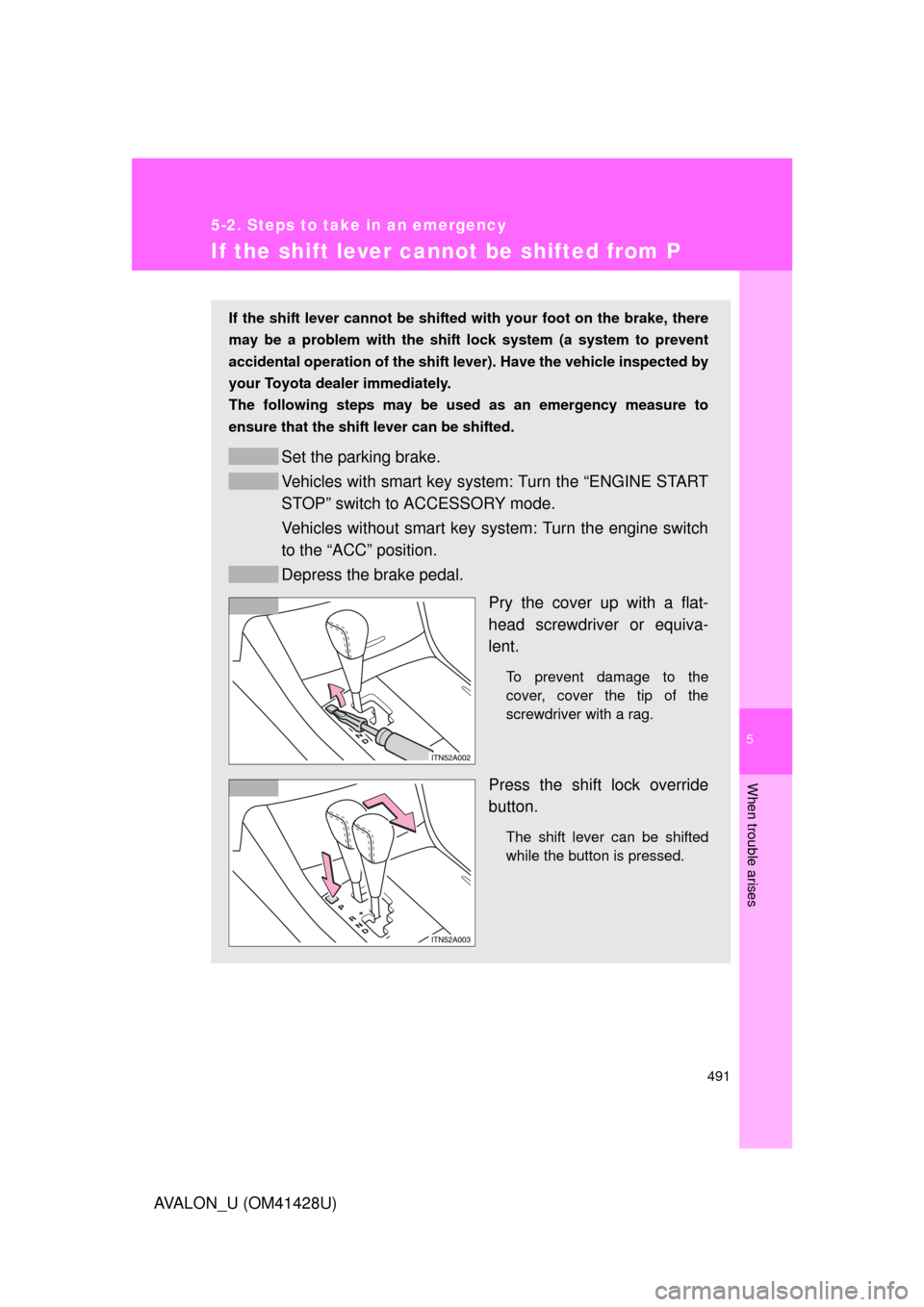

If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Toyota dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
Set the parking brake.
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch to ACCESSORY mode.
Vehicles without smart key system: Turn the engine switch
to the “ACC” position.
Depress the brake pedal.
Pry the cover up with a flat-
head screwdriver or equiva-
lent.
To prevent damage to the
cover, cover the tip of the
screwdriver with a rag.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
