2011 TOYOTA AVALON reset

231
3-2. Using the audio system
3
Interior features
AVALON_U (OM41428U)

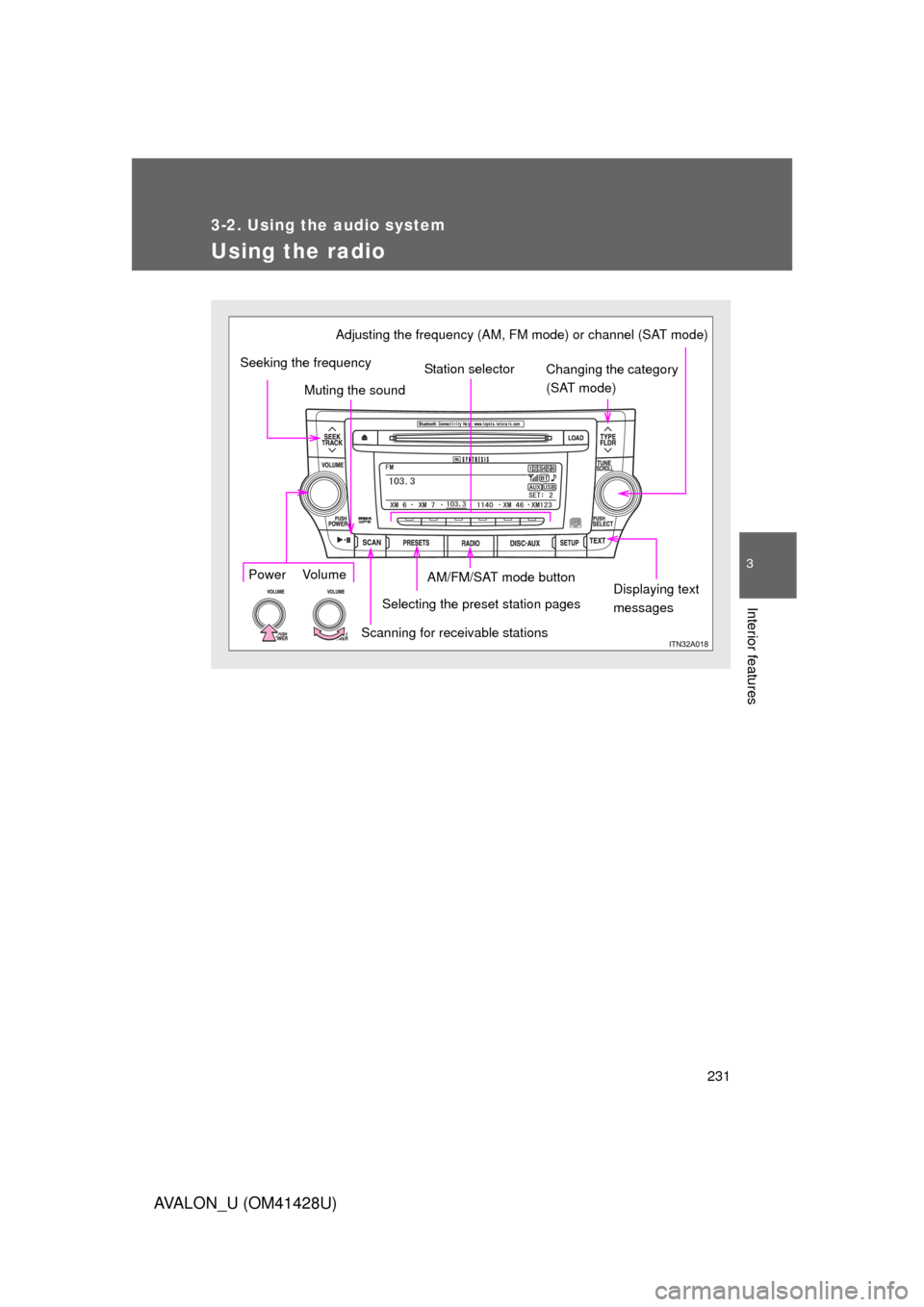

Using the radio
Selecting the preset station pagesDisplaying text
messages AM/FM/SAT mode buttonChanging the category
(SAT mode) Station selector
Power VolumeAdjusting the frequency (AM, FM mode) or channel (SAT mode)
Scanning for receivable stations Muting the sound Seeking the frequency

232 3-2. Using the audio system
AVALON_U (OM41428U)
Setting station presets (excluding XM® Satellite Radio)
Search for desired stations by turning or pressing “”
or “” on .
Press and hold the button (one of ) the station is to be
set to, and you hear a beep.
Each preset page may contain AM, FM, or XM radio station presets.
Pressing will change between AM, FM, and XM modes but
will not change the preset page display. Press to change
the presets page. There are a total of 6 pages.
The number of preset pages can be customized from 1 to 6.
(P. 272)

233 3-2. Using the audio system
3
Interior features
AVALON_U (OM41428U)
Scanning radio stations (excluding XM® Satellite Radio)
■Scanning the preset radio stations
Press and hold until you hear a beep.
Preset stations will be played for a few seconds each.
When the desired station is reached, press once again.
■Scanning all radio stations within range
Press .
All the stations with reception will be played for a few seconds
each.
When the desired station is reached, press once again.
■Displaying radio text messages (FM mode only)
When a new radio text message is received, “MSG” is shown on
the display. To display the message, press .
If the text continues past the end of the display, “ ” is displayed. Press
and hold until you hear a beep.
Text messages are not displayed while driving.

234 3-2. Using the audio system
AVALON_U (OM41428U)
XM® Satellite Radio (if equipped)
■Receiving XM
® Satellite Radio
Press .
The display changes as follows each time the button is pressed.
“AM”  “FM”  “SAT”
Turn to select a desired channel from all the catego-
ries or press “” or “” on to select a desired channel in
the current category.
■Presetting XM
® Satellite Radio channels
Select the desired channel. Press and hold the button (from one of
) until you hear a beep.
Each time is pressed, station pages are changed. There are a
total of 6 pages.
■Changing the channel category
Press “” or “” on .

235 3-2. Using the audio system
3
Interior features
AVALON_U (OM41428U)■Scanning XM
® Satellite Radio channels
●Scanning channels in the current category
Press .
When the desired channel is reached, press the button
again.
●Scanning preset channels
Press and hold until you hear a beep.
When the desired channel is reached, press the button
again.
■Displaying text information
Press .
Each time is pressed, the display changes in the order of Title (song/
program title)  Name (artist name/feature)/Title (song/program title).
■Radio antenna type
The radio antenna is mounted inside the rear window.

259 3-2. Using the audio system
3
Interior features
AVALON_U (OM41428U)
■About iPod
●Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards.
●iPod is a trademark of Apple Inc., registered in the U.S. and other coun-
tries.
■iPod functions
●When an iPod is connected and the audio source is changed to iPod
mode, the iPod will resume play from the same point in which it was last
used.
●Depending on the iPod that is connected to the system, certain functions
may not be available. Disconnecting the device and reconnecting it once
again may resolve some malfunctions.
■iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.

272 3-2. Using the audio system
AVALON_U (OM41428U)■Adjusting the Automatic Sound Levelizer (ASL)
Press .
Press that corresponds to “MORE”.
Press that corresponds to “ASL”.
Press that corresponds to the desired mode.
Type A: “ON” or “OFF”
ASL automatically adjusts the volume and tone quality according to vehi-
cle speed.
Type B: “LOW”, “MID”, “HIGH” or “OFF”
■Setting the number of preset pages
The number of preset pages desired can be set from 1 to 6. The initial
setting is 6 pages.
Press .
Press that corresponds to “MORE”.
Press that corresponds to “PRESET”.
Press that corresponds to the desired number of preset
pages.
This menu may also be reached directly by pressing and holding
.
■Language settings
P. 2 2 9

275 3-2. Using the audio system
3
Interior features
AVALON_U (OM41428U)
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear a beep.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time the button is pressed. If a CD is not
inserted, that mode will be skipped.
FM SAT CD CD changer (type A only) USB/iPod

AUX Bluetooth
® audio AM
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the
volume.
Press and hold the switch to continue increasing or decreasing the vol-
ume.
Selecting a radio station
Press to select the radio mode.
Press “” or “” on to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.
