408 4-3. Do-it-yourself maintenance
UK_AURIS_HV_EE
10 GAUGE 10 AHorn, left-hand headlight (low
beam), right-hand headlight (low
beam), back-up lights, “touch
screen”, auto anti-glare inside rear
view mirror, Toyota parking assist-
sensor
11 ECU-IG NO.2 10 AAir conditioning system, turn signal
lights, auto anti-glare inside rear
view mirror, rear view monitor sys-
tem, moon roof, Toyota parking
assist-sensor, brake system
12 ECU-IG1 NO.1 10 AMain body ECU, electric cooling
fans, automatic headlight leveling
system, electric power steering,
rain-sensing windshield wipers,
headlight cleaner, vehicle stability
control system
13 DOOR RL 20 A Power windows
14 DOOR RR 20 A Power windows
15 D FR DOOR 20 A Power windows
16 S/ROOF 20 A Moon roof
17 P FR DOOR 20 A Power windows
18 STOP 10 AStop lights, high mounted stop
light, brake system, hybrid system
19 RR FOG 7.5 A Rear fog light
20 OBD 7.5 A On-board diagnosis system
21 FR FOG 15 A Front fog lights
22 DBL LOCK 25 AMultiport fuel injection system/
sequential multiport fuel injection
23 DOOR NO.1 25 A Power door lock
24 SEAT HTR FL 10 A Seat heater
25 SEAT HTR FR 10 A Seat heater
FuseAmpereCircuit

434 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
*: Driver's and front passenger’s seat belt reminders:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver
and front passenger that his or her seat belt is not fastened. The buzzer
sounds for 30 seconds after the vehicle has reached a speed of at least 20
km/h (12 mph). Then, if the seat belt is still unfastened, the buzzer will sound
in a different tone for 90 more seconds.
Master warning light
A buzzer sounds and the
warning light comes on
and flashes to indicate that
the master warning system
has detected a malfunc-
tion.P. 436
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, as soon as possible.
Front passenger detection sensor and passenger seat belt reminder
If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash, even if a passen-
ger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.
Warning lightWarning light/DetailsCorrection procedure

503 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE

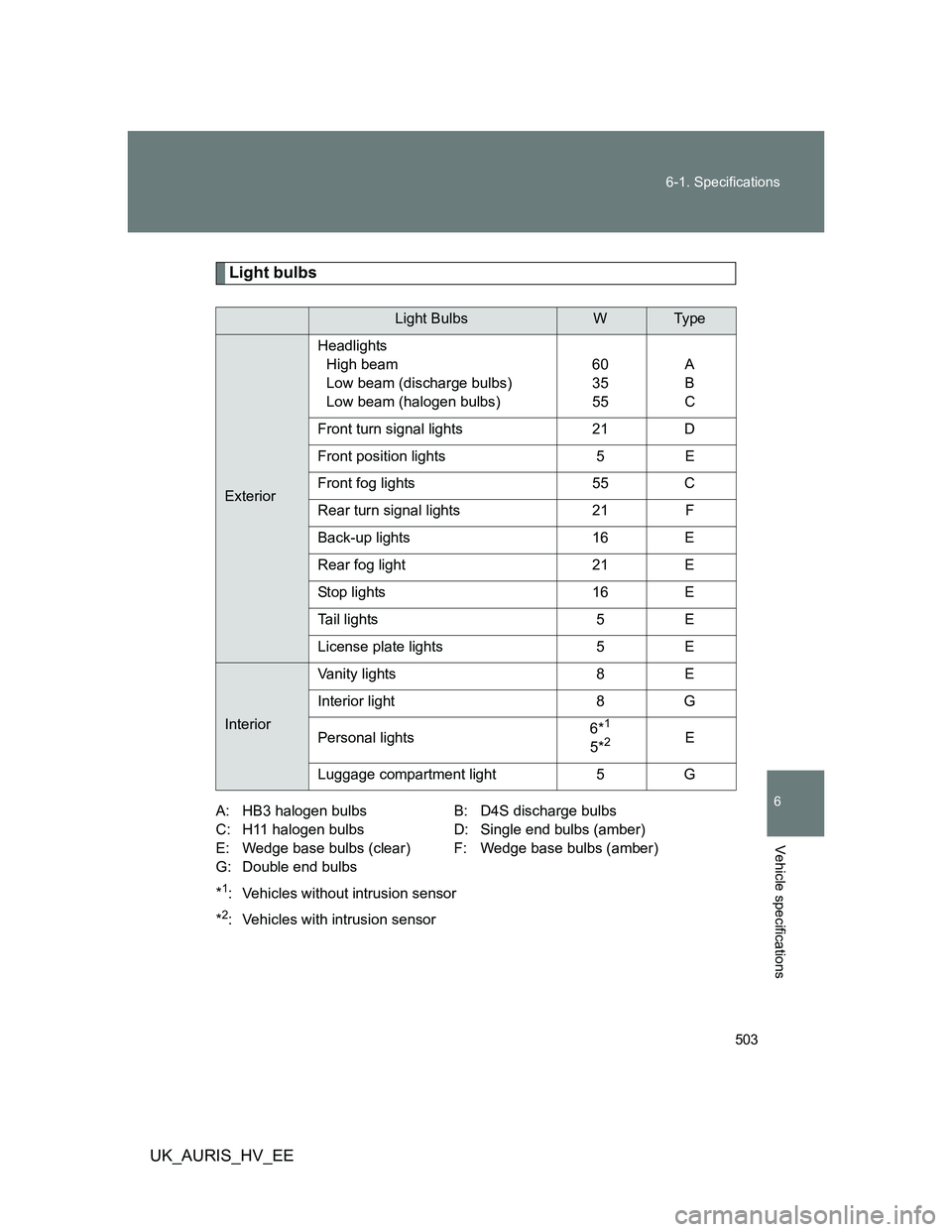

Light bulbs
A: HB3 halogen bulbs B: D4S discharge bulbs
C: H11 halogen bulbs D: Single end bulbs (amber)
E: Wedge base bulbs (clear) F: Wedge base bulbs (amber)
G: Double end bulbs
*
1: Vehicles without intrusion sensor
*
2: Vehicles with intrusion sensor
Light BulbsWTy p e
ExteriorHeadlights
High beam
Low beam (discharge bulbs)
Low beam (halogen bulbs)60
35
55A
B
C
Front turn signal lights 21 D
Front position lights 5 E
Front fog lights 55 C
Rear turn signal lights 21 F
Back-up lights 16 E
Rear fog light 21 E
Stop lights 16 E
Tail lights 5 E
License plate lights 5 E
InteriorVanity lights 8 E
Interior light 8 G
Personal lights6*1
5*2E
Luggage compartment light 5 G

506
UK_AURIS_HV_EE
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomized
setting
Smart entry
& start sys-
tem
(
P. 44)Smart entry & start sys-
temON OFF
Operation signal
(Emergency flashers) ON OFF
Push button
start
(P. 59)Push button start ON OFF
Wireless
remote con-
trol
(
P. 70)Wireless remote control ON OFF
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked30 seconds60 seconds
120 seconds
Operation signal
(Emergency flashers)ON OFF
Door lock buzzer ON OFF
Buzzer volume
Level 7Level 1 to 6
OFF
Automatic
light control
system
(P. 206)Light sensor sensitivity Level 3 Level 1 to 5
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

519 Alphabetical index
UK_AURIS_HV_EE
Storage feature ........................ 339
Storage precautions ................ 235
Stuck
If your vehicle becomes
stuck ................................... 486
Sun visors ................................ 343
Sunshade
Roof ...................................... 101
Switch
Airbag manual on-off
switch.................................. 160
“ECO MODE” switch ............. 186
Emergency flasher switch ..... 422
Engine switch ........................ 175
Fog light switch ..................... 211
Hazard light switch ................ 422
Ignition switch ....................... 175
Light switches ....................... 206
P position switch ................... 185
Power door lock switch ........... 72
“POWER” switch ................... 175
Power window switch .............. 97
“PWR MODE” switch ............ 186
Window lock switch ................. 97
Wiper and washer ......... 212, 217Tail lights
Replacing light bulbs............. 411
Switch ................................... 206
Wattage ................................ 503
Talk switch ............................... 315
Telephone switch .................... 315
Theft deterrent system
Alarm .................................... 115
Double locking system .......... 113
Immobilizer system............... 107
Tire inflation pressure ............. 390
Tires
Chains................................... 236
Checking ............................... 387
If you have a flat tire ..... 447, 459
Inflation pressure .................. 390
Replacing .............................. 447
Rotating tires......................... 387
Size ....................................... 501
Snow tires ............................. 236
Spare tire .............................. 447
Tools ................................. 447, 459
Total load capacity .................. 492
Towing
Emergency towing ................ 424
Toyota parking
assist-sensor ......................... 223
Traction control ....................... 228
Transmission ........................... 183
TRC ........................................... 228
Trip information ....................... 200
Trip meter ................................. 194
Turn signal lights
Replacing light bulbs............. 411
Switch ................................... 190
Wattage ................................ 503T
