2011 SUBARU IMPREZA WRX STI engine coolant

Black plate (426,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
12-10
Specifications
& Engine coolant
NOTEEach quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.
Model Coolant capacity Coolant type
Non-turbo models MT models
7.2 US qt (6.8 liters, 6.0 Imp qt)
SUBARU Super Coolant
AT models
7.1 US qt (6.7 liters, 5.9 Imp qt)
Turbo models Except STI
7.8 US qt (7.4 liters, 6.5 Imp qt)
STI 8.1 US qt (7.7 liters, 6.8 Imp qt)
For the checking, adding and replacing procedure, or other details, refer to “Cooling system ”F 11-13.

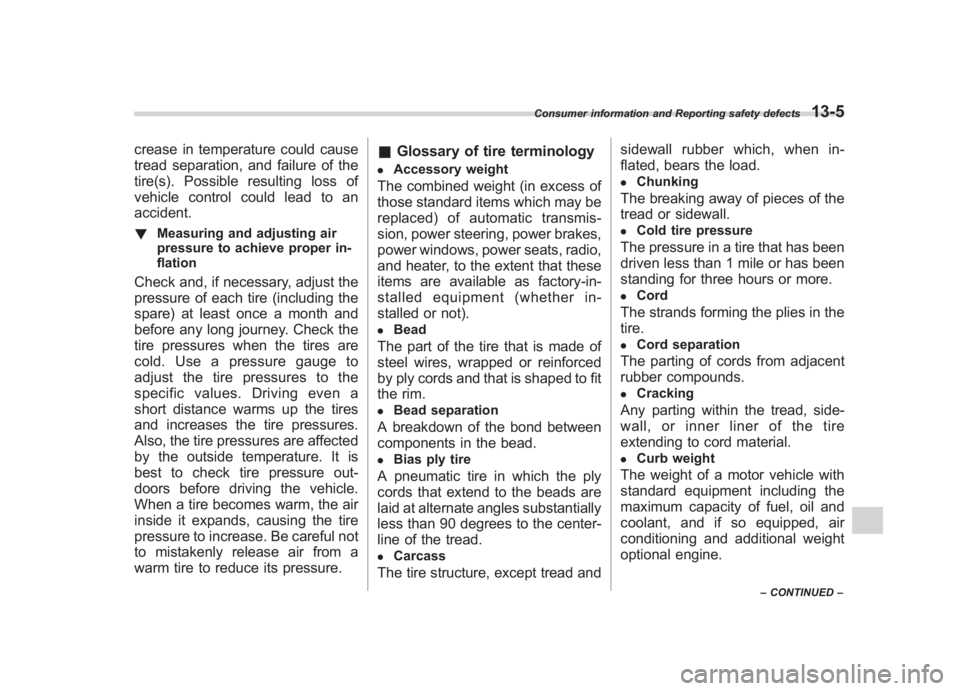

Black plate (441,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
crease in temperature could cause
tread separation, and failure of the
tire(s). Possible resulting loss of
vehicle control could lead to an
accident.! Measuring and adjusting air
pressure to achieve proper in-
flationCheck and, if necessary, adjust the
pressure of each tire (including the
spare) at least once a month and
before any long journey. Check the
tire pressures when the tires are
cold. Use a pressure gauge to
adjust the tire pressures to the
specific values. Driving even a
short distance warms up the tires
and increases the tire pressures.
Also, the tire pressures are affected
by the outside temperature. It is
best to check tire pressure out-
doors before driving the vehicle.
When a tire becomes warm, the air
inside it expands, causing the tire
pressure to increase. Be careful not
to mistakenly release air from a
warm tire to reduce its pressure.
&Glossary of tire terminology.
Accessory weight
The combined weight (in excess of
those standard items which may be
replaced) of automatic transmis-
sion, power steering, power brakes,
power windows, power seats, radio,
and heater, to the extent that these
items are available as factory-in-
stalled equipment (whether in-
stalled or not)..
Bead
The part of the tire that is made of
steel wires, wrapped or reinforced
by ply cords and that is shaped to fit
the rim..
Bead separation
A breakdown of the bond between
components in the bead..
Bias ply tire
A pneumatic tire in which the ply
cords that extend to the beads are
laid at alternate angles substantially
less than 90 degrees to the center-
line of the tread..
Carcass
The tire structure, except tread and sidewall rubber which, when in-
flated, bears the load.
.
Chunking
The breaking away of pieces of the
tread or sidewall..
Cold tire pressure
The pressure in a tire that has been
driven less than 1 mile or has been
standing for three hours or more..
Cord
The strands forming the plies in the
tire..
Cord separation
The parting of cords from adjacent
rubber compounds..
Cracking
Any parting within the tread, side-
wall, or inner liner of the tire
extending to cord material..
Curb weight
The weight of a motor vehicle with
standard equipment including the
maximum capacity of fuel, oil and
coolant, and if so equipped, air
conditioning and additional weight
optional engine.
Consumer information and Reporting safety defects
13-5
–
CONTINUED –
13

Black plate (3,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
Parking ........................................................ 7-40, 11-31
Pedal .................................................................. 11-28
System ................................................................. 7-31
Brake pedal Free play ............................................................. 11-28
Reserve distance .................................................. 11-28
Brake system ............................................................ 7-31
Warning light ......................................................... 3-21
Braking ..................................................................... 7-31
Tips...................................................................... 7-31
Breaking-in of new brake pads and linings ................... 11-30
Bulb Chart .................................................................. 12-16
Replacing ............................................................. 11-47
C
Cargo area Cover ................................................................... 6-12
Light ............................................................. 6-2, 11-54
Tie-down hooks ..................................................... 6-13
Catalytic converter ....................................................... 8-3
Center Console .................................................................. 6-5
Ventilators ............................................................... 4-3
Center and side ventilators ............................................ 4-3
Changing Coolant ................................................................ 11-15
Flat tire ................................................................... 9-6
Oil and oil filter ..................................................... 11-11
Charge warning light .................................................. 3-18 CHECK ENGINE warning light/Malfunction indicator
lamp ...................................................................... 3-16
Checking
Brake pedal free play ............................................ 11-28
Brake pedal reserve distance ................................. 11-28
Clutch function ..................................................... 11-29
Clutch pedal free play ........................................... 11-29
Coolant level ........................................................ 11-14
Fluid level (automatic transmission fluid) .................. 11-22
Fluid level (brake fluid) .......................................... 11-25
Fluid level (clutch fluid) .......................................... 11-26
Fluid level (power steering fluid) .. ........................... 11-24
Fluid level (washer fluid) ........................................ 11-38
Oil level (engine oil) .............................................. 11-10
Oil level (front differential gear oil) .......................... 11-23
Oil level (manual transmission oil) .......................... 11-21
Child restraint systems ................................................ 1-21
Installation of a booster seat .................................... 1-27
Installation with A/ELR seatbelt ... ............................. 1-24
Lower and tether anchorages ................................... 1-29
Top tether anchorages ............................................ 1-31
Child safety ................................................................... 5
Locks .................................................................... 2-21
Chime Key........................................................................\
3-5
Light ..................................................................... 3-31
Seatbelt. ................................................................ 3-14
Cleaning Aluminum wheels ................................................... 10-3
Interior .................................................................. 10-5
Ventilation grille ...................................................... 4-12
Index
14-3

Black plate (4,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
14-4
Index
Climate control system
Automatic ................................................................ 4-8
Manual ................................................................... 4-3
Clock ........................................................................\
3-28
Clutch Fluid ............................................................ 11-26, 12-9
Pedal .................................................................. 11-29
Coin tray ..................................................................... 6-5
Compass .......................................................... 3-40, 3-41
Continuously variable transmission Fluid ..................................................................... 12-9
Coolant .......................................................... 11-14, 12-10
Temperature high warning light ................................ 3-17
Temperature low indicator light. ................................ 3-17
Cooling system ......................................................... 11-13
Corrosion protection ................................................... 10-4
Cruise control ............................................................ 7-44
Indicator light ......................................................... 3-26
Set indicator light ................................................... 3-27
Cup holder .................................................................. 6-5
Front passenger ’s .................................................... 6-5
Rear passenger ’s..................................................... 6-7
D
Daytime running light system ....................................... 3-33
Defogger ................................................................... 3-48
Deicer ...................................................................... 3-48
Differential gear oil Front ........................................................... 11-23, 12-8
Rear ............................................................ 11-24, 12-8
Dimensions ............................................................... 12-2 Disarming the alarm system
......................................... 2-19
Disc brake pad wear warning indicators ........................ 7-32
Dome light ......................................................... 6-2, 11-54
Door Locks ..................................................................... 2-4
Open warning light. ................................................. 3-23
Drive belts ............................................................... 11-20
Driver ’s Control Center Differential ................................ 7-18
Auto indicator light .................................................. 3-27
Indicator light ......................................................... 3-27
Driving All-Wheel Drive warning light ................................... 3-23
AWD vehicles ......................................................... 8-5
Car phone/cell phone .................................................. 8
Drinking. .................................................................... 7
Drugs ........................................................................\
7
Foreign countries ..................................................... 8-4
Off road .................................................................. 8-6
Pets ........................................................................\
.. 8
Snowy and icy roads ............................................... 8-9
Tips ................................................. 7-16, 7-18, 8-2, 8-5
Tired or sleepy ........................................................... 8
Winter .................................................................... 8-8
E
Electrical system ........................................................ 12-3
Electronic Brake Force Distribution (EBD) system... 3-22, 7-33
Emergency Locking Retractor (ELR) ............................. 1-12
Engine Compartment overview ............................................ 11-7
Coolant ..................................................... 11-14, 12-10

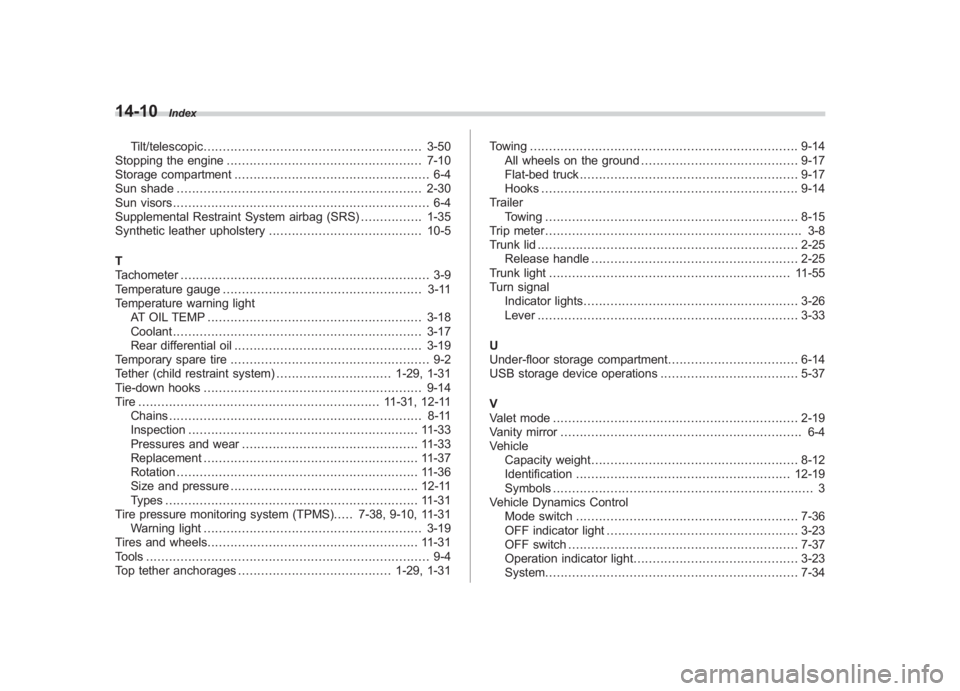

Black plate (10,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
14-10
Index
Tilt/telescopic ......................................................... 3-50
Stopping the engine ................................................... 7-10
Storage compartment ................................................... 6-4
Sun shade ................................................................ 2-30
Sun visors ................................................................... 6-4
Supplemental Restraint System airbag (SRS) ................ 1-35
Synthetic leather upholstery ........................................ 10-5
T
Tachometer ................................................................. 3-9
Temperature gauge .................................................... 3-11
Temperature warning light AT OIL TEMP ........................................................ 3-18
Coolant ................................................................. 3-17
Rear differential oil ................................................. 3-19
Temporary spare tire .................................................... 9-2
Tether (child restraint system) .............................. 1-29, 1-31
Tie-down hooks ......................................................... 9-14
Tire ............................................................... 11-31, 12-11 Chains .................................................................. 8-11
Inspection ............................................................ 11-33
Pressures and wear .............................................. 11-33
Replacement ........................................................ 11-37
Rotation ............................................................... 11-36
Size and pressure ................................................. 12-11
Types .................................................................. 11-31
Tire pressure monitoring system (TPMS). .... 7-38, 9-10, 11-31
Warning light ......................................................... 3-19
Tires and wheels. ...................................................... 11-31
Tools ........................................................................\
.. 9-4
Top tether anchorages ........................................ 1-29, 1-31 Towing
...................................................................... 9-14
All wheels on the ground ......................................... 9-17
Flat-bed truck ......................................................... 9-17
Hooks ................................................................... 9-14
Trailer Towing .................................................................. 8-15
Trip meter ................................................................... 3-8
Trunk lid .................................................................... 2-25
Release handle ...................................................... 2-25
Trunk light ............................................................... 11-55
Turn signal Indicator lights ........................................................ 3-26
Lever .................................................................... 3-33
U
Under-floor storage compartment .................................. 6-14
USB storage device operations .................................... 5-37
V
Valet mode ................................................................ 2-19
Vanity mirror ............................................................... 6-4
Vehicle Capacity weight ...................................................... 8-12
Identification ........................................................ 12-19
Symbols .................................................................... 3
Vehicle Dynamics Control
Mode switch .......................................................... 7-36
OFF indicator light .................................................. 3-23
OFF switch ............................................................ 7-37
Operation indicator light ........................................... 3-23
System .................................................................. 7-34

Black plate (11,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
Warning light ......................................................... 3-23
Ventilator .................................................................... 4-2
W
Warning and indicator lights ........................................ 3-13
Warning light ABS ..................................................................... 3-21
All-Wheel Drive ...................................................... 3-23
AT OIL TEMP ........................................................ 3-18
Brake system ........................................................ 3-21
Charge ................................................................. 3-18
CHECK ENGINE ................................................... 3-16
Coolant temperature high ........................................ 3-17
Door open ............................................................. 3-23
Driver ’s Control Center Differential ........................... 3-28
Hill start assist ....................................................... 3-22
Low fuel ........................................................ 3-10, 3-22
Low tire pressure ................................................... 3-19
Oil pressure .......................................................... 3-18
Rear differential oil temperature ............................... 3-19
Seatbelt ................................................................ 3-14
SRS airbag system ................................................ 3-15
Vehicle Dynamics Control ....................................... 3-23
Warranties ..................................................................... 1
Washing ................................................................... 10-2
Waxing and polishing ................................................. 10-3
Wear indicators ......................................................... 11-35
Wheel Alignment ............................................................. 12-11
Aluminum ............................................................. 11-38
Balance ............................................................... 11-35 Nut tightening torque
....................................... 9-6, 12-11
Replacement. ....................................................... 11-37
Windows ................................................................... 2-21
Windshield Washer fluid. ........................................................ 11-38
Wiper and washer switches ..................................... 3-38
Wiper blades ........................................................ 11-40
Wiper deicer .......................................................... 3-48
Winter
Driving ................................................................... 8-8
Tires ........................................................... 8-10, 11-31
Wiper and washer ...................................................... 3-36
Wiper deicer .............................................................. 3-48
Index
14-11
