A
ABS (Antilock Brake System) ............. 46
Indicator lamp ........................ 165
Accessory weight .......................... 142
Accidents Air bags .................................. 33
Additives
Engine oil .............................. 221
Gasoline ................................ 222
Address change .............................. 15
Air bags ....................................... 33
Children .................................. 33
Front, driver and passenger .........36
Front, passenger ....................... 36
Head-thorax ............................. 37
Knee bag .................................. 37
Passenger front air bag off
indicator lamp ..................... 28, 41
Safety guidelines ......................35
SRS indicator lamp ...................168
Thorax-pelvis .......................... 38
Window curtain ......................... 38
Air conditioning
see HVAC ................................ 103
Air conditioning refrigerant .......... 221
Air pressure see Tire inflation pressure
Air pressure (tires) ....................... 142
Air vents ..................................... 105
Alarm system see Anti-theft systems
Ambient lighting ........................... 69
Anticorrosion/antifreeze ............... 223
Antiglare, Interior rear view
mirror ......................................... 62
Antilock Brake System see ABS
Anti-theft systems ......................... 48
Anti-theft warning system ...........48
Electronic immobilizer ..............48
Interior motion sensor ...............49
Tow-away alarm ......................... 49
Aquaplaning
see Hydroplaning
Armrest ........................................ 59
Aspect ratio (tires) ....................... 142Audio system ................................. 99
Automatic headlamp mode ................ 65
Automatic locking .......................... 53
Automatic transmission .................. 82
Display message ....................... 161
Driving tips ............................. 84
Emergency operation (limp-
home mode) ............................... 86
Gear selector lever ....................82
Gear selector lever positions ......83
Gearshift pattern ...................... 82
Hill-start assist system .............. 84
Manual gearshifting ..................84
Shifting procedure ....................82
Auxiliary instruments
Cockpit clock ........................... 92
Tachometer .............................. 92
AUX socket .................................. 100
B
Backrest see Seats
Backup lamp ................................. 182
Bar (air pressure unit) ................... 143
Battery Charging ................................ 195
Indicator lamp ......................... 170
Jump starting .......................... 198
Removing and installing ............195
Battery (key)
Replacing the transmitter
battery ................................... 179
Bead (tire) .................................. 143
Brake fluid .................................. 125
Checking ................................ 125
Brake lamp .................................. 182
Brake pedal ................................... 81
Brakes ........................................ 147
Parking brake ........................... 80
Warning lamp .......................... 166
Break-in period ........................... 118
Bulbs Front ..................................... 181
Rear ...................................... 182
Replacing ............................... 180
4IndexBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 4

G
Gasoline see Fuel
GAWR (Gross Axle Weight Rating) ...... 143
Gear selector lever ........................ 82
Transmission positions ..............83
Global locking/unlocking ................ 53
Glove box ..................................... 111
Gross Axle Weight Rating see GAWR
Gross Vehicle Weight
see GVW
Gross Vehicle Weight Rating
see GVWR
GVW (Gross Vehicle Weight) ............. 143
GVWR (Gross Vehicle Weight Rating) .. 143
H
Halogen headlamps see Headlamps
Hazard warning flasher .................... 68
Headlamps Automatic headlamp mode ............65
Daytime running lamp mode .........66
High-beam flasher .....................67
High-beam headlamps .................67
Low-beam headlamps ..................65
Switch ..................................... 64
Head-thorax air bags ...................... 37
Heated exterior rear view mirrors ..... 62
Heated seats .................................. 60
Heating see HVAC ................................ 103
Height adjustment
Seats ...................................... 59
High-beam flasher .......................... 67
High-beam headlamps ................ 67, 181
Indicator lamp ......................... 171
High-mounted brake lamp ............... 182
Hill-start assist system .................. 84
HVAC (Heating, Ventilation, Air
Conditioning) .............................. 103
Air distribution ...................... 106
Air recirculation .....................108
Air vents ................................ 105
Air volume .............................. 107
Defrosting .............................. 107
Rear window defroster ...............107
Temperature ............................ 105
Hydraulic brake assistant ................ 48
Hydroplaning ............................... 150
I
Identification labels .................... 213
Identification number, vehicle
(VIN) .......................................... 214
Infant and child restraint systems see Children in the vehicle
Inflation pressure
see Tires, Inflation pressure
Inside door handle ......................... 54
Instrument cluster ..................... 22, 24
Illumination ............................ 93
Lamps, indicator and warning .....164
Instrument panel
see Instrument cluster
Instruments and controls
see Cockpit
Interior motion sensor .................... 49
Interior rear view mirror ................ 62
Interior storage spaces see Storage compartments
Intermittent wiping
Rear window wiper .....................71
Windshield wipers .....................70
J
Jump-starting .............................. 198
K
Key ............................................. 52
Loss of ................................... 176
Replacing the transmitter
battery ................................... 179
Kilopascal (air pressure unit) ......... 143
Knee bag ....................................... 37
Index7BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 7

OCS (Occupant Classification
System) ........................................ 39
Self-test ................................. 42
Oil
see Engine oil
Oil level
see Engine oil, Checking level
On-board Diagnostics Socket (OBD) ... 213
Operating safety ............................ 15
Outside temperature display ............ 89
Overhead control panel ................... 28
P
Paintwork care ............................. 157
Panic alarm .................................. 45
Parcel nets ............................. 108, 112
Parking ........................................ 79
Parking brake ............................... 80
Parking lamps .............................. 181
Parts service ............................... 212
PASS AIR BAG OFF indicator lamp see Passenger front air bag off
indicator lamp
Passenger front air bag ................... 36
Passenger front air bag off
indicator lamp .................... 28, 36, 175
Passenger safety see Occupant safety
Passenger seat ............................... 60
Pedals ........................................ 146
Power assistance .......................... 146
Power outlet ................................. 115
Power washer ................................ 156
Practical hints Battery .................................. 195
Display messages .....................160
Flat tire ................................. 188
Fuses ..................................... 204
Jump starting .......................... 198
Replacing bulbs ....................... 180
Replacing transmitter battery ....179
Replacing wiper blades .............186
Towing ................................... 201
Unlocking/locking manually .......178
Warning and indicator
lamps ............................... 164, 175
What to do if ........................... 164
Where will I find...? .................160
Premium unleaded gasoline ............ 222
Problems with your vehicle .............. 16
Product information ....................... 13
Production options weight .............. 143
PSI (air pressure unit) ................... 144
R
Radio .......................................... 99
smart entry line ....................... 100
smart high line ........................ 100
Radio transmitters ........................ 152
Rain-light sensor .......................... 70
Rear lamps Overview ................................ 182
Rear window defroster .................... 107
Rear window wiper/washer ................ 71
Replacing wiper blade ..............186
Recommended tire inflation
pressure ................................ 127, 144
Refrigerant, air conditioning ......... 221
Refueling .................................... 118
Remote control see Key
Replacing bulbs ............................ 180
Reporting safety defects .................. 16
Research Octane Number see RON
Reserve fuel indicator .................... 92
Restraint systems see Occupant safety
Rims ..................................... 144, 217
Roadside Assistance ....................... 14
RON (Research Octane Number) ......... 222
Roof see Soft top system
S
Safety Driving safety systems ...............46
Occupant safety ......................... 30
Reporting defects ......................16
Safety belts
see Seat belts
Seat belt force limiter .................... 33
Index9BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 9

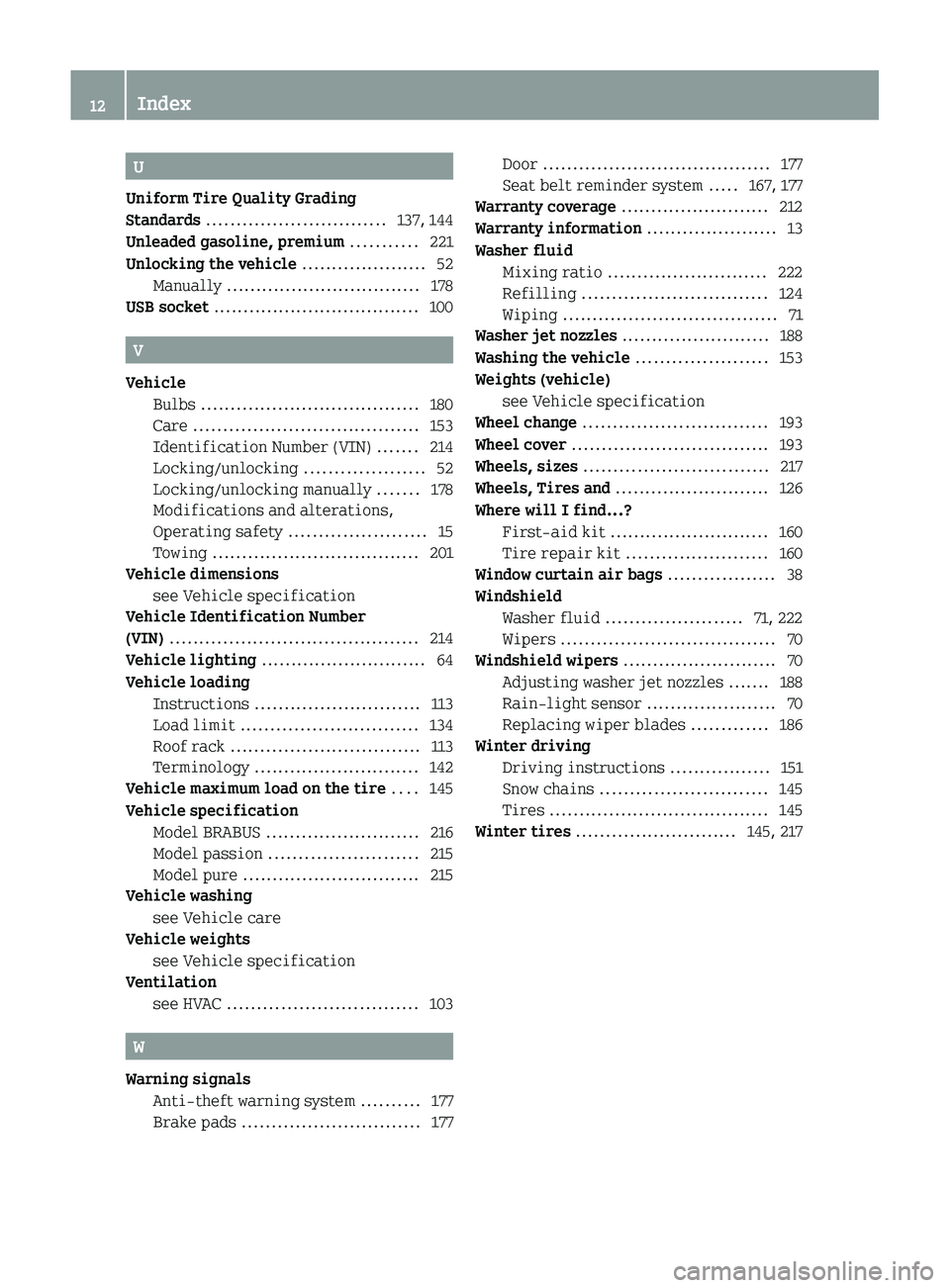

U
Uniform Tire Quality Grading
Standards .............................. 137, 144
Unleaded gasoline, premium ........... 221
Unlocking the vehicle ..................... 52
Manually ................................. 178
USB socket ................................... 100
V
Vehicle Bulbs ..................................... 180
Care ...................................... 153
Identification Number (VIN) .......214
Locking/unlocking ....................52
Locking/unlocking manually .......178
Modifications and alterations,
Operating safety ....................... 15
Towing ................................... 201
Vehicle dimensions
see Vehicle specification
Vehicle Identification Number
(VIN) .......................................... 214
Vehicle lighting ............................ 64
Vehicle loading Instructions ............................ 113
Load limit .............................. 134
Roof rack ................................ 113
Terminology ............................ 142
Vehicle maximum load on the tire .... 145
Vehicle specification Model BRABUS .......................... 216
Model passion ......................... 215
Model pure .............................. 215
Vehicle washing
see Vehicle care
Vehicle weights
see Vehicle specification
Ventilation
see HVAC ................................ 103
W
Warning signals Anti-theft warning system ..........177
Brake pads .............................. 177
Door ...................................... 177
Seat belt reminder system .....167, 177
Warranty coverage ......................... 212
Warranty information ...................... 13
Washer fluid Mixing ratio ........................... 222
Refilling ............................... 124
Wiping .................................... 71
Washer jet nozzles ......................... 188
Washing the vehicle ...................... 153
Weights (vehicle) see Vehicle specification
Wheel change ............................... 193
Wheel cover ................................. 193
Wheels, sizes ............................... 217
Wheels, Tires and .......................... 126
Where will I find...? First-aid kit ........................... 160
Tire repair kit ........................ 160
Window curtain air bags .................. 38
Windshield Washer fluid ....................... 71, 222
Wipers .................................... 70
Windshield wipers .......................... 70
Adjusting washer jet nozzles ....... 188
Rain-light sensor ......................70
Replacing wiper blades .............186
Winter driving
Driving instructions .................151
Snow chains ............................ 145
Tires ..................................... 145
Winter tires ........................... 145, 21712IndexBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 12

Center consoleFunctionPage0046Tachometer*920047Cockpit clock*92008AHVAC1030088Audio system*990086Switching front fog
lamps* on/off
68
0087Central locking switch53006EHazard warning flasher
switch
68
006FSwitching tow-away
protection*/interior
motion sensor* on/off
49
0070Restarting TPMS button129FunctionPage0071Switching seat heating*
on/off, passenger side
60
0072Central unlocking switch530073Switching seat heating*
on/off, driver’s side
60
0074Storage tray*1120075Gear selector lever820076Starter switch570077Parking brake lever800078Coin holder111Retractable soft top
switch 4
73
0079Cup holder1084
cabriolet only.Center console27>> At a glance.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 27

Occupant safety
Introduction
The smart vehicle is equipped with seat
belts and dual stage air bags to protect you
in a crash. However, children can be killed
or seriously injured by an inflating air
bag. Indeed, there is a stronger risk of
serious death or bodily injury when an air
bag deploys on a child positioned in a
rear-facing child seat in the passenger
seat. Because this vehicle has only two
front seats and no backseat, it is limited
as are other two-seat vehicles, in the
extent to which it may restrain children
traveling in the passenger front seat. Many
states have laws against placing children
of certain ages in the front seat of a
vehicle that has both front and back seats.
Those laws make exceptions to permit
children to be restrained in the front seat
of two seat vehicles. Special instructions
and warnings are provided below about
when and if you may restrain a child in the
passenger seat of the smart vehicle. Under
certain circumstances, it is appropriate
for the passenger air bag not to operate
when a child is restrained in a car seat in
the passenger seat, and this vehicle is
equipped with technology to accomplish
this. Please pay very close attention to the
instructions and warnings below,
particularly as they relate to children.
In this section you will learn the most
important facts about the restraint system
components of the vehicle.
The restraint systems are:
R Seat belts ( Y page 31)
R Child restraints ( Y page 43)
Additional protection potential is
provided by:
R Supplemental Restraint System (SRS)
with
- Air bags ( Y page 33)
- Air bag control unit (with crash
sensors)
- Emergency Tensioning Devices and
seat belt force limiters ( Y page 33)
R Air bag system components with
- Passenger front air bag off indicator
lamp ( Y page 41)
- Passenger seat with Occupant
C lassification System (OCS)
( Y page 39)
Although independent systems, their
protective functions work in conjunction
with each other.
i For information on infants and
children traveling with you in the
vehicle and restraint systems for infants
and children, see “Children in the
vehicle” ( Y page 42).
The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates detection of malfunctions. The
SRS indicator lamp 0081 in the instrument
cluster comes on when the ignition is
switched on and goes out after
approximately four seconds.
The SRS components are in operational
readiness if the SRS indicator lamp 0081
is not lit when the engine is running.
A malfunction in the system has been
detected if the SRS indicator lamp 0081
R fails to go out after approximately 4
seconds after the ignition was switched
on
R does not come on at all
R comes on after the engine was started or
while driving30Occupant safety>> Safety.
BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 30

Thorax-pelvis side air bags are deployed
Ron the impacted side of the vehicle
Rin instances with a high rate of lateral
vehicle deceleration or acceleration
Rindependently of the front air bags
Rregardless of whether the seat belt on the
impacted side of the vehicle is in use
Rindependently of the ETDs.
Thorax-pelvis side air bags will generally
not deploy in a rollover.
The thorax-pelvis side air bags will
deploy, however, if the system detects
Ra high rate of lateral vehicle
deceleration or acceleration, and
Rthat air bag deployment can offer
additional protection to that provided
by the seat belt.
The thorax-pelvis side air bags are
integrated into the driver and passenger
seat backrests.
\000F Thorax-pelvis side air bags
Occupant Classification System
The Occupant Classification System (OCS)
automatically turns the passenger front air
bag on or off based on the classified
occupant weight category determined by
weight sensor readings from the passenger
seat.
iBased on the classified occupant
weight category determined by weight
sensor readings from the passenger seat,
the system does also deactivate
Rhead-thorax air bag (cabriolet)
Rthe window curtain air bag (coupé)
Rthe thorax-pelvis side air bag (coupé)
Rthe seat Emergency Tensioning
Devices
Rthe seat belt force limiter.
Occupants must sit properly belted in a
position that is as upright as possible with
their back against the seat backrest and
feet on the floor to be correctly classified.
If the occupant’s weight is transferred to
another object in the vehicle (e.g. by
leaning on armrests), the OCS may not be
able to properly approximate the
occupant’s weight category.
iIf the seat, including the trim cover and
cushion, needs to be serviced in any way,
take the vehicle to an authorized smart
center. Only seat accessories approved
by smart may be used.
Both driver and the passenger should
always use the \000 \000{ indicator
lamp as an indication of whether or not
the passenger is properly positioned
(Y page 41).
GWarning!
If the \000 \000{ indicator lamp
illuminates when an adult or someone
larger than a small individual is in the
passenger seat, have the passenger re-
position himself or herself in the seat
until the \000 \000{ indicator lamp
goes out.
In the event of a collision, the air bag
control unit will not allow passenger front
air bag deployment when the OCS has
classified the passenger seat occupant as
being up to or less than the weight of a
typical 12‑month‑old child in a standard
Occupant safety39>> Safety.BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 39Z

child restraint, or if the passenger seat is
sensed as being empty.
When the OCS senses that the passenger seat
occupant is classified as being up to or
less than the weight of a typical
12‑month‑old child in a standard child
restraint, the 007F 007B indicator
lamp will illuminate when the ignition is
switched on and remain illuminated,
indicating that the passenger front air bag
is deactivated.
When the OCS senses that the passenger seat
is classified as being empty, the
007F 007B indicator lamp will
illuminate and remains illuminated.
When the OCS senses that the passenger seat
occupant is classified as being heavier
than the weight of a typical 12‑month‑old
child seated in a standard child restraint
or as being a small individual (such as a
young teenager or a small adult), the
007F 007B indicator lamp will
illuminate for approximately 4 seconds
when the ignition is switched on and then,
depending on occupant weight sensor
readings from the seat, remains
illuminated or goes out.
When the 007F 007B indicator lamp is
illuminated, the passenger front air bag is
deactivated.
When the 007F 007B indicator lamp is
out and the passenger seat is occupied by
an adult or someone larger than a small
individual, the passenger front air bag is
activated.
When the OCS senses that the passenger seat
occupant is classified as an adult or
someone larger than a small individual, the
007F 007B indicator lamp will
illuminate for approximately 4 seconds
when the ignition is switched on and then
goes out, indicating that the passenger
front air bag is activated.
If the 007F 007B indicator lamp is
illuminated, the passenger front air bag is
deactivated and will not be deployed.If the 007F 007B indicator lamp is not
illuminated, the passenger front air bag is
activated and will be deployed
R in the event of certain frontal impacts
R if impact exceeds a preset deployment
threshold
R independently of the head-thorax air
bags
If the passenger front air bag is deployed,
the rate of inflation will be influenced by
R the rate of vehicle deceleration and a
fastened or unfastened seat belt as
assessed by the air bag control unit
R the passenger’s weight category as
identified by the OCSGWarning!
Children 12 years old and under must be
seated and properly secured in an
appropriate infant or child restraint
recommended for the size and weight of the
child.
The infant or child restraint must be
properly secured with the vehicle’s seat
belt, fully in accordance with the child
seat manufacturer’s instructions.
Children can be killed or seriously injured
by an inflating air bag. Note the following
important information:
R Your vehicle is equipped with air bag
technology designed to turn off the
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12‑month‑old child or less along
with the weight of a standard
appropriate child restraint on the
passenger seat.
R A child in a rear-facing child restraint
on the passenger seat will be seriously
injured or even killed if the passenger
front air bag inflates in a collision
which could occur under some
circumstances, even with the air bag
technology installed in your vehicle.
40Occupant safety>> Safety.
