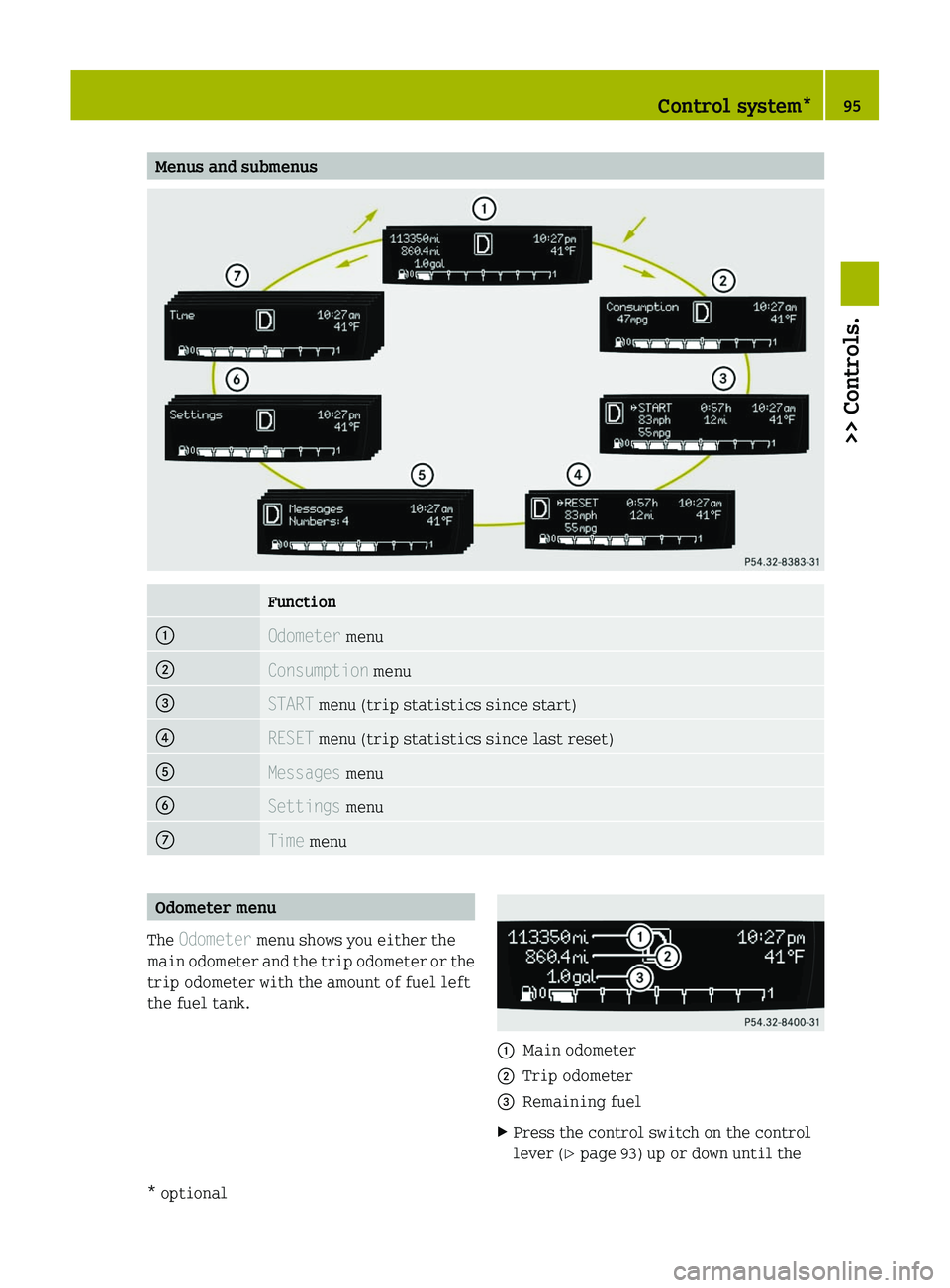

Menus and submenusFunction0046Odometer menu0047Consumption menu008ASTART menu (trip statistics since start)0088RESET menu (trip statistics since last reset)0086Messages menu0087Settings menu006ETime menuOdometer menu
The Odometer menu shows you either the
main odometer and the trip odometer or the
trip odometer with the amount of fuel left
the fuel tank.0046Main odometer0047Trip odometer008ARemaining fuelXPress the control switch on the control
lever ( Y page 93) up or down until theControl system*95>> Controls.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 95Z
Odometer menu appears in the
multifunction display.XTo switch between submenus: Press the OK
button on the control lever briefly.XTo reset the trip odometer: Select the
trip odometer display.XPress button 0046 (Y page 90) on the
instrument cluster until the trip
odometer is reset to 0.
Consumption menu
The Consumption menu shows you the
current fuel consumption.
XPress the control switch on the control
lever ( Y page 93) up or down until the
Consumption menu appears in the
multifunction display.
The current current fuel consumption
appears.
i Depending on the selected unit in the
settings menu ( Y page 97), the
consumption is displayed in in miles per
gallon (mpg) or in liters per 100
kilometers (l/100 km). When the vehicle
is standing, the fuel consumption is
displayed in gallons per hour (gal/h) or
liters per hour (l/h).
Start menu
The START menu menu shows you the trip
statistics since start.
0046Average speed since start0047Time elapsed since start008ADistance driven since start0088Average fuel consumption since startXPress the control switch on the control
lever ( Y page 93) up or down until the
START menu appears in the multifunction
display.XTo reset: Press button 0046 (Y page 90) on
the instrument cluster until the START
menu is reset to 0.
i
The START menu is reset to 0
automatically
R when the ignition has been switched
off for more than 4 hours
R after driving more than 9 999 miles or
kilometers
Reset menu
The RESET menu menu shows you the trip
statistics since the last reset.
0046Average speed since last reset0047Time elapsed since since last reset008ADistance driven since last reset0088Average fuel consumption since since
last resetXPress the control switch on the control
lever ( Y page 93) up or down until the96Control system*>> Controls.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 96
