2011 Seat Ibiza SC bulb

235
If and when
Changing the fog light bulbs
Fog lights bulb
Fig. 157 Fog lights
Fig. 158 Fog lights –
Remove the bolt ⇒ fig. 157 A
from the fog light grill with a
screwdriver.
– Subsequently, unclip the clips situated on the contour of the
grill by making a small movement of the lever.
– Remove the bolts (3x) ⇒ fig. 158 B
to remove the fog light.
– Remove the metal clip situated on the upper part of the fog
light pulling towards the exterior of the vehicle ⇒ fig. 158 C
.
Remove the bulb holder
Fig. 159 Fog lights
– Extract the connector ⇒ fig. 159 A
from the bulb.
– Rotate the bulb holder ⇒ fig. 159 A
to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

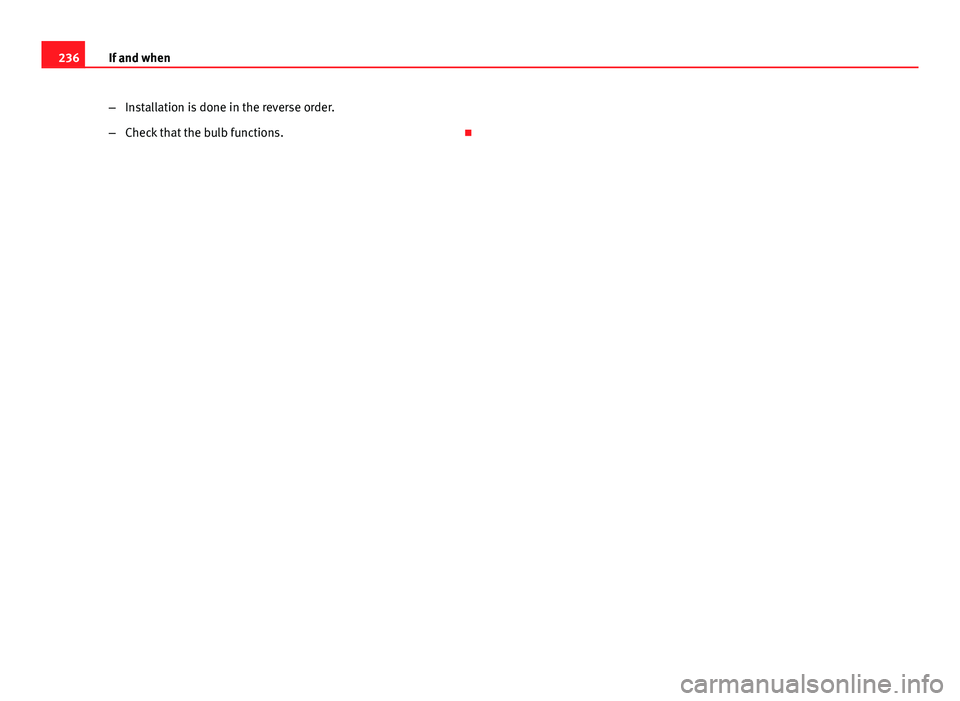

236If and when
–Installation is done in the reverse order.
– Check that the bulb functions. 

237
If and when
Changing the rear, side and interior light
bulbs
Rear pilot lights
Fig. 160 Left pilot light
Fig. 161 Right pilot light Turn signals
Side and brake
Position
Retro-fog light (left pilot light)
Reverse light (right pilot)
Note
In countries driving on the right (left-driving), both D and E headlights are
placed the other way round (Retro-fog light on driver side and reverse light
on passenger side). 
Access to rear pilot lights
Fig. 162 Access to tail
lights
– Open the tailgate.
– Turn the bolt in the direction of the arrow, by hand or with a
screwdriver ⇒ fig. 162. 
A
BCDE
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

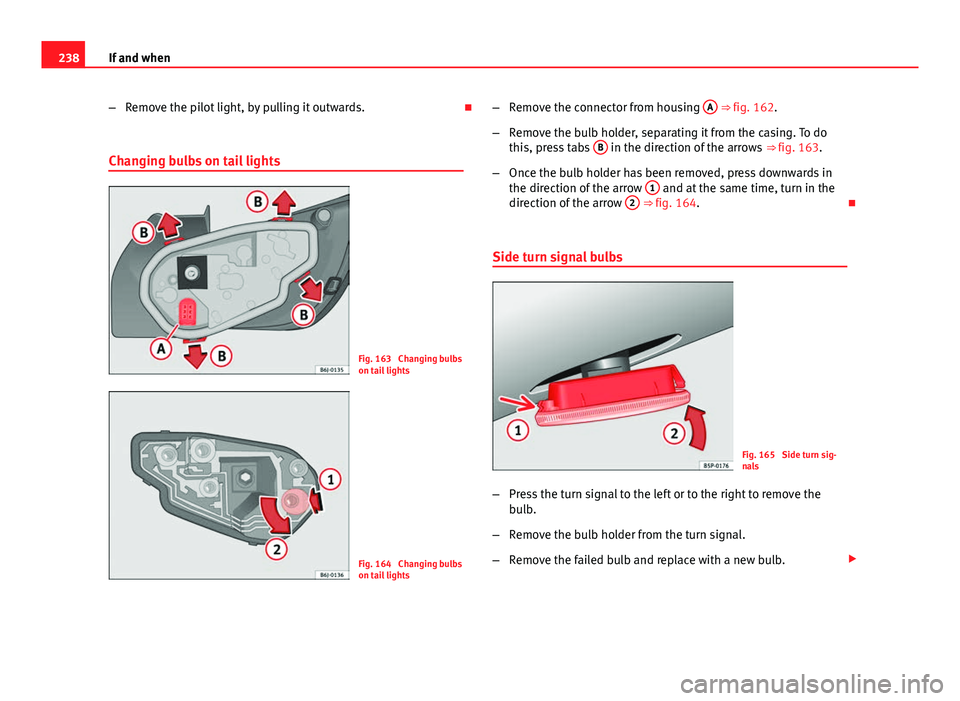

238If and when
–Remove the pilot light, by pulling it outwards. 
Changing bulbs on tail lights
Fig. 163 Changing bulbs
on tail lights
Fig. 164 Changing bulbs
on tail lights –
Remove the connector from housing A
⇒ fig. 162.
– Remove the bulb holder, separating it from the casing. To do
this, press tabs B
in the direction of the arrows
⇒ fig. 163.
– Once the bulb holder has been removed, press downwards in
the direction of the arrow 1
and at the same time, turn in the
direction of the arrow 2 ⇒ fig. 164. 
Side turn signal bulbs
Fig. 165 Side turn sig-
nals
– Press the turn signal to the left or to the right to remove the
bulb.
– Remove the bulb holder from the turn signal.
– Remove the failed bulb and replace with a new bulb. 

239
If and when
– Insert the bulb holder in the turn signal guide until it clicks into
place.
– First fit the turn signal in the opening in the chassis, fastening
the tabs 1
⇒ fig. 165, and then fit in the bulb as shown by the
arrow 2 ⇒ fig. 165. 
Number plate light
– Insert the flat part of a screwdriver into the special slot and re-
move the bulb.
– Remove the bulb holder, by turning it until it is free.
– Change the bulb.
– Replace the bulb holder, by turning it until it fits fully.
– Fit the light into the space and press until you hear a “click”. Interior light and front reading light
Fig. 166 Front reading
light
To remove the glass
– Insert a fine screwdriver between the casing and the glass
⇒ fig. 166.
– Carefully remove the glass, levering it to avoid possible dam-
age.
To replace the bulbs
– Pull the bulbs outwards.
– To remove the central bulb, hold and press to one side.
Assembly
– Proceed in the reverse order, pressing gently on the outer edge
of the side light. 
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

240If and when
–First fit the glass with the fastening tabs over the frame of the
switch. Next press the front part until the two long tabs click on
the support. 
Additional brake light*
Given the difficulty involved in the replacement of this light it should be
done by the Technical Service. 
Luggage compartment light*
Fig. 167 Luggage com-
partment light
Fig. 168 Luggage com-
partment light
– Extract the tulip shaped fitting by pressing on the inside edge
of this -arrow- using the flat side of a screwdriver ⇒ fig. 167.
– Press the bulb sideways and remove it from its housing
⇒ fig. 168. 
Jump-starting
Jump leads
The jump lead must have a sufficient wire cross section. If the engine fails to start because of a discharged battery, the battery can
be connected to the battery of another vehicle to start the engine. 
