segments combined with a discontinuous beep indicate the presence of an
obstacle. As the vehicle gets closer to the obstacle, the colour of the segment
changes to red and the acoustic signal beeps continuously. When the penul-
timate segment is displayed, this means that the vehicle has reached the
collision zone. Stop moving immediately!
⇒.
WARNING
•The parking aid is not a replacement for driver awareness. The driver is
personally responsible for safe parking and other manoeuvres.•The sensors have blind spots in which obstacles are not registered.
Always look out for small children and animals because the system will not
always detect them. Always pay attention when reversing to avoid acci-
dents.•Always keep a close eye on the area around the vehicle and make full
use of the rear view mirrors.Caution
Please note that low obstacles detected by the system may no longer be
registered by the sensors as the vehicle moves closer, so the system will not
give any further warning. Certain kinds of obstacles (such as wire fences,
chains, thin painted posts or trailer draw bars, etc) may not always be
detected by the system, so take care not to damage the vehicle in such cases.
Note
•Please refer to the notes on towing ⇒page 191.•There is a slight delay in the picture display.
To w i n g b r a c k e tIn towing mode, the rear parking aid sensors are not enabled when you select
reverse gear or press the switch
. This function may not be guaranteed on
towing brackets that are not factory fitted. This results in the following restric-
tions:
SEAT Parking System*
No warning is given
SEAT Parking System Plus:*
There is no rear distance warning. The system will still give a warning when
obstacles are detected while driving forward. The optical display changes to
towing mode.
Fault messagesIf you hear a long beep for a few seconds and the LED on the switch
* starts
flashing when you switch on the parking aid, a system fault has occurred.
Please refer the problem to an Authorised SEAT dealer or specialised work-
shop.
Note
If the fault is not corrected before you switch off the ignition, it will only be
indicated by the flashing LED on the switch
 the next time you switch on
the parking aid.
Altea_EN.book Seite 191 Donnerstag, 2. September 2010 2:00 14

Intelligent technology199
Safety First
Operating Instructions
Practical Tips
Technical Specifications
When the TCS is off, the warning lamp is lit. The TCS should normally
be left on. Only in exceptional circumstances, when the slipping of the wheels
is required, should it be disconnected, for example
•With compact temporary spare wheel.•When using the snow chains.•When driving in deep snow or on loose surfaces•When the vehicle is bogged-down, to free it by rocking.
The TCS should be switched on again as soon as possible.WARNING
•It must be remembered that TCS cannot defy the laws of physics. This
should be kept in mind, particularly on slippery and wet roads and when
towing a trailer.•Always adapt your driving style to suit the condition of the roads and
the traffic situation. Do not let the extra safety afforded by TCS tempt you
into taking any risks when driving, this can cause accidents.Caution
•In order to ensure that TCS function correctly, all four wheels must be
fitted with the same tyres. Any differences in the rolling radius of the tyres can
cause the system to reduce engine power when this is not desired.•Modifications to the vehicle (e.g. to the engine, the brake system, running
gear or any components affecting the wheels and tyres) could affect the effi-
ciency of the ABS and TCS.
XDS*
Driveshaft differentialWhen taking a bend, the driveshaft differential mechanism allows the outer
wheel to turn at a higher speed than the inner wheel. In this way, the wheel
that is turning faster (outer wheel) receives less drive torque than the inner
wheel. This may mean that in certain situations the torque delivered to the
inner wheel is too high, causing the wheels to spin. On the other hand, the
outer wheel is receiving a lower drive torque than it could transmit. This
causes an overall loss of lateral grip on the front axle, resulting in understeer
or “lengthening” of the trajectory.
By using the ESP sensors and signals, the XDS system is able to detect and
correct this effect.
Through the ESP, the XDS brakes the inner wheel, thereby counteracting the
excess drive torque in this wheel. This means that the driver’s desired trajec-
tory is much more precise,
The XDS system operates in combination with the ESP and is always active,
even when the traction control, TCS, is disconnected.Electronic Stability Programme (ESP)*General notes
The Electronic Stability Programme increases the vehicle’s
stability on the road.The Electronic Stability Programme helps reduce the danger of skidding.
The Electronic Stability Programme (ESP) consists of ABS, EDL, TCS and
Steering manoeuvre recommendations.
 OFF
Altea_EN.book Seite 199 Donnerstag, 2. September 2010 2:00 14

Intelligent technology
200Electronic Stability Programme (ESP)*
ESP reduces the danger of skidding by braking the wheels individually.
The system uses the steering wheel angle and road speed to calculate the
changes of direction desired by the driver, and constantly compares them
with the actual behaviour of the vehicle. If the desired course is not being
maintained (for instance, if the vehicle is starting to skid), then the ESP
compensates automatically by braking the appropriate wheel.
The forces acting on the braked wheel bring the vehicle back to a stable
condition. If the vehicle tends to oversteer, the system will act on the front
wheel on the outside of the turn.
Steering manoeuvre recommendations
This is a complementary safety function included in the ESP This function aids
the driver to better stabilize the vehicle in a critical situation. For example, in
case of sudden braking surface with varied adherence, the vehicle will tend
to destabilise its trajectory to the right or to the left. In this case the ESP
recognizes the situation and helps the driver with a counter steering
manoeuvre from the power steering.
This function simply provides the driver with a recommended manoeuvre in
critical situations.
The vehicle does not steer itself with this function, the driver has full control
of the vehicle at all times.
WARNING
•It must be remembered that ESP cannot defy the laws of physics. This
should be kept in mind, particularly on slippery and wet roads and when
towing a trailer.•Always adapt your driving style to suit the condition of the roads and
the traffic situation. Do not let the extra safety afforded by ESP tempt you
into taking any risks when driving, as this can cause accidents.
Caution
•In order to ensure that ESP functions correctly, all four wheels must be
fitted with the same tyres. Any differences in the rolling radius of the tyres can
cause the system to reduce engine power when this is not desired.•Modifications to the vehicle (e.g. to the engine, the brake system, running
gear or any components affecting the wheels and tyres) could affect the effi-
ciency of the ABS, EDL, ESP and TCS.Anti-lock brake system (ABS)The anti-lock brake system prevents the wheels locking during braking
⇒ page 198.Electronic differential lock (EDL)*
The electronic differential lock helps prevent the loss of trac-
tion caused if one of the driven wheels starts spinning.EDL helps the vehicle to start moving, accelerate and climb a gradient in slip-
pery conditions where this may otherwise be difficult or even impossible.
The system will control the revolutions of the drive wheels using the ABS
sensors (in case of an EDL fault the warning lamp for ABS lights up)
⇒ page 84.
At speeds of up to approximately 80 km/h, it is able to balance out differ-
ences in the speed of the driven wheels of approximately 100 rpm caused by
a slippery road surface on one side of the vehicle. It does this by braking the
wheel which has lost traction and distributing more driving force to the other
driven wheel via the differential.
Altea_EN.book Seite 200 Donnerstag, 2. September 2010 2:00 14

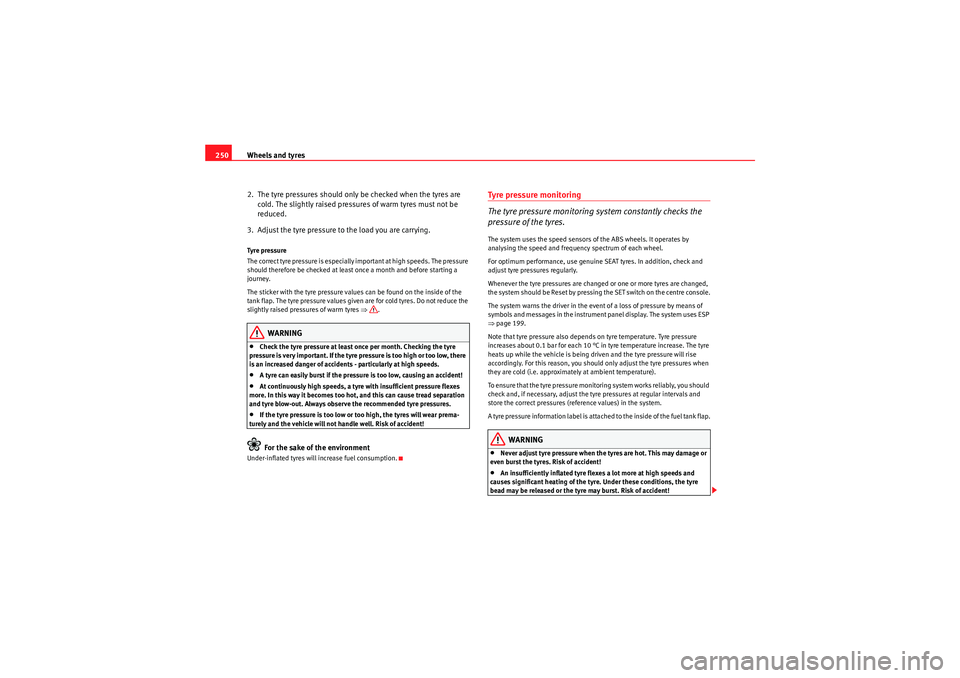

Wheels and tyres
250
2. The tyre pressures should only be checked when the tyres are cold. The slightly raised pressu res of warm tyres must not be
reduced.
3. Adjust the tyre pressure to the load you are carrying.Tyre pressure
The correct tyre pressure is especially important at high speeds. The pressure
should therefore be checked at least once a month and before starting a
journey.
The sticker with the tyre pressure values can be found on the inside of the
tank flap. The tyre pressure values given are for cold tyres. Do not reduce the
slightly raised pressures of warm tyres ⇒.
WARNING
•Check the tyre pressure at least once per month. Checking the tyre
pressure is very important. If the tyre pressure is too high or too low, there
is an increased danger of accidents - particularly at high speeds.•A tyre can easily burst if the pressure is too low, causing an accident!•At continuously high speeds, a tyre with insufficient pressure flexes
more. In this way it becomes too hot, and this can cause tread separation
and tyre blow-out. Always observe the recommended tyre pressures.•If the tyre pressure is too low or too high, the tyres will wear prema-
turely and the vehicle will not handle well. Risk of accident!For the sake of the environment
Under-inflated tyres will increase fuel consumption.
Tyre pressure monitoring
The tyre pressure monitoring system constantly checks the
pressure of the tyres.The system uses the speed sensors of the ABS wheels. It operates by
analysing the speed and frequency spectrum of each wheel.
For optimum performance, use genuine SEAT tyres. In addition, check and
adjust tyre pressures regularly.
Whenever the tyre pressures are changed or one or more tyres are changed,
the system should be Reset by pressing the SET switch on the centre console.
The system warns the driver in the event of a loss of pressure by means of
symbols and messages in the instrument panel display. The system uses ESP
⇒ page 199.
Note that tyre pressure also depends on tyre temperature. Tyre pressure
increases about 0.1 bar for each 10 °C in tyre temperature increase. The tyre
heats up while the vehicle is being driven and the tyre pressure will rise
accordingly. For this reason, you should only adjust the tyre pressures when
they are cold (i.e. approximately at ambient temperature).
To ensure that the tyre pressure monitoring system works reliably, you should
check and, if necessary, adjust the tyre pressures at regular intervals and
store the correct pressures (reference values) in the system.
A tyre pressure information label is attached to the inside of the fuel tank flap.
WARNING
•Never adjust tyre pressure when the tyres are hot. This may damage or
even burst the tyres. Risk of accident!•An insufficiently inflated tyre flexes a lot more at high speeds and
causes significant heating of the tyre. Under these conditions, the tyre
bead may be released or the tyre may burst. Risk of accident!
Altea_EN.book Seite 250 Donnerstag, 2. September 2010 2:00 14

If and when
270Fuses on left side of dash panelFusesNumber
Consumer
Amps
1
Va ca n t
2
Va ca n t
3
Va ca n t
4
Va ca n t
5
Va ca n t
6
Va ca n t
7
Va ca n t
8
Va ca n t
9
Airbag
5
10
RSE input (roof screen)
10
11
Va ca n t
12
Left xenon headlight
10
13
Instrument panel (oil level)/Switchboard wiring
(BCM)/Heater / ABS, ESP/ Park Pilot/ Gate-
way/Flow meter
5
14
Gearbox/Power steering/Brake light sensor/
Trailer/ ABS, ESP/ Haldex/ Light switch
10
15
Heated windscreen / Instrument lighting / Diag-
nosis switchboard/Engine management/Addi-
tional heating/AFS headlamps/Park Pilot
10
16
Right xenon headlight
10
17
Engine management / RSE system with START
STOP
10
18
Kombi / levers with START STOP
5
19
Navigation/ radio with START STOP
15
20
Park Pilot (parking aid) / Gear lever/ ESP switch-
board
10
21
Va ca n t
22
Volumetric alarm sensor/ Alarm horn
5
23
Diagnosis / Rain sensor / Light switch
10
24
Trailer hook pre-installation assistant
15
25
Va ca n t
26
Va cu um pum p
20
27
RSE supply (Ceiling display) without START STOP
10
28
Rear window wiper motor
20
29
Va ca n t
30
Cigarette lighter / socket
20
31
Va ca n t
32
Va ca n t
33
Heater
40
34
Va ca n t
35
Va ca n t
36
Va ca n t
37
Va ca n t
38
Va ca n t
39
Trailer control unit (coupling)
15
Number
Consumer
Amps
Altea_EN.book Seite 270 Donnerstag, 2. September 2010 2:00 14

If and when
272
Bulb changeGeneral notesBefore changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle.
Main headlights
Dipped beam - H7
Main beam - H1
Position - W5W
Turn signal - PY21W
Xenon headlights
26)/adaptive*
Dipped and full beam - D1S
27)
Daylight - P21W SLL
Position W5W
Turn signals PY21W
15
Engine management
5
Pump relay
10
16
Right lighting
30
17
Horn
15
18
Vacan t
19
Clean
30
20
Water pump
10
Pressure sensor pump for 1.8 engine
20
21a)
Lambda probe
15
22
Brake pedal, speed sensor
5
23a)
Engine management
5
Engine management
10
Engine management
15
24
AKF, gearbox valve
10
25a)
ABS pump
40
26
Left lighting
30
27a)
Engine management
40
Engine management
50
28
Vacan t
29a)
Electric windows (front and back)
50
Electric windows (front)
30
30
Ignition key
50
a)Ampere rating according to motorisationNumber
Consumer
Amps
26)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.27)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.
Altea_EN.book Seite 272 Donnerstag, 2. September 2010 2:00 14

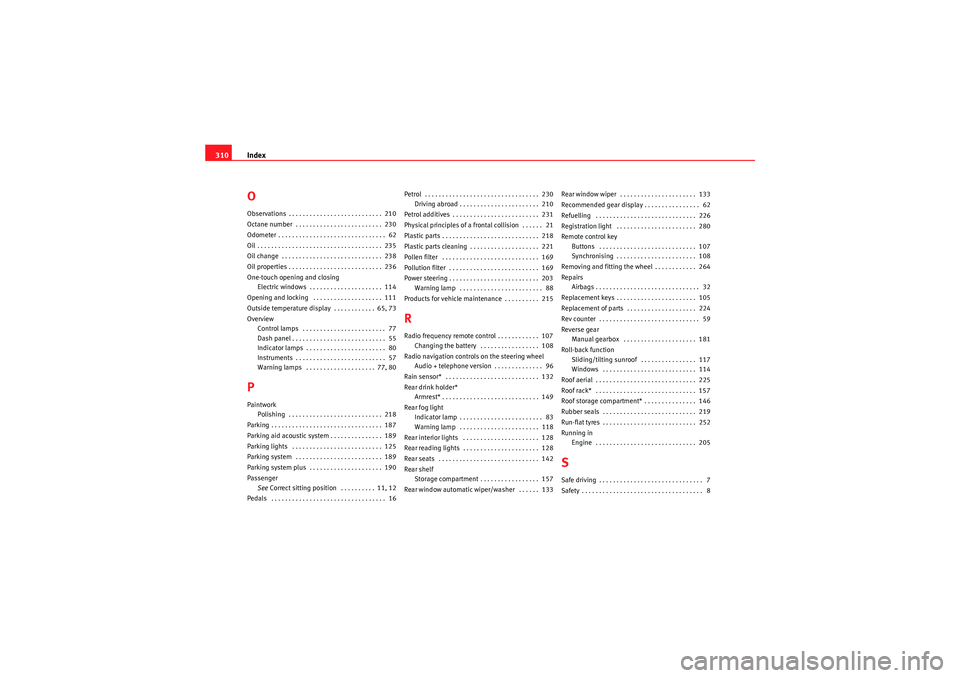

Index
310OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 230
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
235
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
One-touch opening and closing
Electric windows . . . . . . . . . . . . . . . . . . . . . 114
Opening and locking . . . . . . . . . . . . . . . . . . . . 111
Outside temperature display . . . . . . . . . . . . 65, 73
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 77
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . 80
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Warning lamps . . . . . . . . . . . . . . . . . . . . 77, 80PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Parking aid acoustic system . . . . . . . . . . . . . . . 189
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Parking system . . . . . . . . . . . . . . . . . . . . . . . . . 189
Parking system plus . . . . . . . . . . . . . . . . . . . . . 190
Passenger See Correct sitting position . . . . . . . . . . 11, 12
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 210
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 231
Physical principles of a frontal collision . . . . . . 21
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 221
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 203 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 88
Products for vehicle maintenance . . . . . . . . . . 215
RRadio frequency remote control . . . . . . . . . . . . 107 Changing the battery . . . . . . . . . . . . . . . . . 108
Radio navigation controls on the steering wheel Audio + telephone version . . . . . . . . . . . . . . 96
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Rear drink holder* Armrest* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Rear fog light Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 83
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 118
Rear interior lights . . . . . . . . . . . . . . . . . . . . . . 128
Rear reading lights . . . . . . . . . . . . . . . . . . . . . . 128
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Rear shelf Storage compartment . . . . . . . . . . . . . . . . . 157
Rear window automatic wiper/washer . . . . . . 133 Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 133
Recommended gear display . . . . . . . . . . . . . . . . 62
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Registration light . . . . . . . . . . . . . . . . . . . . . . . 280
Remote control key
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Synchronising . . . . . . . . . . . . . . . . . . . . . . . 108
Removing and fitting the wheel . . . . . . . . . . . . 264
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . 105
Replacement of parts . . . . . . . . . . . . . . . . . . . . 224
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Reverse gear Manual gearbox . . . . . . . . . . . . . . . . . . . . . 181
Roll-back function Sliding/tilting sunroof . . . . . . . . . . . . . . . . 117
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Roof storage compartment* . . . . . . . . . . . . . . . 146
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Run-flat tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Running in Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
SSafe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Altea_EN.book Seite 310 Donnerstag, 2. September 2010 2:00 14

Index
312Tank
Fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Reserve indicator . . . . . . . . . . . . . . . . . . . . . 58
Tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 58
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 89
Technical modifications . . . . . . . . . . . . . . . . . . 224
The danger of not using the seat belt . . . . . . . . 22
Tightening torque of wheel bolts . . . . . . . . . . . 290
Tilting sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . 52
Tow starting General notes . . . . . . . . . . . . . . . . . . . . . . . 284
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 289
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 212
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 213
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Towing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Traction control system Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 89
Trailer Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . 211
Trailer turn signals Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 125
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 289 Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 83
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 125
Tyre Mobility System (Tyre repair kit) . . . . . . . . 265
Tyre Mobility-System (Tyre repair kit) . . . . . . . 258
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 249 Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Tyre pressure monitoring . . . . . . . . . . . . . . . . . 250
Tyre pressure warning lamp . . . . . . . . . . . . . . . . 85
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . 258, 265
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 254
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 251
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 252
Tyres with directional tread pattern . . . . . . . . . 249
UUnderbody protection . . . . . . . . . . . . . . . . . . . . 220
Unlocking and locking Personalisation . . . . . . . . . . . . . . . . . . . . . . 103VVehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 246
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Vehicle identification data . . . . . . . . . . . . . . . . 288
Vehicle identification number . . . . . . . . . . . . . 288
Vehicle MaintenanceExterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216 Vehicle modifications . . . . . . . . . . . . . . . . . . . . 224
Vehicle paintwork
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 217
Products for vehicle maintenance . . . . . . . 215
Vehicle tools Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Vehicle washing . . . . . . . . . . . . . . . . . . . . . . . . 216
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Volumetric sensor* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Deactivation . . . . . . . . . . . . . . . . . . . . . . . . 109
WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Warning messages in the display . . . . . . . . . . . 66
Warning reportsRed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66, 80
Yellow . . . . . . . . . . . . . . . . . . . . . . . . . . . 66, 81
Warning symbols . . . . . . . . . . . . . . . . . . . . . . . . 80
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 155
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . 216
Washing with high pressure cleaners . . . . . . . 217
Water Warning message . . . . . . . . . . . . . . . . . . . . . 67
Water in the windscreen washer tank . . . . . . . 241
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 252
Wearing suitable shoes . . . . . . . . . . . . . . . . . . . 16
Altea_EN.book Seite 312 Donnerstag, 2. September 2010 2:00 14
