2011 Seat Altea display

Cockpit
62Recommended gear display*
This display helps to save fuel.Use the gear display to save fuel. If you are driving in the correct gear, a dot
will be shown next to the gear display. If you are not in the correct gear, an
arrow will appear next to the gear display indicating whether you should
change up or down.Odometer or flexible service interval displayOdometer
The left-hand counter in the display registers the total amount of distance
covered by the vehicle.
The right-hand counter registers the short journeys. The last digit indicates
steps of 100 metres. The trip recorder counter may be reset by holding down
the reset button for a few seconds. Service interval display
Ve hi cle s wi th Service intervals dependent on time/distance travelled
already
have certain service intervals set. The intervals are calculated individually in
vehicles with LongLife service .
The service interval display only indicates the dates of services that include
engine oil change. The dates of all other services, such as Inspection Service
or brake fluid change, appear in the sticker on the door pillar or in the Main-
tenance Programme.
A Service pre-warning will appear in the odometer if a service is due soon. A
“spanner” symbol appears and the display “km” with the distance that can
be driven until the next service appointment is due. The display will change
after approximately 10 seconds. A “clock symbol” appears and the number
of days until the service appointment should be carried out. The following
message is shown in the instrument panel display*:
Service in
[XXXX]
km
or
[XXXX]
days
The service message will disappear approximately 20 seconds after the igni-
tion is switched on or the engine is running. The normal display can be
resumed by briefly pressing the reset button on the trip counter or by pressing
the button on the steering wheel controls.
With the ignition on, you can check the current service message at any
moment in the Vehicle status menu or turning the reset button to access the
service display.
An overdue service is indicated by a minus sign in front of the mileage or day
information.
Fig. 40 Gear display
OK
Altea_EN.book Seite 62 Donnersta g, 2. September 2010 2:00 14

Cockpit63
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Indications for vehicles with LongLife service
Technical progress has made it possible to considerably reduce servicing
requirements. With the LongLife System, SEAT ensures that your vehicle only
has an interval service when it is necessary. The length of the service intervals
(max. two years) is determined by factors such as conditions under which the
vehicle is used and personal driving style.
The service pre-warning will first appear 20 days before the date on which the
service is due. The distance travelled is rounded off to the nearest 100 km
and the time to full days. The current service message can only be consulted
500 km after the last service. Until that time, only dashes are displayed.
Note
•If you reset the display manually, the next service interval will be indi-
cated after 15,000 km or one year and will not be calculated individually.•Do not reset the display between service intervals as the display will
otherwise be incorrect.•In LongLife Service vehicles, if the battery is disconnected for a long
period, the days remaining until the next service cannot be calculated. There-
fore, the service message displays on the instrument panel may be incorrect.
Take into account the maximum authorised service intervals.
Multifunction display (MFI)*
The multifunction display (MFI) shows you information on the
journey and fuel consumption.
Fig. 41 Rocker buttons A
and B. Steering wheel
controls.Fig. 42 Digital instru-
ment panel display
Altea_EN.book Seite 63 Donnersta g, 2. September 2010 2:00 14

Cockpit
64

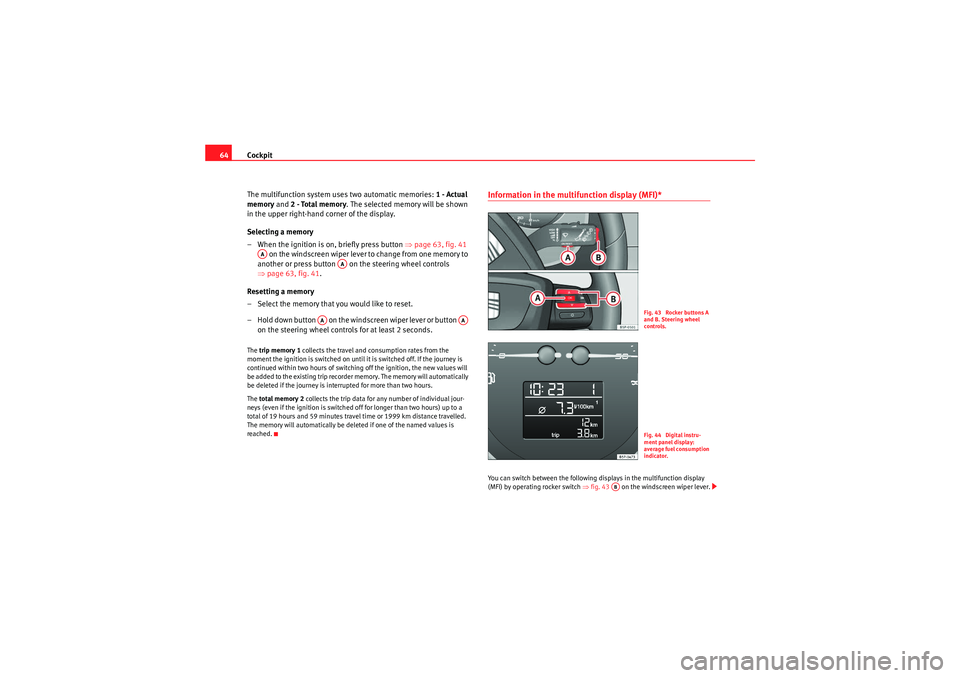

The multifunction system uses two automatic memories: 1 - Actual
memory and 2 - Total memory . The selected memory will be shown
in the upper right-hand corner of the display.
Selecting a memory
– When the ignition is on, briefly press button ⇒page 63, fig. 41
on the windscreen wiper lever to change from one memory to
another or press button on the steering wheel controls
⇒ page 63, fig. 41 .
Resetting a memory
– Select the memory that you would like to reset.
– Hold down button on the windscreen wiper lever or button on the steering wheel contro ls for at least 2 seconds.The trip memory 1 collects the travel and consumption rates from the
moment the ignition is switched on until it is switched off. If the journey is
continued within two hours of switching off the ignition, the new values will
be added to the existing trip recorder memory. The memory will automatically
be deleted if the journey is interrupted for more than two hours.
The total memory 2 collects the trip data for any number of individual jour-
neys (even if the ignition is switched off for longer than two hours) up to a
total of 19 hours and 59 minutes travel time or 1999 km distance travelled.
The memory will automatically be deleted if one of the named values is
reached.
Information in th e multifunction display (MFI)* You can switch between the following displays in the multifunction display
(MFI) by operating rocker switch ⇒fig. 43 on the windscreen wiper lever.
AA
AA
AA
AA
Fig. 43 Rocker buttons A
and B. Steering wheel
controls.Fig. 44 Digital instru-
ment panel display:
average fuel consumption
indicator.
AB
Altea_EN.book Seite 64 Donnersta g, 2. September 2010 2:00 14

Cockpit65
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Memory displays
•Driving speed•Journey duration•Average speed•Distance•Distance to empty•Average fuel consumption•Current fuel consumption•Outside temperature display•Speed warning
km/h - Driving speed
Driving speed is digitally shown in the display.
min - Journey duration
The display shows the amount of time which has elapsed since the ignition
was switched on.
The maximum display value in both memories is 19 hours and 59 minutes.
The memory will automatically be deleted once this value has been reached.
Økm/h - Average speed
The average speed will be shown after running a distance of approximately
100 metres. Until then dashes will appear in the display. The display will be
updated every 5 seconds while the vehicle is in motion.
km - Distance travelled
The display shows the distance travelled since the ignition was switched on.
The maximum display value in both memories is 1999 km. The memory will
automatically be deleted once this value has been reached.
z Km - Fuel range
The fuel range is calculated using the figures for tank content and current fuel
consumption. It shows how far the vehicle can travel using the same condi-
tions as a reference.
Ø l/100 km - Average fuel consumption
The average fuel consumption will be shown ⇒page 64, fig. 44 after a
distance of approximately 100 metres has been travelled. Until then dashes
will appear in the display. The display will be updated every 5 seconds while
the vehicle is in motion. The amount of fuel used will not be shown.
l/100 km or l/h - Current fuel consumption
The display will show the current fuel consumption in litre/km whilst the
vehicle is in motion or in litre/hour when the vehicle is in a stationary position
with the engine running.
Using this display you can see how your driving style affects fuel consump-
tion ⇒page 207.
Outside temperature display
The measurement range extends from -45 °C to +58 °C. At temperatures
below +4 °C, an ice crystal symbol is displayed and a warning sounds if the
vehicle is moving at more than 20 km/h (ice danger warning). This symbol
will flash for about 10 seconds and remains lit until the outside temperature
rises above +4 °C or 6 °C if it was already lit.
Set speed indicator
When driving at the required speed, enter the speed indicator mode and
press the button (Reset), the display remembers the indicated speed. If
the indicated speed is exceeded, a warning message is displayed on the
screen
7) and an acoustic signal is given.
This may be deactivated by pressing the button (Reset).
7)Depending on the model version, the message on the screen may vary and may be
represented by flashing of the speed indication or by a speed message.
AA
AA
Altea_EN.book Seite 65 Donnersta g, 2. September 2010 2:00 14

Cockpit
66The speed may be altered using the rocker switch in steps of 5 km/h
within 5 seconds of the initial memory value.
WARNING
There could be black ice on the road surface even if the “snowflake symbol”
is not shown. For this reason you should not rely exclusively on this display
- Risk of accident!
Note
When the vehicle is stationary or travelling at very low speeds, the tempera-
ture displayed may be slightly higher than the actual outside temperature as
a result of the heat radiated from the engine.Warning or information message in the display
Faults are shown in the display with warning lamps and
warning/information reports.The system runs a check on certain components and functions when the igni-
tion is switched on and while the vehicle is moving. Functional faults are indi-
cated by symbols with warning or information messages in the display. An
acoustic warning is given in certain cases.
Warning symbols
There are red warning symbols (priority 1) and yellow warning symbols
(priority 2).
Information text
In addition to warning messages given on a fault, you will receive information
in the display on procedures or will be asked to carry out certain tasks.
Note
In the case of screens without warning or information texts, faults are indi-
cated exclusively by the warning lamps.Warning reports, Priority 1 (red)If one of these faults occurs, the warning lamp will flash or light up and will
be accompanied by three audible warnings . This is a danger warning. Stop
the vehicle and switch off the engine. Check the fault and correct it. Obtain
professional assistance if necessary.
If several priority 1 faults are detected at the same time, the symbols will be
displayed one after the other for about 2 seconds at a time and will continue
until the fault is corrected.
No menus will be shown in the display for the duration of a priority 1 warning
message.
Examples of priority 1 warning messages (red)•Brake system symbol
H with the warning message STOP BRAKE FLUID
SERVICE MANUAL or STOP BRAKE FAULT SERVICE MANUAL .
•Coolant symbol
v with the warning message STOP SEE COOLANT
INSTRUCTION MANUAL .
•Engine oil pressure symbol
E with the warning message STOP ENGINE
OIL PRESSURE LOW! INSTRUCTION MANUAL .
Warning reports, Priority 2 (yellow) If one of these faults occurs, the warning lamp lights up, and is accompanied
by one audible warning . The function should be checked as soon as possible.
AB
Altea_EN.book Seite 66 Donnersta g, 2. September 2010 2:00 14

Cockpit67
Safety First
Operating Instructions
Practical Tips
Technical Specifications
If several priority 2 warning messages are detected at the same time, the
symbols are displayed one after the other for about 2 seconds at a time. After
a set time, the information text will disappear and the symbol will be shown
as a reminder at the side of the display.
Priority 2
warning messages will not be shown until all Priority 1 warning
messages have been dealt with!
Examples of priority 2 warning messages (yellow):
8)
•Fuel warning light with the information text PLEASE REFUEL . •Windscreen washer fluid symbol
 with the information text REFILL
WINDSCREEN WASHER FLUID . Refill the windscreen washer tank
⇒ page 241.
8)Depending on the version of the model.
Altea_EN.book Seite 67 Donnersta g, 2. September 2010 2:00 14

Cockpit
68Instrument panel menus*Example of menu use
All the menus on the instrument panel may be used according
to the following procedure. The instrument panel menus may
vary according to the version of the model.
The setting of a speed warning will be used as an example of how to
use the menus. This is a good idea if you are, for example, using
winter tyres which are not suited for the top speed of the vehicle.
1. Open the main menu with the MFI lever
– Switch the ignition on.
– Hold down button for two seconds to return to main menu
from other menu. It may be necessary to repeat this operation
until the main menu is displayed.
2. Open the menu “Configuration” with the MFI lever
– To choose an option from the menu, press the upper or lower end of the rocker switch. The selected option is displayed between
two lines and there will also be a triangle on the right.
– Select menu Configuration.
Fig. 45 Windscreen wiper
lever: button A to confirm
the menu selection and
rocker switch B to change
the menu
Fig. 46 Steering wheel
controls: button A to
confirm the menu selec-
tion and switch B to
change the menu
AB
Altea_EN.book Seite 68 Donnersta g, 2. September 2010 2:00 14

Cockpit69
Safety First
Operating Instructions
Practical Tips
Technical Specifications
– Press button on the windscreen wiper lever. The Configura-
tion menu is opened.
2. Access the Configuration menu with the steering wheel controls
– To access the “Configuration” menu, press button ⇒page 68, fig. 46 until the menu is displayed. Now you are in
this menu.
3. Open the main menu “Winter tyres”
– Select option Winter tyres using switch .
– Press button . The menu Winter tyres is opened.
4. Program a speed limit warning
– Use button to select the option +10 km/h or –10 km/h and
press button to either increase or decrease the set speed.
5. To activate and deactivate the speed limit warning
– Use switch to se lect the menu point On / Off and press the
button to switch the speed warning on or off. If the speed
warning is deactivated, three dashes will be displayed ---
6. To close the menu “Winter tyres”
–In the menu select Back .The function “Winter tyres” sends an optical and an acoustic signal when the
vehicle reaches the set speed. Example menu “Winter tyres”
Note
For electronic and vehicle equipment one or more of these menus will be
displayed.
AA
AC
AB
AAABABAB
In the menu
Winter tyres
Function
Name of menu displayed
X km/h
The current set speed is displayed
or ---
or dashes will be shown if the function is deactivated.
On / Off
If the function is activated or deactivated
+10 km/h
The set value increases by 10 km/h
-10 km/h
The set value decreases by 10 km/h
Back
The menu “Winter tyres” is closed and the last dis-
played menu is shown.
Altea_EN.book Seite 69 Donnersta g, 2. September 2010 2:00 14
