2011 RAM CHASSIS CAB washer fluid

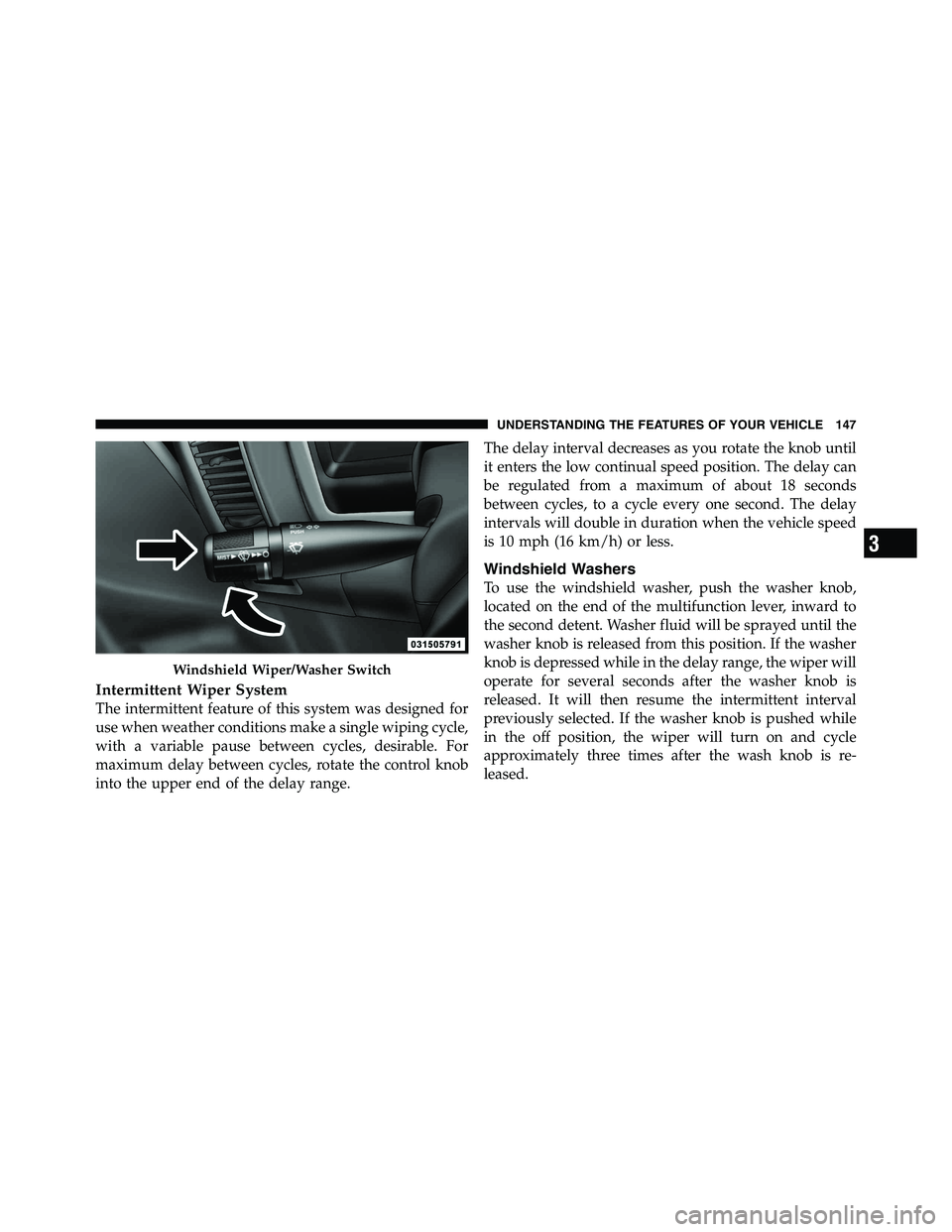

Intermittent Wiper System
The intermittent feature of this system was designed for
use when weather conditions make a single wiping cycle,
with a variable pause between cycles, desirable. For
maximum delay between cycles, rotate the control knob
into the upper end of the delay range. The delay interval decreases as you rotate the knob until
it enters the low continual speed position. The delay can
be regulated from a maximum of about 18 seconds
between cycles, to a cycle every one second. The delay
intervals will double in duration when the vehicle speed
is 10 mph (16 km/h) or less.
Windshield Washers
To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to
the second detent. Washer fluid will be sprayed until the
washer knob is released from this position. If the washer
knob is depressed while in the delay range, the wiper will
operate for several seconds after the washer knob is
released. It will then resume the intermittent interval
previously selected. If the washer knob is pushed while
in the off position, the wiper will turn on and cycle
approximately three times after the wash knob is re-
leased.Windshield Wiper/Washer Switch
3 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147

To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
WARNING!Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use. Mist Feature
Push the washer knob, located on the end of the multi-
function lever, inward to the first detent. The wipers will
cycle one time and automatically shut off to clear road
mist or spray from a passing vehicle.
TILT STEERING COLUMN
This feature allows you to tilt the steering column
upward or downward. The tilt lever is located on the
steering column, below the multifunction lever.
Pull the lever toward the steering wheel to unlock the
steering column. With one hand firmly on the steering
wheel, move the steering column up or down, as desired.
Release the lever to lock the steering column firmly in
place.148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Turn Signal On
• RKE Battery Low
• LOW WASHER FLUID
• Oil Change Due > Dealer Info
• Park Assist On
• Park Assist Off
• Warning Object Detected
• Left Front Turn Signal Light Out
• Left Rear Turn Signal Light Out
• Right Front Turn Signal Light Out
• Right Rear Turn Signal Light Out
• Service Park Assist System
• Park Assist System Blinded • Trailer Brake (with icon and voltage readout)
• Personal Settings Not Available — Vehicle Not in Park
• Remote start aborted — Door ajar
• Remote start aborted — Hood ajar
• Remote start aborted — Fuel low
• Remote start disabled — System fault
• Remote start disabled — Turn key
• Remote start active — Key to Run
• Remote Start Disabled — Start Vehicle to Reset
• Remote Start Active — Insert Key and Turn to RUN
• Memory 1 Profile Set
• Memory 2 Profile Set
• Memory System Unavailable — Not in Park196 UNDERSTANDING YOUR INSTRUMENT PANEL

MAINTAINING YOUR VEHICLECONTENTS  Engine Compartment — 5.7L ............. 377
 Onboard Diagnostic System (OBD II) ....... 378
▫ Loose Fuel Filler Cap Message ........... 378
 Emissions Inspection And Maintenance
Programs ............................ 379
 Replacement Parts ..................... 380
 Dealer Service ........................ 380
 Maintenance Procedures ................. 381
▫ Engine Oil ......................... 382 ▫ Engine Oil Filter ..................... 384
▫ Engine Air Cleaner Filter ............... 384
▫ Maintenance-Free Battery .............. 385
▫ Air Conditioner Maintenance ............ 387
▫ Front Prop Shaft Lubrication – Four-Wheel
Drive Models ....................... 388
▫ Body Lubrication .................... 388
▫ Windshield Wiper Blades ............... 389
▫ Adding Washer Fluid ................. 389
7

ENGINE COMPARTMENT — 5.7L
1 — Air Cleaner Filter 7 — Washer Fluid Reservoir
2 — Automatic Transmission Dipstick 8 — Integrated Power Module
3 — Engine Oil Fill 9 — Power Steering Fluid Reservoir
4 — Engine Oil Dipstick 10 — Coolant Pressure Cap
5 — Brake Fluid Reservoir 11 — Engine Coolant Reservoir
6 — Battery
7 MAINTAINING YOUR VEHICLE 377

amount of a high quality lubricant such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE: Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor performance of blades may be present with chattering,
marks, water lines or wet spots. If any condition is
present please proceed to clean wiper blades with humid
cloth removing any debris that may be affecting its
function.
Adding Washer Fluid
The fluid reservoir is located under the hood and should
be checked for fluid level at regular intervals. Fill the
reservoir with windshield washer solvent only (not ra-
diator antifreeze). When refilling the washer fluid reser-
voir, take some washer fluid and apply it to a cloth or
towel and wipe the wiper blades clean. This will help
blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
7 MAINTAINING YOUR VEHICLE 389

The washer fluid reservoir will hold a full gallon of fluid
when the Low Washer Fluid Light illuminates.
WARNING!Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
After the engine has warmed up, operate the defroster for
a few minutes to reduce the possibility of smearing or
freezing the fluid on the cold windshield. Windshield
washer solution used with water as directed on the
container, aids cleaning action, reduces the freezing point
to avoid line clogging, and is not harmful to paint or trim. Exhaust System
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
If you notice a change in the sound of the exhaust system;
or if the exhaust fumes can be detected inside the vehicle;
or when the underside or rear of the vehicle is damaged;
have an authorized technician inspect the complete ex-
haust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams
or loose connections could permit exhaust fumes to seep
into the passenger compartment. In addition, inspect the
exhaust system each time the vehicle is raised for lubri-
cation or oil change. Replace as required.390 MAINTAINING YOUR VEHICLE
