2011 Ram 5500 Chassis Cab windshield wipers

▫Parking Lights And Panel Lights ......... 140
▫ Fog Lights — If Equipped .............. 140
▫ Interior Lights ...................... 141
▫ Cargo Light ........................ 142
▫ Lights-On Reminder .................. 143
▫ Battery Saver ....................... 143
▫ Daytime Running Lights — If Equipped .... 143
▫ Multifunction Lever .................. 143
 Windshield Wipers And Washers .......... 145
▫ Windshield Wipers ................... 145
▫ Windshield Washers .................. 146
▫ Mist Feature ........................ 147
 Tilt Steering Column ................... 147
Driver Adjustable Pedals — If Equipped ..... 148
▫ Adjustment ........................ 148
 Heated Steering Wheel — If Equipped ...... 149
 Electronic Speed Control — If Equipped ..... 150
▫ To Activate ......................... 151
▫ To Set a Desired Speed ................ 152
▫ Deactivating Electronic Speed Control ...... 152
▫ To Resume Speed .................... 152
▫ Varying The Speed Setting .............. 152
▫ To Accelerate For Passing .............. 153
 Overhead Console — If Equipped .......... 154
▫ Courtesy/Reading Lights .............. 154
 Electrical Power Outlets ................. 156
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79

High/Low Beam Switch
Push the multifunction lever toward the instrument
panel to switch the headlights to high beam. Pulling the
multifunction back toward the steering wheel will turn
the low beams back on, or shut the high beams off.
WINDSHIELD WIPERS AND WASHERS
Windshield Wipers
The wipers and washers are operated by a switch in the
multifunction lever. Turn the end of the handle to select
the desired wiper speed.
High/Low BeamWindshield Wiper/Washer Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145

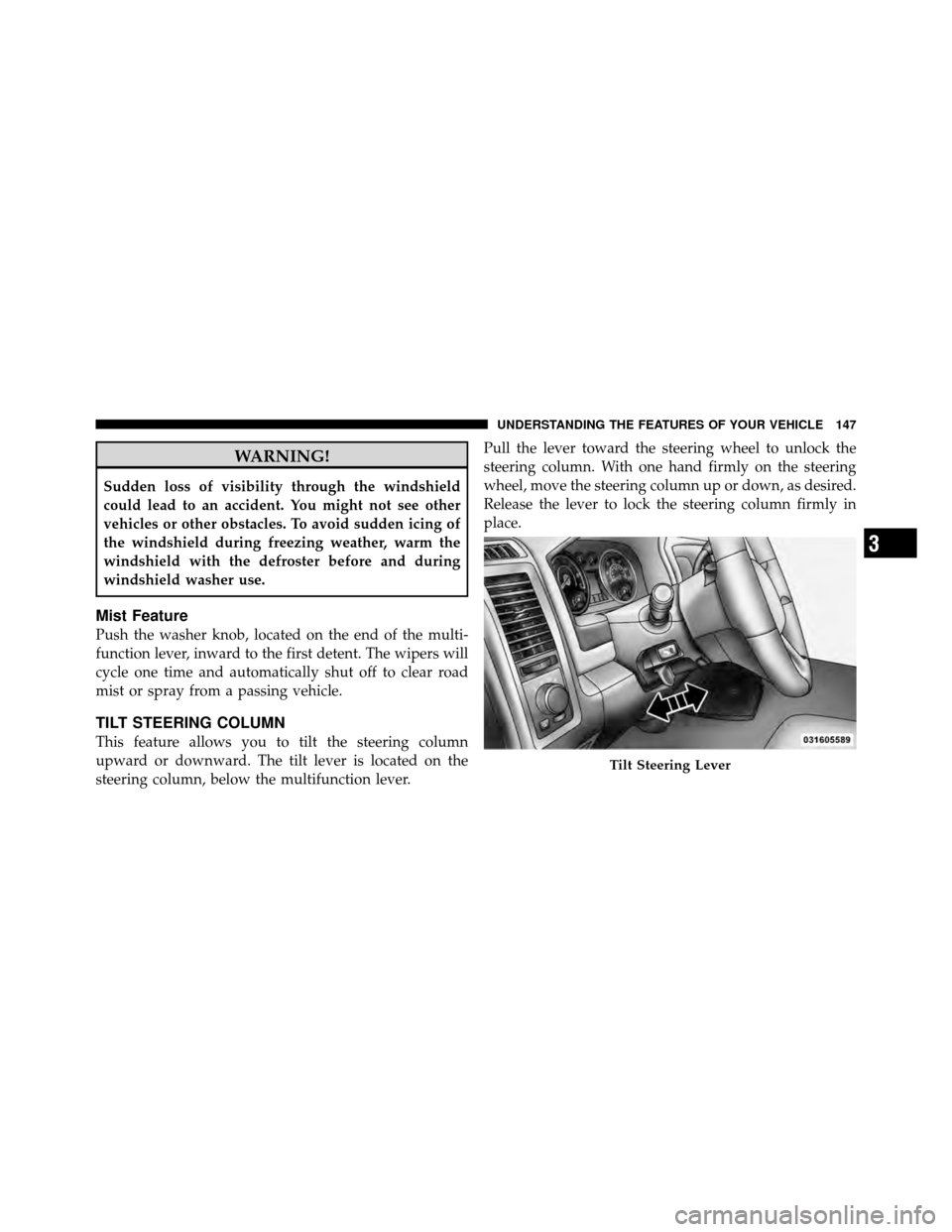

WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist Feature
Push the washer knob, located on the end of the multi-
function lever, inward to the first detent. The wipers will
cycle one time and automatically shut off to clear road
mist or spray from a passing vehicle.
TILT STEERING COLUMN
This feature allows you to tilt the steering column
upward or downward. The tilt lever is located on the
steering column, below the multifunction lever.Pull the lever toward the steering wheel to unlock the
steering column. With one hand firmly on the steering
wheel, move the steering column up or down, as desired.
Release the lever to lock the steering column firmly in
place.
Tilt Steering Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease, such as
MOPARSpray White Lube or equivalent, to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and
grit. After lubricating, excess oil and grease should be
removed. Particular attention should also be given to
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small amount of a high quality lubricant such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
392 MAINTAINING YOUR VEHICLE

Cruise Control (Speed Control).............. 150
Cupholders ............................ 161
Customer Assistance ..................... 449
Daytime Running Lights ................... 143
Dealer Service .......................... 385
Defroster, Rear Window ................... 170
Defroster, Windshield ................75,251,257
Delay (Intermittent) Wipers ................. 146
Differential, Limited-Slip .................. 287
Dipsticks Automatic Transmission ................. 407
Power Steering ........................ 292
Disposal Antifreeze (Engine Coolant) ............... 400
Door Locks ............................. 28
Driving Through Flowing, Rising, or Shallow
Standing Water ........................ 288 Dual Rear Wheels
..................... 320,366
Electric Rear Window Defrost ............... 170
Electrical Power Outlets ................... 156
Electronic Range Select (ERS) ............... 270
Electronic Speed Control (Cruise Control) ...... 150
Electronic Vehicle Information Center (EVIC) .... 194
Electronically Shifted Transfer Case ........... 280
Emergency Brake ........................ 292
Emergency, In Case of Freeing Vehicle When Stuck ............... 374
Hazard Warning Flasher ................. 358
Jump Starting ......................... 370
Tow Hooks .......................... 375
Towing ............................. 376
Emission Control System Maintenance ......383,430
Engine ............................... 381
Air Cleaner .......................... 388
Block Heater ......................... 267
10
INDEX 461

Wheel Nut Torque.................... 364,369
Wind Buffeting .......................... 37
Window Fogging ........................ 259
Windows .............................. 34
Power ............................... 34
Rear Sliding .......................... 172
Windshield Defroster ...................... 75 Windshield Washers
................ 145,146,393
Fluid ............................ 145,393
Windshield Wiper Blades .................. 392
Windshield Wipers ....................... 145
Wiper Blade Replacement .................. 392
Wipers, Intermittent ...................... 146
474 INDEX
