2011 Ram 1500 mirror controls

CAUTION!
It is recommended to fold the mirrors into the full
rearward position to resist damage when entering a
car wash or a narrow location.
Power Mirrors — If Equipped
The controls for the power mirrors are located on the
driver’s door trim panel.The power mirror controls consist of mirror select but-
tons and a four-way mirror control switch.
Power Mirror Controls
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To adjust a mirror, press the mirror select button for the
mirror that you want to adjust. Using the mirror control
switch, press on any of the four arrows for the direction
that you want the mirror to move.
Power Folding Outside Mirrors — If Equipped
If equipped with power folding mirrors, they can be
electrically folded rearward and unfolded into the drive
position. The power folding mirrors are designed to
operate if the vehicle is stationary or traveling at speed of
less than 35 mph (56 km/h). At speeds greater than
Power Mirror Controls
1 — Mirror Select Buttons
2 — Mirror Control
Power Mirror Movement
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

NOTE:Fold the trailer towing mirrors rearward prior to
entering an automated car wash.
A small blindspot mirror is located next to main mirror
and can be adjusted separately.Uconnect™ Phone — IF EQUIPPED
Uconnect™ Phone is a hands-free system that allows you
to use voice commands to dial a phone number stored in
your mobile phone. Press the Uconnect™ Phone button
on the radio or steering wheel controls (if equipped)
and follow the instructions to pair the mobile phone.
Refer to “Uconnect™ Phone” in the Uconnect™ User
Manual located on the DVD for further details.
VOICE COMMAND — IF EQUIPPED
Voice Commands can be initiated by pressing the VR
button
located on the radio or steering wheel
controls (if equipped).
Refer to “Voice Command” in the Uconnect™ User
Manual located on the DVD for further details.
SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
Blindspot Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belt.
The starter should not be operated for more than 15-
second intervals. Waiting a few seconds between such
intervals will protect the starter from overheating.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the key fob in
the ignition. A child could operate power windows,
other controls, or move the vehicle.
Normal Starting
Normal starting of either a warm or cold engine is
obtained without pumping or pressing the acceleratorpedal. Turn the key fob to the START position and release
when the engine starts. If the engine fails to start within
10 seconds, turn the key fob to the OFF position, wait five
seconds, then repeat the “Normal Starting” procedure.
Automatic Transmission
Start the engine with the shift lever in the NEUTRAL or
PARK position. Apply the brake before shifting into any
driving range.
NOTE: This vehicle is equipped with a transmission
shift interlocking system. The brake pedal must be
pressed to shift out of PARK.
Tip Start Feature
Do not
press the accelerator. Turn the ignition switch
briefly to the START position and release it. The starter
motor will continue to run but will automatically disen-
gage when the engine is running.
5
STARTING AND OPERATING 309

Adding Engine Coolant (Antifreeze).......... 546
Adding Fuel ........................... 452
Adjustable Pedals ....................... 133
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 536
Air Conditioner Maintenance ............... 538
Air Conditioning ........................ 291
Air Conditioning Controls ................. 291
Air Conditioning Refrigerant .............538,539
Air Conditioning System .............291,295,538
Air Conditioning, Operating Tips ............ 302
Air Pressure, Tires .................... 416,424
Airbag .............................. 53,62
Airbag Deployment ....................... 63
Airbag Light ..................... 61,65,83,224
Airbag Maintenance ....................... 64
Airbag, Side .......................... 59,62
Airbag, Window (Side Curtain) ...........56,59,62
Alarm (Security Alarm) .................... 18
Alarm Light ........................... 214 Alarm System (Security Alarm)
............... 18
Alarm, Panic ............................ 24
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 271
Anti-Lock Brake System (ABS) .............. 395
Anti-Lock Warning Light .................. 225
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Anti-Theft System ........................ 18
Antifreeze (Engine Coolant) ..............545,580
Disposal ........................... 547
Appearance Care ........................ 557
Ashtray ............................... 166
Auto Down Power Windows ................ 35
Automatic Dimming Mirror ................. 94
Automatic Door Locks ..................... 30
Automatic Headlights .................... 123
Automatic Temperature Control (ATC) ......... 295
Automatic Transmission ................... 313
Adding Fluid ....................... 556
614 INDEX

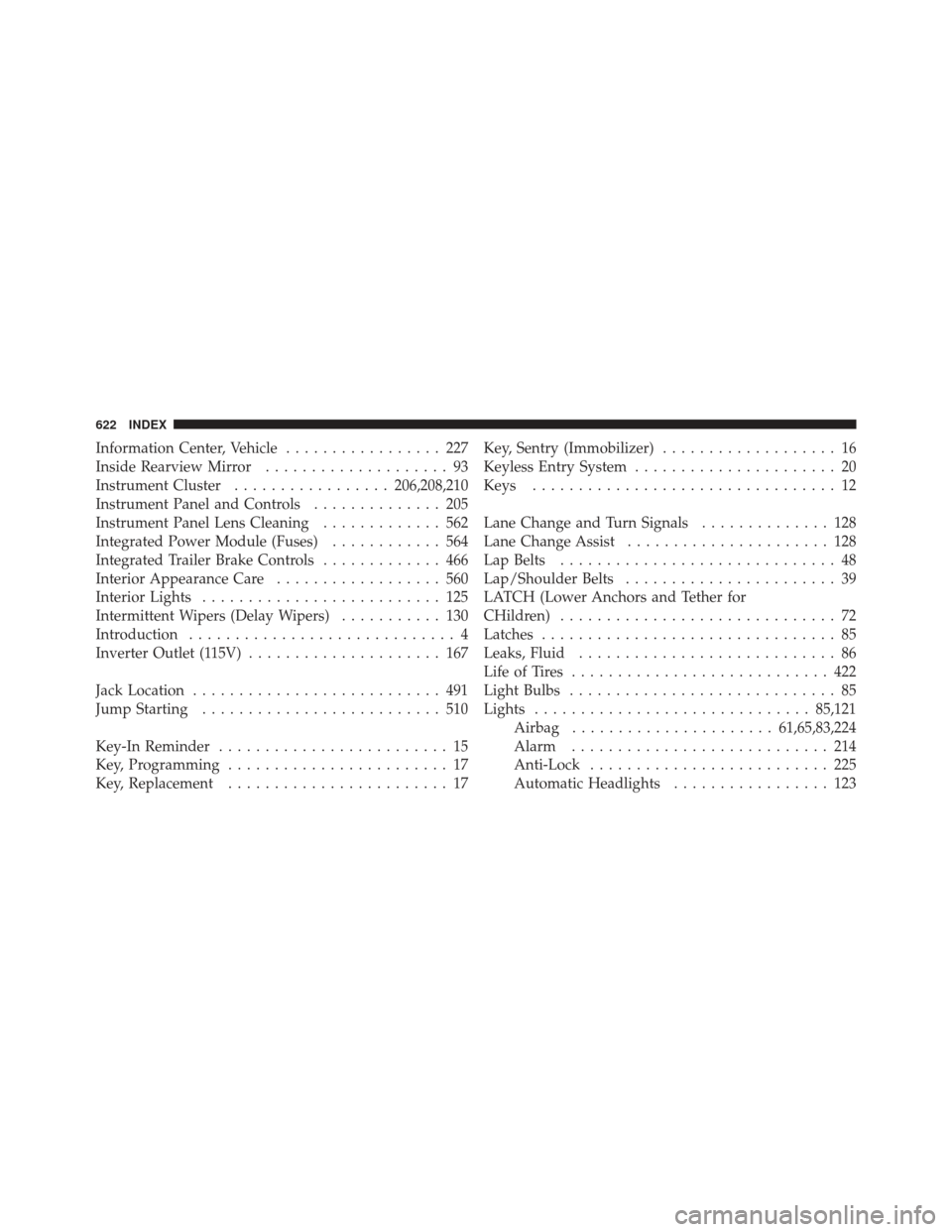

Information Center, Vehicle................. 227
Inside Rearview Mirror .................... 93
Instrument Cluster ................. 206,208,210
Instrument Panel and Controls .............. 205
Instrument Panel Lens Cleaning ............. 562
Integrated Power Module (Fuses) ............ 564
Integrated Trailer Brake Controls ............. 466
Interior Appearance Care .................. 560
Interior Lights .......................... 125
Intermittent Wipers (Delay Wipers) ........... 130
Introduction ............................. 4
Inverter Outlet (115V) ..................... 167
Jack Location ........................... 491
Jump Starting .......................... 510
Key-In Reminder ......................... 15
Key, Programming ........................ 17
Key, Replacement ........................ 17 Key, Sentry (Immobilizer)
................... 16
Keyless Entry System ...................... 20
Keys ................................. 12
Lane Change and Turn Signals .............. 128
Lane Change Assist ...................... 128
Lap Belts .............................. 48
Lap/Shoulder Belts ....................... 39
LATCH (Lower Anchors and Tether for
CHildren) .............................. 72
Latches ................................ 85
Leaks, Fluid ............................ 86
Life of Tires ............................ 422
Light Bulbs ............................. 85
Lights .............................. 85,121
Airbag ...................... 61,65,83,224
Alarm ............................ 214
Anti-Lock .......................... 225
Automatic Headlights ................. 123
622 INDEX
