2011 Ram 1500 steering

WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause
the driver to lose control of the vehicle. Be sure the
steering column is locked before driving your ve-
hicle. Failure to follow this warning may result in
serious injury or death.
HEATED STEERING WHEEL — IF EQUIPPED
The steering wheel contains a heating element that helps
warm your hands in cold weather. The heated steering
wheel has only one temperature setting. Once the heated
steering wheel has been turned on it will operate for
approximately 58 to 70 minutes before automatically
shutting off. The heated steering wheel can shut off early
or may not turn on when the steering wheel is already
warm.The heated steering wheel switch is located on the switch
bank below the climate controls.
Press the switch to turn on the heated
steering wheel. The light on the switch
will illuminate to indicate the steering
wheel heater is on. Pressing the switch
a second time will turn off the heated
steering wheel and light indicator.
NOTE: The engine must be running for the heated
steering wheel to operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start, the
heated steering wheel seat can be programmed to come
on during a remote start. Refer to “Remote Starting
System — If Equipped” in “Things to Know Before
Starting Your Vehicle” for further information.
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

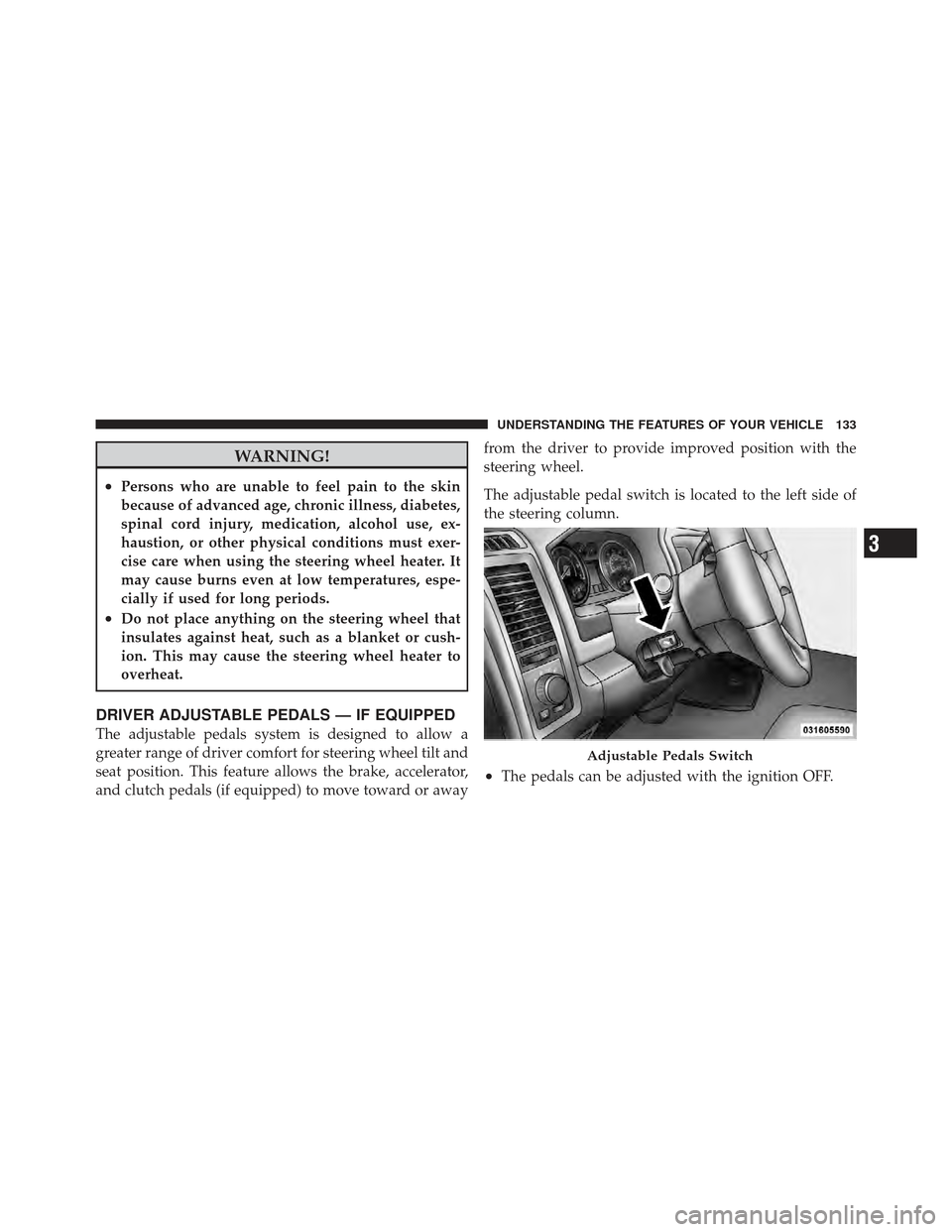

WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, ex-
haustion, or other physical conditions must exer-
cise care when using the steering wheel heater. It
may cause burns even at low temperatures, espe-
cially if used for long periods.
•Do not place anything on the steering wheel that
insulates against heat, such as a blanket or cush-
ion. This may cause the steering wheel heater to
overheat.
DRIVER ADJUSTABLE PEDALS — IF EQUIPPED
The adjustable pedals system is designed to allow a
greater range of driver comfort for steering wheel tilt and
seat position. This feature allows the brake, accelerator,
and clutch pedals (if equipped) to move toward or awayfrom the driver to provide improved position with the
steering wheel.
The adjustable pedal switch is located to the left side of
the steering column.
•The pedals can be adjusted with the ignition OFF.
Adjustable Pedals Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

•The pedalscannotbe adjusted when the vehicle is in
REVERSE or when the Electronic Speed Control Sys-
tem is on. The following messages will be displayed
on vehicles equipped with the Electronic Vehicle In-
formation System (EVIC) if the pedals are attempted to
be adjusted when the system is locked out (“Adjust-
able Pedal Disabled — Cruise Control Engaged” or
“Adjustable Pedal Disabled — Vehicle In Reverse”.
CAUTION!
Do not place any article under the adjustable pedals
or impede its ability to move as it may cause damage
to the pedal controls. Pedal travel may become lim-
ited if movement is stopped by an obstruction in the
adjustable pedal’s path.
WARNING!
Do not adjust the pedals while the vehicle is moving.
You could lose control and have an accident. Always
adjust the pedals while the vehicle is parked.
ELECTRONIC SPEED CONTROL — IF EQUIPPED
When engaged, Electronic Speed Control takes over the
accelerator operation at speeds greater than 25 mph
(40 km/h). The Electronic Speed Control lever is located
on the right side of the steering wheel.
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Using This Feature ................... 276
▫ Controlling The iPod Using Radio
Buttons ........................... 276
▫ Play Mode ......................... 276
▫ List Or Browse Mode ................. 278
 iPod/USB/MP3 Control — If Equipped ..... 280
▫ Connecting The iPod Or External USB
Device ............................ 280
▫ Using This Feature ................... 281
▫ Controlling The iPod Or External USB
Device Using Radio Buttons ............. 282
▫ Play Mode ......................... 282
▫ List Or Browse Mode ................. 283
▫ Bluetooth Streaming Audio (BTSA) ........ 285
Video Entertainment System (VES)™ — If
Equipped ............................ 286
 Steering Wheel Audio Controls —
If Equipped .......................... 288
▫ Radio Operation ..................... 289
▫ CD Player ......................... 289
 CD/DVD Disc Maintenance .............. 290
 Radio Operation And Mobile Phones ....... 290
 Climate Controls ...................... 290
▫ Manual Heating And Air Conditioning
System ............................ 291
▫ Automatic Temperature Control (ATC) —
If Equipped ........................ 295
▫ Summer Operation ................... 300
4
UNDERSTANDING YOUR INSTRUMENT PANEL 203

Lower Switch Bank
The lower switch bank is located on the center of the
instrument panel.
1. HEATED SEATS
Refer to “Understanding The Features Of Your Vehicle”
for more information.2. VENTILATED SEATS
Refer to “Understanding The Features Of Your Vehicle”
for more information.
3. HEATED STEERING WHEEL
Refer to “Understanding The Features Of Your Vehicle”
for more information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 207

This system conveniently allows the driver to select a
variety of useful information by pressing the switches
mounted on the steering wheel. The EVIC consists of the
following:
•System Status display
•Vehicle Information Warning Message Displays
•Customer-Programmable Features (System Setup)
•Compass Display
•Outside Temperature Display
•Trip Computer Functions
•Fuel Economy display
•Average Fuel Economy / Fuel Saver Mode display
•Audio Modes displaySteering wheel EVIC control button, as
it appears on the left side of the steer-
ing wheel.
Press and release the UP button to scroll up-
ward through the main menus (Fuel Economy,
Vehicle Info, Tire PSI, Cruise, Messages, Units,
System Setup) and sub-menus.
Press and release the DOWN button to scroll
downward through the main menus and sub-
menus.
228 UNDERSTANDING YOUR INSTRUMENT PANEL

Steering wheel EVIC control button, as
it appears on the right side of the
steering wheel.
Press and release the SELECT button for access
to main menus, sub-menus or to select a per-
sonal setting in the system setup menu.
Press the BACK button to scroll back to a
previous menu or sub-menu.
EVIC Displays
When the appropriate conditions exist, the EVIC displays
the following messages:
•Left front turn signal lamp out
•Right front turn signal lamp out
•Left rear turn signal lamp out
•Right rear turn signal lamp out
•Service air filter
•Check Tire Pressure
•Perform service
•ESC Off
•Service Tire Pressure System
•Coolant Low
•Check Trailer Brake Wiring
•Service Trailer Brake System
•Trailer Brake Connected
•Trailer Brake Disconnected
4
UNDERSTANDING YOUR INSTRUMENT PANEL 229

position using the seat mounted switch. To make your
selection, press and release the SELECT button until a
check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
Remote Start Comfort Sys.
When this feature is selected and the remote start is
activated, the heated steering wheel and driver heated
seat features will automatically turn on in cold weather.
In warm weather, the driver vented seat feature will
automatically turn on when the remote start is activated.
These features will stay on through the duration of
remote start or until the key is turned to RUN. To make
your selection, press and release the SELECT button until
a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
Horn With Remote Start
When this feature is selected, a short horn sound will
occur when the RKE transmitter REMOTE START button
is pressed. To make your selection, press and release the
SELECT button until a check-mark appears next to the
feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated.
Horn With Remote Lock
When this feature is selected, a short horn sound will
occur when the RKE transmitter LOCK button is pressed.
This feature may be selected with or without the Flash
Lamps with Lock feature. To make your selection, press
and release the SELECT button until a check-mark ap-
pears next to the feature showing the system has been
activated or the check-mark is removed showing the
system has been deactivated.
4
