Changing a fuse



FUSES UNDER THE BONNET

After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F
Amperes
A
Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear screenwash pump
4 20 Headlamp wash pump
5 15 Engine components
6 10 Steering wheel angle sensor, ESP
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp

08
1
3 2
2 1
9.24
Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing
the dial.

RECEIVING A CALL
MAKING A CALL

An incoming call is announced by a ring and a superimposed
display on the multifunction screen.
Yes
To han
g up, press the PHONE button
or press the dial and select "End call"then confi rm by pressing the dial.
End callPress the PH
ONE button.

Select "Dial number", then dial the
telephone number using the virtual
keypad.
Select the Phone Menu function and press the dial to confi rm.
The list o
f the last 20 calls made and received in the vehicle
appears under Phone Menu. You can select a number and press
the dial to make the call.
No


It is also possible to select a number from the address book. You can select "Dial from address book". The Peugeot Connect
Navigation can record up to 4 000 entries.
Press the end of the steerin
g mounted control for more than twoseconds to gain access to the address book.
Phone Menu
Dial number

To delete a number, press the PH
ONE button then press and hold on a call number to display a list of actions including:
Delete entr
y
D
elete list

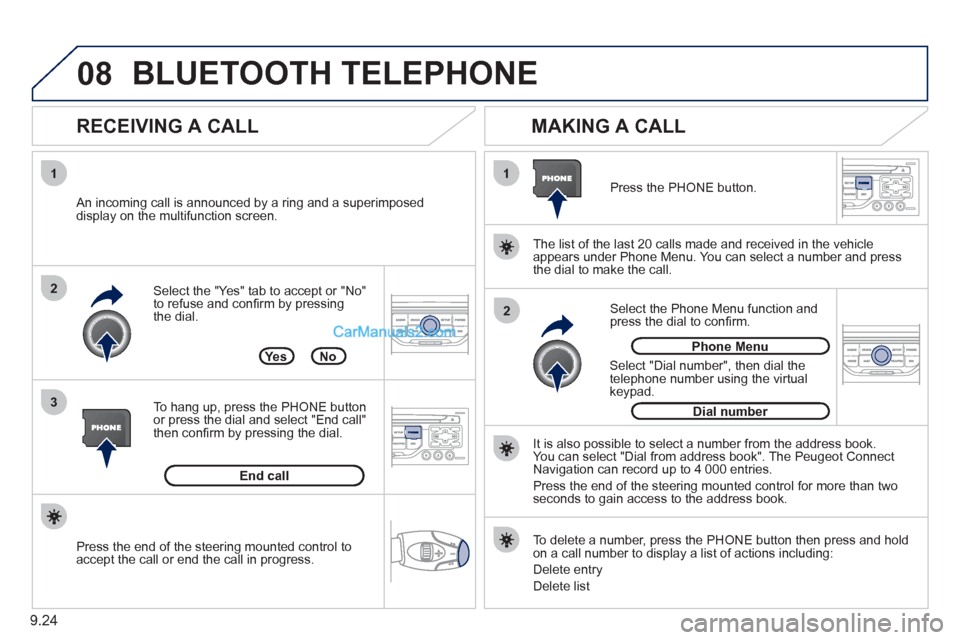

BLUETOOTH TELEPHONE



Press the end of the steering mounted control to
accept the call or end the call in progress.

137


Instruments and controls

VISUAL SEARCH
10


Heating, ventilation


- heating 57

- air conditioning A/C 58
Digital air conditioning 59-60
Demisting/defrosting 61-62
Rear view mirror 78
Toll cards, car park tickets 78
Courtesy lamps 70, 119

Controls


- central locking 24

- load space locking 24

- electric windows 79

- hazard warning lamps 80


Electronic gearbox 38
Cab fi ttings 68-69


- glove box,

- overhead storage,

- console,

- sun visor,

- bottle holder,

- bag holder,

- storage compartments under
seats,

- storage compartment.


Screens, dispay 25, Section 9
Setting the time
in the screen Section 9

Dashboard, passenger
compartment fuses 123, 124
Opening the bonnet 102
On-board technology Section 9


- Peugeot Connect Sound

- Peugeot Connect Navigation


Emergency
or assistance call Section 9
“Grip control” 85-86

138

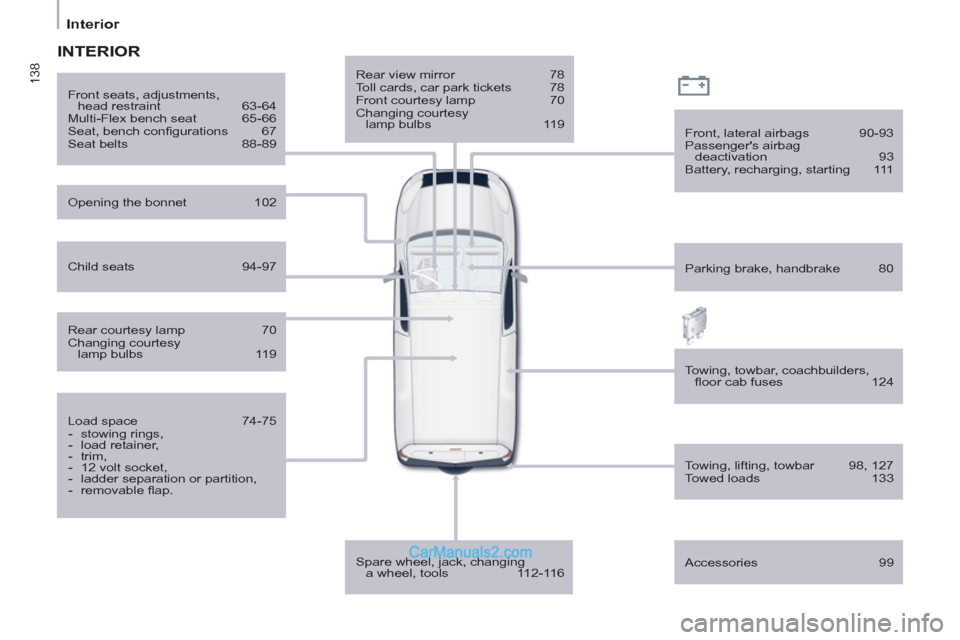

Interior
