Rear suspension

Deactivation of manual height correction
Good practice
When stationary and with the ignition key
removed, excessive use of the s
ystem
consumes battery power.
Long term parking

Avoid parking for a long duration on ground
which could
present a potential obstacle as
your vehicle could lower.
Followin
g a long period out of use, the
height of the platform may change due to
the automatic hei
ght correction on unlocking
or on openin
g one of your vehicle's doors. With the vehicle stationar
y:


- press and hold,

- release the control.

Return to manual height correction

According to the configuration, a beep may
be heard during these operations.
You must deactivate the manual hei
ght
correction in the following situations:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...


Warning lamp Driving with the height o
f the rear platform:


- too low, risks damaging the technical
components underneath the vehicle,
- too high, risks unstable driving.
With the vehicle stationary:


- press and hold,

- release the control. R
efer to the "Instruments and controls"
section of chapter 2.
If you start and the warning lamp flashes, to
switch it off:


- correct the position of the manual
control which is still at the lower or
upper limit,

- or drive slowly at above 6 mph
(10 km/h), until height correction returns
to automatic mode. Return to manual correction is confirmed b
y
the LED which goes off. Deactivation is con
firmed by the LED which
is on. It remains on
for approximately
30 seconds.

81


Mirrors and windows
EASE OF USE AND COMFOR
T
3

ELECTRIC WINDOWS



1.
Driver's electric window control

2.
Passenger electric window control Th
e electrical functions of the electric
windows are deactivated:


- approximately 45 seconds after the
ignition is switched off,

- after one of the front doors is opened, if
the ignition is off.


Reinitialisation

Following reconnection of the battery,
the safet
y auto-reverse function must be
reinitialised.
Lower the window full
y, then raise it, it will
rise in steps of a few centimetres each time
the control is
pressed. Repeat the operation
until the window is fully closed.
Continue to press the control for at least one
second after the window closed position has
been reached.
The sa
fety auto-reverse does not operate
durin
g these operations.


Manual mode
Press or pull the control, without passing the
point of resistance. The window stops when
you release the control.


Automatic mode
Press or pull the control, beyond the point
o
f resistance. The window opens or closes
full
y when the control is released. Pressing
the control a
gain stops the movement of the
win
dow.
Safety auto-reverse
If your vehicle is fitted with the safety auto-
reverse
function, when the window rises
and meets an obstacle, it stops and partially
lowers.
In the event of unwanted openin
g of the
w
indow on closing, press the control until
the window is fully open. Within the next
4 seconds,
pull the control until the window
is
fully closed.
The safet
y auto-reverse does not operate
during these operations.

Good practice

If the electric windows meet an obstacle
during operation, you must reverse the
movement of the window. To do this, press
th
e control concerned.
When the driver operates the passen
ger
electric window controls, he must ensure
that no one is preventin
g correct closing of
th
e windows.
The driver must ensure that the passen
gers
use the electric windows correctly.
Be aware of children when operatin
g the
w
indows.
There are two operating modes:

Checks

CHECK
S
6

CHECKS


Battery

At the start of winter, have your battery
checked by a PEUGEOT dealer or a
qualified workshop.


Brake pads

Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the thickness of the
pads, even between services.
Unless there is a leak in the system, a drop
in the brake fluid level indicates that the
brake pads are worn.


Brake disc/drum wear

For any information on checking the brake
disc/drum wear, contact a PEUGEOT dealer
or a qualified workshop.


Parking brake

Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a PEUGEOT
dealer or a qualified workshop.


Oil filter

Change the filter regularly, in accordance
with the servicing schedule.


Carbon filter and passenger
compartment filter
The carbon filter permits continuous and
effective filtering of dust.
If the passenger compartment filter becomes
clogged, this may reduce the performance
of the air conditioning system and generate
unpleasant odours.
We recommend the use of a combined
passenger compartment filter. By means of
its second special active filter, it contributes
to the purification of the air breathed by
the occupants and the cleanness of the
passenger compartment (reduction of
allergic symptoms, unpleasant odours and
greasy deposits).
Refer to the servicing booklet to find out the
replacement interval for these components.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary.

Particle emission filter (Diesel)

This filter actively contributes
to the preservation of air quality
by trapping unburnt polluting
particles. It is controlled
completely and automatically by the engine
management system.
This warning lamp comes on if there is a risk
of blockage of the filter.
This alert signals the start of saturation of
the particle emissions filter (exceptionally
prolonged driving in urban conditions:
reduced speed, traffic jams…).
If this alert persists, contact a PEUGEOT
dealer or a qualified workshop.
On acceleration after the vehicle has been
running for a prolonged period at very low
speed or at idle, you may, in exceptional
circumstances, notice the emission of water
vapour at the exhaust. This water vapour
does not have any adverse effect on vehicle
handling or the environment.
To regenerate the filter, it is recommended
that as soon as driving conditions permit,
you drive at a speed of at least 36 mph
(60 km/h) for at least 5 minutes (until the
warning lamp goes off and/or the message
disappears). Refer to "Under the bonnet" in section 6.

11
3


Battery

QUICK HELP
7

BATTERY

This is housed in a compartment located
underneath the floor, in front of the front
right seat.
Before disconnecting the battery, you must
wait for 2 minutes after switching off the
ignition.
Never disconnect a terminal when the
engine is running.
Never charge a battery without first
disconnecting the terminals.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If some problems
persist after this operation, please contact a
PEUGEOT dealer or a qualified workshop. It is advisable to disconnect the battery
if the vehicle is not to be used for a
period of more than one month. After the engine has stopped, with the key
in the ignition position, certain functions
(windscreen wiper, electric windows,
courtesy lights, audio equipment, etc.)
can only be used for a cumulative duration
of thirty minutes, to prevent discharging of
the battery.

To charge the battery using a battery
charger


- Disconnect the battery,

- Follow the instructions for use given by
the battery charger manufacturer,

- Reconnect starting with the negative (-)
terminal,

- Check that the terminals and connectors
are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.



To start the vehicle from another
battery


- Connect the red cable to the positive (+)
terminals of the two batteries,

- Connect one end of the green or black
cable to the negative (-) terminal of the
slave battery,

- Connect the other end of the green or
black cable to an earth point on the
broken down vehicle as far as possible
from the battery,

- Operate the starter, let the engine run,

- Wait for the engine to return to idle, then
disconnect the cables. Once the thirty minutes are over, the active
functions are put on standby and the battery
warning light flashes accompanied by a
message on the display.
To resume the use of these functions
immediately, start the engine and let it run
for a few minutes.
The time available will then be double the
time for which the engine was left running.
However, this time will always be between
five and thirty minutes.
A flat battery will prevent the engine from
starting.

126


Changing a fuse


CHANGING A FUSE

The three fuseboxes are placed:


- in the dashboard on the right-hand
side (behind the storage compartment,
retractable),

- in the passenger compartment (battery
compartment),

- under the bonnet.
If fitted on your vehicle, a further fusebox
is added for towing, the towbar and the
connections for the coachbuilder and
platform cab conversions. It is located on
the right behind the load retaining partition.

Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified.
Always replace a faulty fuse with a fuse
of the same rating.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes. The descriptions communicated are only the
fuses which can be changed by the user.
For any other operations, go to a PEUGEOT
dealer or a qualified workshop.
For motor trade use: for complete
fuse and relay information, consult the
"Procedures" wiring diagrams via the dealer
network.

128


Changing a fuse


PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


-
Free


3


40/50
Trailer fuse box (accessory)/Coachbuilder/vehicle modifier
unit (platform cab)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


-
Free


40


5
Folding door mirrors

9.3
PEUGEOT CONNECT MEDIA

The Peugeot Connect Media is coded in such a waythat it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer for confi guration of the system.

For safet
y reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the Peugeot Connect Mediamay switch off after a few minutes.



MULTIMEDIA AUDIO/TELEPHONE SYSTEM
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)


01 First steps

02
Voice commands and
steering mounted controls


03 Screen and main menu

04 Navigation - Guidance

05 Traffic information

06 Audio/Video

07 Telephone

08 Trip computer

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 9.4
9.5
9.7
9.11
9.21
9.23
9.32
9.36
9.38
9.39
CONTENTS


Frequently asked questions p.
9.45

9.38
09
1
2
3
4
5
6
7
8
CONFIGURATION

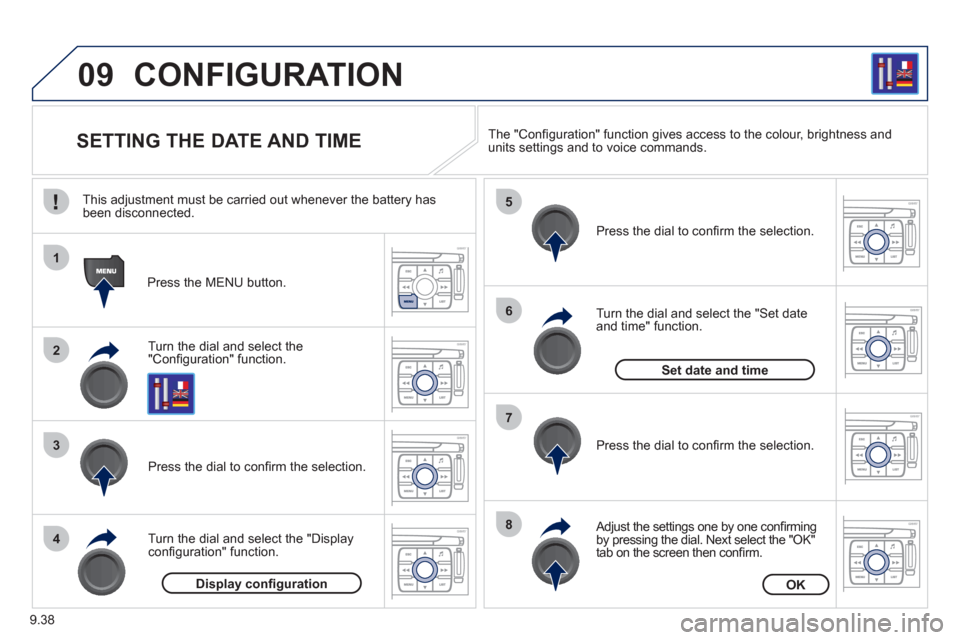

SETTING THE DATE AND TIME
Turn the dial and select the"Confi guration" function.
Press the MENU button.
Pr
ess the dial to confi rm the selection.
Turn the dial and select the "Displa
yconfi guration" function.
Pr
ess the dial to confi rm the selection.

Turn the dial and select the "
Set dateand time" function.

Adjust the settings one by one confi rmingby pressing the dial. Next select the "OK"
tab on the screen then confi rm.
Pr
ess the dial to confi rm the selection. The "
Confi guration" function gives access to the colour, brightness and units settings and to voice commands.
Display confi gurationOK
Set date and time
This adjustment must be carried out whenever the battery has been disconnected.
