2011 Peugeot Bipper tow

159
7
QUICK HELP

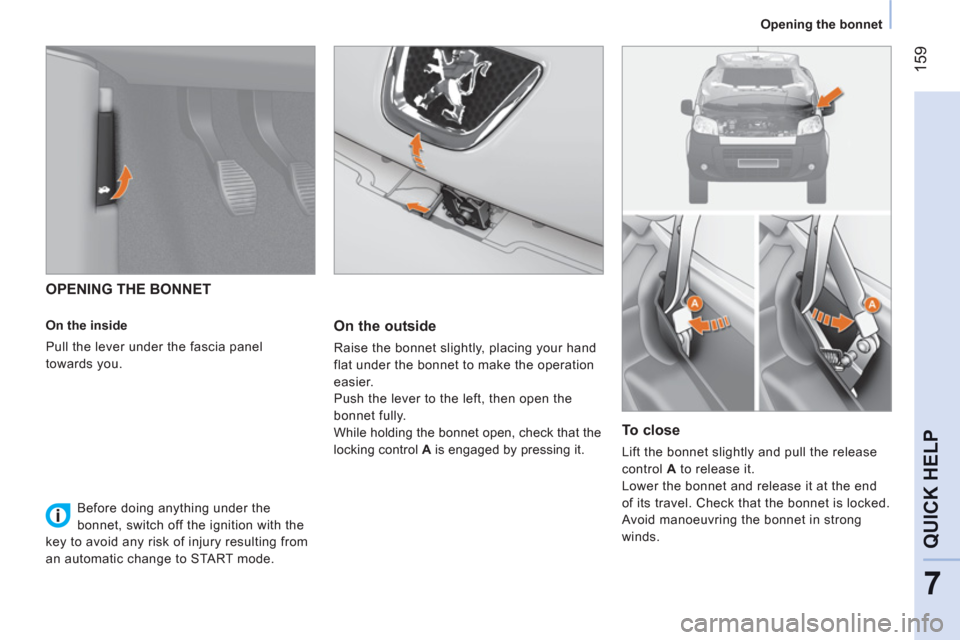

Opening the bonnet

OPENING THE BONNET


On the inside
Pull the lever under the fascia panel
towards you.

On the outside

Raise the bonnet slightly, placing your hand
flat under the bonnet to make the operation
easier.
Push the lever to the left, then open the
bonnet fully.
While holding the bonnet open, check that the
locking control A is engaged by pressing it.


To close

Lift the bonnet slightly and pull the release
control A to release it.
Lower the bonnet and release it at the end
of its travel. Check that the bonnet is locked.
Avoid manoeuvring the bonnet in strong
winds.




Before doing anything under the
bonnet, switch off the ignition with the
key to avoid any risk of injury resulting from
an automatic change to START mode.

164


Checks


CHECKS

Bleeding water from
the Diesel filter

If this warning lamp comes
on, you must bleed the filter;
otherwise bleed the filter
regularly, every time the engine is
changed.
To remove the water, unscrew the bleed
screw or the water in Diesel sensor, located
at the base of the filter. Operate until all of
the water has flowed out. Then tighten the
bleed screw or the water sensor.
HDi engines use advanced technology. All
work requires specialist knowledge, which
all PEUGEOT dealers have.


Battery

At the start of winter, have your battery
checked by a PEUGEOT dealer or a
qualified workshop.


Air filter and passenger compartment
filter
A blocked passenger compartment filter
may reduce the performance of the
air conditioning system and generate
undesirable odours. The replacement
intervals for these components are indicated
in the servicing booklet.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary, refer to the "Under the
bonnet" section of chapter 7.


Brake pads

Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the brake pad wear,
even between services.
Unless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.


Brake disc/drum wear

For all information on checking the brake
disc/drum wear, contact a PEUGEOT dealer
or a qualified workshop.


Parking brake

Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a PEUGEOT
dealer or a qualified workshop.


Oil filter

Change the filter regularly, in accordance
with the servicing schedule.




The presence of this label, in particular with
the Stop & Start system, indicates the use of
a specific 12 V lead-acid battery with special
technology and specification, for which
the involvement of a PEUGEOT dealer
or a qualified workshop is required when
replacing or disconnecting the battery.
Failure to observe this recommendation may
shorten the life of the battery.

167
8
VISUAL SEARCH


Exterior



EXTERIOR (LIGHT VAN)


Rear lamp, direction indicators,
3rd brake lamp ........ 41-42, 146-147
Right-hand side:
fuel fi ller cap, fuel tank .................. 156
fuel cut-off ..............................156-157

Load space ............................108-109
Rear doors .....................31, 33, 36-40
Opening/Closing to 180° .......... 37, 39

Number plate lamps ..................... 146

Rear parking sensors ..................... 72

Spare wheel, changing a wheel,
tools ....................................138-140

Towing, lifting ................................ 154
Towbar ...................................131-132
Dimensions ................................58-59

Accessories ...........................133-134
Roof rack ...................................... 133

Key, remote control, battery .......31-33
Central locking .................... 31, 37, 39
Opening/Closing front windows ....... 32
Confi dential card ............................. 34
Alarm .............................................. 35

Wiper blades ................................. 148
Door mirrors .................................... 46
Side repeater ................................ 145

Front lamps, foglamps, direction
indicators ................. 41-42,143-145
Headlamp beam height adjustment .... 42
Changing bulbs ......................143-147

Opening/
Closing doors ..............31, 33, 36-40
Opening the bonnet ...................... 159
Menu - autoclose ................ 37, 39, 70

Brakes, pads ......................... 162, 164
Hill start assist ................................. 54
Braking assistance ................ 114-115
Trajectory control .................... 115-117
Tyres, pressures ........................... 155

168





Exterior






EXTERIOR (COMBI)


Brakes, pads ......................... 162, 164
Hill start assist ................................. 54
Braking assistance ................. 114-115
Trajectory control .................... 115-117
Tyres, pressures ................... 142, 155
Dimensions ................................60-63

Accessories ...........................133-134
Roof bars ...................................... 133

Key, remote control, battery .......31-33
Central locking .................... 31, 37, 39
Opening/Closing front windows ....... 32
Confi dential card ............................. 34
Alarm .............................................. 35

Wiper blades ................................. 148
Door mirrors .................................... 46
Side repeater ................................ 145

Front lamps, foglamps, direction
indicators ................ 41-42, 143-145
Headlamp beam height adjustment .... 42
Changing bulbs ......................143-147

Opening/Closing doors ... 31, 33, 36-40
Child lock ........................................ 40
Rear windows ................................. 47
Opening the bonnet ...................... 159
Menu - autoclose ................ 37, 39, 70
Right-hand side:
fuel fi ller cap, fuel tank .................. 156
fuel cut-off ..............................156-157

Rear fi ttings ........................... 110-111
Rear doors .....................31, 33, 36-40
Opening/Closing to 180° .......... 37, 39

Number plate lamps ..................... 146

Rear parking sensors ..................... 72

Spare wheel, changing a wheel,
tools, temporary puncture
repair kit .............. 138-140, 141-142

Towing, lifting ................................ 154
Towbar ...................................131-132


Rear lamps, direction indicators,
3 rd brake lamp ........ 41-42, 146-147

169
8
VISUAL SEARCH


Interior



Seat belts ............................... 118-119
Airbags ..................................120-123

Deactivating the passenger's airbag ...122

Seats, adjustments ....................95-96
Tools, jack ..................................... 138
Folding seat .................................... 97
Child seats .....................124-126, 128

12 V socket ................................... 106
Parking brake ............................... 113
Battery (+), charging, starting ....135-137

INTERIOR (LIGHT VAN)


Load space ............................108-109


●
stowing rings,

●
storage tray,

●
torch,

●
vertical partition.
Rear courtesy lamp ...................... 112
Accessories ...........................133-134

Rear view mirror ............................. 46
Front courtesy lamp ...................... 112
Changing a courtesy lamp bulb .... 145

17
0


Interior



Front seat belts ...................... 118-119
Airbags ..................................120-123

Deactivating the passenger's airbag .... 122

Front seats, adjustments ...........95-96

12 V socket ................................... 106
Parking brake ............................... 113
Battery (+), charging, starting ...135-137

Rear view mirror ............................. 46
Front courtesy lamp ...................... 112
Changing a courtesy lamp bulb .... 145

Bench rear seat .........................98-99
Rear seat belts ...................... 118-119
Child seats ............. 124-125, 127-128
ISOFIX mountings .................129-130

Rear fi ttings .................................. 110


●
stowing rings,

●
luggage retaining net,

●
rear parcel shelf.
Rear courtesy lamp ...................... 112
Tools, jack, temporary puncture
repair kit ......................138, 141-142
Accessories ...........................133-134



INTERIOR (COMBI)


Folding seat .................................... 97

17
1
8
VISUAL SEARCH


Interior



Front seat belts ...................... 118-119
Airbags ..................................120-123
Deactivating the passenger's airbag ...122

Front seats, adjustments ...........95-96

12 V socket ................................... 106
Parking brake ............................... 113
Battery (+), charging, starting ....135-137

Rear view mirror ............................. 46
Front courtesy lamp ...................... 112
Changing a courtesy lamp bulb .... 145

Rear bench seat ....................100-101
Rear seat belts ...................... 118-119
Child seats ............. 124-125, 127-128
ISOFIX mountings .................129-130

Rear fi ttings ........................... 110-111


●
stowing rings,

●
luggage retaining net,

●
rear parcel shelf,

●
retaining straps,

●
torch.



INTERIOR (COMBI)


Folding seat .................................... 97

Rear courtesy lamp ...................... 112
Boot lamp ..................................... 112
Tools, jack, temporary puncture
repair kit .....................138, 141-142
Accessories ...........................133-134
