The hooks permit the securing of shop-
ping bags.
Hooks
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition position.
12 V accessory socket
)
Raise the concertina board to gain
access to the storage box.
Depending on the confi guration, this
has areas for storing:
- a box of spare bulbs,
- a fi rst aid kit,
- a tyre repair kit,
- two warning triangles,
- ...
Storage box (5 seat version)
Page 196 of 340
PRACTICAL INFORMATION
194
Risk of electrocution
Xenon bulbs (D1S-35W) must
be replaced by a PEUGEOT
dealer or a qualifi ed workshop.
CHANGING A BULB
Model with halogen headlamps
1.
Direction indicators
(HP24 amber-24W).
2.
Dipped beam headlamps
(H7-55W).
3.
Main beam headlamps (H7-55W).
4.
Daytime running lamps
(HP24-24W).
5.
Foglamps (PS24-24W).
6.
Sidelamps (W5-5W).
1.
Direction indicators
(HP24 amber-24W).
2.
Dipped/main beam directional
headlamps (D1S-35W).
3.
Daytime running lamps/
sidelamps (P21/5W).
4.
Foglamps (PS24-24W).
Model with xenon and directional
headlamps The headlamps are fi tted with
polycarbonate glass with a
protective coating:
)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
)
use a sponge and soapy water,
)
when using a high pressure wash-
er on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals.
Front lamps
)
Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.
Page 197 of 340
PRACTICAL INFORMATION
195
Changing main beam headlamp and
sidelamp bulbs
Changing dipped beam headlamp bulbs
(models with halogen headlamps)
)
Remove the protective plastic cover
by pulling on the tab.
)
Disconnect the bulb connector.
)
Extract the bulb by pulling and
change it.
To r efi t, carry out these operations in re-
verse order.
)
Remove the protective plastic cover
by pulling on the tab.
)
Disconnect the bulb connector.
)
Remove the bulb by pulling and
change it.
To r efi t, carry out these operations in re-
verse order.
Changing direction indicator and
daytime running lamp bulbs (models
with halogen headlamps)
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
Page 198 of 340
PRACTICAL INFORMATION
196
Changing sidelamp and daytime
running lamp bulbs (models with
xenon headlamps)
)
Remove the protective plastic cover
by pulling on the tab.
)
Disconnect the bulb connector.
)
Remove the bulb by pulling and
change it.
To r efi t, carry out these operations in re-
verse order.
Changing foglamp bulbs
You can also contact a
PEUGEOT dealer or a quali-
fi ed workshop to have these
bulbs changed.
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the re-
peater and remove it.
)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to obtain replacement
repeaters.
Changing integrated direction
indicator side repeaters
Changing direction
indicator bulbs
Changing dipped beam
and main beam headlamp
bulbs (models with xenon
headlamps)
D1S xenon bulbs must be changed
by a PEUGEOT dealer or a qualifi ed
workshop as there is a risk of elec-
trocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.
Contact a PEUGEOT dealer or a
qualifi ed workshop.
Page 199 of 340
PRACTICAL INFORMATION

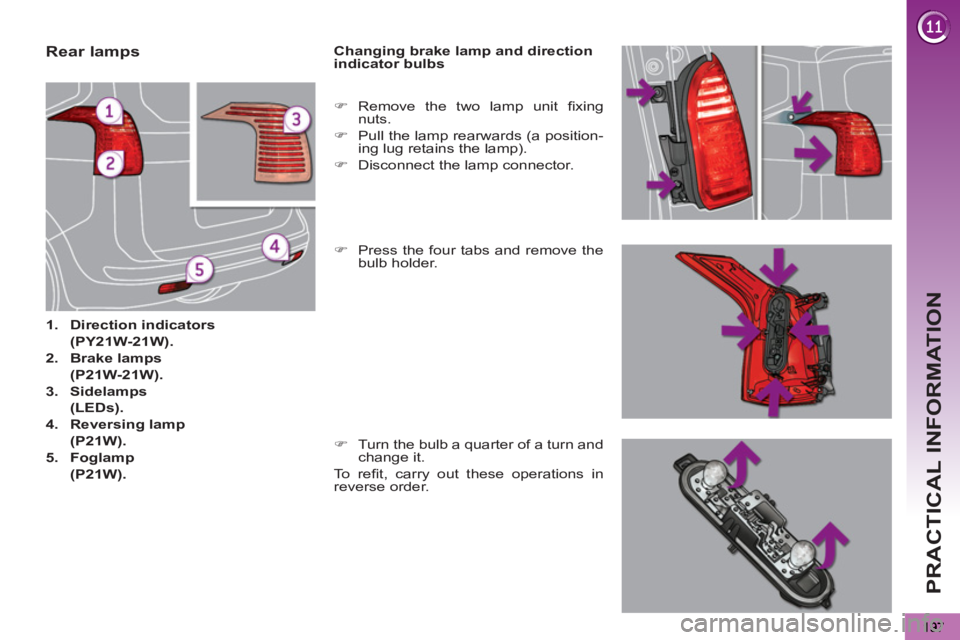

Rear lamps
1.
Direction indicators
(PY21W-21W).
2.
Brake lamps
(P21W-21W).
3.
Sidelamps
(LEDs).
4.
Reversing lamp
(P21W).
5.
Foglamp
(P21W).
Changing brake lamp and direction
indicator bulbs
)
Press the four tabs and remove the
bulb holder.
)
Remove the two lamp unit fi xing
nuts.
)
Pull the lamp rearwards (a position-
ing lug retains the lamp).
)
Disconnect the lamp connector.
)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.
Page 200 of 340
PRACTICAL INFORMATION
198
Changing the third brake lamp bulb
Changing foglamp or reversing
lamp bulbs
)
Reach under the bumper.
)
Turn the bulb a quarter of a turn and
change it.
)
Open the boot and remove the upper
seal.
)
Unscrew the two nuts.
)
Press the threaded pins while sup-
porting the lamp from the outside.
)
Disconnect the connector and re-
move the screenwash pipe.
)
Press the pairs of clips A
then B
then C
to detach and gain access to
the bulb holder.
Changing sidelamps (LEDs)
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.
)
Insert a thin screwdriver into one of
the outer holes of the lens.
)
Push it outwards to unclip.
)
Remove the lens.
)
Pull the bulb out and change it.
Changing the number plate lamp
bulbs (W5-5W)
