2011 PEUGEOT 5008 brakes

SA
F
129

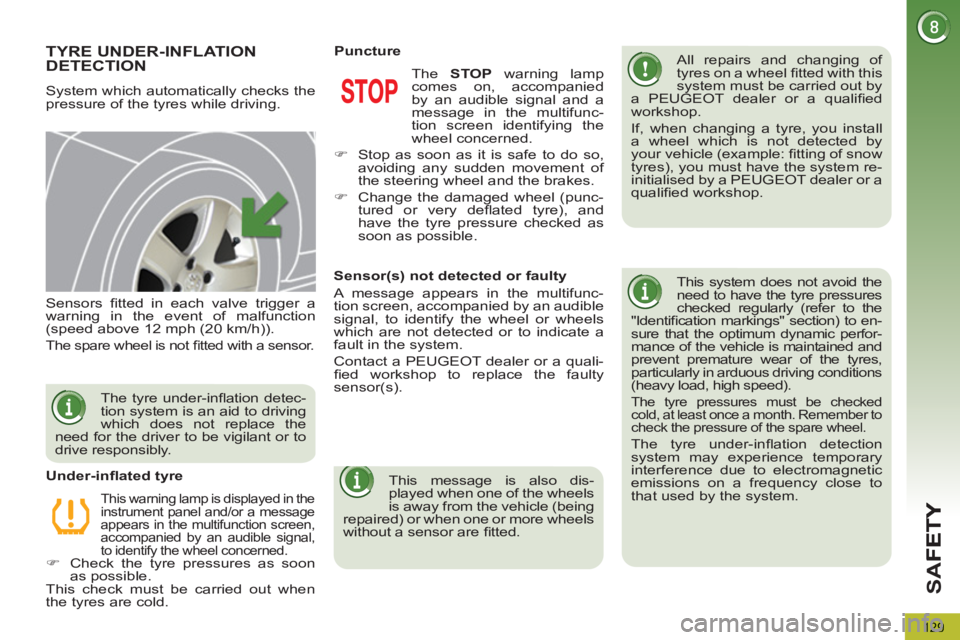

TYRE UNDER-INFLATION DETECTION
System which automatically checks the
pressure of the tyres while driving.
All repairs and changing of
tyres on a wheel fi tted with this
system must be carried out by
a PEUGEOT dealer or a qualifi ed
workshop.
If, when changing a tyre, you install
a wheel which is not detected by
your vehicle (example: fi tting of snow
tyres), you must have the system re-
initialised by a PEUGEOT dealer or a
qualifi ed workshop.

This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Identifi cation markings" section) to en-
sure that the optimum dynamic perfor-
mance of the vehicle is maintained and
prevent premature wear of the tyres,
particularly in arduous driving conditions
(heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remember to
check the pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electromagnetic
emissions on a frequency close to
that used by the system.

Sensors fi tted in each valve trigger a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).

The spare wheel is not fi tted with a sensor.

This warning lamp is displayed in the
instrument panel and/or a message
appears in the multifunction screen,
accompanied by an audible signal,
to identify the wheel concerned.


)
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Under-infl ated tyre The STOP
warning lamp
comes on, accompanied
by an audible signal and a
message in the multifunc-
tion screen identifying the
wheel concerned.


)
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.

)
Change the damaged wheel (punc-
tured or very defl ated tyre), and
have the tyre pressure checked as
soon as possible.

Puncture

The tyre under-infl ation detec-
tion system is an aid to driving
which does not replace the
need for the driver to be vigilant or to
drive responsibly.


Sensor(s) not detected or faulty
A message appears in the multifunc-
tion screen, accompanied by an audible
signal, to identify the wheel or wheels
which are not detected or to indicate a
fault in the system.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to replace the faulty
sensor(s).

This message is also dis-
played when one of the wheels
is away from the vehicle (being
repaired) or when one or more wheels
without a sensor are fi tted.

SA
F
130

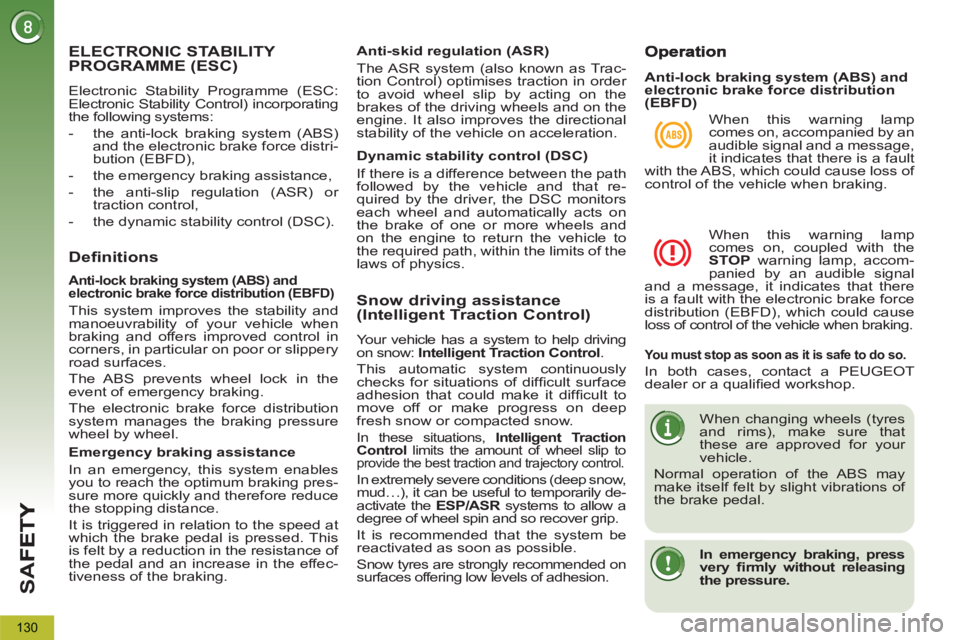

ELECTRONIC STABILITY PROGRAMME (ESC)
Electronic Stability Programme (ESC:
Electronic Stability Control) incorporating
the following systems:


- the anti-lock braking system (ABS)
and the electronic brake force distri-
bution (EBFD),

- the emergency braking assistance,

- the anti-slip regulation (ASR) or
traction control,

- the dynamic stability control (DSC).


Definitions


Anti-skid regulation (ASR)
The ASR system (also known as Trac-
tion Control) optimises traction in order
to avoid wheel slip by acting on the
brakes of the driving wheels and on the
engine. It also improves the directional
stability of the vehicle on acceleration.

Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that re-
quired by the driver, the DSC monitors
each wheel and automatically acts on
the brake of one or more wheels and
on the engine to return the vehicle to
the required path, within the limits of the
laws of physics.


Emergency braking assistance
In an emergency, this system enables
you to reach the optimum braking pres-
sure more quickly and therefore reduce
the stopping distance.
It is triggered in relation to the speed at
which the brake pedal is pressed. This
is felt by a reduction in the resistance of
the pedal and an increase in the effec-
tiveness of the braking.
Anti-lock braking system (ABS) and
electronic brake force distribution (EBFD)
This system improves the stability and
manoeuvrability of your vehicle when
braking and offers improved control in
corners, in particular on poor or slippery
road surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The electronic brake force distribution
system manages the braking pressure
wheel by wheel.

When this warning lamp
comes on, accompanied by an
audible signal and a message,
it indicates that there is a fault
with the ABS, which could cause loss of
control of the vehicle when braking.

When this warning lamp
comes on, coupled with the
STOP
warning lamp, accom-
panied by an audible signal
and a message, it indicates that there
is a fault with the electronic brake force
distribution (EBFD), which could cause
loss of control of the vehicle when braking.

You must stop as soon as it is safe to do so.

In both cases, contact a PEUGEOT
dealer or a qualifi ed workshop.

When changing wheels (tyres
and rims), make sure that
these are approved for your
vehicle.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.


In emergency braking, press
very fi rmly without releasing
the pressure.


Anti-lock braking system (ABS) and
electronic brake force distribution
(EBFD)
Snow driving assistance(Intelligent Traction Control)
Your vehicle has a system to help driving
on snow: Intelligent Traction Control.
This automatic system continuously
checks for situations of diffi cult surface
adhesion that could make it diffi cult to
move off or make progress on deep
fresh snow or compacted snow.
In these situations, Intelligent Traction
Control
limits the amount of wheel slip to
provide the best traction and trajectory control.

In extremely severe conditions (deep snow,
mud…), it can be useful to temporarily de-
activate the ESP/ASR
systems to allow a
degree of wheel spin and so recover grip.
It is recommended that the system be
reactivated as soon as possible.
Snow tyres are strongly recommended on
surfaces offering low levels of adhesion.

D
R
I
158

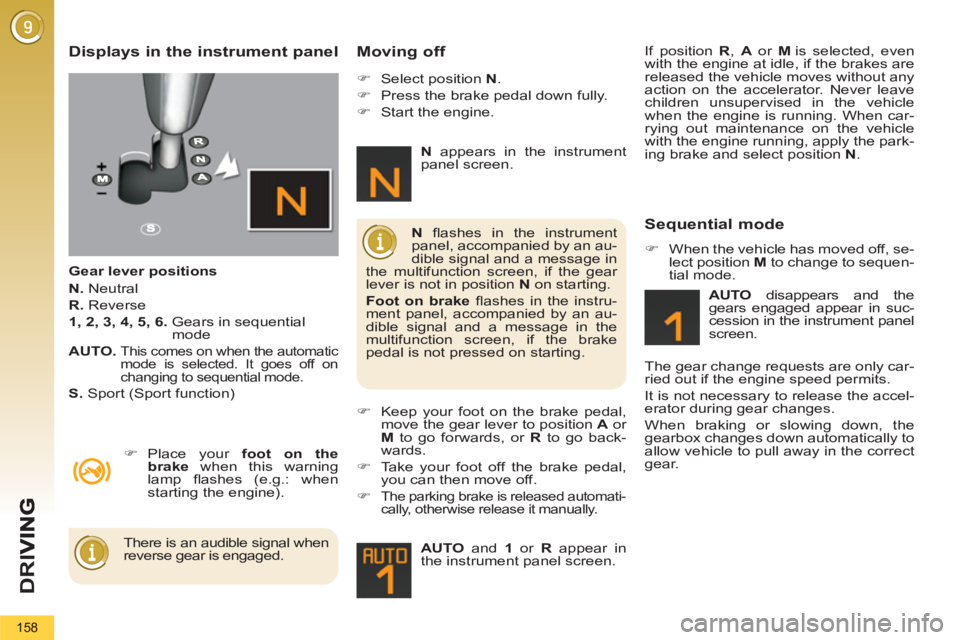

Displays in the instrument panel


Gear lever positions

N.
Neutral

R.
Reverse

1, 2, 3, 4, 5, 6.
Gears in sequential
mode

AUTO.

This comes on when the automatic
mode is selected. It goes off on
changing to sequential mode.

S.
Sport (Sport function)
Moving off



)
Place your foot on the
brake
when this warning
lamp fl ashes (e.g.: when
starting the engine).


)
Select position N
.

)
Press the brake pedal down fully.

)
Start the engine.


)
Keep your foot on the brake pedal,
move the gear lever to position A
or
M
to go forwards, or R
to go back-
wards.

)
Take your foot off the brake pedal,
you can then move off.

)

The parking brake is released automati-
cally, otherwise release it manually.


AUTO
and 1
or R
appear in
the instrument panel screen.

N
fl ashes in the instrument
panel, accompanied by an au-
dible signal and a message in
the multifunction screen, if the gear
lever is not in position N
on starting.

Foot on brake
fl ashes in the instru-
ment panel, accompanied by an au-
dible signal and a message in the
multifunction screen, if the brake
pedal is not pressed on starting.

There is an audible signal when
reverse gear is engaged.

N
appears in the instrument
panel screen.

Sequential mode



)
When the vehicle has moved off, se-
lect position M
to change to sequen-
tial mode.

AUTO
disappears and the
gears engaged appear in suc-
cession in the instrument panel
screen.
The gear change requests are only car-
ried out if the engine speed permits.
It is not necessary to release the accel-
erator during gear changes.
When braking or slowing down, the
gearbox changes down automatically to
allow vehicle to pull away in the correct
gear. If position R
, A
or M
is selected, even
with the engine at idle, if the brakes are
released the vehicle moves without any
action on the accelerator. Never leave
children unsupervised in the vehicle
when the engine is running. When car-
rying out maintenance on the vehicle
with the engine running, apply the park-
ing brake and select position N
.

162

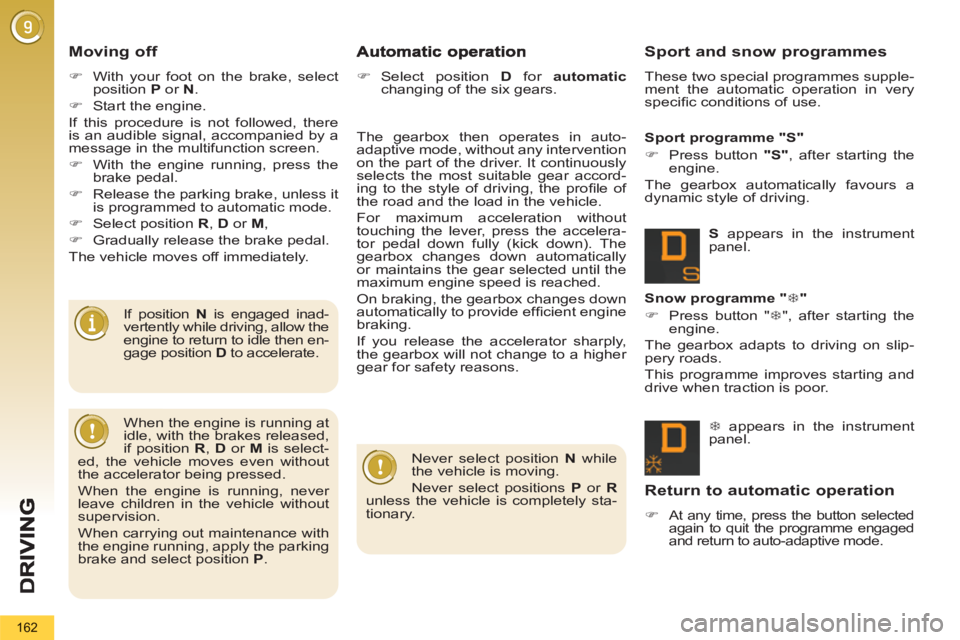

Moving off



)
With your foot on the brake, select
position P
or N
.

)
Start the engine.
If this procedure is not followed, there
is an audible signal, accompanied by a
message in the multifunction screen.


)
With the engine running, press the
brake pedal.

)
Release the parking brake, unless it
is programmed to automatic mode.

)
Select position R
, D
or M
,

)
Gradually release the brake pedal.
The vehicle moves off immediately.


If position N
is engaged inad-
vertently while driving, allow the
engine to return to idle then en-
gage position D
to accelerate. The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
ing to the style of driving, the profi le of
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide effi cient engine
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.

)
Select position D
for automatic

changing of the six gears.

7
appears in the instrument
panel.

Snow programme " 7
"


)
Press button " 7
", after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
S
appears in the instrument
panel.
Sport programme "S"


)
Press button "S"
, after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.

Never select position N
while
the vehicle is moving.
Never select positions P
or R

unless the vehicle is completely sta-
tionary.

When the engine is running at
idle, with the brakes released,
if position R
, D
or M
is select-
ed, the vehicle moves even without
the accelerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P
.



Sport and snow programmes

These two special programmes supple-
ment the automatic operation in very
specifi c conditions of use.


Return to automatic operation



)
At any time, press the button selected
again to quit the programme engaged
and return to auto-adaptive mode.

CHECKS
178

Brake disc wear














Brake pads

Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
For information on checking
brake disc wear, contact a
PEUGEOT dealer or a quali-
fi ed workshop.







Manual gearbox

The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet for
the details of the level checking
interval for this component.







6-speed electronic
gearbox system
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the checking in-
terval for this component.







Automatic gearbox

The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
interval for this component.
This system does not require any
routine servicing. However, in
the event of a problem, have the
system checked by a PEUGEOT
dealer or a qualifi ed workshop.
For more information, see "Driving -
Electric parking brake - § Operating
faults".





















Electric parking brake








Particle emission filter (Diesel)

Maintenance of the particle emission fi l-
ter must be carried out by a PEUGEOT
dealer or a qualifi ed workshop.

On a new vehicle, the fi rst few
particle emissions fi lter regenera-
tions may be accompanied by a
"burning" smell, which is perfectly nor-
mal. Following prolonged operation of
the vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice water vapour from the exhaust
on acceleration. This does not affect the
performance of the vehicle or the envi-
ronment.


Dust filter/Anti-odour filter
(activated carbon)
Your vehicle is fi tted with a fi lter which
traps certain dust and limits odours in
the ventilation and air conditioning.
Refer to the Warranty and Maintenance
Record for its replacement interval.
Do not hesitate to change it if you notice
unpleasant odours, contact a PEUGEOT
dealer.
A clogged passenger compartment fi lter may reduce the performance of the air
conditioning system and produce un-
pleasant odours.

PRACTICAL INFORMATION
211
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the cool-
ant temperature.

Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.

Tyres


)
Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.


Lighting


)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will
be deactivated automatically if
a genuine PEUGEOT towbar
is used.


)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
FITTING ROOF BARS

Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 65
kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi le of the road to avoid damaging the
roof bars and the fi xings on the roof.
Be sure to refer to national legislation
in order to comply with the regula-
tions for transporting objects that are
longer than the vehicle.


When fi tting transverse roof bars, use
the four quick-fi t fi xings provided for this
purpose:


)
lift the concealing fl aps,

)
open the fi xing covers on each bar
using the key,

)
put each fi xing in place and lock
them on the roof one by one,

)
ensure that roof bars are correctly
fi tted (by shaking them),

)
close the fi xing covers on each bar
using the key.

If your vehicle is fi tted with
roof fi nishers, do not use them
for carrying loads.

ALPHABETICAL INDEX
325
Accessories ...........................213
Accessory socket,
12 volt ...102, 104, 109, 110, 114
Access to
the 3rd row ............................71
Adjusting headlamps .........94, 95
Adjusting head
restraints .........................67, 69
Adjusting seat belt
height ..........................132, 133
Adjusting the steering
wheel ....................................75
Airbags ....................................36
Airbags, curtain..............138, 139
Airbags, front .................136, 139
Airbags, lateral...............138, 139
Air conditioning ........................25
Air conditioning,
digital ..............................59, 62
Air conditioning,
manual ............................59, 60
Air fi lter ..................................177
Air fl ow .....................................25
Air vents...................................58
Alarm .......................................81
Anti-pinch.........................83, 108
Anti-theft ..................................78
Armrest, rear .......................... 110
Assistance call .......................224
Audible warning .....................128
Audio/video sockets...............254
Audio streaming
(Bluetooth) ..........................315
Automatic illumination
of headlamps ..................91, 94
Automatic operation
of hazard warning lamps .....128
Automatic rain sensitive
windscreen wipers ..........96, 98
Auxiliary socket..............290, 312
Auxiliary sockets ............254, 310Battery ...........................177, 206
Battery, charging ....................206
Battery, remote control ......79, 80
Blind for panoramic sunroof ....108
Blinds ..................................... 115
Bluetooth (hands-free) ...255-257,
291, 292, 313
Bluetooth
(telephone) ...255-257, 291, 292
Bonnet ...................................172
Bonnet stay............................172
Boot .........................................87
Boot lamp ...................... 101, 115
Brake discs ............................178
Brake lamps...........................197
Brake pads ............................178
Brakes ...................................178Checks...........174, 175, 177, 178
Child lock ...............................127
Children .................120, 124, 125
Child seats ............................ 116
Child seats,
conventional ................ 118, 120
Closing the boot.................77, 87
Closing the doors...............77, 85
Cold climate screen ...............212
Colour screen,
retractable .................49, 51, 53
Concertina boards ... 72, 109, 110
Connectors,
audio ...103, 104, 290, 310, 312
Control for panoramic
sunroof blind .......................108
Coolant level ....................37, 176
Coolant temperature
indicator ................................37
Courtesy lamps........................99
Courtesy mirror ......................103
Cruise control ........................154
Cup holder ............. 102, 109, 110
AB
Capacity, fuel tank ...................89
CD MP3 .........................289, 309
Central locking ...................77, 86
Centre console ......................104
Changing a bulb ....194, 197, 198
Changing a fuse ....................199
Changing a wheel ..........188, 190
Changing a wiper
blade .............................98, 208
Changing
the date ...............260, 294, 317
Changing the remote
control battery .......................79
Changing the time ...260, 294, 317
Checking levels .............176, 177
Checking the engine
oil level ..................................40
Checking tyre pressures
(using the kit) ......................179
C
Date
(setting) .......260, 294, 316, 317
Daytime running
lamps ....................93, 194, 196
Deactivating ESP ...................131
Deactivating the passenger
airbag ..................................136
Deadlocking .............................77
Defrosting ..........................60, 61
Demisting.................................60
Dials and gauges .....................27
Diesel additive level ...............177
Dimensions ............................221
Dipped beam ...........91, 194, 195
Dipstick ............................40, 176
D
