2011 PEUGEOT 5008 display

FITTINGS
104
12 V ACCESSORY SOCKETS


)
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.
CENTRE CONSOLE
Storage device for the driver and front
passenger.

Storage



)
Slide the cover for access to the
10.5 litre storage compartment.
This can contain 2 half-litre bottles.
A ventilation outlet distributes cooled air.
PEUGEOT CONNECT USB


This connection box consists of a jack
auxiliary socket and/or a USB port.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod
® type or a USB memory stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable equipment
charges automatically.

For more information on the
use of this equipment, re-
fer to the Peugeot Connect
Sound part of the "Audio and
Telematics" section.

FITTINGS
107
REAR MULTIMEDIA

Multimedia system permitting the connec-
tion of any external portable system: iPod
Video, games consoles, DVD player, … Two separate audio
sources
can be connected via the RCA
connectors (red and white).
The audio is heard through
two wireless headphones with
Bluetooth technology which
operate with rechargeable
batteries.
The A/B
button allows you to pair the
headphones with the screen: A
left-
hand side, B
right-hand side.
The video is displayed in two
7’’ screens, integrated in the
head restraints. Two separate video
sources
can be connected via the RCA
connectors (yellow).
You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3rd set of
Bluetooth headphones.

Set-up


)
With the engine running, connect your
portable system to the RCA connec-
tors (e.g. with AV1 on the left).

)
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.

)
Press and hold the ON/OFF button on
the headphones, the indicator lamp
on the headphones fl ashes in blue.

)
Press and hold the system's ON/
OFF button, the pairing with the
headphones is complete when the
blue indicator lamps on the head-
phones and on the system (in the
shape of headphones) are on con-
tinuously.

)
Press the ON/OFF buttons in the
screens if you have a video source.

)
Start playing your portable system.

If your seat is in the table position, po-
sition a cover to avoid damaging the
screen.
These covers also conceal
each screen.

SA
F
129
TYRE UNDER-INFLATION DETECTION
System which automatically checks the
pressure of the tyres while driving.
All repairs and changing of
tyres on a wheel fi tted with this
system must be carried out by
a PEUGEOT dealer or a qualifi ed
workshop.
If, when changing a tyre, you install
a wheel which is not detected by
your vehicle (example: fi tting of snow
tyres), you must have the system re-
initialised by a PEUGEOT dealer or a
qualifi ed workshop.

This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Identifi cation markings" section) to en-
sure that the optimum dynamic perfor-
mance of the vehicle is maintained and
prevent premature wear of the tyres,
particularly in arduous driving conditions
(heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remember to
check the pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electromagnetic
emissions on a frequency close to
that used by the system.

Sensors fi tted in each valve trigger a
warning in the event of malfunction
(speed above 12 mph (20 km/h)).

The spare wheel is not fi tted with a sensor.

This warning lamp is displayed in the
instrument panel and/or a message
appears in the multifunction screen,
accompanied by an audible signal,
to identify the wheel concerned.


)
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Under-infl ated tyre The STOP
warning lamp
comes on, accompanied
by an audible signal and a
message in the multifunc-
tion screen identifying the
wheel concerned.


)
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.

)
Change the damaged wheel (punc-
tured or very defl ated tyre), and
have the tyre pressure checked as
soon as possible.

Puncture

The tyre under-infl ation detec-
tion system is an aid to driving
which does not replace the
need for the driver to be vigilant or to
drive responsibly.


Sensor(s) not detected or faulty
A message appears in the multifunc-
tion screen, accompanied by an audible
signal, to identify the wheel or wheels
which are not detected or to indicate a
fault in the system.
Contact a PEUGEOT dealer or a quali-
fi ed workshop to replace the faulty
sensor(s).

This message is also dis-
played when one of the wheels
is away from the vehicle (being
repaired) or when one or more wheels
without a sensor are fi tted.

SA
F

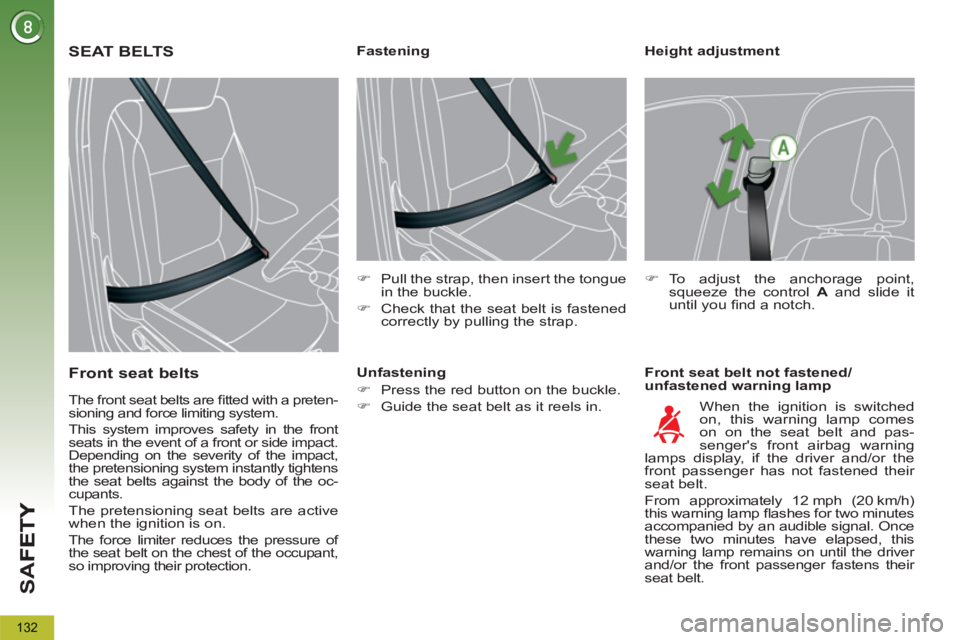

132

Height adjustment

Front seat belt not fastened/
unfastened warning lamp









Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.


)
To adjust the anchorage point,
squeeze the control A
and slide it
until you fi nd a notch.

When the ignition is switched
on, this warning lamp comes
on on the seat belt and pas-
senger's front airbag warning
lamps display, if the driver and/or the
front passenger has not fastened their
seat belt.
From approximately 12 mph (20 km/h)
this warning lamp fl ashes for two minutes
accompanied by an audible signal. Once
these two minutes have elapsed, this
warning lamp remains on until the driver
and/or the front passenger fastens their
seat belt.
Unfastening


)
Press the red button on the buckle.

)
Guide the seat belt as it reels in.

SEAT BELTS

Front seat belts


The front seat belts are fi tted with a preten-
sioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact,
the pretensioning system instantly tightens
the seat belts against the body of the oc-
cupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure of
the seat belt on the chest of the occupant,
so improving their protection.

133


1.
Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

2.
Front left seat belt warning lamp.

3.
Front right seat belt warning lamp.

4.
Rear right seat belt warning lamp.

5.
Rear centre seat belt warning lamp.

6.
Rear left seat belt warning lamp.
Seat belt not fastened/unfastened
warning lamps display
Rear seat belts

The rear seats are each fi tted with a
three-point inertia reel seat belt with
force limiter (with the exception of the
centre rear seat).

Seat belt unfastened warning lamp
This warning lamp comes on on
the seat belt and passenger's
front airbag warning lamps dis-
play, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
this warning lamp fl ashes for two minutes
accompanied by an audible signal. Once
these two minutes have elapsed, this
warning lamp remains on until the one or
more rear passengers fasten their seat
belt.

Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.


Unfastening


)
Press the red button on the buckle.

)
Guide the seat belt as it reels in.

The corresponding warning lamp 2
or 3

comes on in red on the seat belt and
passenger's front airbag warning lamps
display if the seat belt is not fastened or
is unfastened.

7 seat version


7.
3 rd
row rear left seat belt warning
lamp

8.
3
rd
row rear right seat belt warning
lamp.









Seat belt unfastened warning lamps
display
When the ignition is switched on, with
the engine running or when the vehicle is
moving at less than 12 mph (20 km/h), the
corresponding warning lamps 4
to 8
come
on in red for approximately 30 seconds, if
the seat belt is not fastened.
When the vehicle is moving at more than
12 mph (20 km/h), the corresponding
warning lamp 4
, 5, 6, 7
or 8
comes on in
red, accompanied by an audible signal and
a message on the multifunction screen, if a
rear passenger has unfastened their seat
belt.


To prevent movement of the
rear side seat belts in the
2 nd row, slide the straps into
the guides provided for this
purpose.

SA
F
137
If even one of the two airbag
warning lamps comes on con-
tinuously, do not install a child
seat on the front passenger seat.
Have the system checked by a PEUGEOT
dealer or a qualifi ed workshop.



Operating fault

If this warning lamp comes on in
the instrument panel, accompa-
nied by an audible warning and a
message in the screen, contact a
PEUGEOT dealer or a qualifi ed
workshop to have the system checked. The
airbags may no longer be deployed in the
event of a serious impact.

Reactivation
When you remove the child seat, turn
the switch to the "ON"
position to re-
activate the airbag and so assure the
safety of your front passenger in the
event of an impact.

With the ignition on, this warning
lamp comes on in the seat belt and
passenger's front airbag warning
lamps display for approximately
one minute, if the passenger's front
airbag is activated.

To assure the safety of your
child, the passenger's front
airbag must be deactivated
when you install a "rear facing" child
seat on the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.
According to version, this
warning lamp comes on in
the instrument panel and/or in
the seat belt and passenger's
front airbag warning lamps
display when the ignition is on and until
the airbag is reactivated. If this warning lamp fl ashes in the
instrument panel and/or in the
seat belt and passenger's front
airbag warning lamps display,
contact a PEUGEOT dealer or a
qualifi ed workshop. The passenger's front
airbag may no longer be deployed in the
event of a serious impact.
Deactivation
Only the passenger's front airbag can
be deactivated:


)
with the ignition off
, insert the key
in the passenger airbag deactivation
switch,

)
turn it to the "OFF"
position,

)
then, remove the key keeping the
switch in the new position.

140

The electric parking brake combines
2 operational modes:


- Automatic application/release

Application is automatic when the
engine stops, release is automatic
on use of the accelerator (activated
by default),

- Manual application/release

The parking brake can be applied/
released manually by pulling control
lever A
.



Deactivation is recommended
in particularly cold conditions
(ice) and during towing (break-
down, caravan...). Refer to the
"Manual release" paragraph.

Programming the mode
Depending on the country of registration
of the vehicle, the automatic application
when the engine is switched off and the
automatic release when you press the
accelerator can be deactivated.
If this warning lamp comes
on in the instrument panel,
the automatic mode is deac-
tivated. Activation/deactivation of
this function is possible by
a PEUGEOT dealer or a
qualifi ed workshop.
The parking brake is then applied and
released manually. When the driver's
door is opened, there is an audible sig-
nal and a message is displayed if the
brake is not applied.

Do not place any object (packet
of cigarettes, telephone, ...) be-
hind the electric brake control.

D
R
141
With the vehicle stationary, to apply the
parking brake whether the engine is run-
ning or off, pull
on the control lever A
.
Application of the parking brake is con-
fi rmed by:


- illumination of the braking
warning lamp and of the
warning lamp P
in the con-
trol lever A
,

-
display of the message "Hand-
brake on".

When the driver’s door is opened with
the engine running, a beep is heard and
a message is displayed if the parking
brake has not been applied, unless the
selector lever is in position P
(Park) in
the case of an automatic gearbox.
Manual release

With the ignition on or the engine run-
ning, to release the parking brake,
press
on the brake
pedal
or the ac-
celerator, pull then release
the control
lever A
.
Full application of the parking brake is
confi rmed by:


- the braking warning lamp
and of the warning lamp P

in the the control lever A
go-
ing off,

-
display of the message "Hand-
brake off".

If you pull the control lever A

without pressing the brake ped-
al, the parking brake will not be
released and a warning lamp
will come on in the instrument
panel.
Manual applicationMaximum application

If necessary, you can make a maxi-
mum application
of the parking brake.
It is obtained by means of a long pull

on the control lever A
, until you see the
message "Handbrake on" and a beep
is heard.

In the case of towing, a loaded
vehicle or parking on a gradi-
ent, make a maximum applica-
tion of the parking brake then turn the
front wheels towards the pavement
and engage a gear when you park.
After a maximum application, the re-
lease time will be longer.


Before leaving the vehicle,
check that parking brake
warning lamp in the instru-
ment panel is on, not fl ashing.

Maximum application is essential:



- in the case of a vehicle towing a
caravan or a trailer, if the automatic
functions are activated but you are
applying the parking brake manually,

- when the gradient you are parked
on is variable in its effect (e.g. on a
ferry, in a lorry, during towing).
