2011 PEUGEOT 5008 display

313
06
1
2
3
4
5
6
7
8
9
MENU
OK

For safety reasons and because they require prolonged attentionon the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.
Pr
ess the MENU button.

A window is displayed with a message that a search is in progress.
Activate the telephone's Bluetooth
function.
In the menu, select:
- Bluetooth telephone
function -
Audio
- Bluetooth confi
guration
- P
erform a Bluetooth search
The services o
ffered depend on the network, the SIM card and thecompatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which
services are available to you.









BLUETOOTH TELEPHONE SCREEN C

The TELEPH
ONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.
The
fi rst 4 telephones recognised are displayed in this window.

A virtual ke
ypad is displayed in thescreen: enter a code with at least 4 digits.

Confi rm by pressing OK.

A messa
ge that the pairing has been successful appears in thescreen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A messa
ge is displayed in the screen of the
telephone chosen. To accept the pairing, enter the same code on the telephone, then confi rm with OK.

The automatic connection authorised is onl
y active after the
telephone has been confi gured.
The directory and the call list can be accessed a
fter thesynchronisation period.
(Available according to model and version)

*
If your telephone is fully compatible.
I
f pairing fails, the number of attempts is not limited. Go to www.peu
geot.co.uk for more information (compatibility, more help, ...).
PAIRING A TELEPHONE/FIR
ST CONNECTION

314
06
1
2
1
2
1
OK

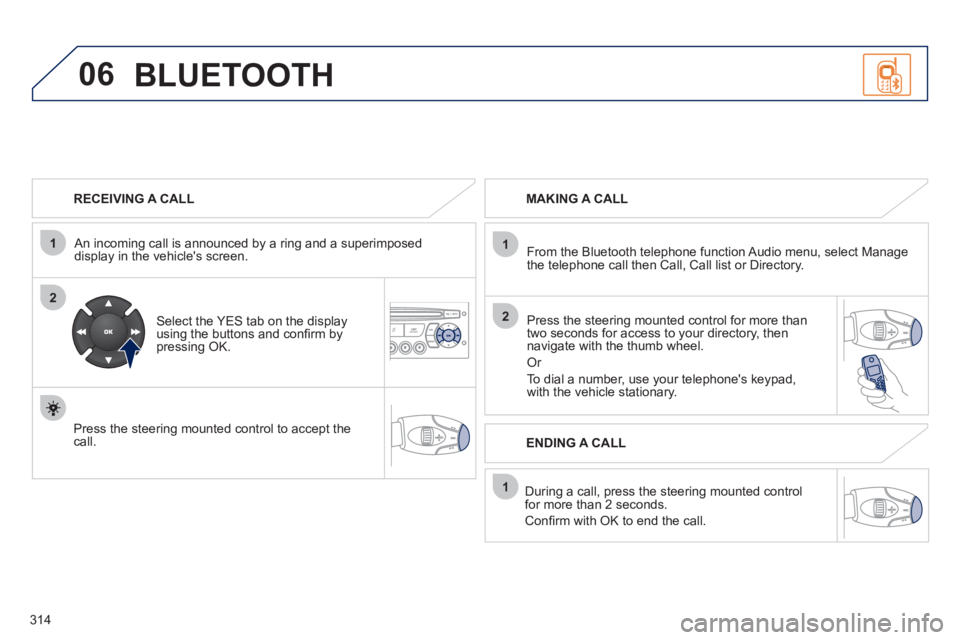

RECEIVING A CALL

An incomin
g call is announced by a ring and a superimposed
display in the vehicle's screen.

Select the YES tab on the display
using the buttons and confi rm bypressing OK.

Press the steering mounted control to accept thecall.


MAKING A CALL

From the Bluetooth telephone
function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the steerin
g mounted control for more than
two seconds for access to your directory, then navigate with the thumb wheel.

Or

To dial a number, use your telephone's keypad,with the vehicle stationary.

Durin
g a call, press the steering mounted control
for more than 2 seconds.

Confi rm with OK to end the call.
ENDING A CALL
BLUETOOTH

315
1
2
3
SOURCE
06

Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's ke
ypad. See steps 1 to 9 on the previouspages. During the pairing phase, the vehicle must bestationary with the key in the ignition.
Select the telephone to be connected from the telephone function
menu.
The audio system connects to a newly paired telephone automatically.






BLUETOOTH AUDIO STREAMING *


Wireless transmission of the telephone's music fi les via the audioequipment. The telephone must be able to manage the appropriate
Bluetooth profi les (Profi les A2DP/AV RCP).
*
Depending on the compatibility of the telephone.
**

In certain cases, playing of the Audio fi les must be initiated from the
keypad.
***
If the tele
phone supports the function.
Activate the streamin
g source by
pressing the SOURCE button ** .The tracks to be played can becontrolled as usual via the buttons on
the audio system control panel andthe steering mounted controls *** .
The contextual information can bedisplayed on the screen.
BLUETOOTH

316
07
1
2
3
4
5
6
7
8
MENU
OK
OK
OK
OK

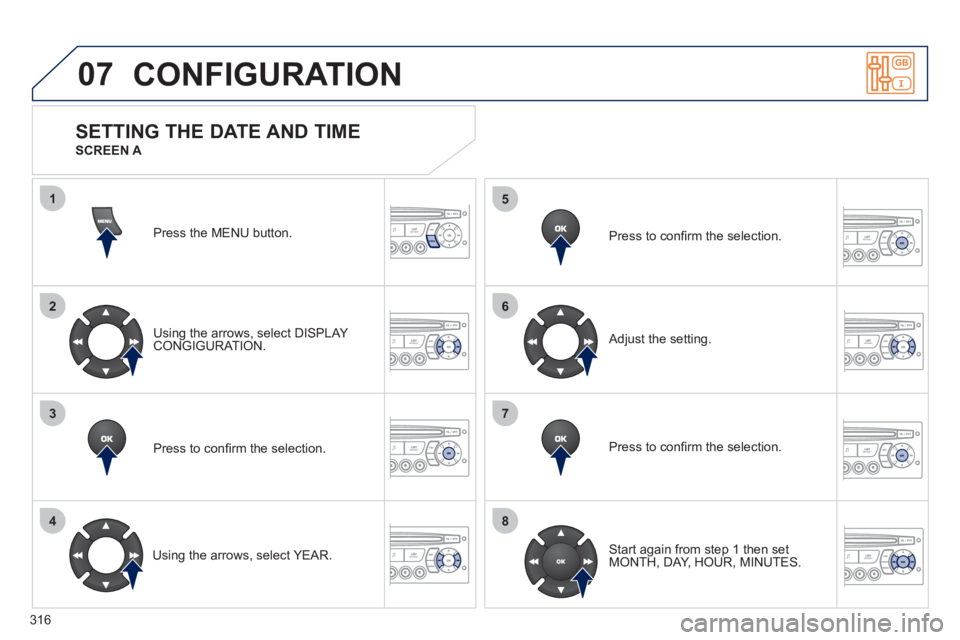

CONFIGURATION
Press the MENU button.
Usin
g the arrows, select DISPLAY CONGIGURATION.
Pr
ess to confi rm the selection.

Using the arrows, select YEAR. Pr
ess to confi rm the selection.
Pr
ess to confi rm the selection.
Ad
just the setting.
Start again from step 1 then set MONTH, DAY, HOUR, MINUTES.
















SETTING THE DATE AND TIME
SCREEN A

319
08 SCREEN MENU MAP


DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR


12 H/24 H MODE


LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH

ESPANOL
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2

320

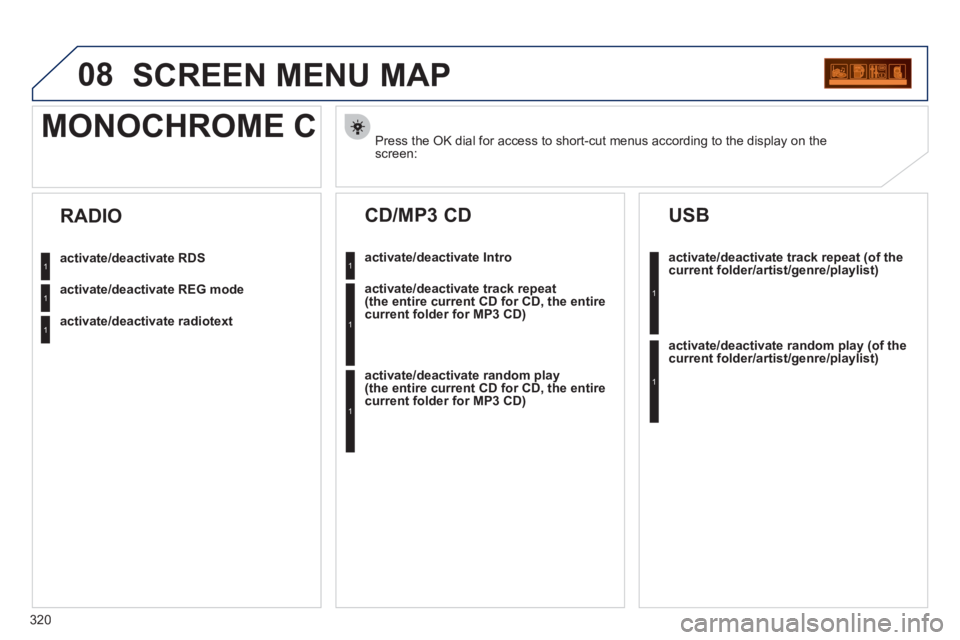

08SCREEN MENU MAP
Press the OK dial for access to short-cut menus according to the display on thescreen:
MONOCHROME C
activate/deactivate RDS
activate/deactivate REG mode
activate/deactivate radiotext


RADIO
activate/deactivate Intro


CD/MP3 CD
activate/deactivate track repeat (the entire current CD for CD, the entire current folder for MP3 CD)
activate/deactivate random play (the entire current CD for CD, the entire current folder for MP3 CD)
activate/deactivate track repeat (of the current folder/artist/genre/playlist)


USB
activate/deactivate random play(of thecurrent folder/artist/genre/playlist)
1
1
1
1
1
1
1
1

321
08

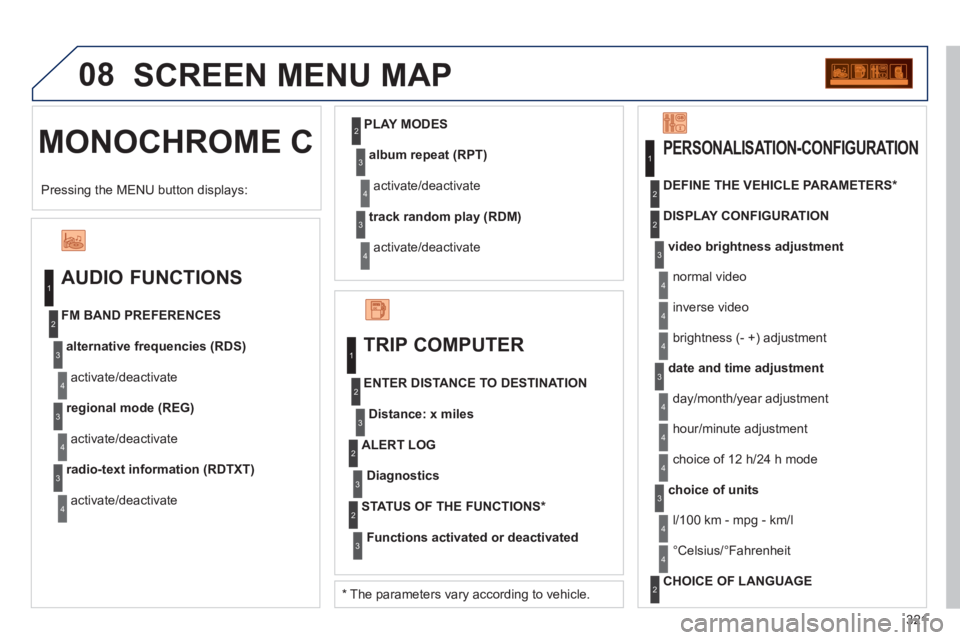

MONOCHROME C SCREEN MENU MAP


AUDIO FUNCTIONS
alternative frequencies (RDS)
activate/deactivate FM BAND PREFERENCES
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
1
2
3
4
3
4
3
4
PLAY MODES
album repeat (RPT)
activate/deactivate
track random play (RDM)

activate/deactivate

2
3
4
3
4


TRIP COMPUTER
Distance: x miles
ENTER DISTANCE TO DESTINATION
Diagnostic s
ALERT LOG
Functions activated or deactivated


STATUS OF THE FUNCTIONS *
1
2
3
3
2
3
2
video brightness adjustment
DISPLAY CONFIGURATION DEFINE THE VEHICLE PARAMETERS *


PERSONALISATION-CONFIGURATION
normal video
inverse video
brightness (- +) adjustment
date and time adjustmen
t
day/month/year adjustment
hour
/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mp
g - km/l
°
Celsius/°Fahrenheit
CHOICE OF LANGUAGE

1
2
4
3
2
4
4
3
4
4
2
3
4
4
Pressing the MENU button displays:

*

The parameters vary according to vehicle.
4

323
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION

There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources,which may result in audible differences when changing source (radio, CD...).

Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted tothe sources listened to. It is advisable to setthe AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.


- Check the condition of the CD: the CD cannot be played if it is too damaged.


- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.


- The audio equipment's CD player does notplay DVDs.


- Due to their quality level, certain writeableCDs will not be played by the audio system.

The message "USB peripheral error" isdisplayed on the screen.

The Bluetooth connectionis cut.
The battery of the peripheral may not be suffi ciently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.

Reformat the memory stick.

The CD player sound ispoor.The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.
