COMFORT

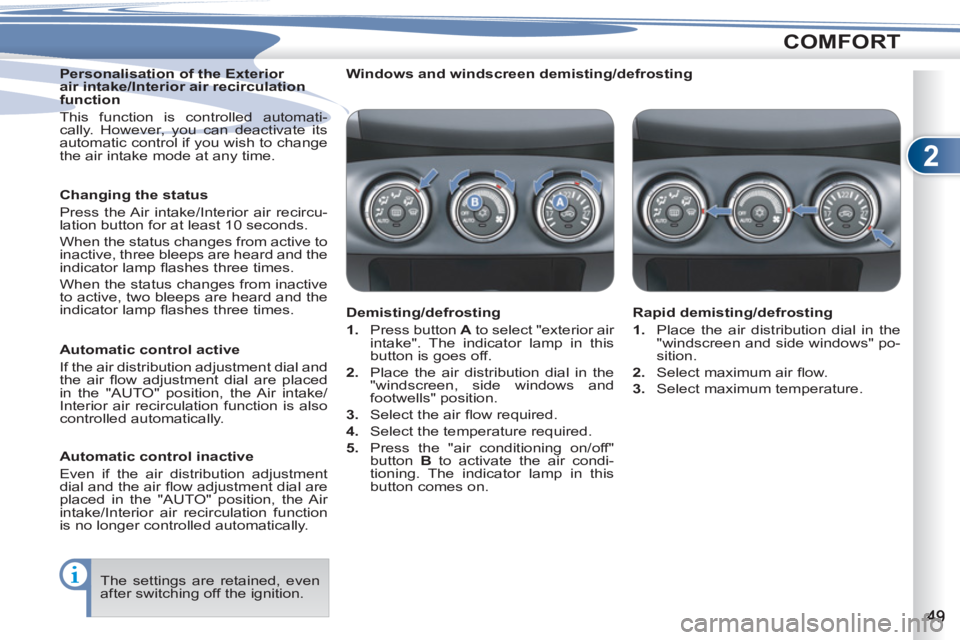

Personalisation of the Exterior
air intake/Interior air recirculation
function
This function is controlled automati-
cally. However, you can deactivate its
automatic control if you wish to change
the air intake mode at any time.

Changing the status
Press the Air intake/Interior air recircu-
lation button for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp fl ashes three times.
When the status changes from inactive
to active, two bleeps are heard and the
indicator lamp fl ashes three times.

Automatic control active
If the air distribution adjustment dial and
the air fl ow adjustment dial are placed
in the "AUTO" position, the Air intake/
Interior air recirculation function is also
controlled automatically.
Windows and windscreen demisting/defrosting

Demisting/defrosting


1.
Press button A
to select "exterior air
intake". The indicator lamp in this
button is goes off.

2.
Place the air distribution dial in the
"windscreen, side windows and
footwells" position.

3.
Select the air fl ow required.

4.
Select the temperature required.

5.
Press the "air conditioning on/off"
button B
to activate the air condi-
tioning. The indicator lamp in this
button comes on.

Rapid demisting/defrosting


1.
Place the air distribution dial in the
"windscreen and side windows" po-
sition.

2.
Select maximum air fl ow.

3.
Select maximum temperature.



Automatic control inactive
Even if the air distribution adjustment
dial and the air fl ow adjustment dial are
placed in the "AUTO" position, the Air
intake/Interior air recirculation function
is no longer controlled automatically.
The settings are retained, even
after switching off the ignition.

3

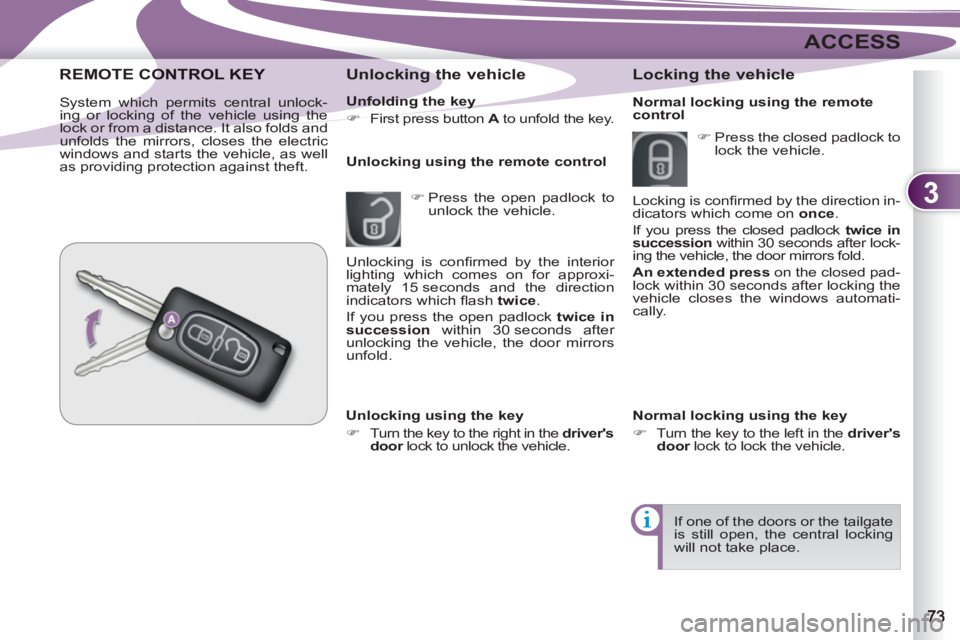

ACCESS

Unfolding the key


)
First press button A
to unfold the key.



Unlocking the vehicle



)
Press the open padlock to
unlock the vehicle.
Unlocking using the remote control
REMOTE COONTROL KEY

System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft.

Locking the vehicle


Unlocking using the key


)
Turn the key to the right in the driver's
door
lock to unlock the vehicle.



)
Press the closed padlock to
lock the vehicle.
If one of the doors or the tailgate
is still open, the central locking
will not take place. Unlocking is confi rmed by the interior
lighting which comes on for approxi-
mately 15 seconds and the direction
indicators which fl ash twice
.
If you press the open padlock twice in
succession
within 30 seconds after
unlocking the vehicle, the door mirrors
unfold.

Normal locking using the key


)
Turn the key to the left in the driver's
door
lock to lock the vehicle. Locking is confi rmed by the direction in-
dicators which come on once
.
If you press the closed padlock twice in
succession
within 30 seconds after lock-
ing the vehicle, the door mirrors fold.

An extended press
on the closed pad-
lock within 30 seconds after locking the
vehicle closes the windows automati-
cally.
Normal locking using the remote
control

3
ACCESS
The electric window switches
can be confi gured via the colour
screen "Equipment" menu.
The electric window switches
remain operational for approxi-
mately 30 seconds after the igni-
tion is switched off and the switch
on the driver's door remains op-
erational for a further 30 seconds
when the door is opened.
The windows can no longer be
opened or closed after the driver's
door is closed.
The rear windows do not lower
fully.
ELECTRIC WWINDOWS


1.
Driver's electric window switch.


2.
Passenger's electric window
switch.


3.
Rear right electric window
switch.


4.
Rear left electric window switch.


5.
Deactivating

the passenger and
rear electric window switches.


In the event of unwanted open-
ing of the window on closing (for
example in the presence of frost),
reinitialise the electric windows
(refer to the corresponding para-
graph).
Safety anti-pinch
In automatic mode, when the window
rises and meets an obstacle, it stops
and lowers again.

Operation

With the ignition on, you have two op-
tions:


- manual mode



)
Press the switch gently to open or
pull it gently to close. The window
stops as soon as the switch is re-
leased.



- automatic mode



)
Press the switch fully to open or
pull it fully to close. The window
opens or closes completely when
the switch is released.

)
Pressing the switch again stops
the movement of the window.

System which opens or closes a window
manually or automatically. It is fi tted with
a system which provides protection if an
obstacle is detected on one-touch mod-
els and a deactivation system to prevent
misuse of the rear controls.

3
ACCESS

Deactivating the passenger and rear
electric window switches
Reinitialising the electric windows

Following reconnection of the battery or
after the safety anti-pinch has been trig-
gered three times in succession, you
must reinitialise the safety anti-pinch
function:


)

with the door closed, lower the win-
dow completely then raise it again, it
will rise in steps of a few centimetres
each time the switch is pressed, re-
peat the operation until the window
is fully closed,

)
continue to press the switch for at
least one second after reaching the
window closed position. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.

)
For the safety of your children, press
switch 5 to prevent operation of the
passenger and rear electric windows
irrespective of their position.
When the button is pressed down, the
switches are deactivated.
When the button is raised, the switches
are activated.
When the button is pressed down,
you can open or close all of the
windows using the switches on
the driver's door.

The safety

anti

-

pinch

function is not
active during these operations.

5

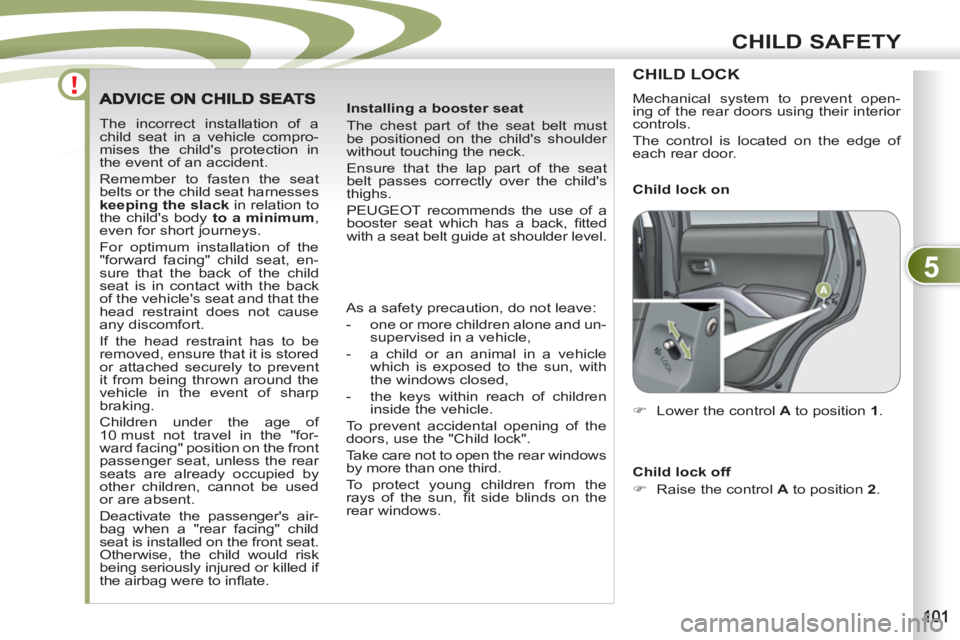

CHILD SAFETY
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
Remember to fasten the seat
belts or the child seat harnesses
keeping the slack
in relation to
the child's body to a minimum
,
even for short journeys.
For optimum installation of the
"forward facing" child seat, en-
sure that the back of the child
seat is in contact with the back
of the vehicle's seat and that the
head restraint does not cause
any discomfort.
If the head restraint has to be
removed, ensure that it is stored
or attached securely to prevent
it from being thrown around the
vehicle in the event of sharp
braking.
Children under the age of
10 must not travel in the "for-
ward facing" position on the front
passenger seat, unless the rear
seats are already occupied by
other children, cannot be used
or are absent.
Deactivate the passenger's air-
bag when a "rear facing" child
seat is installed on the front seat.
Otherwise, the child would risk
being seriously injured or killed if
the airbag were to infl ate.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level.
As a safety precaution, do not leave:


- one or more children alone and un-
supervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.

CHILD LOCK



)
Lower the control A
to position 1
.

Child lock on

Child lock off


)
Raise the control A
to position 2
.

Mechanical system to prevent open-
ing of the rear doors using their interior
controls.
The control is located on the edge of
each rear door.

6
SAFETY






Lateral airbags

System which protects the driver and
passenger in the event of a serious side
impact in order to limit the risk of injury
to the chest.
Each lateral airbag is fi tted in the front
seat back frame, on the door side.

Activation
The lateral airbag is triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B
, perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
The lateral airbag infl ates between the
front occupant of the vehicle and the
corresponding door trim panel.







Curtain airbags

System which protects the driver and pas-
sengers (with the exception of the rear cen-
tre passenger and the passengers in row 3)
in the event of a serious side impact in order
to limit the risk of injury to the head.
Each curtain airbag is fi tted in the pillars
and the upper section of the passenger
compartment.
Deployment
The curtain airbag is deployed at the same
time as the corresponding lateral airbag in
the event of a serious side impact applied
to all or part of the side impact zone B
, per-
pendicular to the longitudinal centreline of
the vehicle on a horizontal plane and di-
rected from the outside towards the inside
of the vehicle.
The curtain airbag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle
or if the vehicle rolls over, the
airbag may not be deployed.
In the event of a rear or front
collision, the airbag is not de-
ployed.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.



Operating fault

If this warning lamp comes on in the instru-
ment panel and this display appears in the in-
strument panel screen, contact a PEUGEOT
dealer or a qualifi ed workshop to have the
system checked. The airbags may no longer
be deployed in the event of a serious impact.

9
PRACTICAL INFORMATION

Access to the fuses


)
Open the glove box,

)
Push the two opening guides A
in-
wards to pass the fi rst notch,

)
Remove the retaining tab B
pulling
it outwards,

)
Support the cover and tilt it down-
wards,

)
Change the fuse (refer to the cor-
responding paragraph).
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried
out by a PEUGEOT dealer or a qualifi ed workshop.


Fuse N°



Rating



Functions




17



10 A

4 wheel drive control unit.


18



7.5 A

Reversing lamps, parking sensors control unit,
reversing camera, airbag control unit.


19



15 A

Accessory socket.


20*



30 A

Electric window controls.


21
*

30 A

Rear screen demisting.


22



7.5 A

Heated door mirrors.


23



-

Not used.


24



25 A

Driver’s electric seat, footwell lighting, rear bench
seat release.


25



30 A

Heated seats.

9
PRACTICAL INFORMATION
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.

Charging the battery using a
battery charger


)
Disconnect the battery from the ve-
hicle.

)
Remove the battery and place it in a
ventilated area.

)
Remove the top-up caps and top up
the level with distilled water if nec-
essary.

)
Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.

)
Disconnect the battery from the
charger and let it to cool.

)
If necessary, top up the level with
distilled water.

)
Clean the top of the battery care-
fully.

)
Put the top-up caps back in place.

)
Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish de-
posit), remove them and clean them.

)
Reconnect the battery starting with
the positive terminal (+). It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi rst.
Avoid prolonged contact of the
electrolyte with the skin.
Most of these fl uids are harmful
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before discon-
necting the battery.

Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of
the electronic systems. However, if slight
diffi culties are encountered following this
operation, contact a PEUGEOT dealer or
a qualifi ed workshop.
Referring to the corresponding section,
you must yourself reinitialise:


- the one-touch electric windows,

- the sunroof,

- the satellite navigation system.
