2011 PEUGEOT 308 ESP

198
PRACTICAL INFORMATION


Disconnecting the cables


)
Raise the locking tab fully.


Reconnecting the cables


)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to posi-
tion it correctly against the battery.

)
Lock the clip by spreading the position-
ing lug and then lowering the tab 2
.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
minals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with a 6-speed
electronic gear control gearbox or an
automatic gearbox.

The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with regu-
lations and must not, in any circum-
stances, be discarded with household
waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.

Charging the battery using a
battery charger


)
Disconnect the battery from the ve-
hicle.

)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.

)
Reconnect starting with the negative
terminal (-).

)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.


It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.

Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation
of the electronic systems. However, if
problems remain following this opera-
tion, contact a PEUGEOT dealer or a
qualifi ed workshop.
Referring to the corresponding section,
you must yourself reinitialise:


- the remote control key,

- the panoramic sunroof blind,

- the satellite navigation system.

Do not force the tab as locking will not
be possible if the clip is not positioned
correctly; start the procedure again.

200
PRACTICAL INFORMATION








CHANGING A WIPER BLADE


Removing



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper
blade


)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades verti-
cally on the windscreen.



After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.







TOWING THE VEHICLE






Access to the tools
Towing your vehicle



)
On the front bumper, unclip the cover
by pressing at the bottom.

)
Screw the towing eye in fully.

)
Install the towing bar.

)
Switch on the hazard warning lamps
on the towed vehicle.
The towing eye is installed in the boot
under the fl oor.
To gain access to it:


)
open the boot,

)
raise the fl oor,

)
secure it by hooking the cords on
the hooks on the rear parcel shelf
support,

)
remove the polystyrene box,

)
remove the towing eye from the
holder.

)
Place the gear lever in
neutral (position N
on
the electronic gear con-
trol gearbox or automatic
gearbox).
Failure to observe this special condi-
tion could result in damage to certain
braking components and the absence
of braking assistance the next time
the engine is started.
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.

229
04
7
8
9
10
11
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

Repeat steps 5 to 7 for the "Street"
and "House number" functions.

To delete a destination; from steps 1 to 3, select "Choose from last
destinations".
A long press on one of the destinations displays a list of actions
from which you can select:
Select the "Save to address book" function to record the address
entered in a directory fi le. Press OK to confi rm the selection.
The Peugeot Connect Media allows more than 4 000 contact
records to be saved.
To speed up the process, the post code can be entered directly
after selecting the "Postal code" function.
Use the virtual keypad to enter the letters and digits.

Select the route type:
"Fast route", "Short route", or
"Optimized route" and press OK to
confi rm.
Then select "Start route guidance"
and the press OK to confi rm.


It is also possible to select a destination via "Choose from address
book" or "Choose from last destinations", by selecting a junction, a
town centre, geographic coordinates, or directly on the "Map".

Choose from address book


Choose from last destinations


Start route guidance


It is possible to scroll the map using the 4-direction navigator. It is possible
to select its orientation via the short-cut menu of the "Full screen map".
Press OK then select "Map Settings" and confi rm.

Select the road with the colour
corresponding to the route chosen
and press OK to confi rm and start
guidance.


Turn the ring and select OK.
Press OK to confi rm.


Delete entry


Delete list



NAVIGATION - GUIDANCE

239
06
11
2
RADIO
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
RADIONAV ESC TRAFFICMEDIA
RADIONAV ESC TRAFFICMEDIA

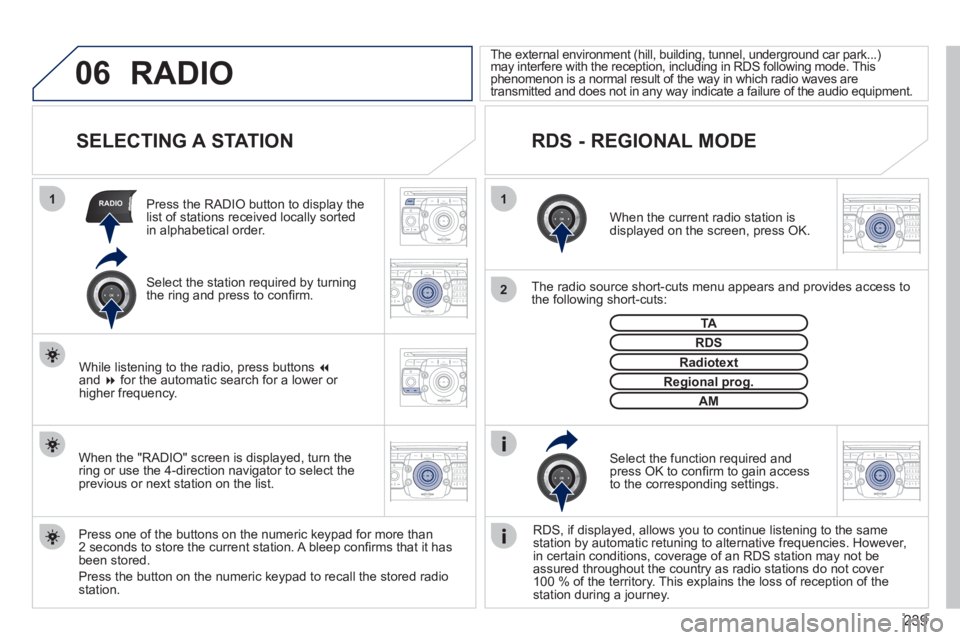

SELECTING A STATION


When the current radio station is
displayed on the screen, press OK.

The radio source short-cuts menu appears and provides access to
the following short-cuts:

Select the function required and
press OK to confi rm to gain access
to the corresponding settings.
TA


RDS, if displayed, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the country as radio stations do not cover
100 % of the territory. This explains the loss of reception of the
station during a journey.





The external environment (hill, building, tunnel, underground car park...)
may interfere with the reception, including in RDS following mode. This
phenomenon is a normal result of the way in which radio waves are
transmitted and does not in any way indicate a failure of the audio equipment.

RDS - REGIONAL MODE


Regional prog.

Radiotext

RDS

Press the RADIO button to display the
list of stations received locally sorted
in alphabetical order.

Press one of the buttons on the numeric keypad for more than
2 seconds to store the current station. A bleep confi rms that it has
been stored.
Press the button on the numeric keypad to recall the stored radio
station.


RADIO


When the "RADIO" screen is displayed, turn the
ring or use the 4-direction navigator to select the
previous or next station on the list.
While listening to the radio, press buttons

and
for the automatic search for a lower or
higher frequency. Select the station required by turning
the ring and press to confi rm.


AM

254
SETUP

Settings 2


Automatic answering system
3


Select ring tone
3


Phone/Ring tone volume
3


Enter mailbox number
3


Internal phone settings
3


Automatically accept call
3


Signal waiting call (?)
3


Show status
3


Activate waiting call
3


Deactivate waiting call
3


Call forward (?)
3


Show status
3


Activate call forward
3


Deactivate call forward
3


Suppress own number
3


Select network
3


Set network automatically
3


Set network manually
3


Search for networks
3


PIN settings
3


Change PIN
3

Activate PIN 4

Deactivate PIN 4


Remember PIN
3


SIM-card memory status


3


"SETUP" Menu


Menu language



Language & Speech
1
2
3

Deutsch 4

English 4

Español 4

Français 4

Italiano 4

Nederlands 4

Polski 4


Voice control
3

Voice control active 4

Tutorial 4

Portuguese 4

Basics 5

Examples 5

Tips 5

Speaker adaptation 4

New speaker adaptation 5

Delete speaker adaptation 5


Voice output volume

3


Date & Time 2


Set date & time
3


Date format
3


Time format

3

277
06
3 2 1 1

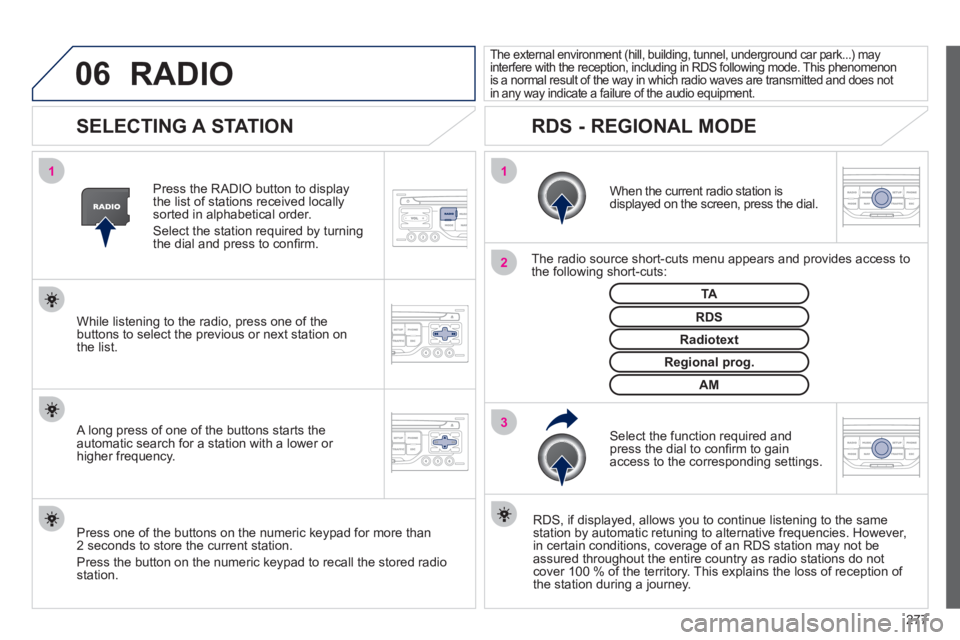

SELECTING A STATION


When the current radio station is
displayed on the screen, press the dial.

The radio source short-cuts menu appears and provides access to
the following short-cuts:

Select the function required and
press the dial to confi rm to gain
access to the corresponding settings.
TA


RDS, if displayed, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not
cover 100 % of the territory. This explains the loss of reception of
the station during a journey.


The external environment (hill, building, tunnel, underground car park...) may
interfere with the reception, including in RDS following mode. This phenomenon
is a normal result of the way in which radio waves are transmitted and does not
in any way indicate a failure of the audio equipment.






RDS - REGIONAL MODE


Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.
Select the station required by turning
the dial and press to confi rm.

Regional prog.

Radiotext

RDS


While listening to the radio, press one of the
buttons to select the previous or next station on
the list.

Press one of the buttons on the numeric keypad for more than
2 seconds to store the current station.
Press the button on the numeric keypad to recall the stored radio
station.

AM



A long press of one of the buttons starts the
automatic search for a station with a lower or
higher frequency.

RADIO

287

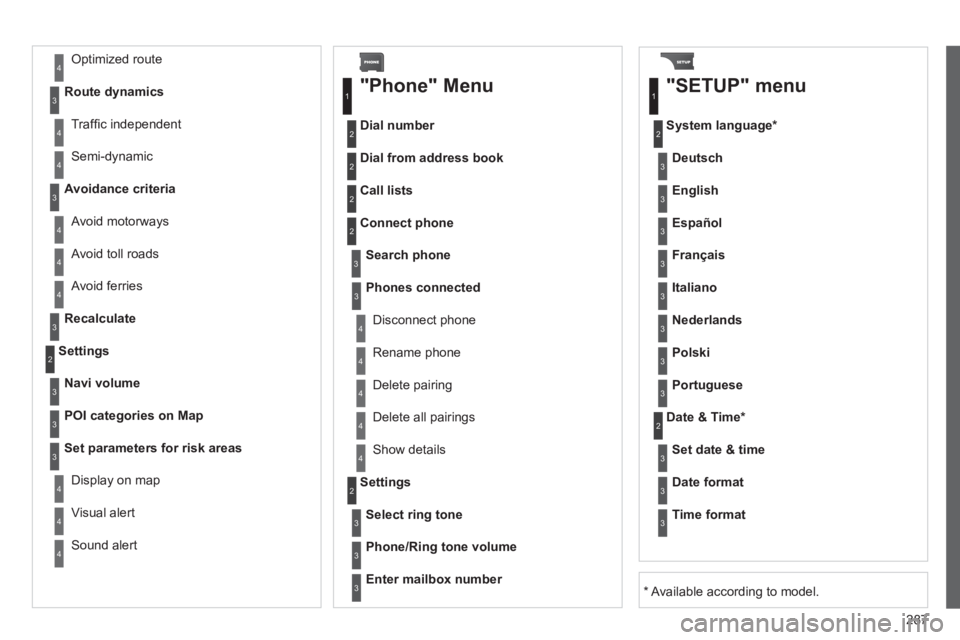

Avoid ferries

Recalculate



Settings

Navi volume


POI categories on Map


Set parameters for risk areas

Display on map
Visual alert
Sound alert

3
2
4
3
3
3
4
4
4


Dial number

Dial from address book


"Phone" Menu


Search phone

Call lists

Connect phone

Select ring tone


Phone/Ring tone volume

Phones connected


Enter mailbox number



Settings Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details


"SETUP" menu


System language *

English


Español

Deutsch


Italiano

Français


Nederlands


Polski


Portuguese



Date & Time *

Set date & time


Date format



Time format


1
2
2
2
2
3
3
4
4
4
4
4
2
3
3
3
1
2
3
3
3
3
3
3
3
3
3
3
3
2

Avoid motorways
Route dynamics

Traffi c independent
Semi-dynamic

Avoidance criteria

Avoid toll roads Optimized route
3
3
4
4
4
4
4


*
Available according to model.

309

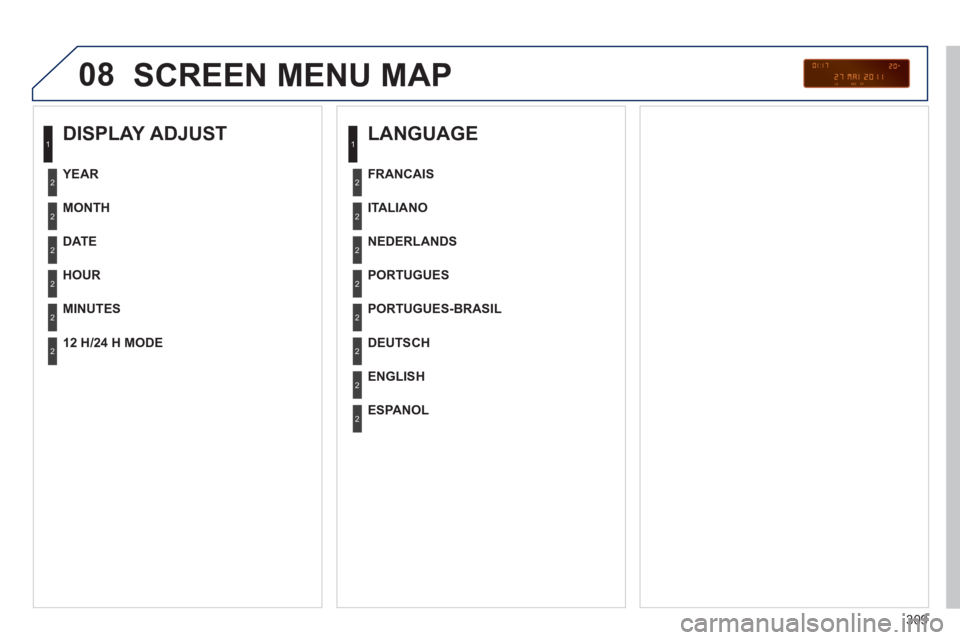

08 SCREEN MENU MAP


DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR

12 H/24 H MODE



LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH


ESPANOL

1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
