FITTINGS

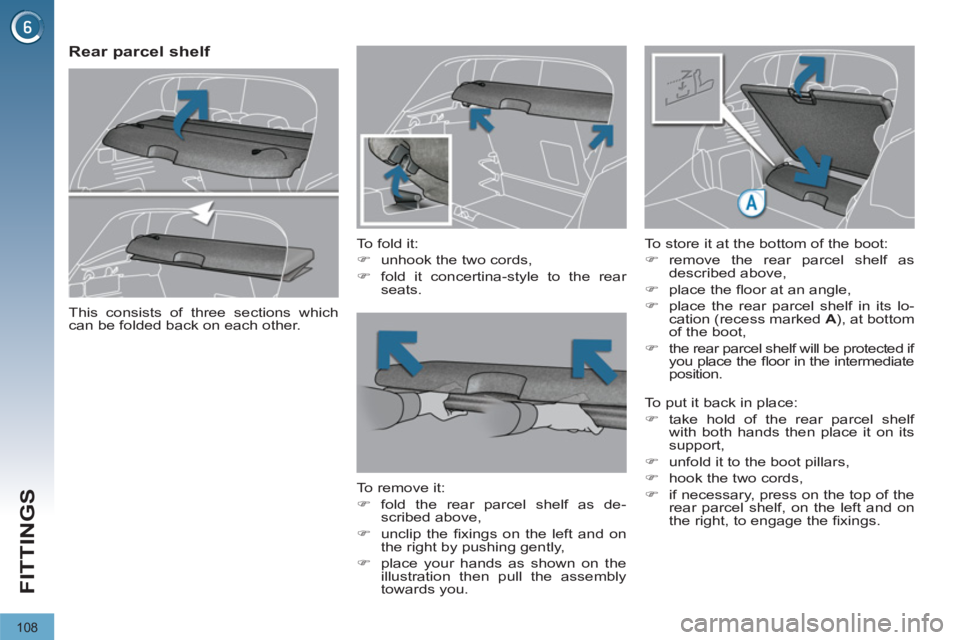

Rear parcel shelf
To fold it:
)
unhook the two cords,
)
fold it concertina-style to the rear
seats.
To remove it:
)
fold the rear parcel shelf as de-
scribed above,
)
unclip the fi xings on the left and on
the right by pushing gently,
)
place your hands as shown on the
illustration then pull the assembly
towards you.
To store it at the bottom of the boot:
)
remove the rear parcel shelf as
described above,
)
place the fl oor at an angle,
)
place the rear parcel shelf in its lo-
cation (recess marked A
), at bottom
of the boot,
)
the rear parcel shelf will be protected if
you place the fl oor in the intermediate
position.
This consists of three sections which
can be folded back on each other.
To put it back in place:
)
take hold of the rear parcel shelf
with both hands then place it on its
support,
)
unfold it to the boot pillars,
)
hook the two cords,
)
if necessary, press on the top of the
rear parcel shelf, on the left and on
the right, to engage the fi xings.
Page 111 of 328
109
FITTINGS
When changing a wheel
The hooks facilitate access
to the spare wheel, retain-
ing the boot carpet by means of the
two cords.
The hooks can be used to secure shop-
ping bags.
Hooks
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition position.
12 V accessory socket
Luggage retaining net
Hooked onto the stowing rings on the
movable boot fl oor, the luggage retaining
net available as an accessory enables
you to secure your luggage.
Observe the loads indicated on the side
of the boot, in accordance with the posi-
tion of the movable fl oor.
For safety reasons in case of sharp
braking, we recommend that heavy ob-
jects are placed on the fl oor as close as
possible to the back of the rear seats.
Page 112 of 328
11 0
FITTINGS
)
Raise the boot carpet, hooking the
two cords on the hooks, then gain
access to the storage box.
Depending on the confi guration, this
has areas for storing:
- a box of spare bulbs,
- a fi rst aid kit,
- a tyre repair kit,
- two warning triangles,
- ...

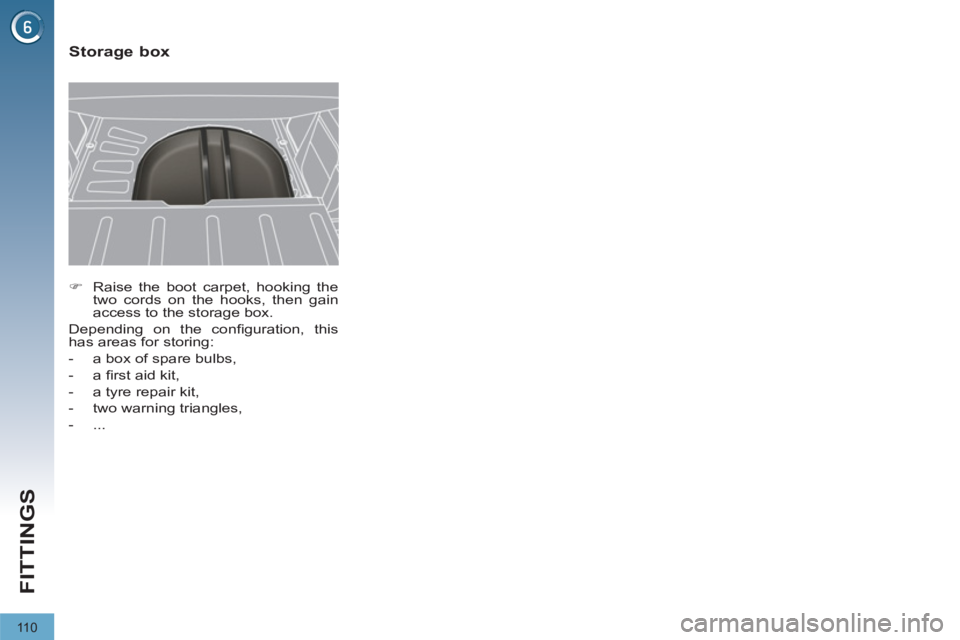

Storage box
Page 113 of 328
111
FITTINGS
Adjustable boot floor
This three position fl oor allows you to
optimise the volume of the boot by means
of the guides placed on the sides:
- High position (50 kg max): the fl oor
is level with the closed lower tail-
gate.
You can load objects while keeping
an area protected and isolated.
- Intermediate position (100 kg max):
the fl oor is level with the open lower
tailgate.
You obtain a fl at fl oor to the front
seats when the rear seats are in the
retracted position.
- Low position (150 kg max): maximum
boot volume.
To place and support the fl oor at an angle:
)
From the high position, raise the
fl oor towards the load space cover.
)
Do not hesitate to pass the two re-
tractable stops then place the fl oor
back on these two stops.
To change the height of the fl oor:
)
Push the fl oor fully forwards then,
with the help of the support stops A
,
move the fl oor to the position
required.
The fl oor is equipped with four stowing
rings to secure your luggage, observing
the loads indicated (in the boot).
Page 114 of 328
11 2
FITTINGS

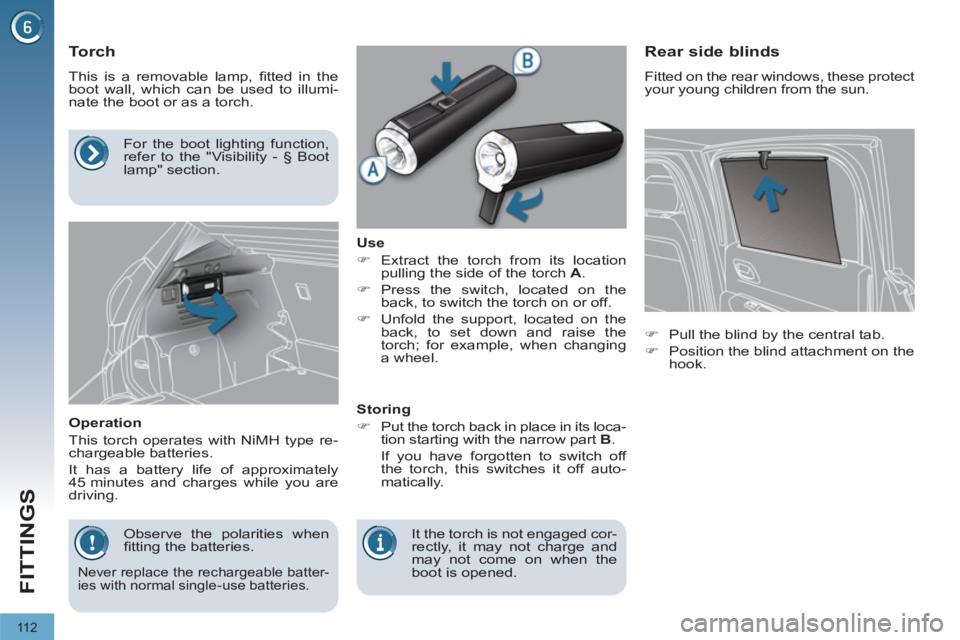

Torch
This is a removable lamp, fi tted in the
boot wall, which can be used to illumi-
nate the boot or as a torch.
Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Use
)
Extract the torch from its location
pulling the side of the torch A
.
)
Press the switch, located on the
back, to switch the torch on or off.
)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
)
Put the torch back in place in its loca-
tion starting with the narrow part B
.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.
Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
)
Pull the blind by the central tab.
)
Position the blind attachment on the
hook.
Observe the polarities when
fi tting the batteries.
Never replace the rechargeable batter-
ies with normal single-use batteries.
It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
Page 143 of 328
141
DRIVING
Front left seat moved back fully.
In the event of the electric parking brake
malfunctioning or the battery running
fl at, an emergency manual device can
release the parking brake.
Emergency release
)
Immobilise the vehicle (or keep
it stationary, if the brake pedal is
pressed), with the engine running,
by engaging fi rst gear (manual gear-
box), position P
(automatic gearbox)
or M
or R
(6-speed electronic gear
control gearbox).
)
Switch off the engine but leave the
ignition on. If it is impossible to im-
mobilise the vehicle, do not operate
the control and contact a PEUGEOT
dealer or a qualifi ed workshop ur-
gently.
)
Fetch the two vehicle blocks and
the release device, located under
the boot carpet (see "Changing a
wheel" in the "Practical information"
section).
)
Immobilise the vehicle by placing
blocks in front and behind one of the
front wheels.
)
Slide the front left-hand seat back
as far as possible.
)
Lift up the fl oor plug B
in the carpet
under the seat.
)
Pierce the protective cover C
on the
tube D
with the release device.
)
Place the release device in the tube D
.
)
Turn the release device clockwise.
For safety reasons
, it is essential
to continue turning the device as far
as it will go. The parking brake is re-
leased.
)
Remove the release device and store
it with the blocks in the toolbox.
- The operation of the parking
brake reinitialises when the igni-
tion is switched off then on again.
If the reinitialisation of the parking
brake proves impossible, contact
a PEUGEOT dealer or a qualifi ed
workshop.
- The subsequent time required for
application may be longer than dur-
ing normal operation.
For safety reasons, you must
contact a PEUGEOT dealer
as soon as possible to replace
the protective cover.
Following an emergency unlocking,
immobilisation of the vehicle is no
longer guaranteed once the manual
emergency release has been de-
ployed and the manual control does
not allow the re-application of your
parking brake.
Take no action, either on the control
lever A
, or stopping or starting the
engine while the release device is
engaged.
Take care not to allow moisture or
dust in the proximity of the protective
cover.
Page 176 of 328
174
PRACTICAL INFORMATION

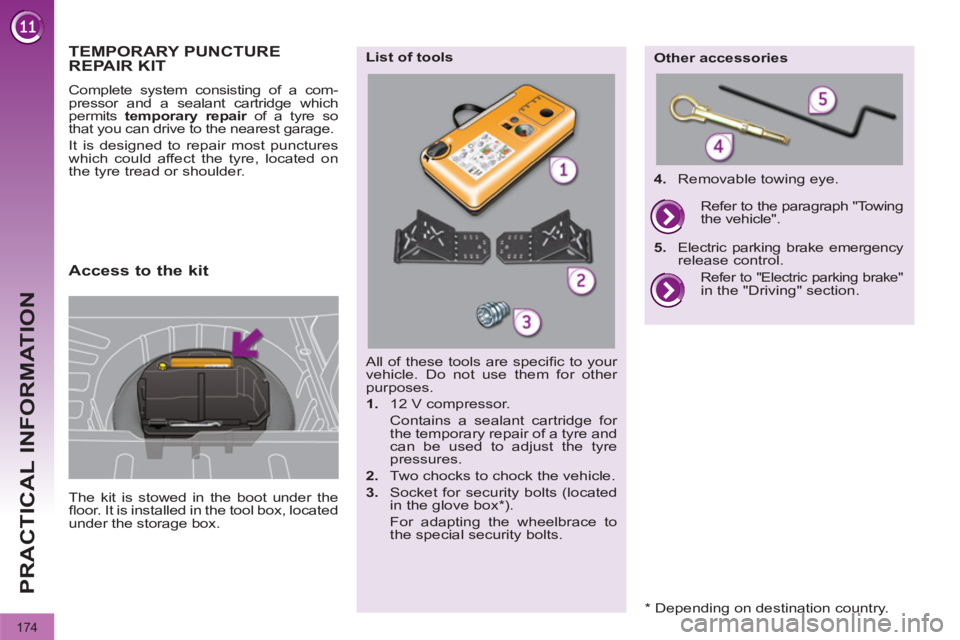

TEMPORARY PUNCTURE
REPAIR KIT
The kit is stowed in the boot under the
fl oor. It is installed in the tool box, located
under the storage box. Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre so
that you can drive to the nearest garage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
1.
12 V compressor.
Contains a sealant cartridge for
the temporary repair of a tyre and
can be used to adjust the tyre
pressures.
2.
Two chocks to chock the vehicle.
3.
Socket for security bolts (located
in the glove box * ).
For adapting the wheelbrace to
the special security bolts.
List of tools
Other accessories
4.
Removable towing eye.
Refer to "Electric parking brake" in the "Driving" section.
Refer to the paragraph "Towing
the vehicle".
5.
Electric parking brake emergency
release control.
Access to the kit
*
Depending on destination country.
Page 182 of 328
180
PRACTICAL INFORMATION
CHANGING A WHEEL *
The tools are installed in the boot under
the fl oor.
To gain access to them:
)
open the boot,
)
place the adjustable boot fl oor at an
angle (refer to the "Fittings" section),
)
raise the fl oor,
)
secure it by hooking its cord on the
hook on the rear parcel shelf support,
)
remove the polystyrene storage box,
)
unclip by pulling upwards then re-
move the box containing the tools.
Access to the tools
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
)
To make the operation easier, re-
move the adjustable boot fl oor,
)
unscrew the yellow central bolt,
With the JBL bass unit
)
remove the bass unit disconnecting
the electrical harness,
)
remove the polystyrene storage box.
*
Depending on destination country.
