The Peugeot Connect Navigation (RNEG) is protected
in such a way that it will only operate in your vehicle.
If it is to be installed in another vehicle, contact a
PEUGEOT dealer for confi guration of the system.

Certain functions described in this handbook will
become available during the year.


Peugeot Connect Navigation
(RNEG)

For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the Peugeot Connect
Navigation (RNEG) switches off following the activation
of the Energy Economy mode.


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE

SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p. 262
263
264
267
275
277
278
281
284
285
289

281
08
1
2
3
4
BLUETOOTH TELEPHONE


*
The services available depend on the network, the SIM card and the
compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.















PAIRING A TELEPHONE
FIRST CONNECTION



For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the Peugeot Connect
Navigation must be carried out with the vehicle stationary. The
ignition must be on.

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (refer to the
telephone instructions).
Enter the authentication code on the telephone.
The code to be entered is displayed on the screen
of the system.
Some telephones offer automatic reconnection of
the telephone every time the ignition is switched
on.
A message confi rms the pairing.

To change the telephone connected,
press the PHONE button, then select
Phone Menu and press the dial to
confi rm.

Once the telephone has been connected, Peugeot Connect
Navigation can synchronise the address book and the call list. This
synchronisation may take a few minutes * .
Pairing can also be started from the telephone (refer to the
telephone instructions).
Visit www.peugeot.co.uk for more information (compatibility, more
help, ...).

Press the PHONE button.
For a fi rst connection, select
"Search phone" and press the dial to
confi rm. Then select the name of the
telephone.

Search phone

282
08
1
2
2
1

*
The services available depend on the network, the SIM card and the
compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.

BLUETOOTH TELEPHONE
















CONNECTING A TELEPHONE



For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the Peugeot Connect
Navigation must be carried out with the vehicle stationary. The
ignition must be on.

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (refer to the
telephone instructions).
The last telephone connected is reconnected
automatically.
A message confi rms the connection.
When a telephone is already
connected, to change it press the
PHONE button, then select Phone
Menu and press the dial to confi rm.
Once the telephone has been connected, Peugeot Connect
Navigation can synchronise the address book and the call list.
This synchronisation may take a few minutes * .

The list of telephones connected previously (4 maximum) appears
on the multifunction screen. Select the telephone required for a
new connection.
Visit www.peugeot.co.uk for more information (compatibility, more
help, ...).

Press the PHONE button.
Select "Connect phone". Select the
telephone and press to confi rm.

Connect phone

283
08
1
3 2
2 1
Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing
the dial.

RECEIVING A CALL
MAKING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.


Ye s


To hang up, press the PHONE button
or press the dial and select "End call"
then confi rm by pressing the dial.

End call



Press the PHONE button.
Select "Dial number", then dial the
telephone number using the virtual
keypad.
No


Select the Phone Menu function and
press the dial to confi rm.
The list of the last 20 calls made and received in the vehicle
appears under Phone Menu. You can select a number and press
the dial to make the call.


It is also possible to select a number from the address book.
You can select "Dial from address book". The Peugeot Connect
Navigation can record up to 1 000 entries (telephone numbers).
Press the end of the steering mounted control for more than two
seconds to gain access to the address book.


Phone Menu


Dial number



It is possible to make a call directly from the telephone; park the
vehicle as a safety measure.

BLUETOOTH TELEPHONE



Press the end of the steering mounted control to
accept the call or end the call in progress.

To delete a number, press the PHONE button then press and hold
on a call number to display a list of actions including:
Delete entry
Delete list

292


QUESTION



ANSWER



SOLUTION


There is a long waiting
time after inserting a CD. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be deactivated or the equipment
may not be visible.

- Check that your telephone's Bluetooth
function is activated.

- Check that your telephone is visible.
A telephone connected
by Bluetooth is inaudible. The volume level depends on both the system and the telephone. Increase the Peugeot Connect Navigation volume
setting, possibly to maximum, and increase the
telephone volume level if necessary.

293





Peugeot Connect Sound (RD5)


Your Peugeot Connect Sound (RD5) is coded in such
a way that it will only operate in your vehicle. If it is to
be installed in another vehicle, contact your PEUGEOT
dealer for confi guration of the system.

For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio equipment may
switch off after a few minutes.



AUDIO SYSTEM/BLUETOOTH

01 First steps

02 Steering mounted controls

03 Main menu

04 Audio

05 Peugeot Connect USB

06 Bluetooth

07 Configuration

08 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p. 294
295
296
297
300
303
306
308
313
CONTENTS

296

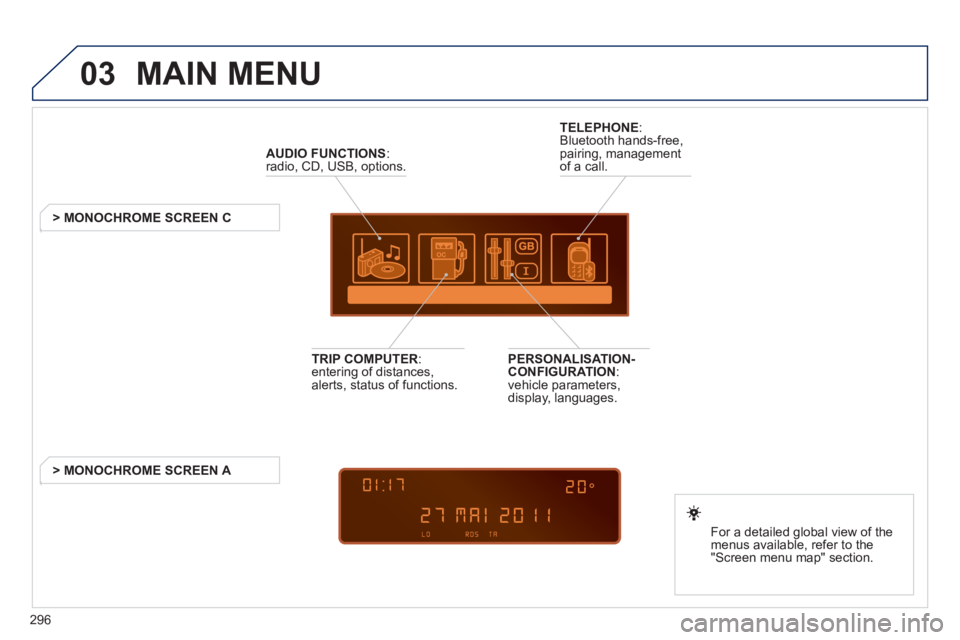

03 MAIN MENU



AUDIO FUNCTIONS
:
radio, CD, USB, options.








> MONOCHROME SCREEN C

For a detailed global view of the
menus available, refer to the
"Screen menu map" section.


TELEPHONE
:
Bluetooth hands-free,
pairing, management
of a call.


PERSONALISATION-
CONFIGURATION
:
vehicle parameters,
display, languages.

TRIP COMPUTER
:
entering of distances,
alerts, status of functions.










> MONOCHROME SCREEN A

303
06
1
2
3
4
5
6
7
8
9
MENU
OK

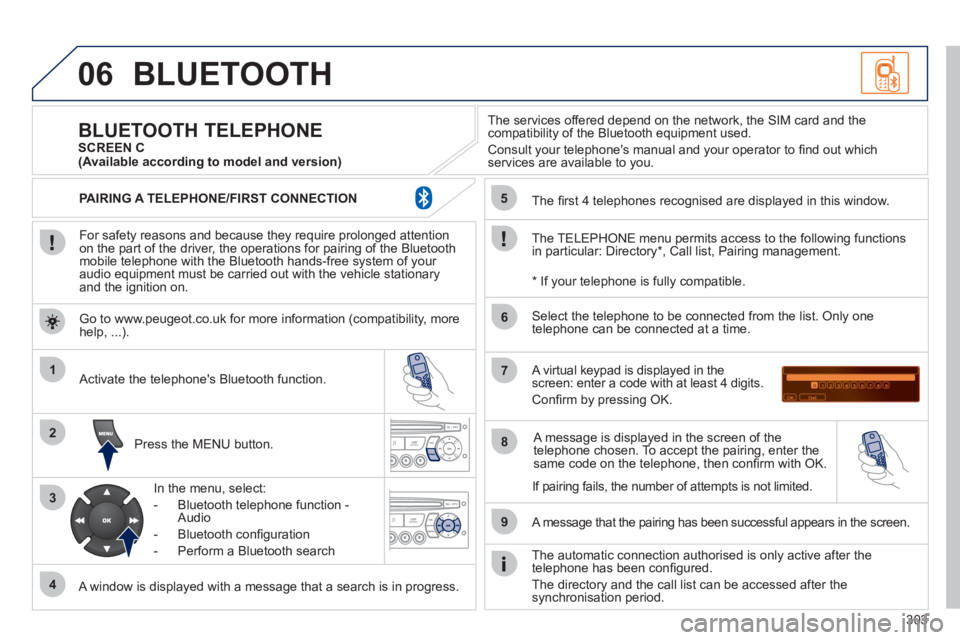

BLUETOOTH


For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.

Press the MENU button.

A window is displayed with a message that a search is in progress.
Activate the telephone's Bluetooth function.

In the menu, select:


- Bluetooth telephone function -
Audio

- Bluetooth confi guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the
compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which
services are available to you.










BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.

A virtual keypad is displayed in the
screen: enter a code with at least 4 digits.
Confi rm by pressing OK.

A message that the pairing has been successful appears in the screen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A message is displayed in the screen of the
telephone chosen. To accept the pairing, enter the
same code on the telephone, then confi rm with OK.

The automatic connection authorised is only active after the
telephone has been confi gured.
The directory and the call list can be accessed after the
synchronisation period.

(Available according to model and version)

*
If your telephone is fully compatible.
If pairing fails, the number of attempts is not limited. Go to www.peugeot.co.uk for more information (compatibility, more
help, ...).
PAIRING A TELEPHONE/FIRST CONNECTION
