2011 PEUGEOT 308 navigation

CONTENTS
FAMILIARISATION 4-26
INSTRUMENTS and
CONTROLS 27-41CHILD SAFETY 113-123
MULTIFUNCTION
SCREENS 42-57SAFETY 124-136 COMFORT 58-73
ACCESS 74-88
VISIBILITY 89-99FITTINGS 100-112
Instrument panels 27
Indicator and warning lamps 29
Indicators 37
Adjustment buttons 41Child seats 113
ISOFIX child seats 120
Child lock 123
Screen A without audio equipment 42
Screen A with audio equipment 44
Screen C
(Peugeot Connect Sound) 46
16/9 retractable colour screen
(Peugeot Connect Navigation
(RNEG)) 49
16/9 high definition retractable colour
screen (Peugeot Connect Media) 51
Trip computer 54Direction indicators 124
Hazard warning lamps 124
Horn 124
Tyre under-inflation detection 125
ESC system 126
Grip control 128
Front seat belts 130
Airbags 133 Heating and Ventilation 58
Manual air conditioning 60
Rear screen demist/defrost 61
Dual-zone digital air conditioning 62
Front seats 65
Rear seats 69
Mirrors 71
Steering wheel adjustment 73
Remote control key 74
Alarm 79
Electric windows 81
Doors 83
Boot 85
Lower tailgate 86
Fuel tank 87
Misfuel prevention 88
Lighting controls 89
Automatic illumination
of headlamps 92
Headlamp adjustment 92
Directional lighting 93
Wiper controls 94
Automatic rain sensitive wipers 96
Courtesy lamps 97
Interior mood lighting 98Interior fittings 100
Front armrest 102
Rear multimedia 104
Panoramic sunroof 106
Boot fittings 107
ECO-DRIVING 25

CONTENTS
ALPHABETICAL
INDEX 315-319 DRIVING 137-165
CHECKS 166-173PRACTICAL
INFORMATION 174-204
TECHNICAL
DATA 205-212AUDIO EQUIPMENT
and TELEMATICS 213-314
Electric parking brake 137
Hill start assist 142
Head-up display 145
Distance alert 147
Speed limiter 149
Cruise control 151
Manual gearbox 153
Gear efficiency indicator 153
6-speed electronic gear control
gearbox 154
Automatic gearbox 158
Stop & Start 161
Parking sensors 164
Bonnet 167
Running out of fuel (Diesel) 168
Petrol engines 169
Diesel engines 170
Checking levels 171
Checks 172Temporary puncture repair kit 174
Changing a wheel 180
Changing a bulb 185
Changing a fuse 190
12 V Battery 197
Energy economy mode 199
Changing a wiper blade 200
Towing the vehicle 200
Towing a trailer 202
Fitting roof bars 203
Very cold climate screen 203
Accessories 204
Petrol engines 205
Petrol weights 206
Diesel engines 207
Diesel weights 208
Dimensions 210
Identification markings 211Emergency or assistance 213
Peugeot Connect Media 217
Peugeot Connect Navigation
(RNEG) 261
Peugeot Connect Sound (RD5) 293
VISUAL
SEARCH 320-324

8
FAMILIARISATION
INTERIOR


Electric parking brake
This combines the functions of automatic
application
on switching off the engine
and automatic release
on acceleration.
Manual application/release is possible.
137

Audio and communication systems
These systems benefi t from the latest
technology: MP3 compatible Peugeot
Connect Sound (RD5), Peugeot Connect
USB, Bluetooth, Peugeot Connect Navi-
gation (RNEG) or Peugeot Connect Media
Navigation (NG4 3D) with 16/9 retractable
colour screen, JBL audio system, auxiliary
sockets.
217
Head-up display
This system projects certain information
into the fi eld of vision of the driver: speed,
cruise control/speed limiter and Distance
alert.
145

Dual-zone digital air conditioning
This systems allows different levels of
comfort to be set for the driver and front
passenger. It then controls these level
automatically according to the ambient
conditions.
62

Peugeot Connect
Navigation (RNEG) 261
293
Peugeot Connect
Sound (RD5)

Peugeot Connect Media
Navigation (NG4 3D) Peugeot Connect USB
240,
300
Bluetooth 245,
281,
303
213

PEUGEOT
Assistance

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Wiper/screenwash/trip computer
control stalk.

2.
Audio and telematics system
steering mounted control.

3.
Steering lock and ignition.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
Front armrest - Peugeot Connect
USB and/or JACK auxiliary socket.

9.
12 V accessory socket.

10.
Driver’s storage compartment
(Handbook).

11 .
Alarm switch.
Parking sensors switch.
Dynamic stability control switch
(ESP/ASR).
Stop & Start deactivation switch.

12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation (RT6).

13.
Door mirror controls.
Electric window controls.
Child lock.

14.
Front side window demisting vent.

15.
Windscreen demisting vent.

28
INSTRUMENTS and CONTROLS

Screen(s)










Instrument panel navigator associated
with the Peugeot Connect Media
This group of buttons permits:


- when stationary
, confi guration of the
vehicle's equipment and the screen
settings (languages, units...),

- while driving
, scrolling of the active
functions (trip computer, naviga-
tion...).
Controls
There are four buttons to control the
large 16/9 screen in the instrument
panel:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous display, exit
from the menu.


A.
Speed limiter


or
Cruise control.


(mph or km/h)

B.
Trip distance recorder.


(miles or km)
C.
Service indicator.


(miles or km) or,
Engine oil level indicator.


or
distance recorder.


(miles or km)

D.
6-speed electronic gear control
or automatic gearbox.


E.
Warning messages and function
status messages, trip computer,
GPS navigation information, menus (with Peugeot Connect Media).

49
MULTIFUNCTION SCREENS

Displays in the screen

When the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),

- doors check,

- warning and vehicle function status
messages, displayed temporarily,

- audio functions,

- trip computer information.

-
satellite navigation system information.

From the Peugeot Connect Navigation
(RNEG) control panel, to select one of
the applications:


)

press the dedicated "RADIO"
, "MUSIC"
,
"NAV"
, "TRAFFIC"
, "SETUP"
or "PHONE"

button for access to the corresponding
menu,

)
turn the navigator to move the se-
lection,

)
press the navigator to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display.














16/9 RETRACTABLE COLOUR SCREEN
(WITH PEUGEOT CONNECT NAVIGATION (RNEG))
Controls
For operation of the retract-
able screen (opening, closing,
adjustment of the position,
etc.), refer to the paragraph "Access
to the retractable screen".
For more information on these
applications, refer to the "Audio
and Telematics" section.
Depending on the equipment
fi tted to your vehicle, the trip
computer information appears
in either the multifunction screen
or the instrument panel screen.

51
MULTIFUNCTION SCREENS













16/9 HIGH DEFINITION
RETRACTABLE COLOUR SCREEN
(WITH PEUGEOT CONNECT MEDIA)

Displays on the screen

When the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),

- audio functions,

- telephone and address book infor-
mation,

-
satellite navigation system information.



Controls

From the Peugeot Connect Media control
panel, to select one of the applications:


)

press the dedicated "RADIO"
, "MEDIA"
,
"NAV"
, "TRAFFIC"
, "ADDR BOOK"
or
"SETUP"
button for access to the corre-
sponding menu,


)
turn the navigator to move the se-
lection,

)
press the navigator to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display. For more information on these
applications, refer to the "Au-
dio and Telematics" section or
to the specifi c user guide given to you
with the other owner's documents.
For operation of the retract-
able screen (opening, closing,
adjustment of the position,
etc.), refer to the paragraph "Access
to the retractable screen".

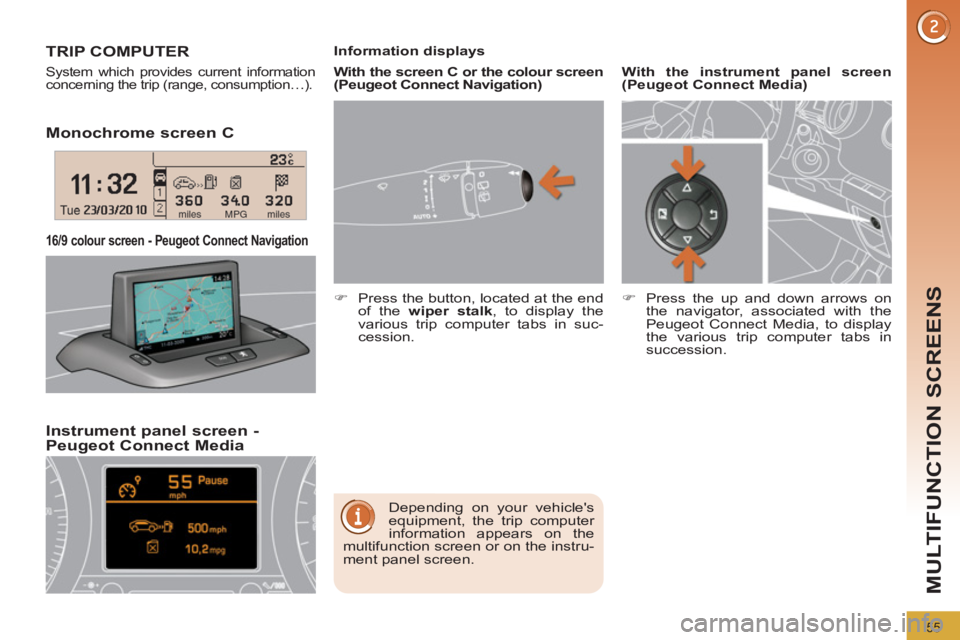

55
MULTIFUNCTION SCREENS

Monochrome screen C

Instrument panel screen -
Peugeot Connect Media

16/9 colour screen - Peugeot Connect Navigation












TRIP COMPUTER

System which provides current information
concerning the trip (range, consumption…).
Depending on your vehicle's
equipment, the trip computer
information appears on the
multifunction screen or on the instru-
ment panel screen.
Information displays


)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.
With the instrument panel screen

(Peugeot Connect Media)



)
Press the up and down arrows on
the navigator, associated with the
Peugeot Connect Media, to display
the various trip computer tabs in
succession.
With the screen C or the colour screen
(Peugeot Connect Navigation)
